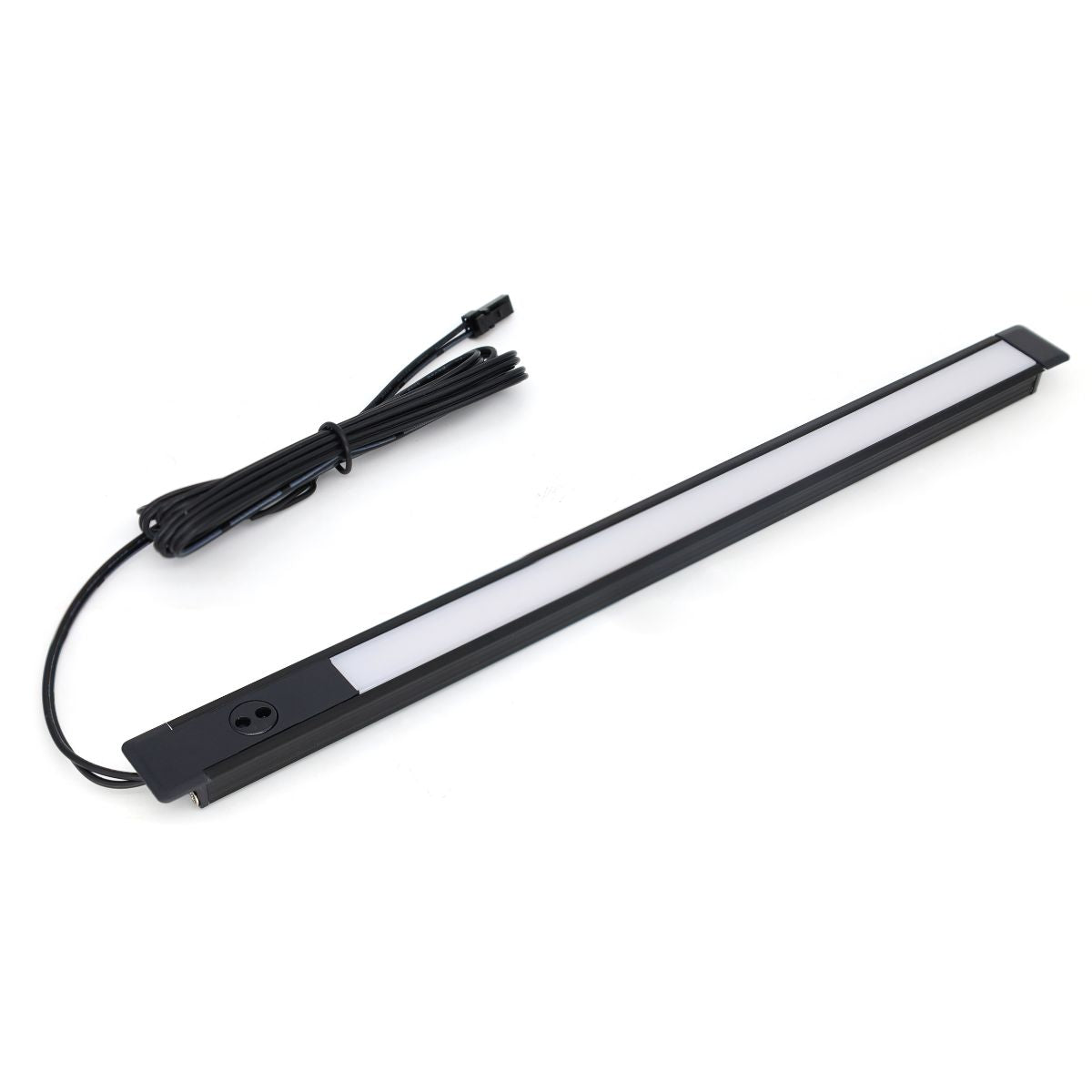

2m Recessed LED Profile with LEDs Fitted, 24V Plug and Play, 10W/m, Warm White 3000K, Anthracite

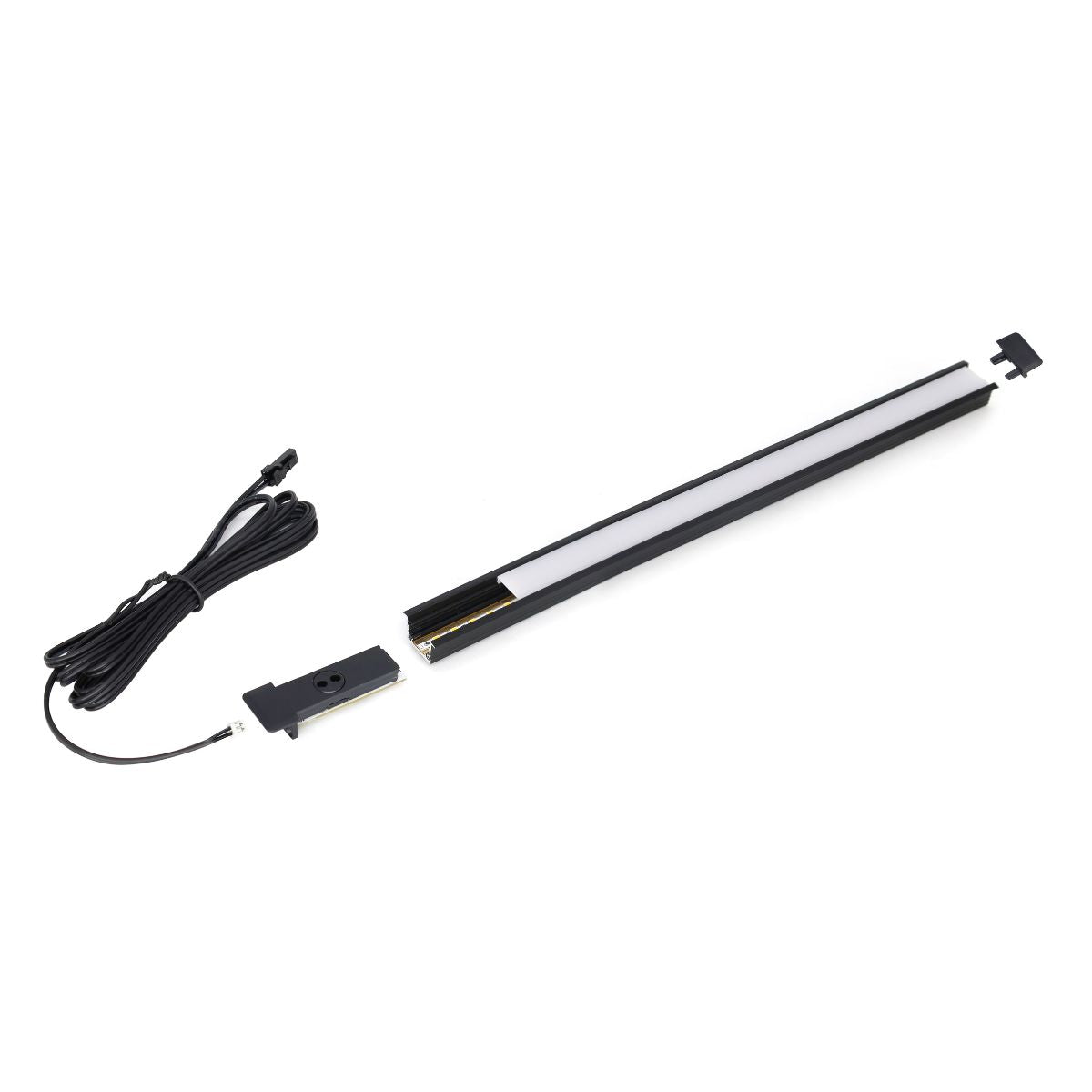

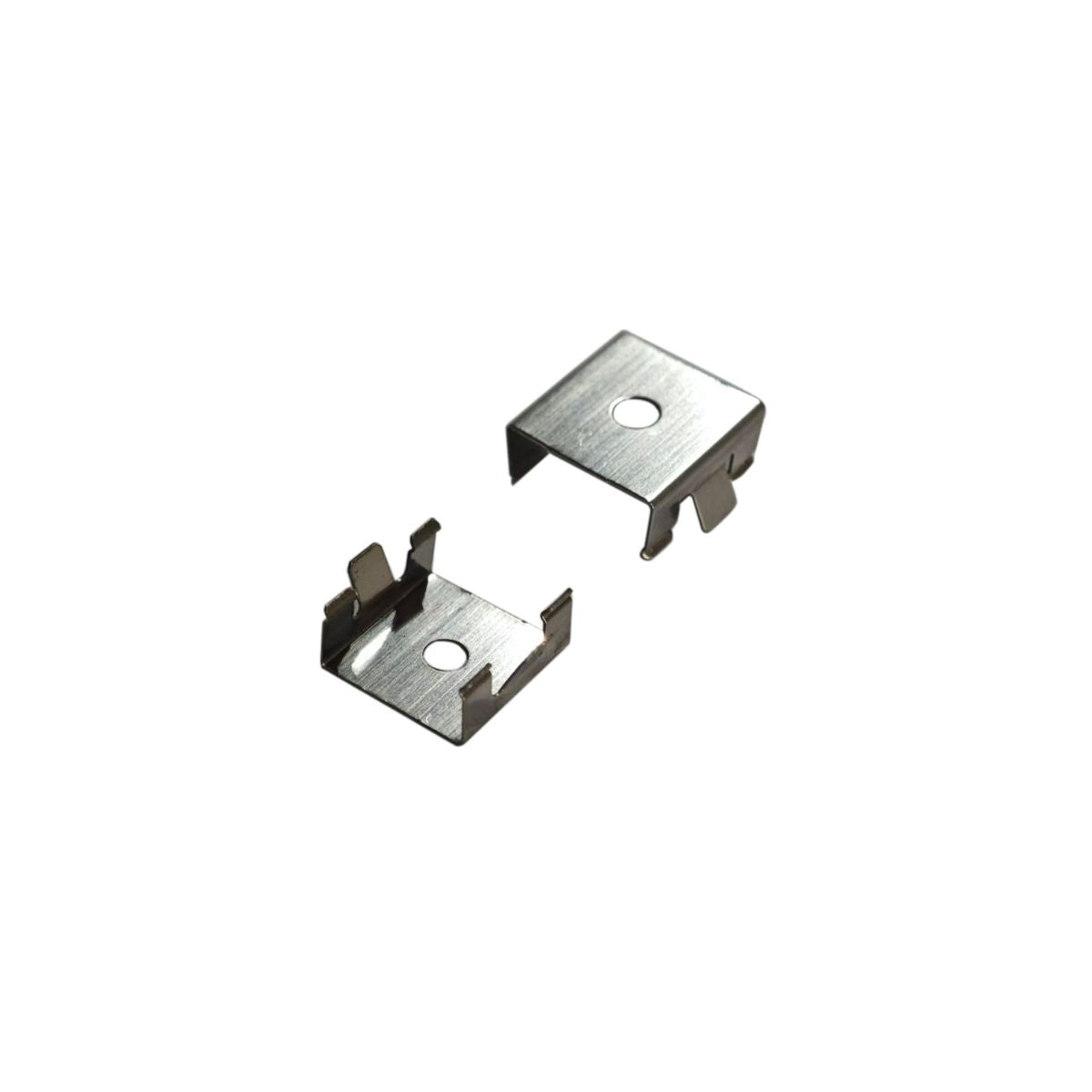

This 2m recessed LED profile adds a warm line of light to furniture. The LEDs are already fitted inside the aluminium profile, and the pack includes mounting brackets and a matching 2m input cable. Cut it to suit the joinery, push the connections together and plug it into a 24V plug and play furniture driver, sold separately.

Built into the joinery

The recessed profile sits in a prepared channel for a flush finish beneath shelves or inside cabinets. Plan the recess and the cable route while you make the furniture, and check the drawing before machining.

Cut to length without soldering

Cut the profile to length with a hacksaw or a suitable machine saw, with the power off. The electrical connections are push-fit, so you don't need to solder a new connection onto the cut piece. Follow the fitting instructions.

Both pieces still work after cutting. Cut a 2m profile into two 1m pieces and the supplied cable powers one of them; add another matching input cable to power the second piece separately. The brackets are already in the pack, so the extra cable is the only extra part you need.

Warm white light

The light is warm white at 3000K. Power is 10W per metre, or 20W for the full 2m, and the light output is 450 lumens per metre. The anthracite finish gives a dark edge around the lit section.

Choose the right driver

One uncut 2m profile is a 20W load, so a 15W furniture driver is too small; a 36W driver can run it. For several fittings, add up their wattages and count the separately powered connections. You can load a driver up to its full rated total; keeping about 20% spare is good practice, not a rule. Each 24V output is limited to 3A (72W) as well as the driver total.

Add a control

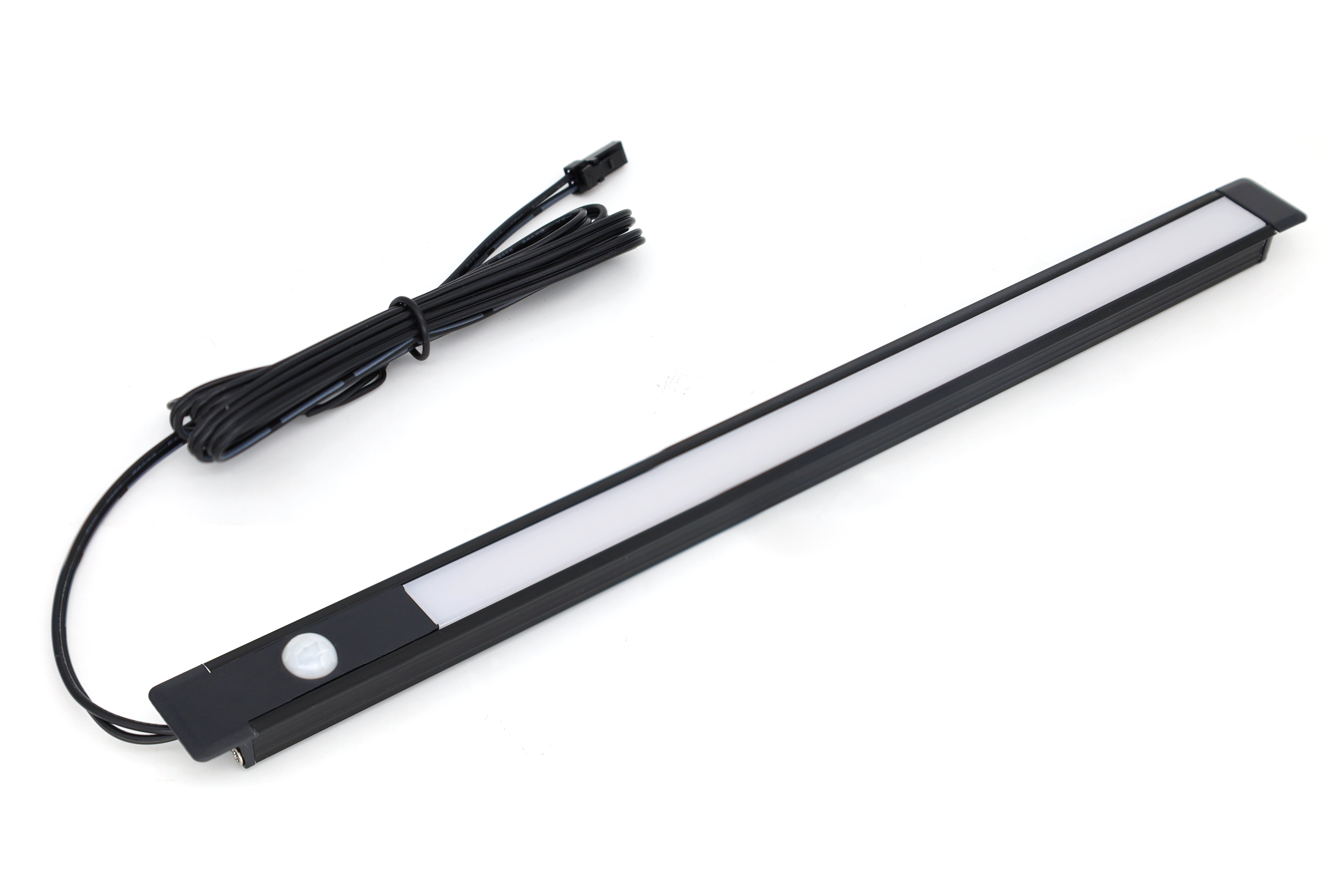

For control at the profile itself, an optional recessed-profile sensor cable replaces the standard input cable. A sensor plugged into the driver's sensor port controls every light on that driver together instead.

For joiners and DIY projects

The ready-made fitting gives joiners and cabinet makers a repeatable way to light bespoke work, and DIY customers can use the same connections for a shelf or cupboard. Exhibition builders can build it into display furniture, with the stand supply and cable routes planned separately.

Specifications

• Length: 2m
• Power: 10W per metre, 20W per full 2m profile
• Light output: 450 lumens per metre, 900 lumens per full 2m profile
• Supply: 24V DC
• Colour: warm white 3000K
• Finish: anthracite
• Width: 14mm
• Depth: 10mm
• In the pack: lit profile, mounting brackets, matching 2m input cable
• Driver: sold separately
