Rotary LED Dimmer Wall Panel, 1 Zone, 2.4GHz RF, Single Colour, 100-240V AC, White Glass

Simple rotary dimming

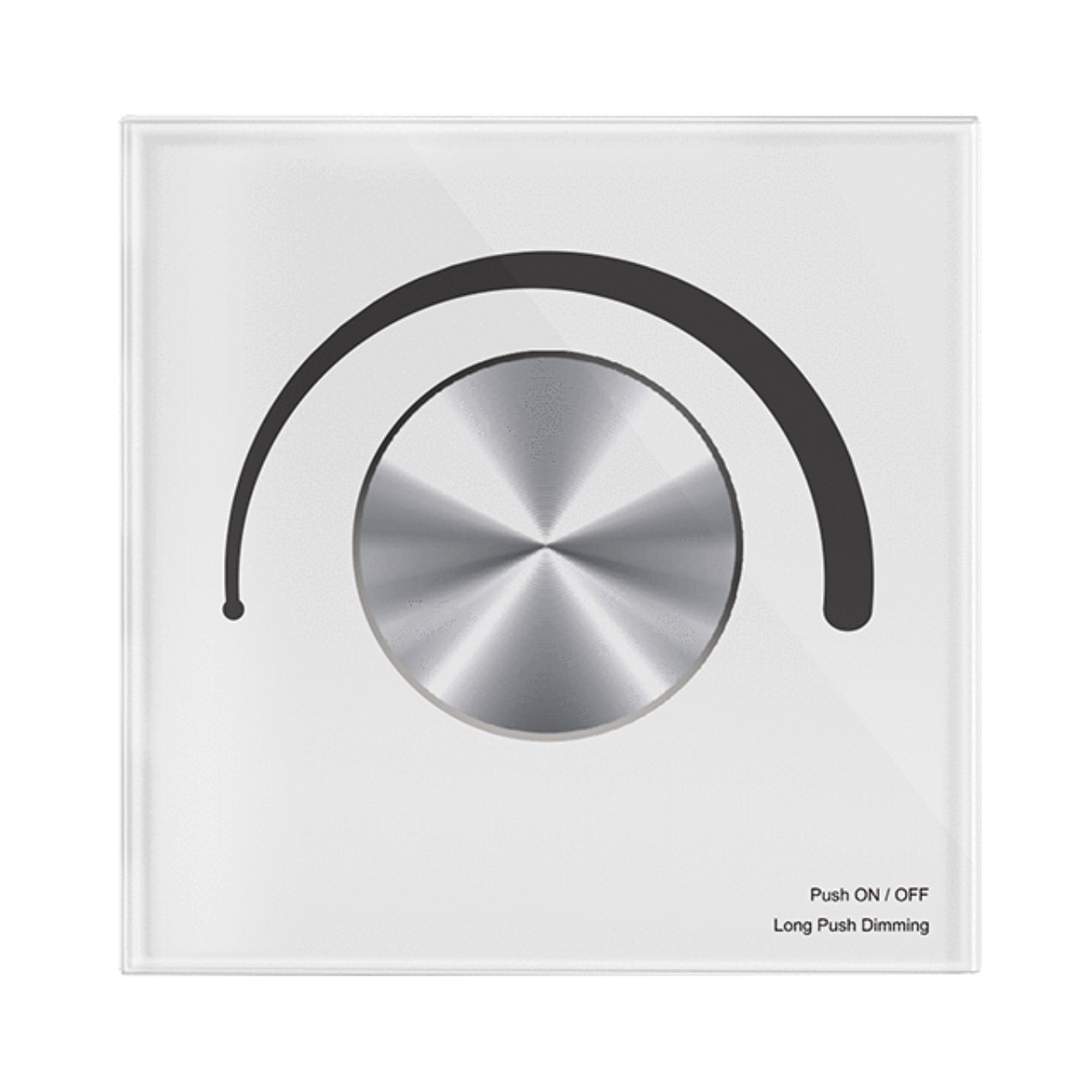

This wall panel dims single colour LED lighting with one rotary knob. Turn the dial to raise or lower the brightness, and push it to switch the lights on or off. There are no menus or extra buttons, so anyone can use it straight away, which suits homes, offices, shops, hotels and restaurants where the light level changes through the day.

Smooth from low to full

Dimming runs in 256 levels from 0 to 100%, so changes look gradual rather than stepping between brightness levels, as long as the connected lights are dimmable.

Wireless 2.4GHz RF

The panel sends its commands over 2.4GHz RF to compatible receivers, so there is no signal cable to run from the panel to the lights. That helps in retrofits and finished rooms. In open space the range is about 30m; walls and building materials will reduce it. It works as a 1 zone RF remote and pairs with compatible RF dimming controllers.

Single colour only

The panel controls brightness only, with no colour or colour temperature settings, so it suits white or single colour LED installations.

Fitting

The panel runs straight from 100-240V AC mains, with no separate power supply, and draws 0.1A at most. It is a standard EU size, 86 x 86mm and 36.5mm deep, with a glass face. Have a qualified electrician fit it. It is rated IP20 for dry indoor locations.

Specifications

• Type: rotary LED dimmer wall panel, 1 zone
• Control: push on/off, rotate to dim
• Dimming: 256 levels, 0 to 100%
• For: single colour dimmable LED lighting
• Wireless: 2.4GHz RF, about 30m in open space
• Supply: 100-240V AC, 0.1A maximum
• Face: glass, white
• Size: 86 x 86 x 36.5mm, EU size
• IP rating: IP20
• Receiver: not included
