4 Zone Tunable White Touch Wall Panel, DMX512 Master and 2.4GHz RF Remote, White Glass

Two ways to control tunable white lighting

This touch panel fits on the wall like a light switch and controls tunable white LED lighting in two ways. As a DMX512 master, it sends standard DMX signals over a wired DMX line to compatible decoders. As a 2.4GHz RF remote, it controls compatible RF receivers wirelessly, so there is no signal cable to run between the panel and the receivers.

Four zones and saved scenes

Set up four zones and adjust each one on its own, for example when different parts of a room need different white tones, or control them all together. Save up to four scenes and recall each with one touch.

Warm to cool white

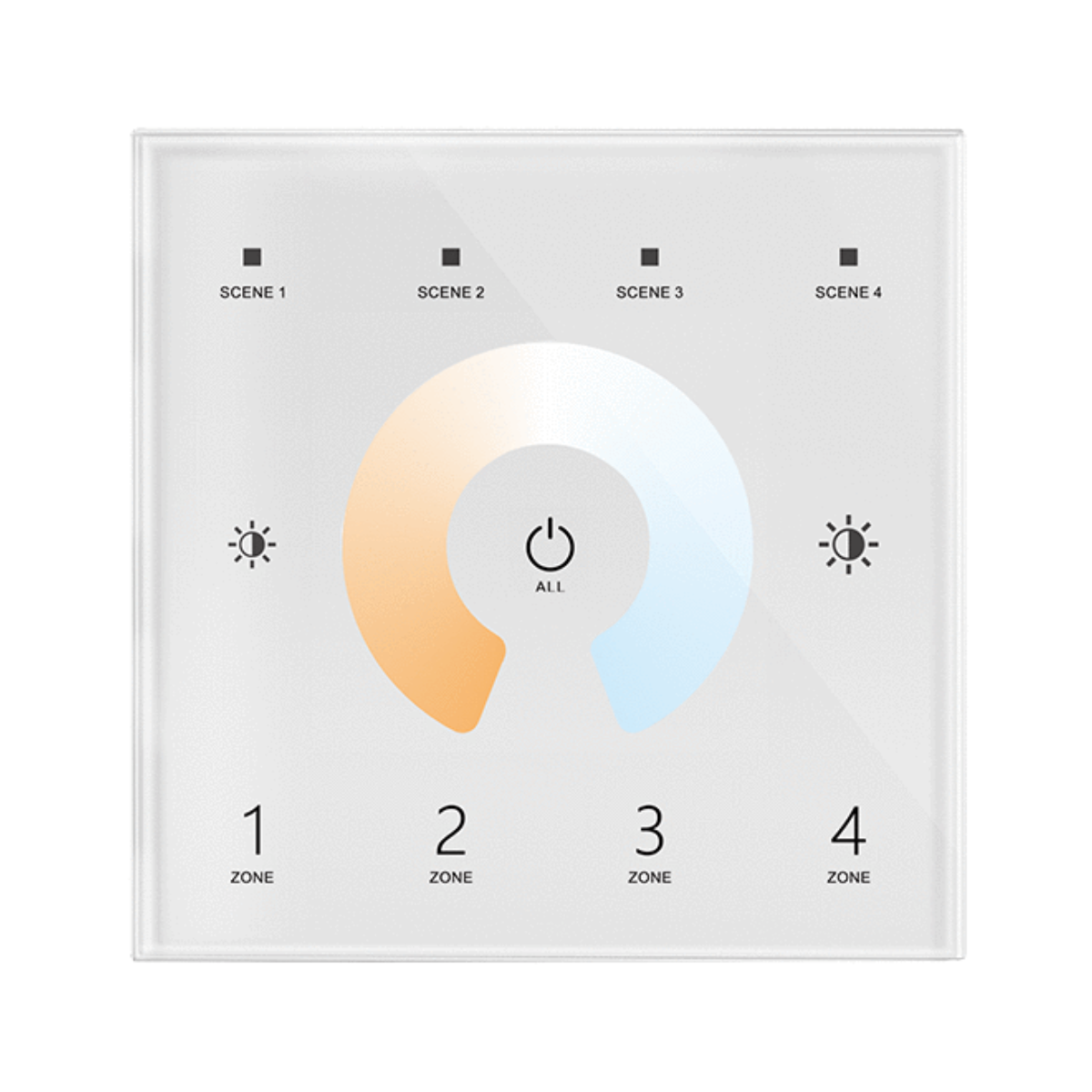

Slide around the glass touch ring to move from warm white, for a softer, relaxed feel, to cool white for clear, focused light. Adjustment runs in 256 steps from 0 to 100%, so changes look smooth rather than jumpy. An LED indicator and a beep confirm each change, and the beep can be turned off.

What it works with

The panel is the control end of the system. In DMX mode, pair it with a DMX decoder that drives the tunable white lighting; it works with standard DMX512 decoders, so it can replace the controller on an existing system. The panel does not power the LEDs itself. In RF mode, pair it with compatible 2.4GHz RF receivers.

Fitting

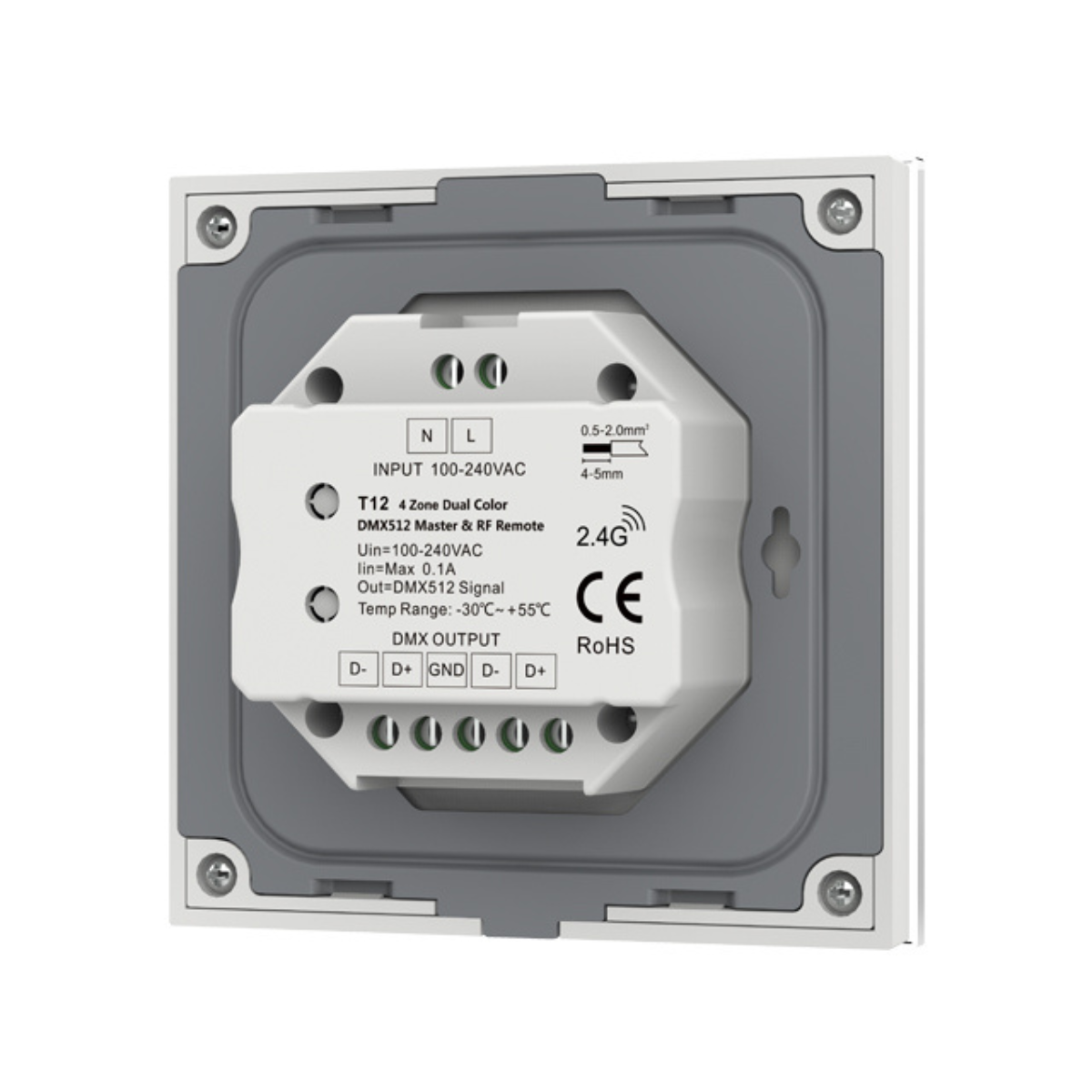

The panel runs straight from 100-240V AC mains, with no separate power supply. Have a qualified electrician fit it. It is rated IP20 for dry indoor locations and works from -30°C to 55°C.

Specifications

• Type: 4 zone tunable white touch wall panel
• Control: DMX512 master or 2.4GHz RF remote
• Zones: 4
• Scenes: up to 4
• Dimming: 256 steps, 0 to 100%
• Face: glass touch, white
• Supply: 100-240V AC
• Size: 86 x 86 x 36.5mm
• Working temperature: -30°C to 55°C
• IP rating: IP20
• Decoder or receiver: not included
