4 Zone RGB+CCT Touch Wall Panel, DMX512 Master and 2.4GHz RF Remote, White Glass

Two ways to control RGB+CCT lighting

This touch panel fits on the wall like a light switch and controls RGB+CCT lighting, both colour and tunable white, in two ways. As a DMX512 master, it sends standard DMX signals over a wired DMX line to compatible decoders. As a 2.4GHz RF remote, it controls compatible RF receivers wirelessly, so there is no signal cable to run between the panel and the receivers.

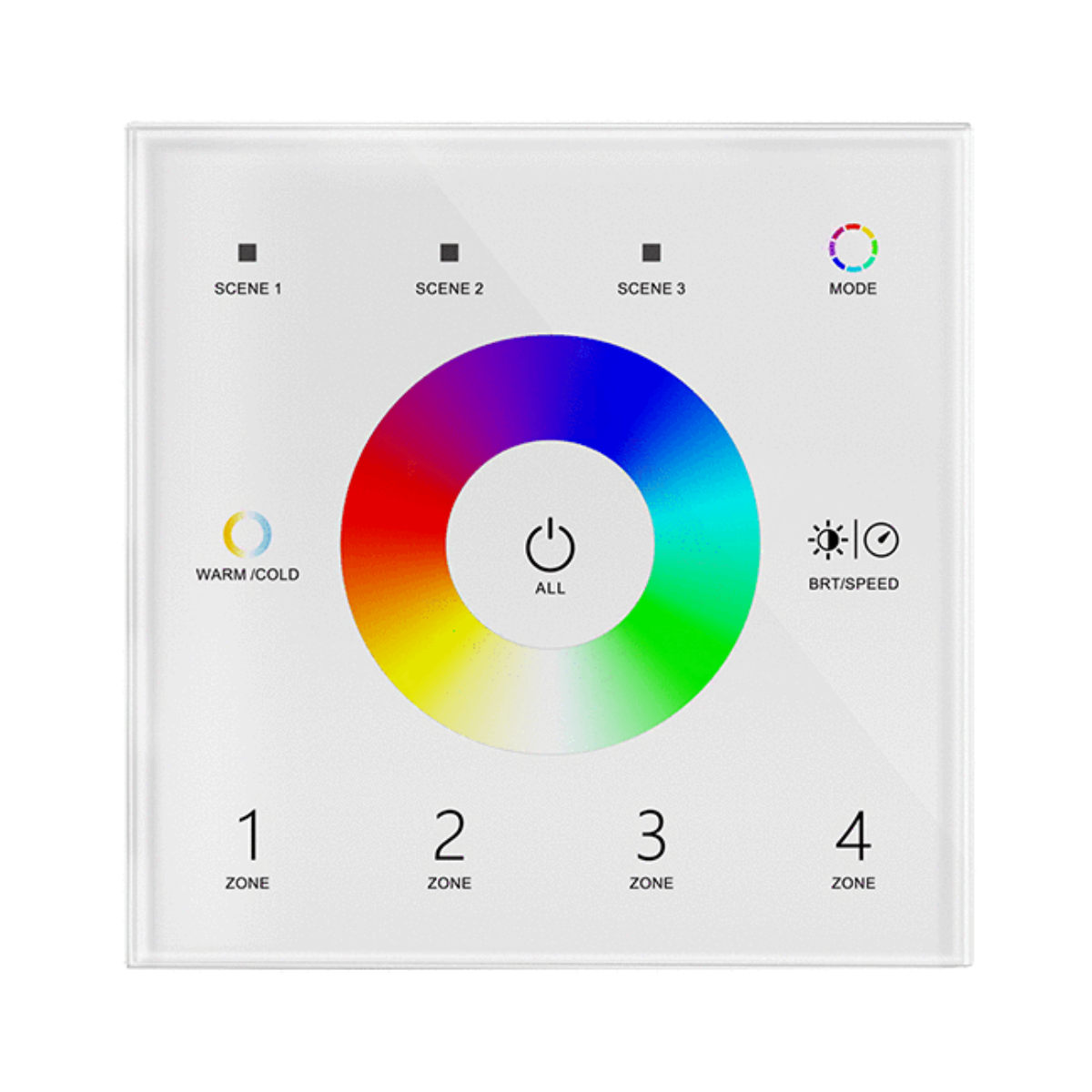

Four zones and saved scenes

Set up four zones and adjust each one on its own, for example when different parts of a room need different colours, or control them all together. Save your favourite settings to the three scene keys and recall each with one touch.

Colour and tunable white

The glass colour wheel moves smoothly through colours, and you can also adjust white light from warmer to cooler tones, so one panel handles both decorative colour and everyday white light. Adjustment runs in 256 steps from 0 to 100%, so changes look smooth rather than jumpy. An LED indicator and a beep confirm each change, and the beep can be turned off.

What it works with

The panel is the control end of the system. In DMX mode, pair it with a DMX decoder that drives the lighting; 5 channel RGB+CCT decoders suit RGB+CCT LED strip, and it works with other standard DMX512 decoders. The panel does not power the LEDs itself. In RF mode, pair it with compatible 2.4GHz RF receivers.

Fitting

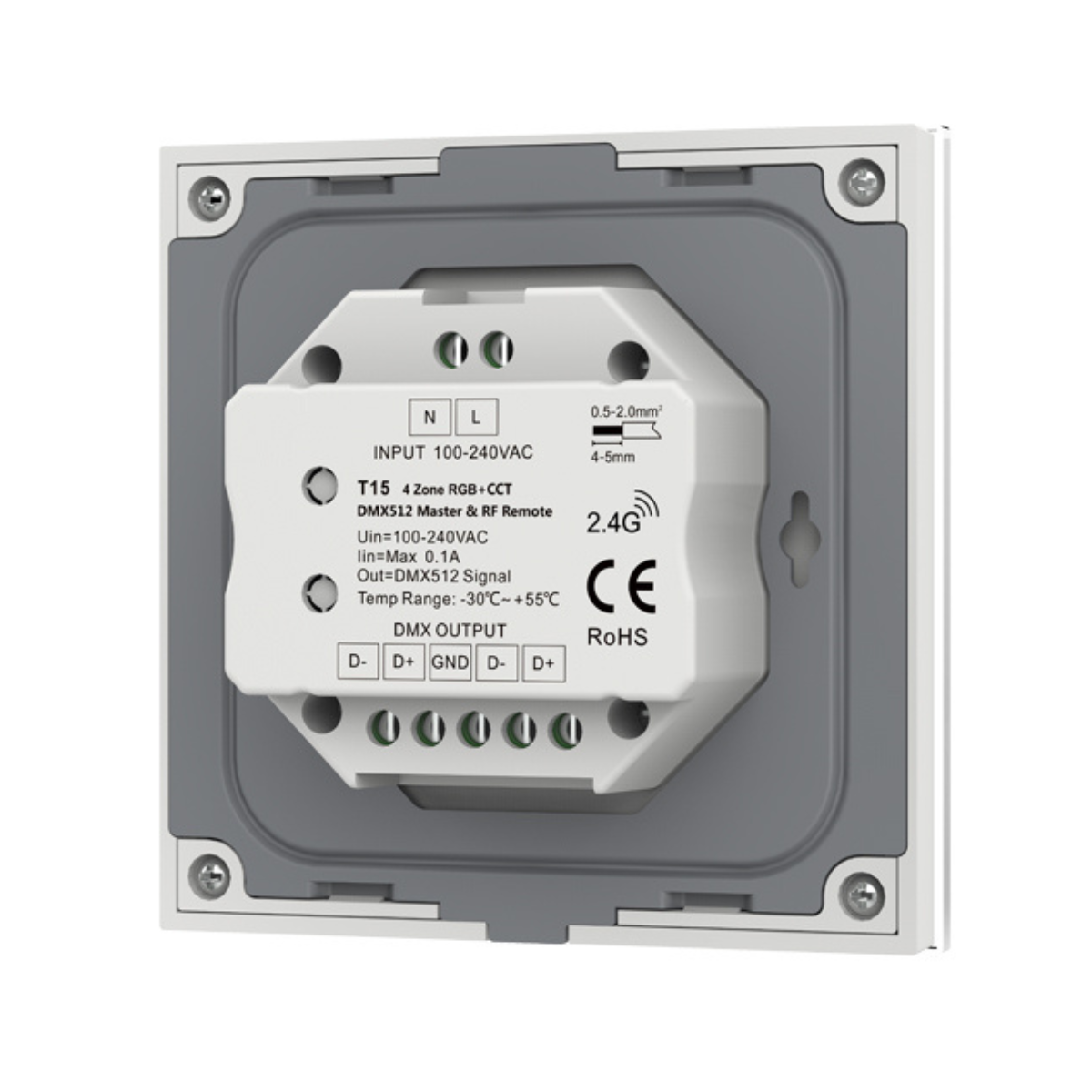

The panel runs straight from 100-240V AC mains, with no separate power supply, and fits a standard European wall box. Have a qualified electrician fit it. It is rated IP20 for dry indoor locations and works from -30°C to 55°C.

Specifications

• Type: 4 zone RGB+CCT touch wall panel
• Control: DMX512 master or 2.4GHz RF remote
• Zones: 4
• Scenes: 3 scene keys
• Dimming: 256 steps, 0 to 100%
• Face: glass touch, white
• Supply: 100-240V AC
• Mounting: standard European wall box
• Size: 86 x 86 x 36.5mm
• Working temperature: -30°C to 55°C
• IP rating: IP20
• Decoder or receiver: not included
