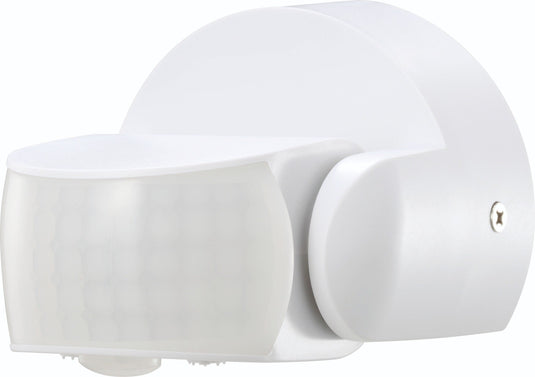

White Wall PIR Motion Sensor, IP65, 12m Range, 180° or 360°, Pivoting Head

Outside lights that come on when needed

This wall PIR sensor switches the connected lights on when it picks up movement and off again after a set time. Use it to light a driveway, path, garden or front door as someone approaches, rather than leaving lights on all night.

Aim it where it matters

The pivoting head lets you point the sensor at an entrance, path or corner, so it watches the areas that matter and ignores the rest. It covers 180° or 360°, and detects movement up to 12m away at temperatures below 24°C. Fit it at a height of 1.8m to 2.5m.

Set it to suit the space

The time delay runs from 10 seconds to 15 minutes, so you can choose how long the lights stay on after the last movement. The daylight sensor can be set from 3 to 2000 lux, so the lights only come on once it gets dark.

Built for outdoors

The housing is IP65, sealed against rain and dust, and made of UV-resistant polycarbonate, so it doesn't fade or turn brittle in the sun. The white finish blends with light walls and modern exteriors.

Load and fitting

It handles up to 600W of LED or energy-saving lighting, or 1200W of incandescent lighting, on a 220-240V AC supply. Have a qualified electrician fit it.

Specifications

• Type: wall mounted PIR motion sensor with daylight sensor
• Detection angle: 180° or 360°, pivoting head
• Detection range: up to 12m (below 24°C)
• Mounting height: 1.8m to 2.5m
• Time delay: 10 seconds to 15 minutes
• Lux setting: 3 to 2000 lux
• Maximum load: 600W LED or energy-saving, 1200W incandescent
• Supply: 220-240V AC
• Body: white UV-resistant polycarbonate
• IP rating: IP65
