Twin LED Sign Module Chain, 20 Modules, 3.8m, 20w, 24V, Cool White 6500K, IP65

For medium light boxes and channel letters

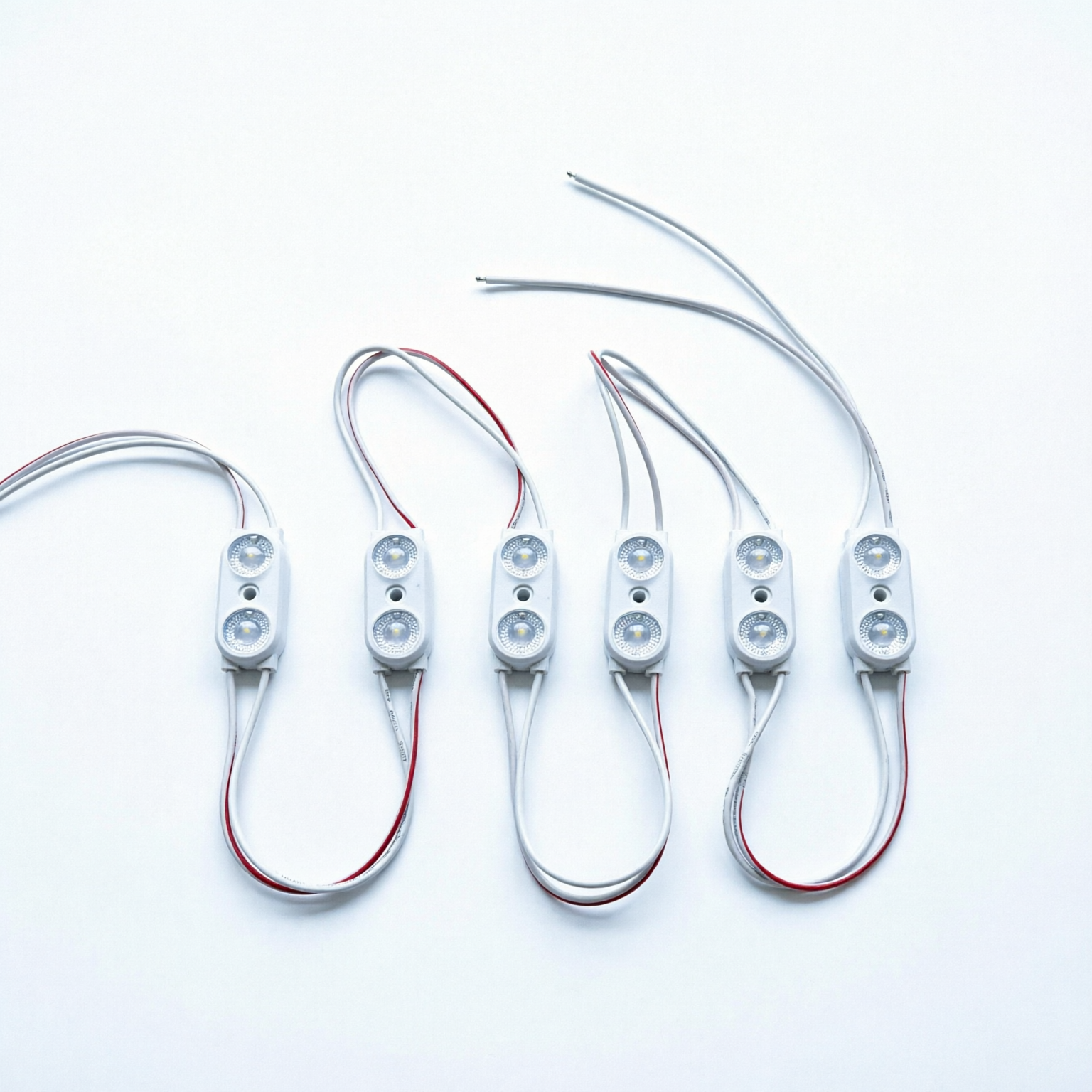

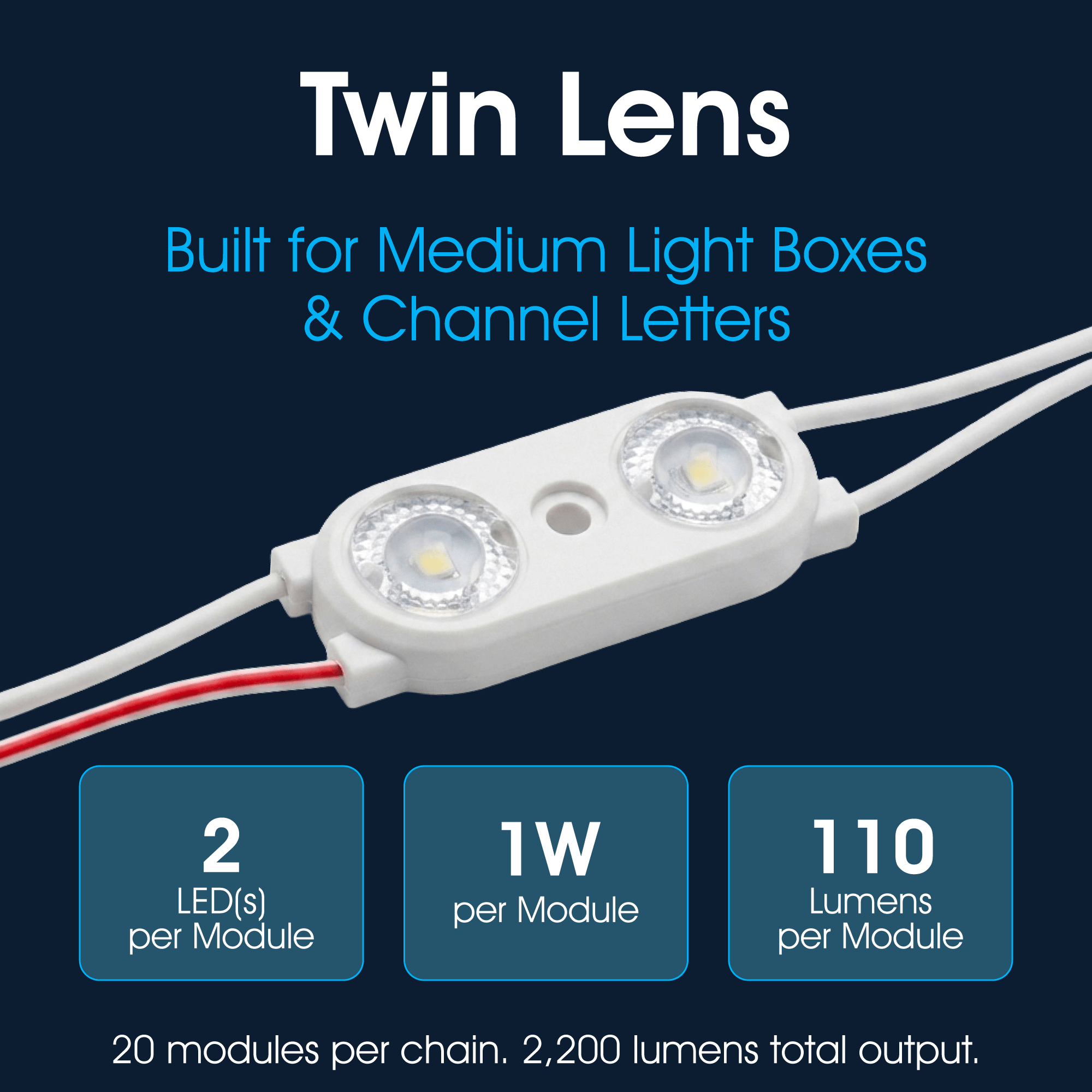

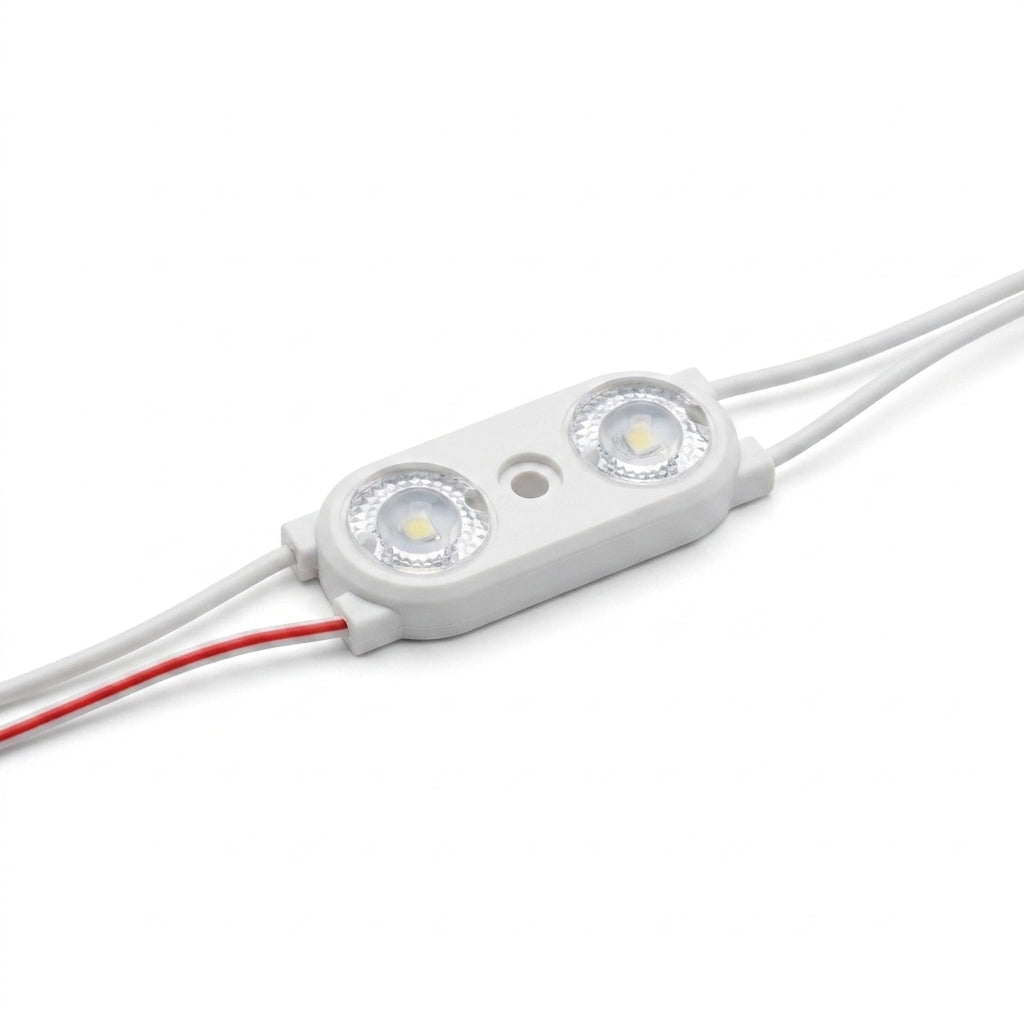

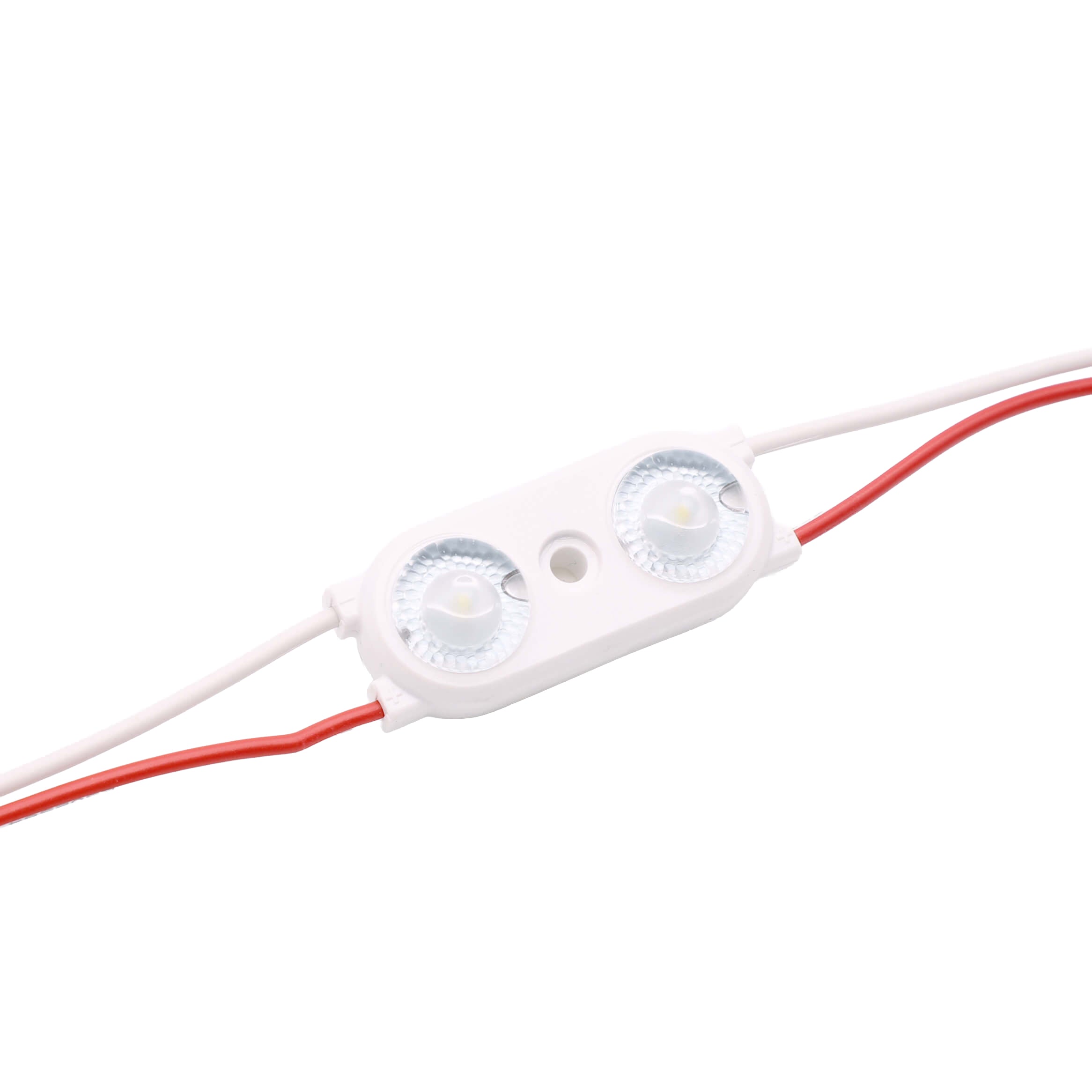

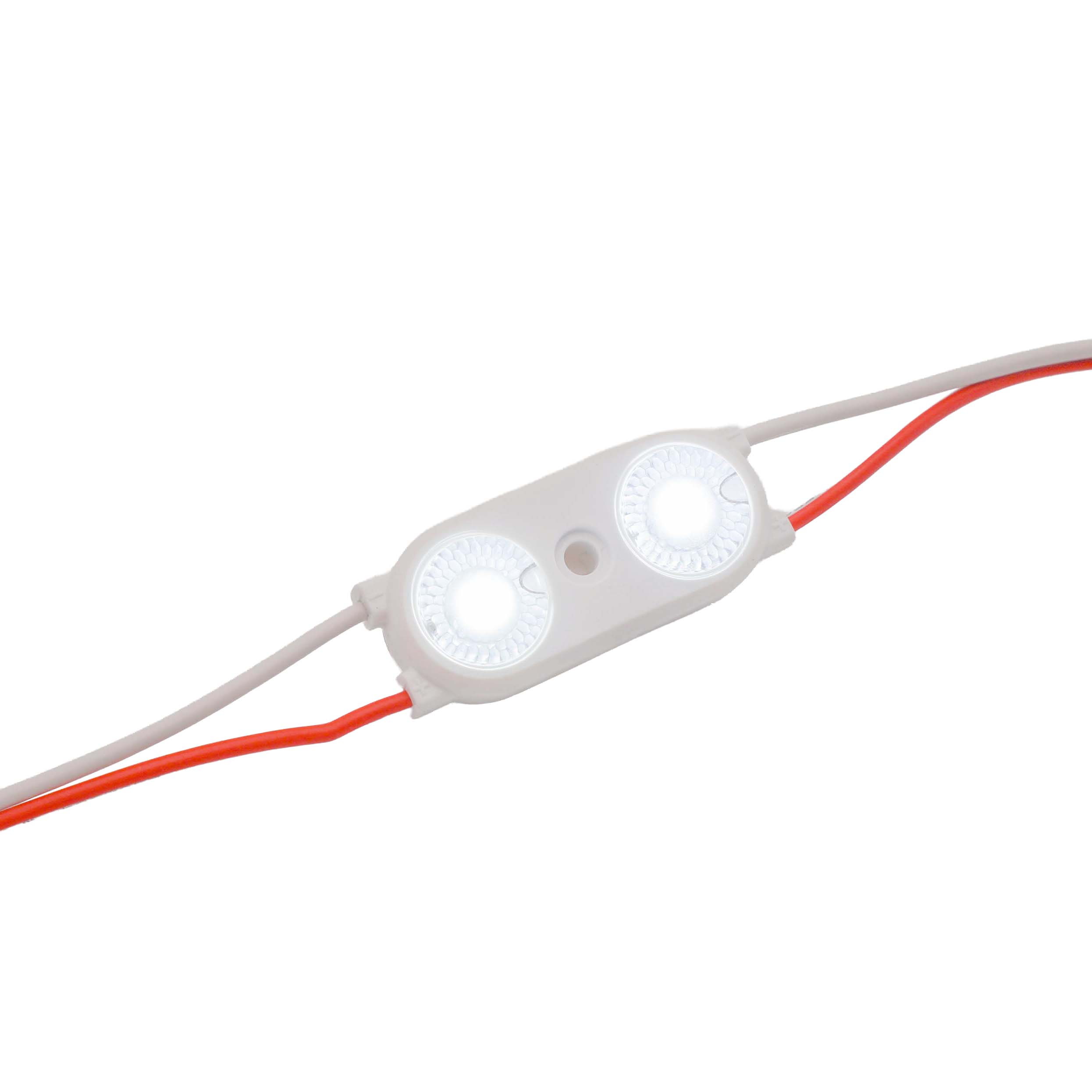

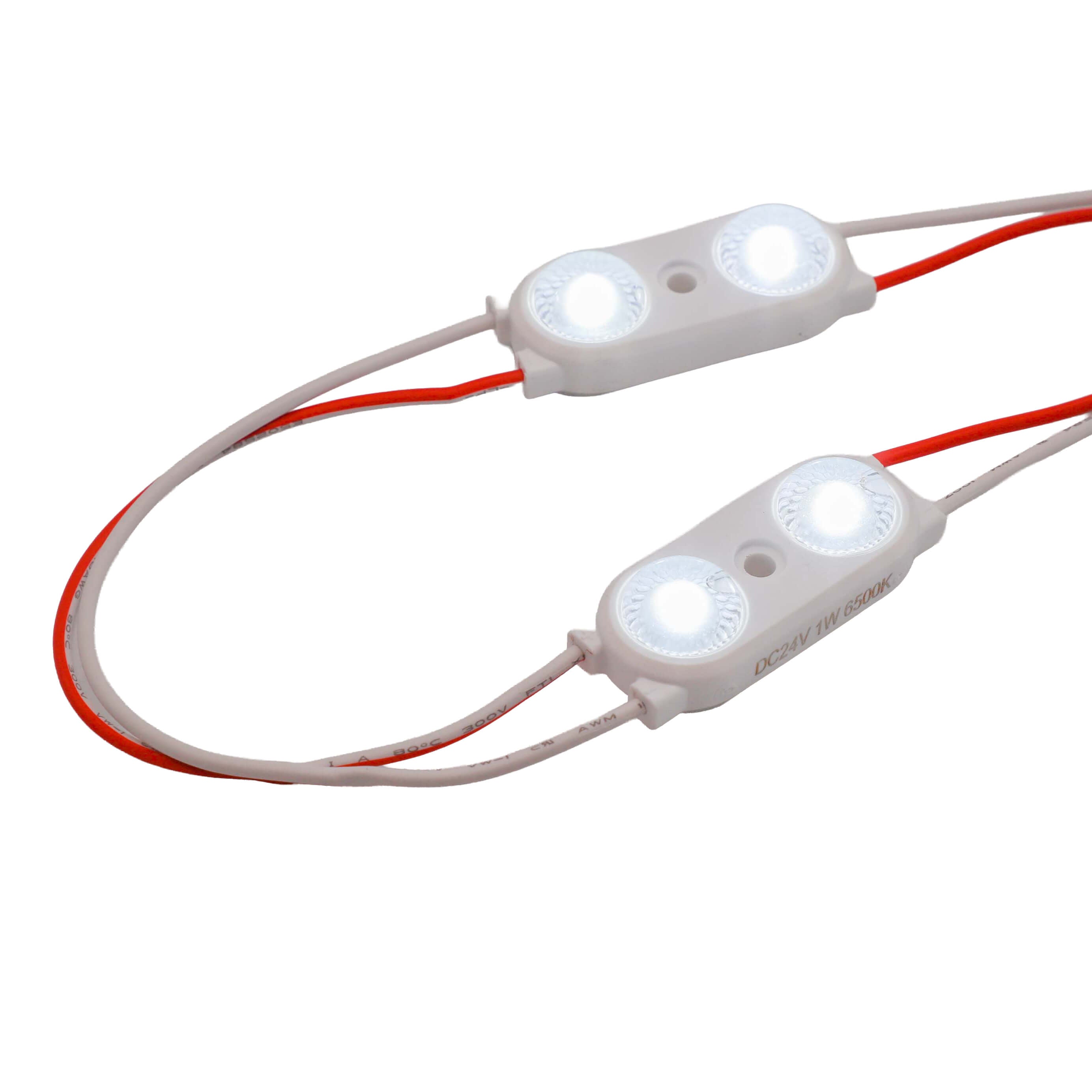

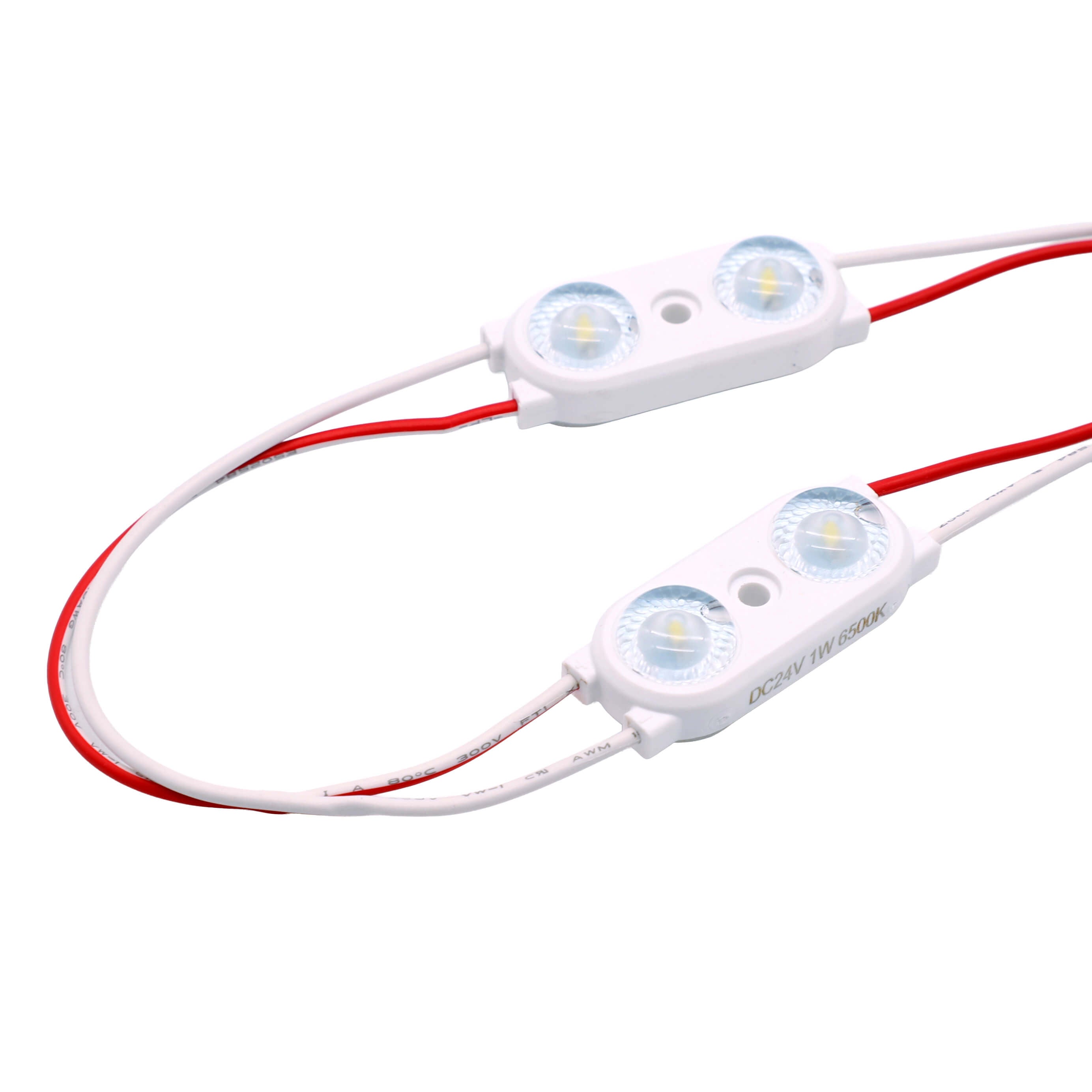

This is one chain of 20 twin LED modules for lighting medium light boxes, channel letters, shopfront fascias and other illuminated signs. Each module has two LEDs giving 110 lumens of cool white light from 1w, and the wide 170° beam spreads the light across the sign face so lettering and graphics look even and easy to read. The compact modules fit inside fabricated letters and tighter sign cavities.

The chain

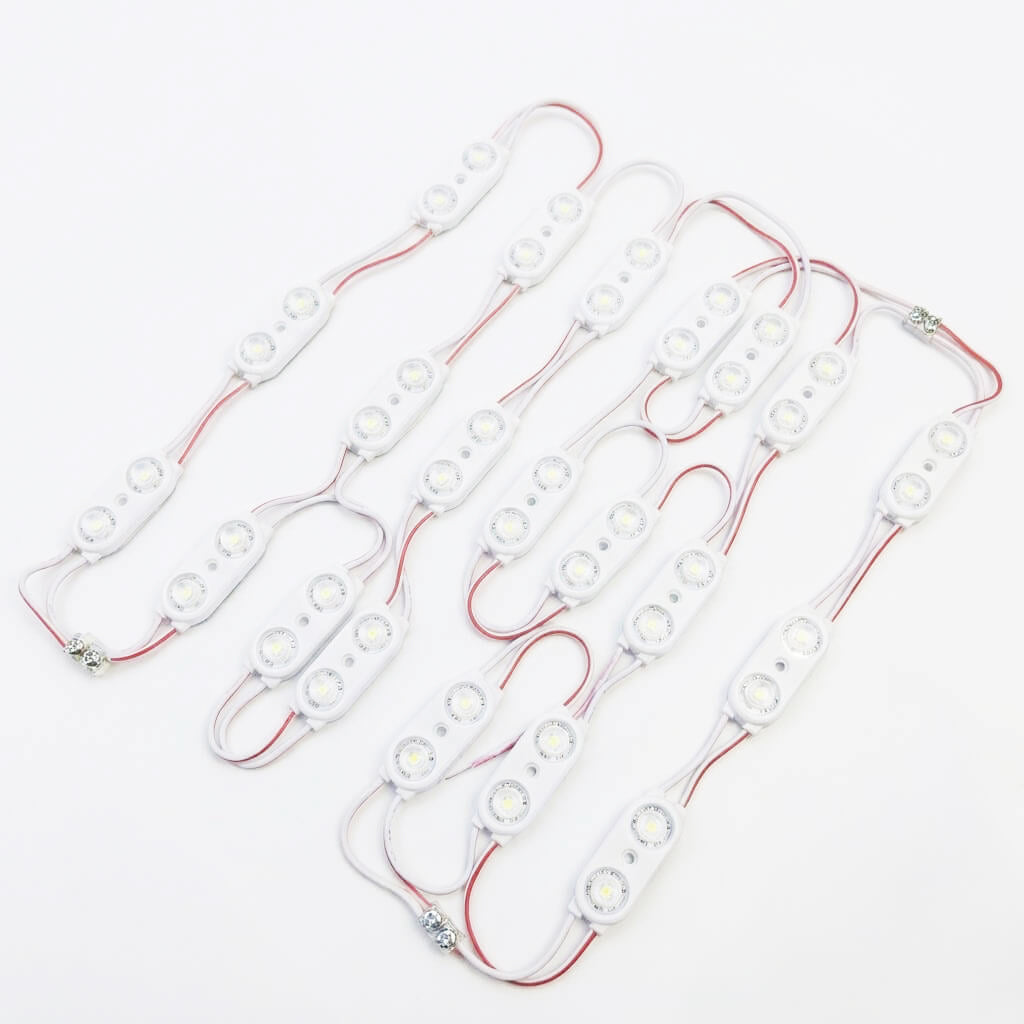

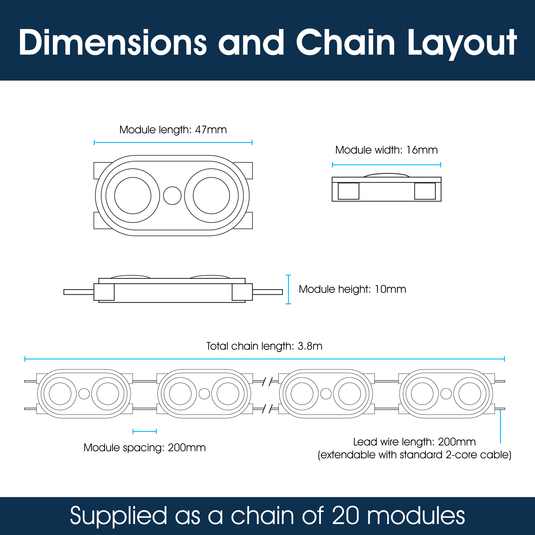

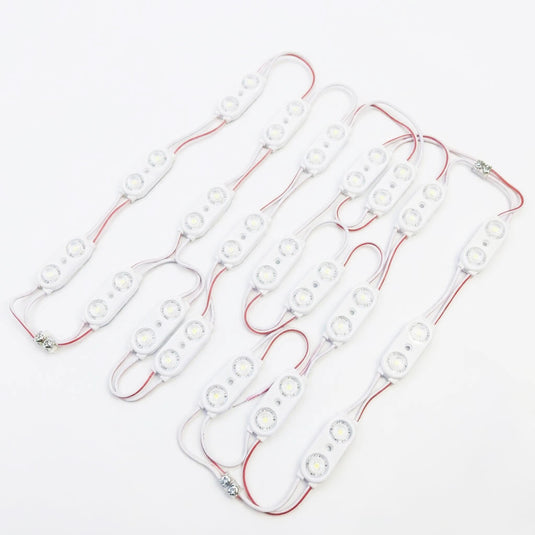

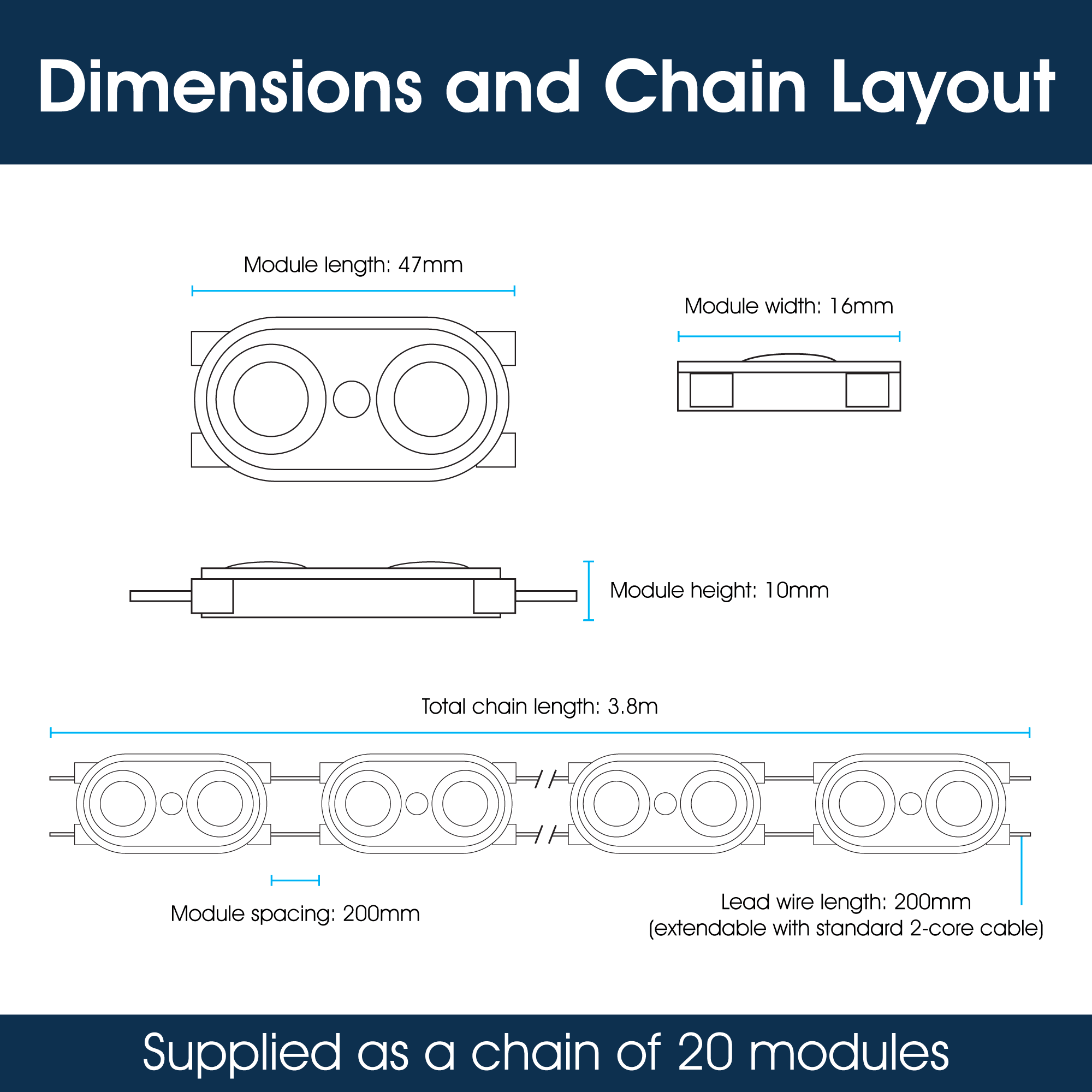

The chain is 3.8m long, with the modules spaced 200mm apart. Each module is 47 x 16 x 10mm. There is a 200mm lead at the start of the chain to reach the driver, and you can extend it with standard 2-core cable. The wires are AWG 22 with bare tinned ends: red is positive and white is negative.

Cut to fit

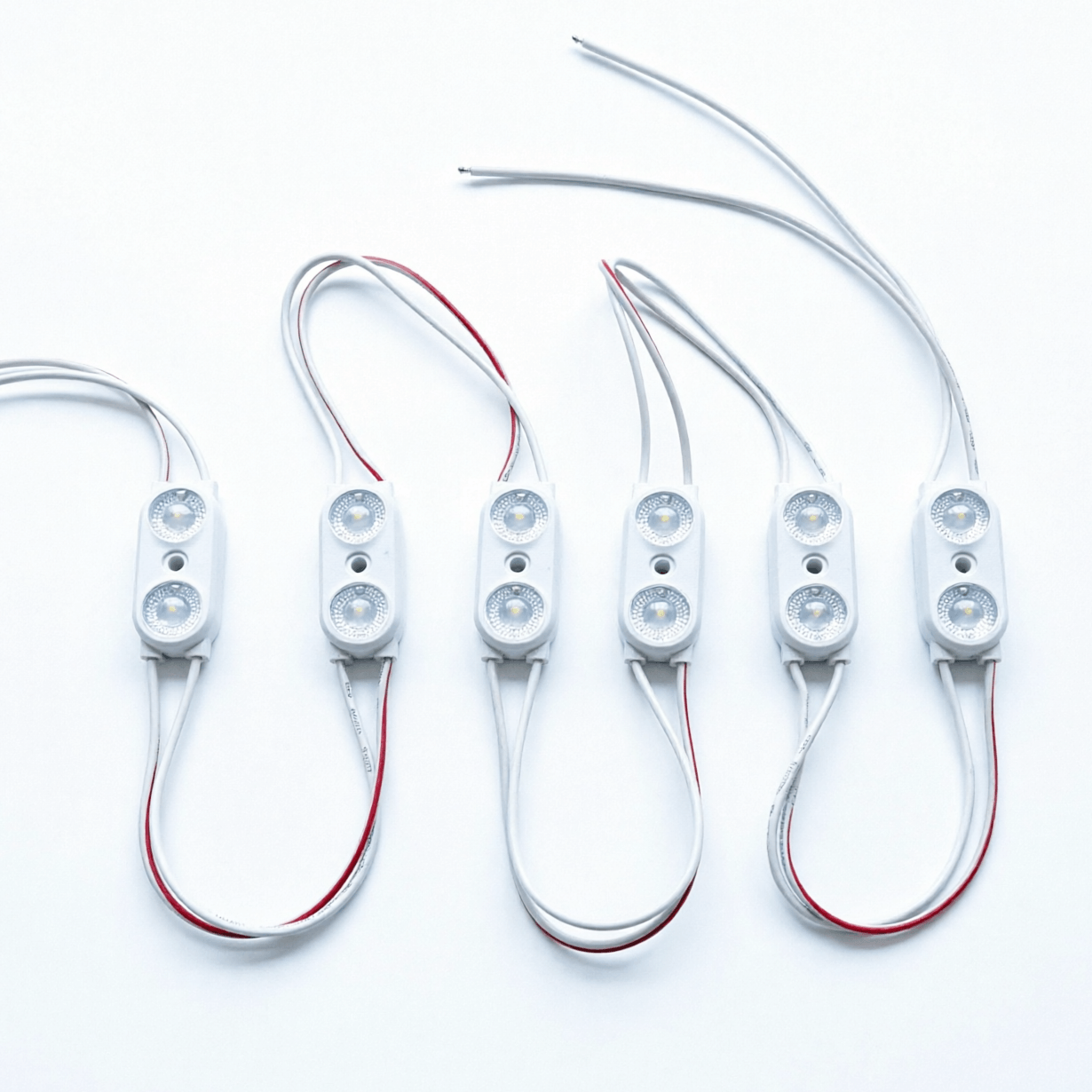

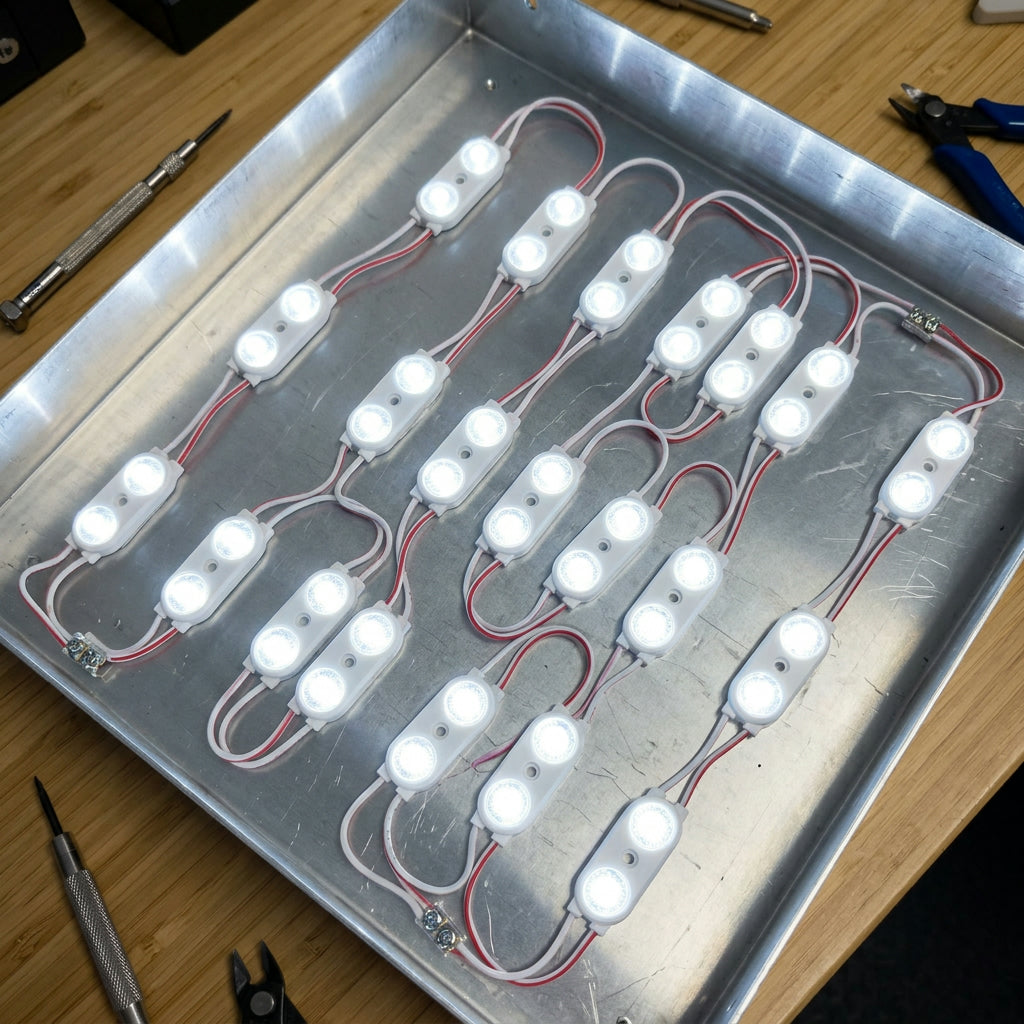

You can cut the chain between any two modules to suit letters, curves and awkward layouts. Strip the cut wires back and either terminate them or join them to an extension cable. A module you cut off can be reused at the start or end of another run.

Power

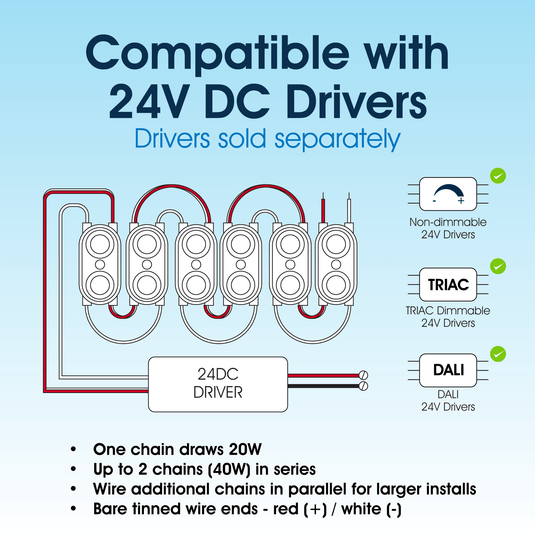

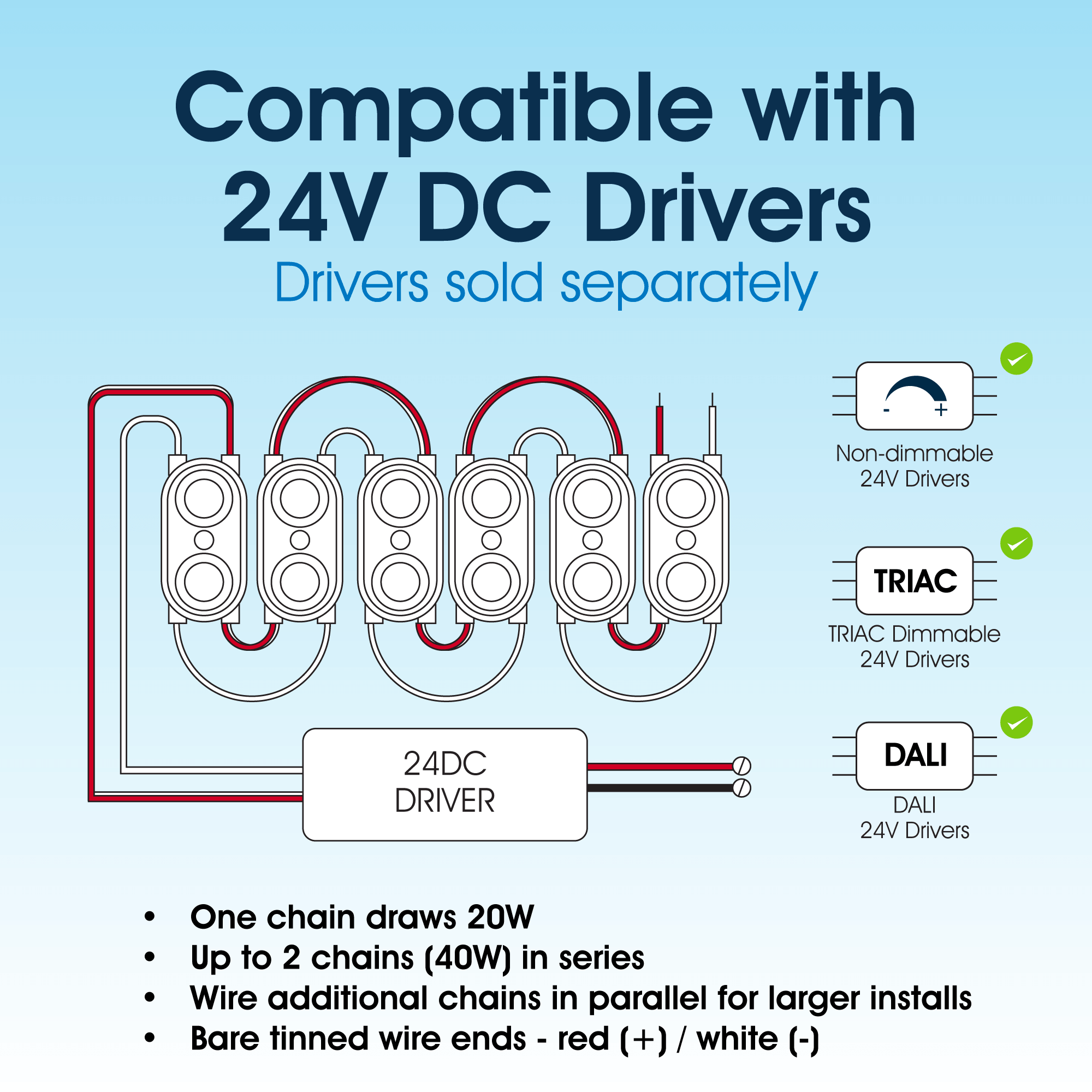

The modules run on 24V DC, so you need a 24V LED driver, sold separately. Run up to 40 modules (two full chains) in series; beyond that, wire chains in parallel. To size the driver, multiply the total wattage by 1.2: one 20w chain needs a 30w 24V driver, and four chains in parallel need at least a 120w driver. You can use a non-dimmable, TRIAC dimmable or DALI driver, depending on the job.

Indoors and outdoors

The modules are rated IP65, protected against dust and low-pressure water jets, so they suit outdoor shopfront, fascia, monument and projecting signs as well as indoor light boxes. Outdoors, the driver and any junction boxes need a suitable IP rating too.

Fixing

Each module has 3M adhesive backing for quick positioning, plus a screw hole for a permanent or outdoor fixing. Clean the surface with isopropyl alcohol before sticking the modules down.

Specifications

• Modules per chain: 20
• LEDs per module: 2
• Power: 1w per module, 20w per chain
• Light output: 110 lumens per module, 2,200 lumens per chain
• Colour: cool white 6500K
• CRI: 80
• Beam angle: 170°
• Voltage: 24V DC (driver sold separately)
• IP rating: IP65
• Module size: 47 x 16 x 10mm
• Chain length: 3.8m
• Module spacing: 200mm
• Cable: AWG 22, 200mm lead
• Average life: 20,000 hours
