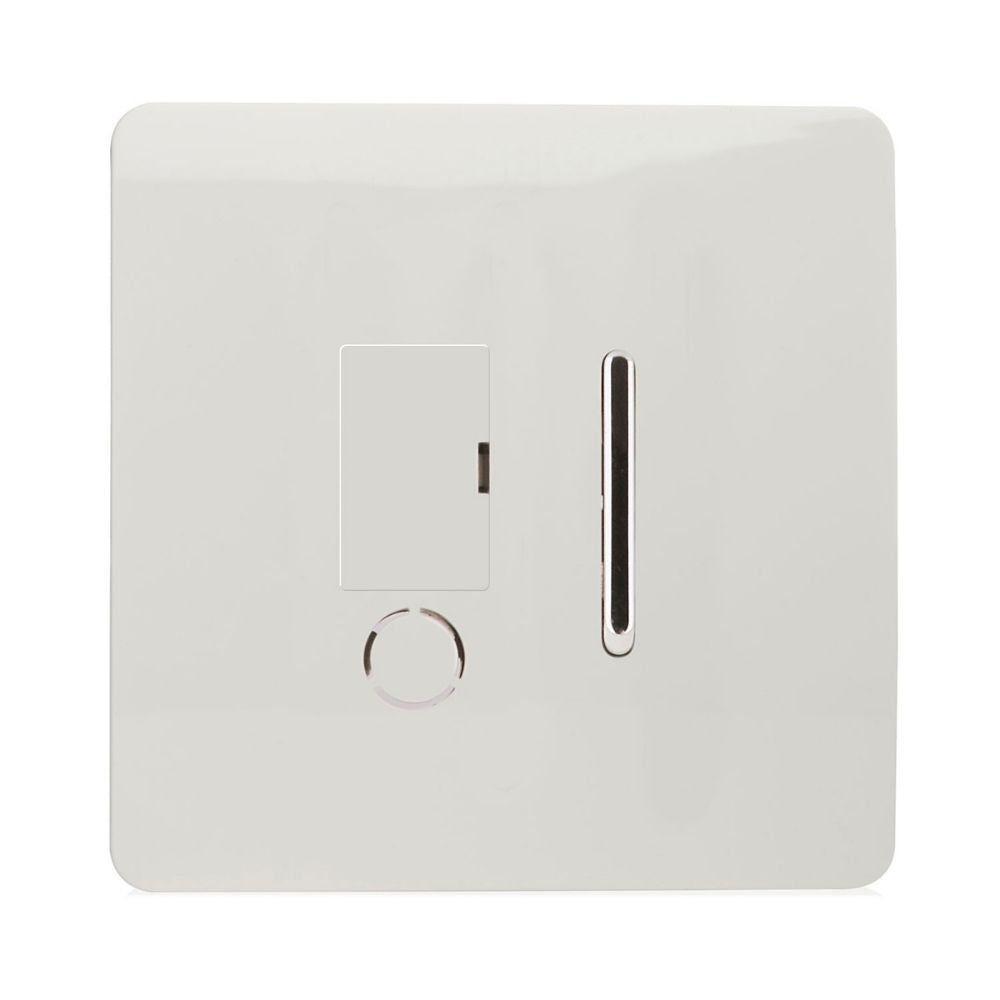

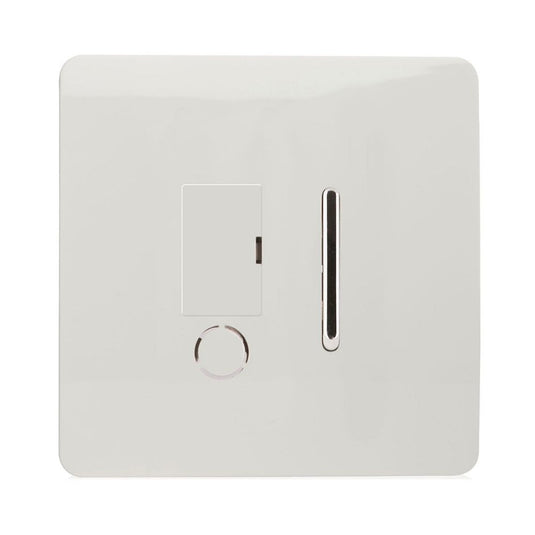

Trendi 13A Switched Fused Spur, Screwless, Glossy White with Chrome Switch

A fused spur for hard-wired appliances

This 13A switched fused spur powers hard-wired appliances such as extractor fans, boilers, cooker hoods, towel rails and under-cabinet lights, and protects a spur circuit with a fuse. It comes with the fuse fitted, and the flex outlet knockout lets an appliance cable come straight out of the front.

Glossy white and chrome

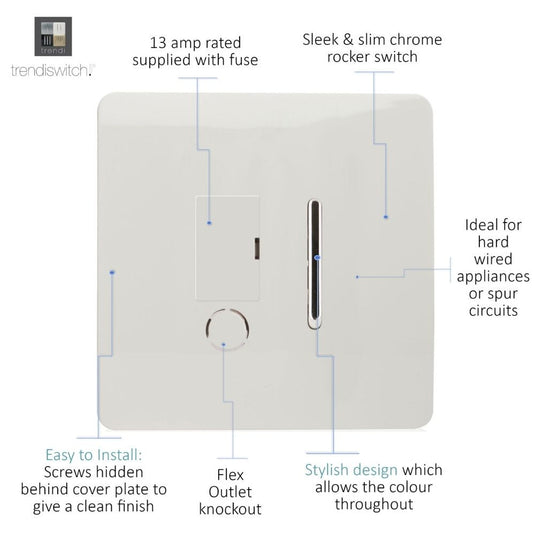

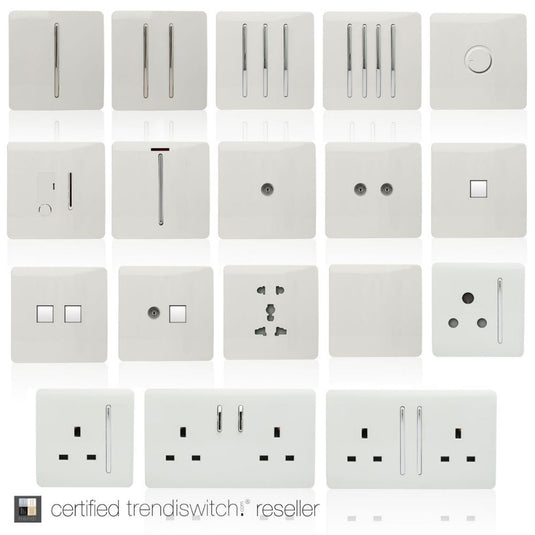

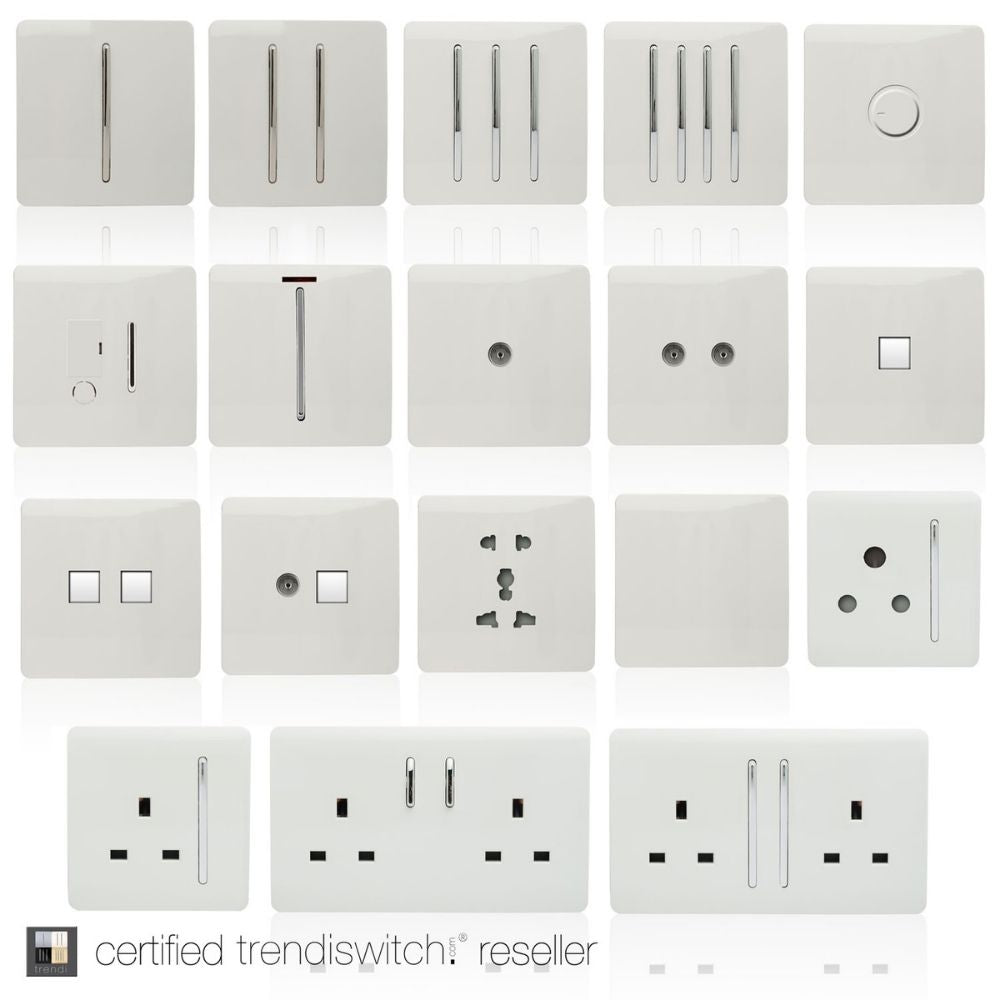

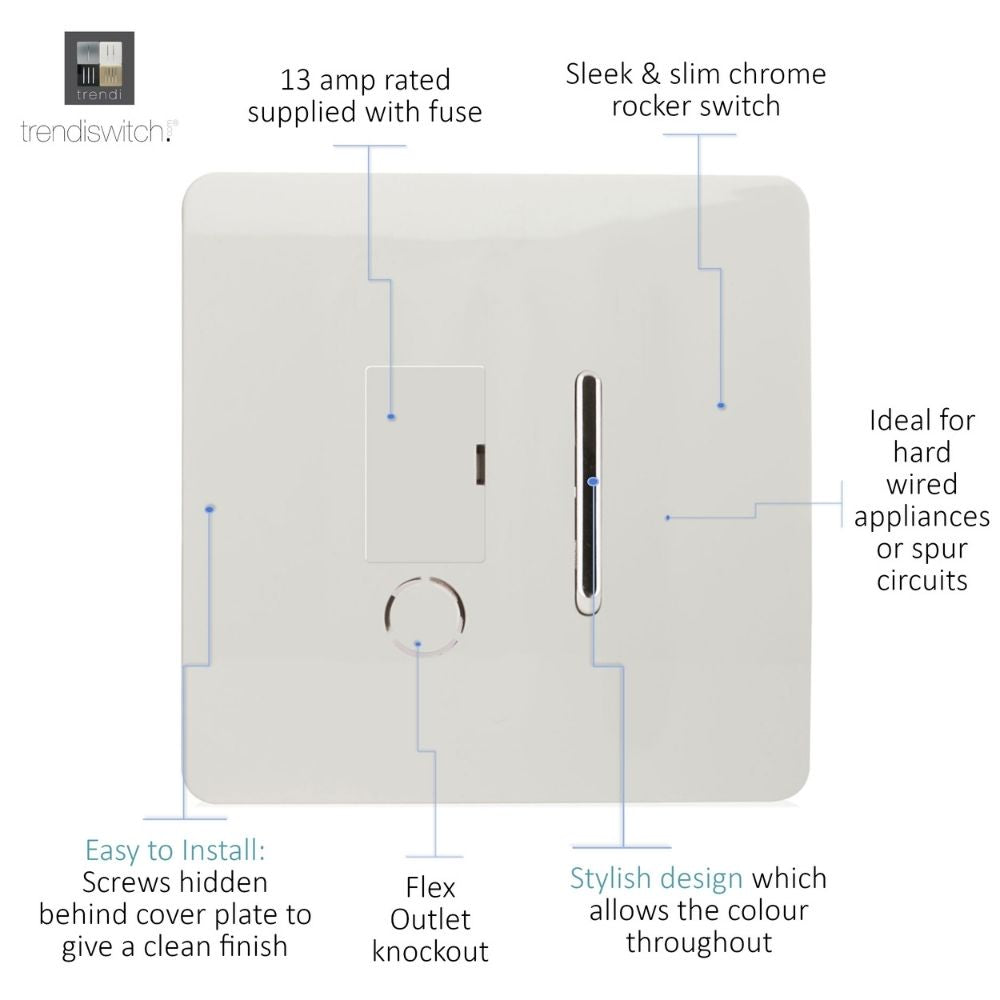

The faceplate is glossy white with a slim chrome rocker switch and no screws on show. It sits neatly next to matching sockets and switches from the same range.

Clip-on faceplate

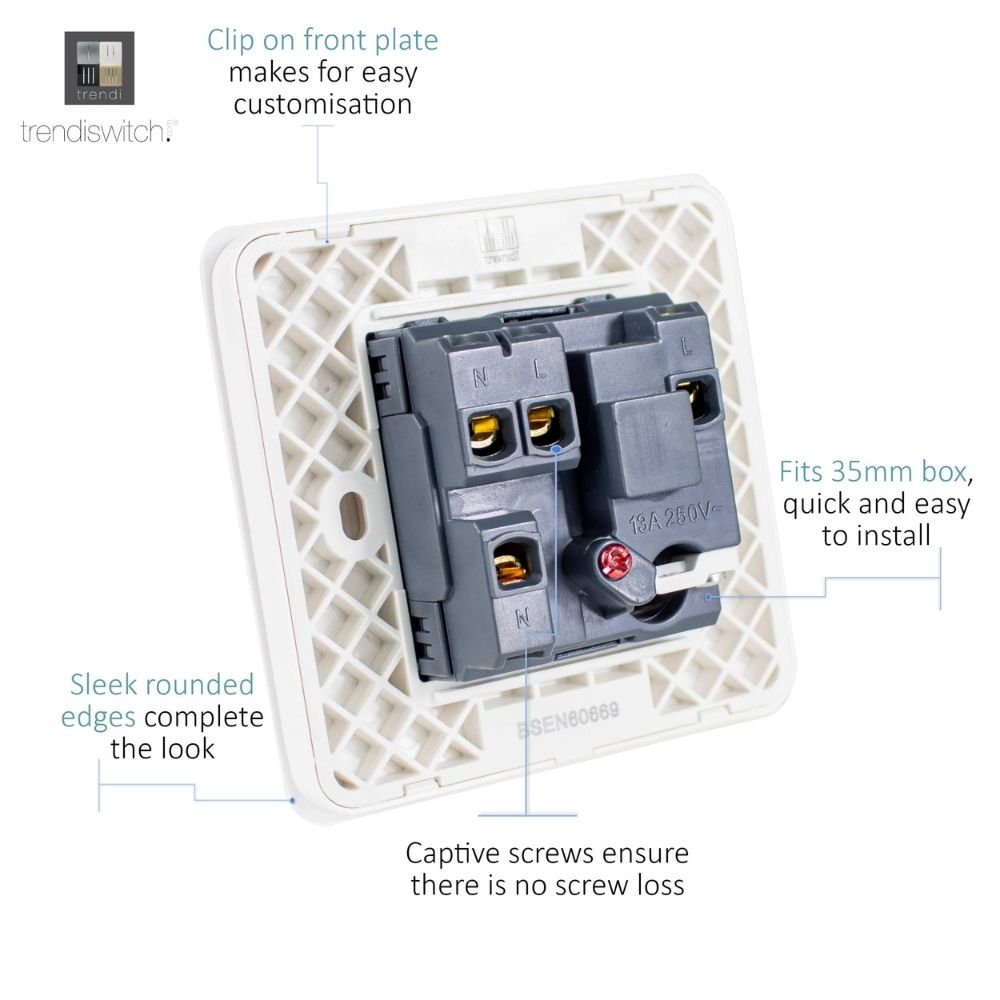

The cover plate clips on, so the fixing screws stay hidden, and captive screws mean none go missing. Other faceplates from the same range clip onto the same module, so you can change the colour later without rewiring.

Made to last

The module casing and faceplate are fireproof ABS plastic. The glossy finish wipes clean with a cloth, and the cover plate resists scratches and doesn't fade in sunlight.

Fitting

It swaps for a standard single fused spur and fits a back box at least 35mm deep. The switch is double pole, and the terminals take up to 4 x 2mm² cable. Have a qualified electrician fit it.

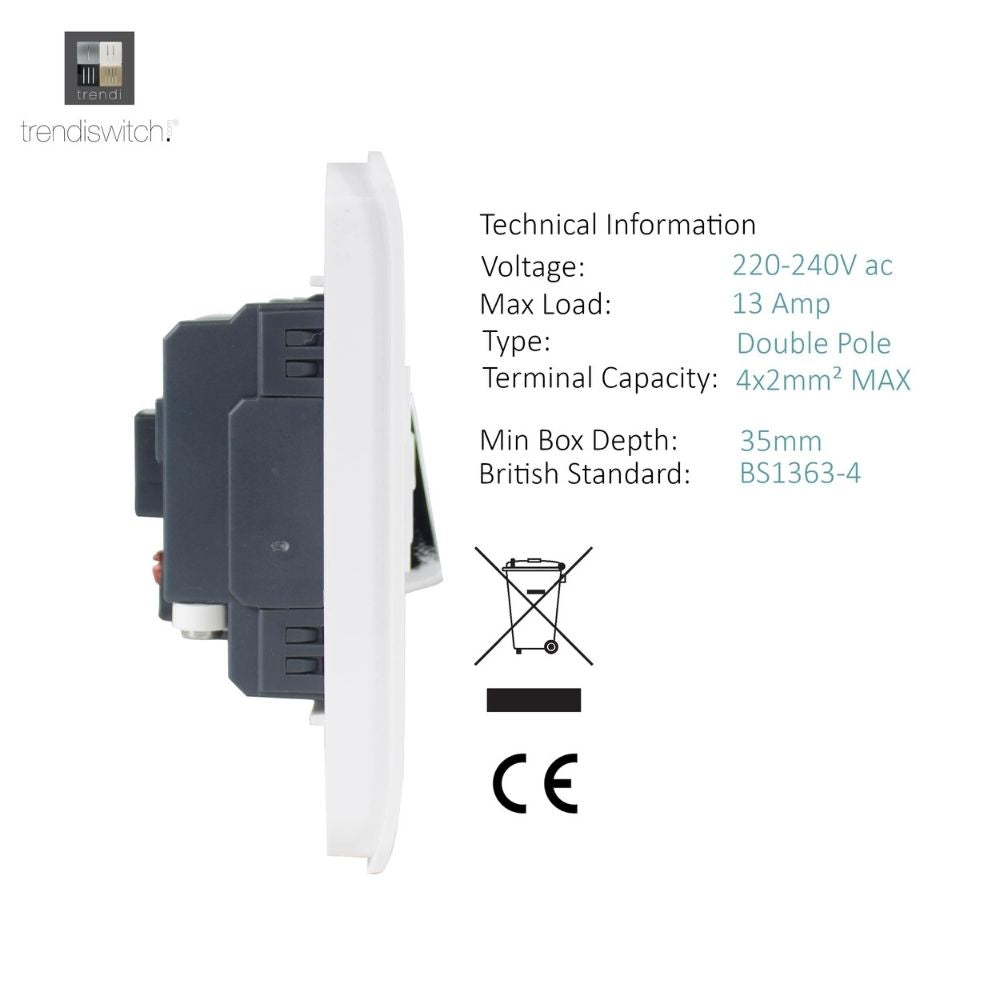

Specifications

• Type: switched fused spur
• Rating: 13A (fuse supplied)
• Switch: double pole
• Outlet: flex outlet knockout
• Finish: glossy white, chrome rocker
• Fixing: screwless clip-on faceplate
• Material: fireproof ABS plastic
• Size: 88 x 88mm
• Minimum box depth: 35mm
• Terminal capacity: 4 x 2mm² max
• Standard: BS1363-4
• Voltage: 220-240v AC
• IP rating: IP20
