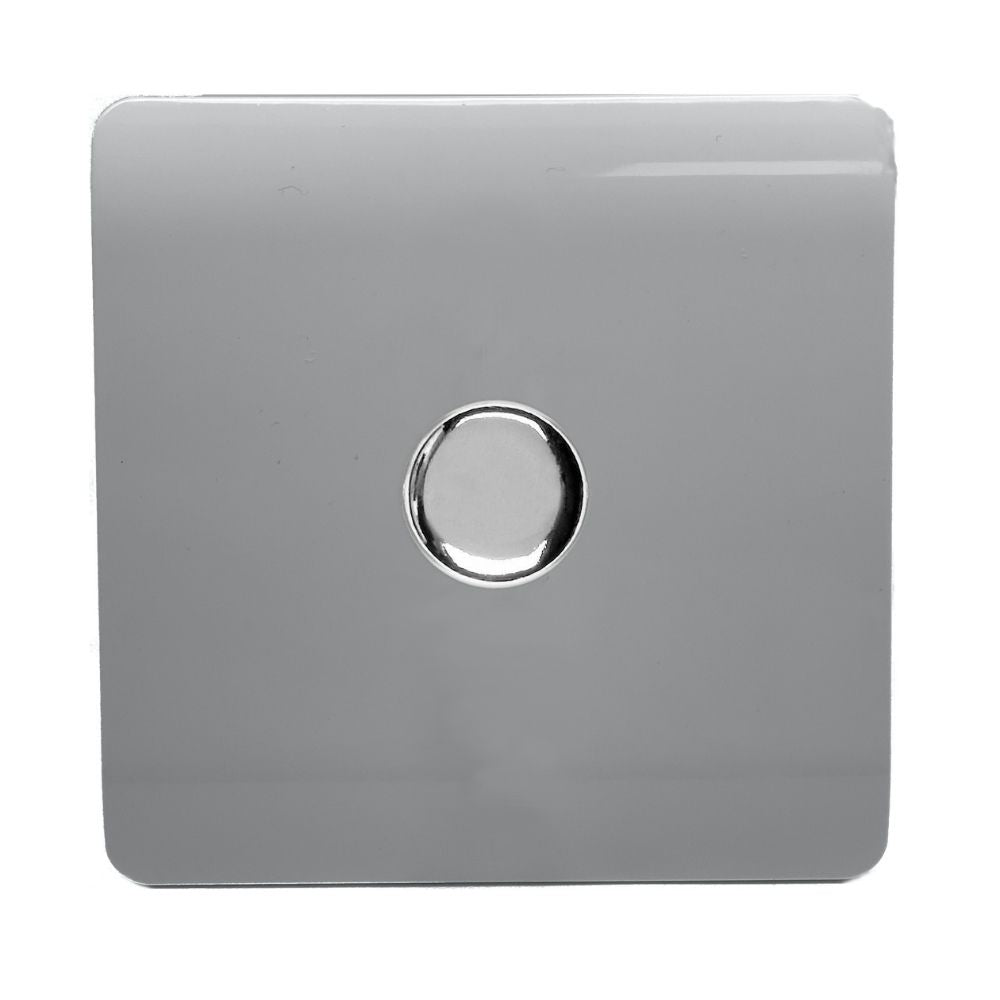

Trendi 120W LED Dimmer Switch, Screwless, Glossy Silver with Chrome Knob

Dim your LED lights

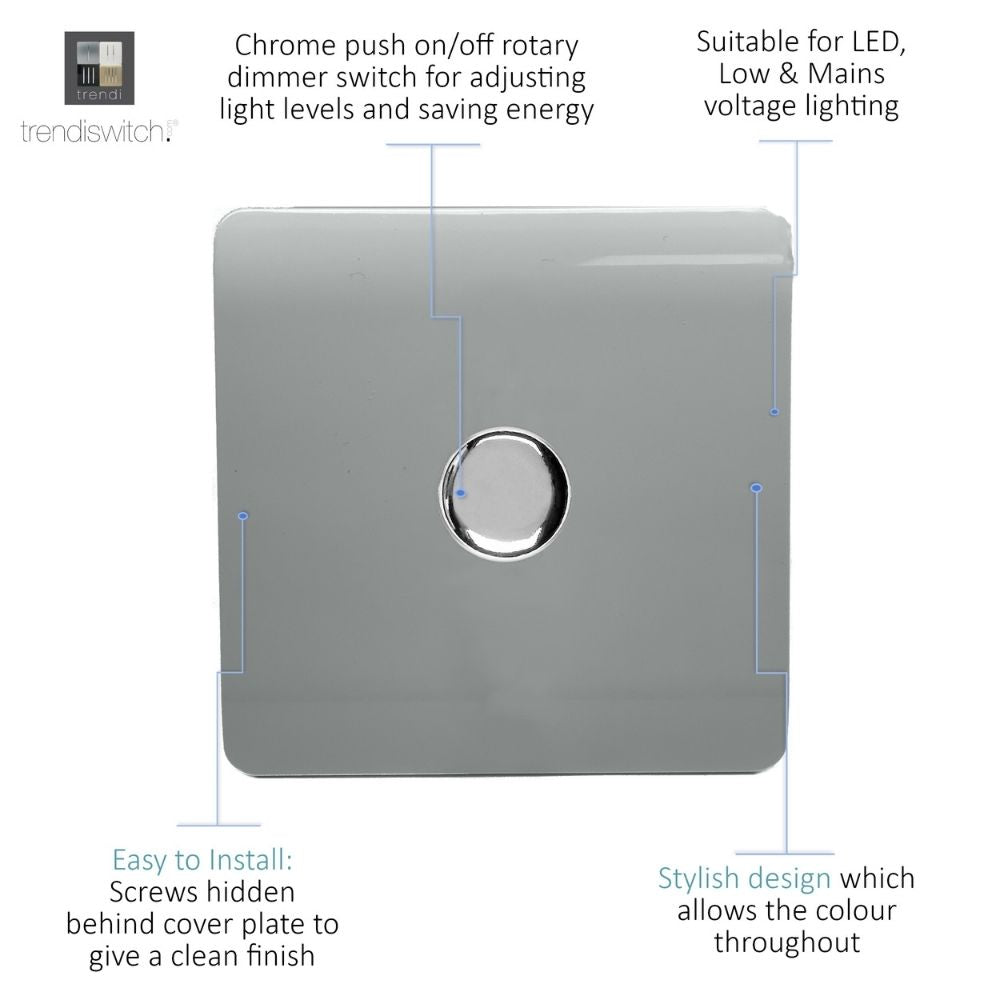

This rotary dimmer switch lets you set the brightness of dimmable LED lights, from full light for tasks to a low glow for evenings. Push the chrome knob to switch the lights on or off, and turn it to dim. It handles up to 120W of dimmable LED lighting, low voltage or mains.

Works with most dimmable LEDs

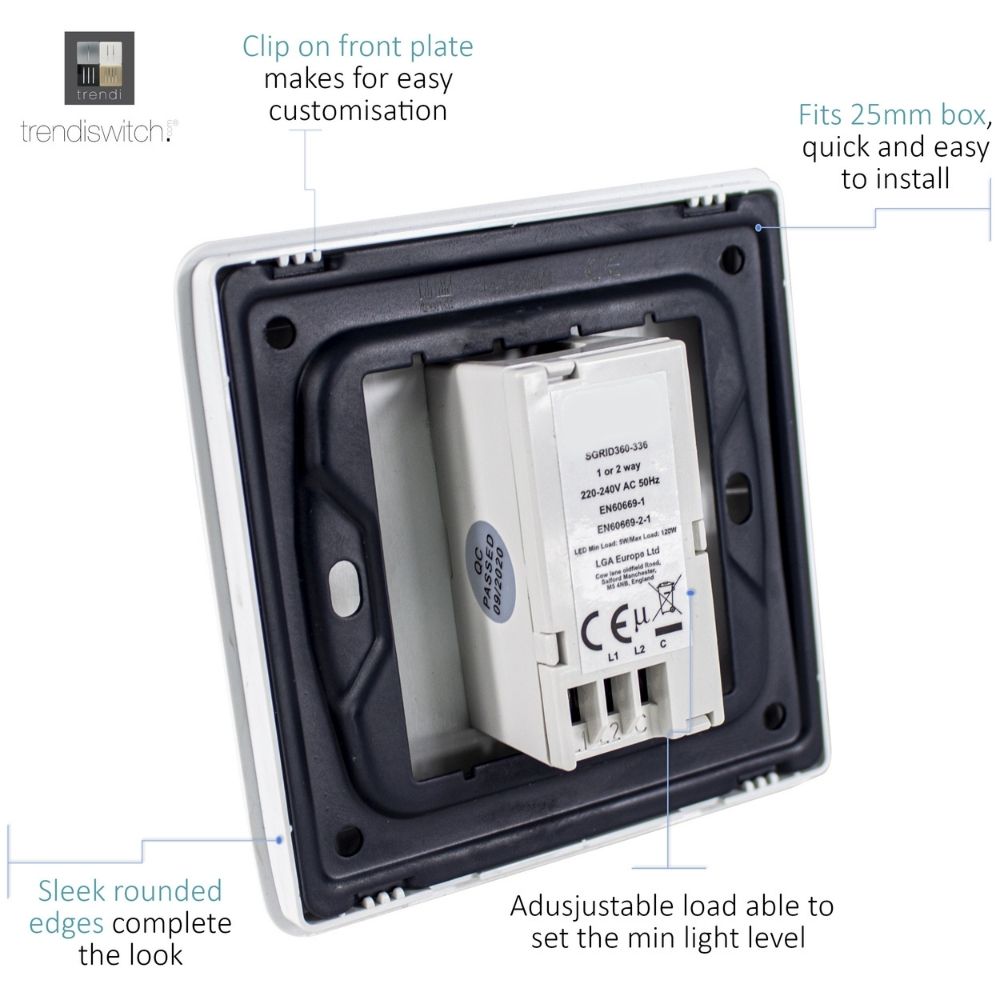

The dimmer works as leading edge or trailing edge, and can be wired 1 way or 2 way. An adjustable minimum setting on the back lets you set the lowest light level, which helps stop LED lamps flickering at the bottom of the range.

Glossy silver and chrome

The faceplate is glossy silver with a chrome knob and no screws on show. Other faceplates from the same range clip onto the same module, so you can change the colour later without rewiring.

Made to last

The module casing and faceplate are fireproof ABS plastic. The glossy finish wipes clean with a cloth, and the cover plate resists scratches and does not fade in sunlight.

Fitting

It swaps for a standard dimmer or light switch and fits a back box at least 25mm deep. It is for indoor use only. It is not suitable for non-dimmable fluorescent lamps and tubes, wire-wound or toroidal transformers, or electric motors. If you are not confident with electrics, have an electrician fit it.

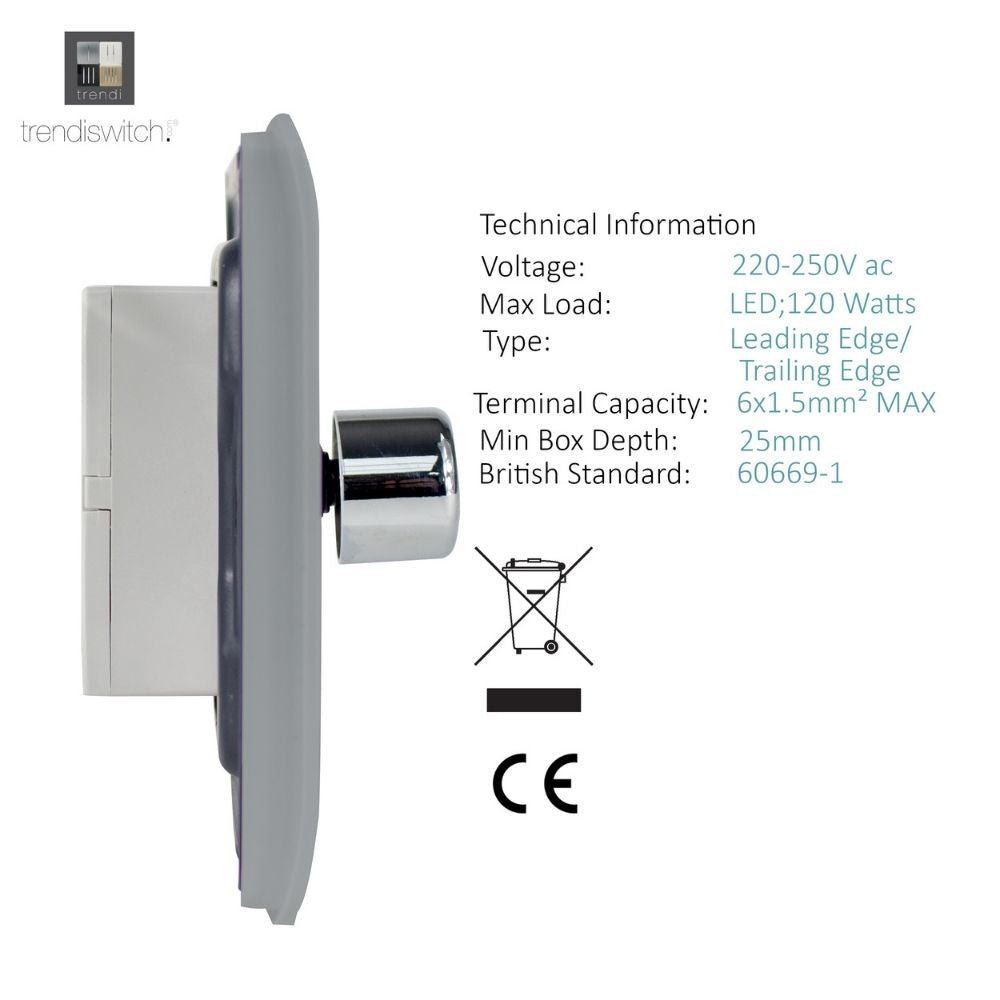

Specifications

• Type: rotary LED dimmer, push on/off
• Max load: 120W LED
• Dimming: leading edge or trailing edge
• Switching: 1 or 2 way
• Finish: glossy silver, chrome knob
• Fixing: screwless clip-on faceplate
• Material: fireproof ABS plastic
• Size: 88 x 88mm
• Minimum box depth: 25mm
• Terminal capacity: 6 x 1.5mm² max
• Standard: EN 60669-1
• Voltage: 220-250V AC
• IP rating: IP20
