Single LED Sign Module Chain, 20 Modules, 2.8m, 10w, 24V, Cool White 6500K, IP65

For shallow light boxes and small signs

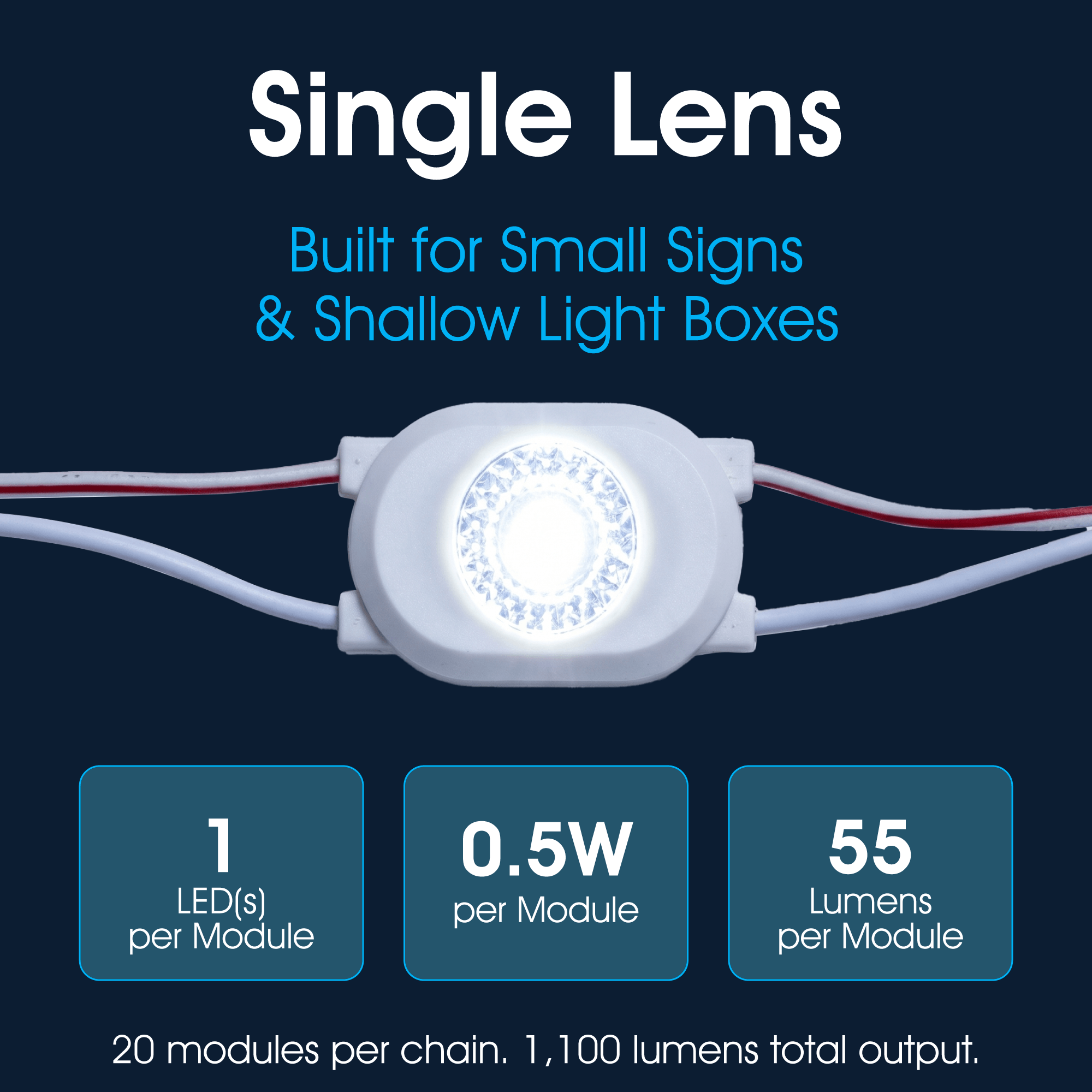

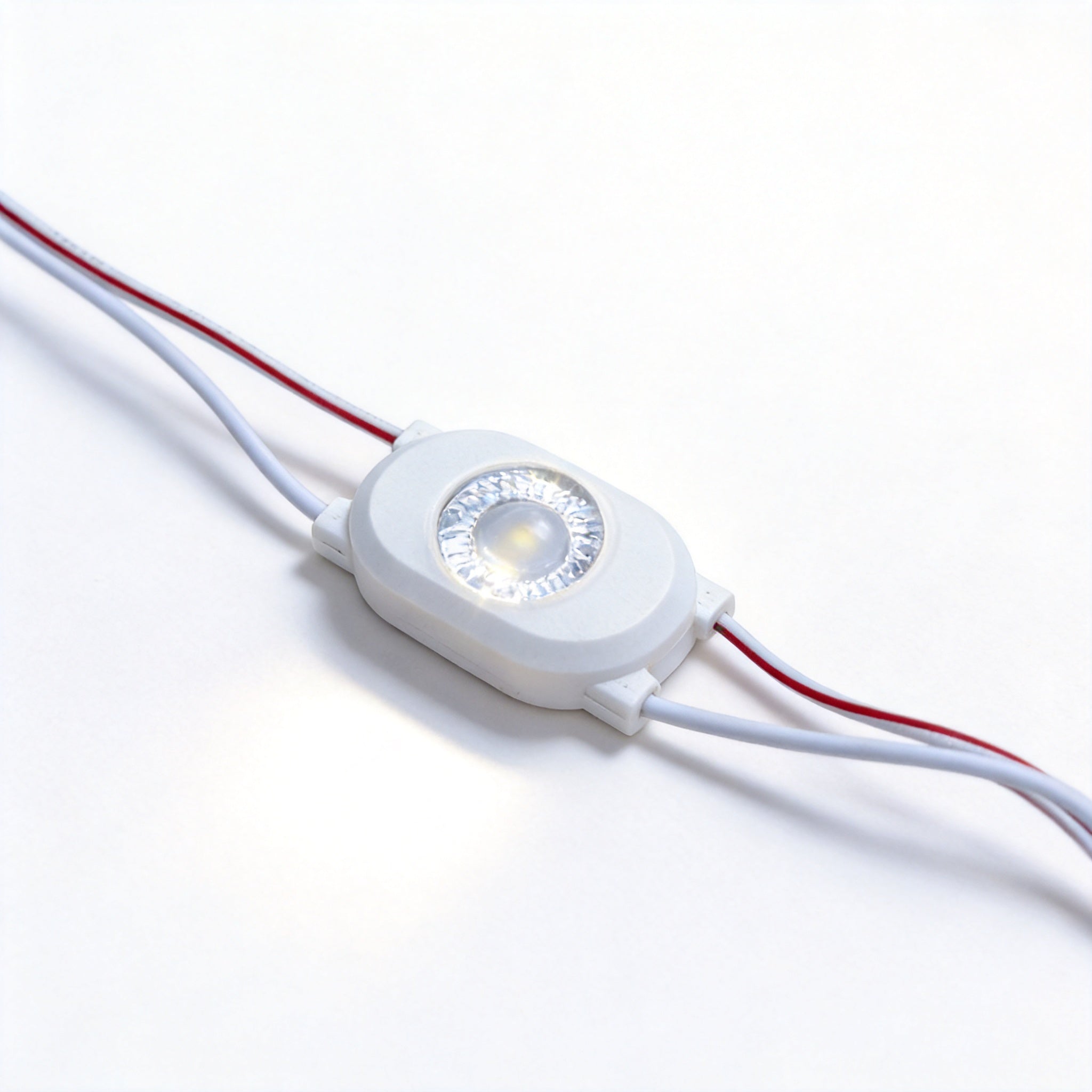

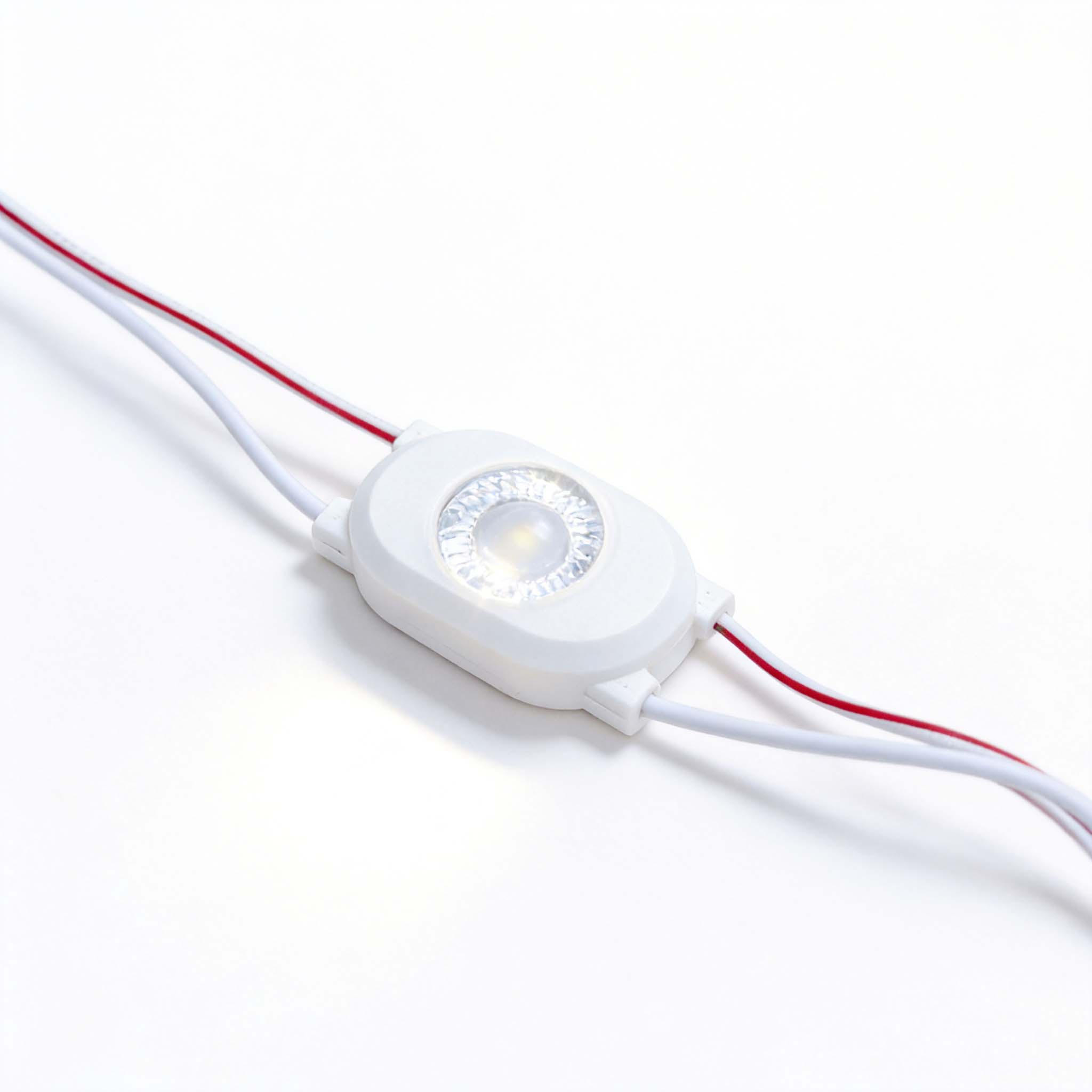

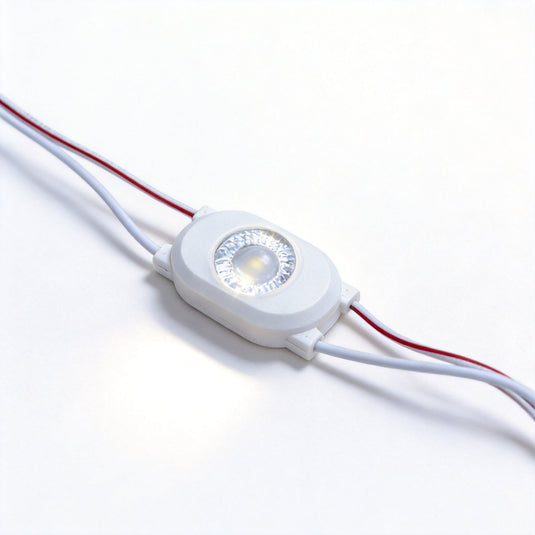

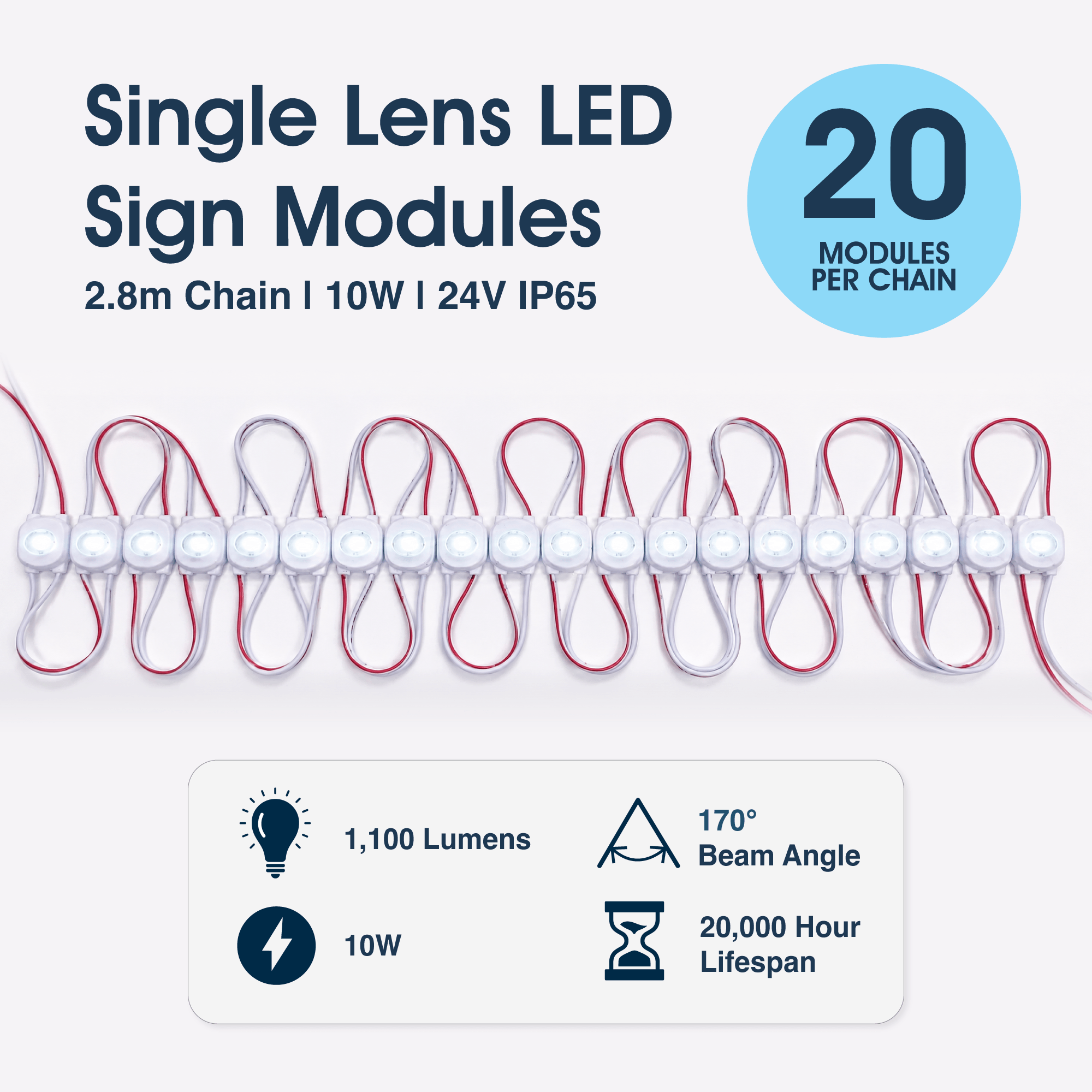

This is one chain of 20 single LED modules for lighting the inside of shallow light boxes, slim channel letters and smaller fascia signs where space is tight. Each module has one LED giving 55 lumens of cool white light from 0.5w, and the wide 170° beam spreads the light across the sign face so there are fewer bright spots and dark patches.

The chain

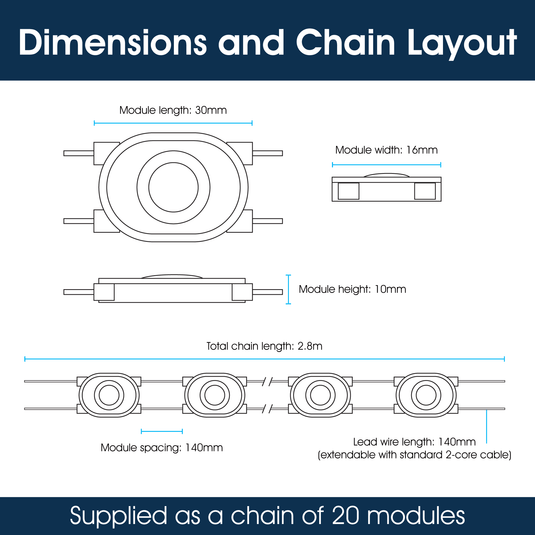

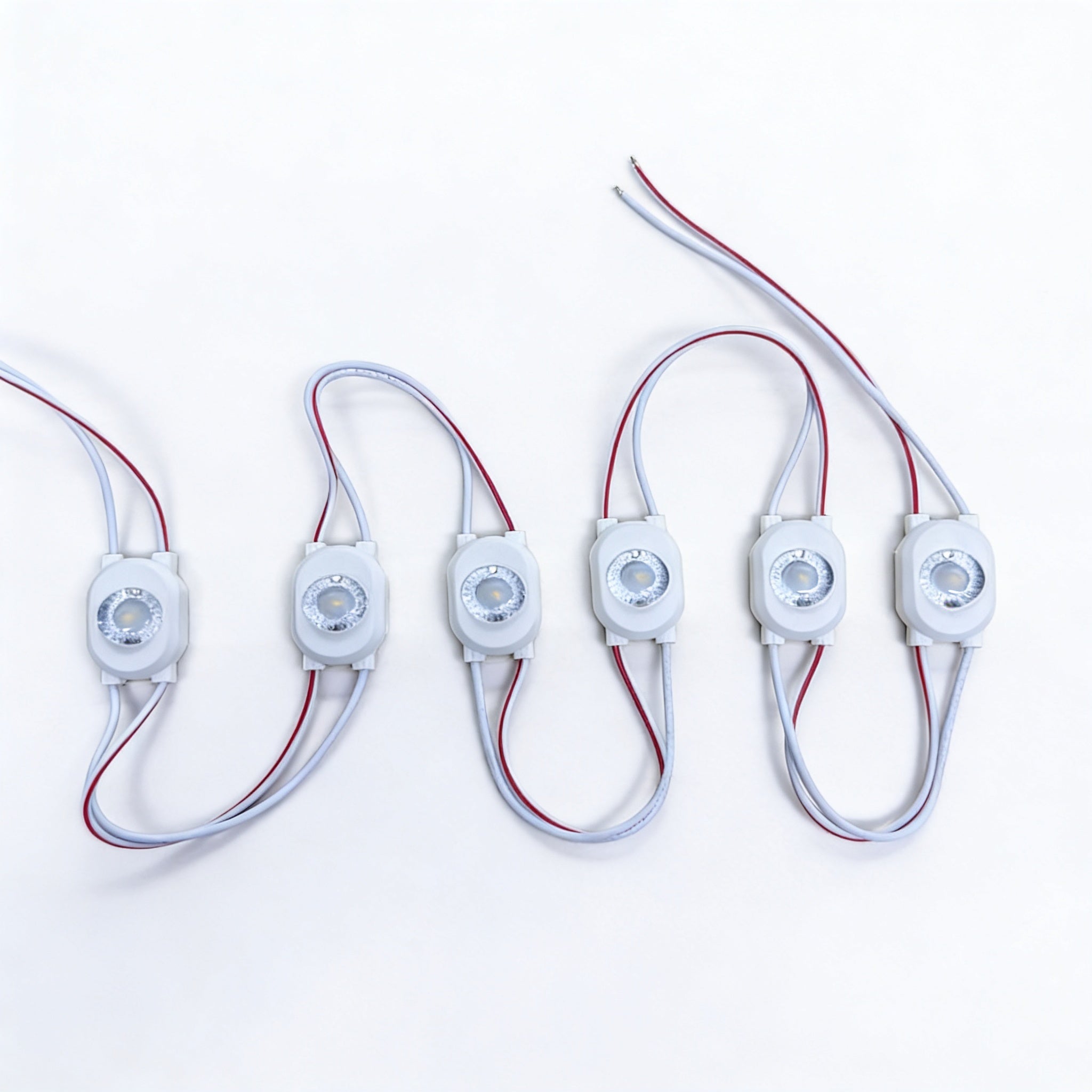

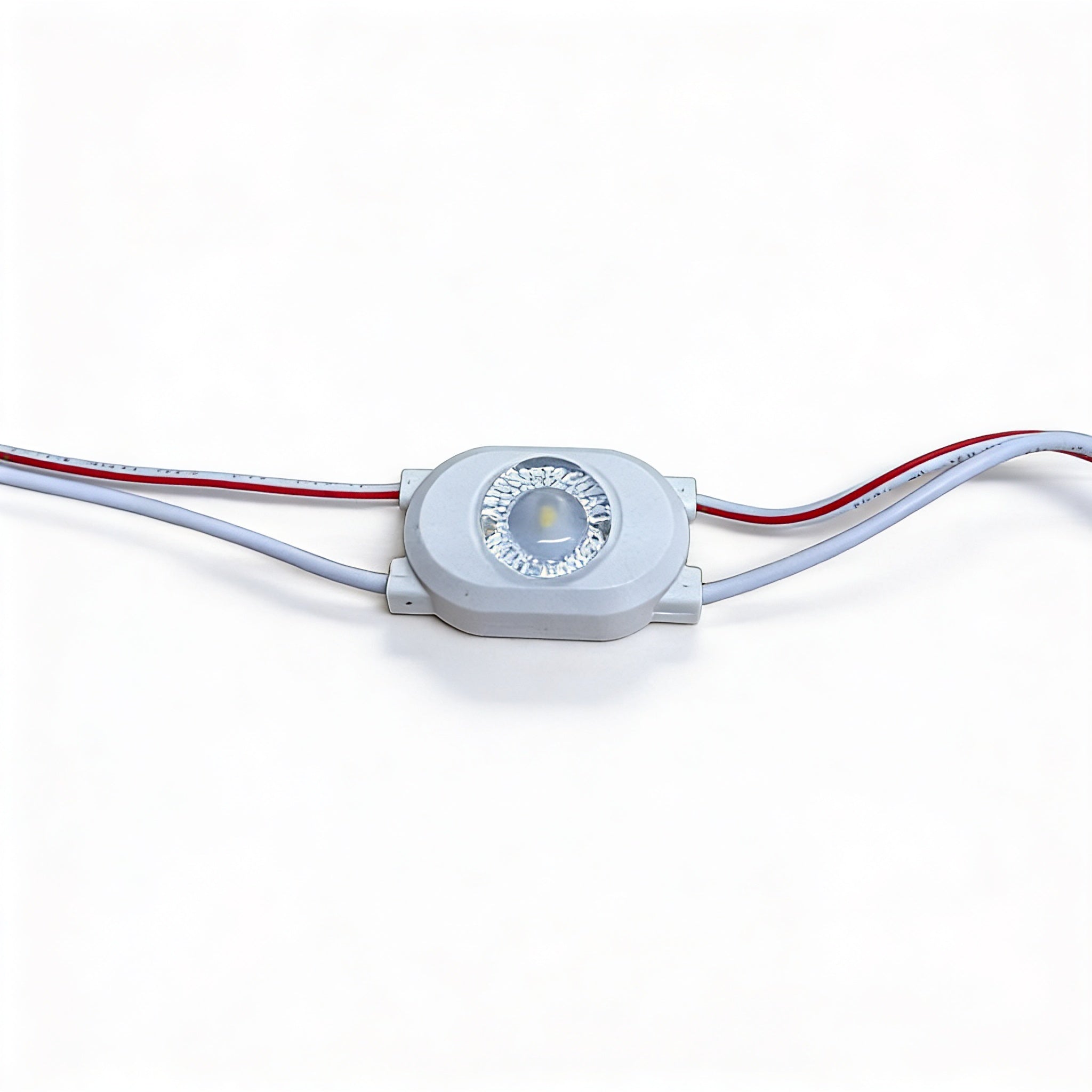

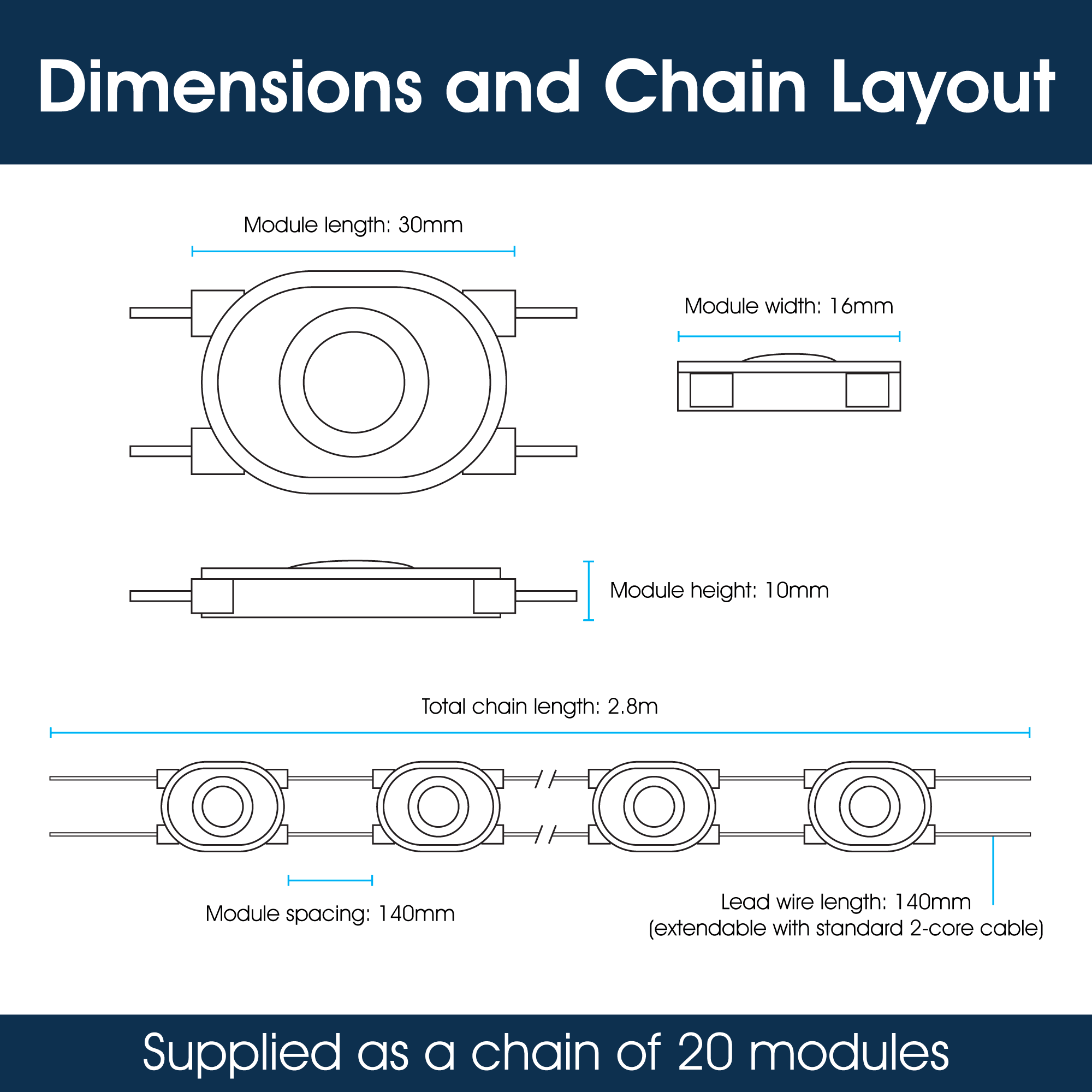

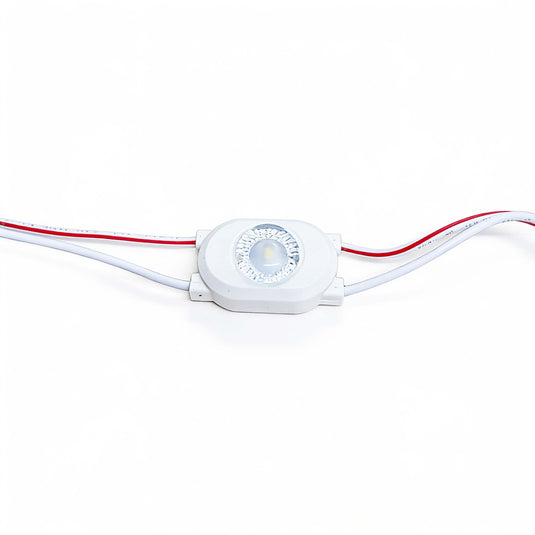

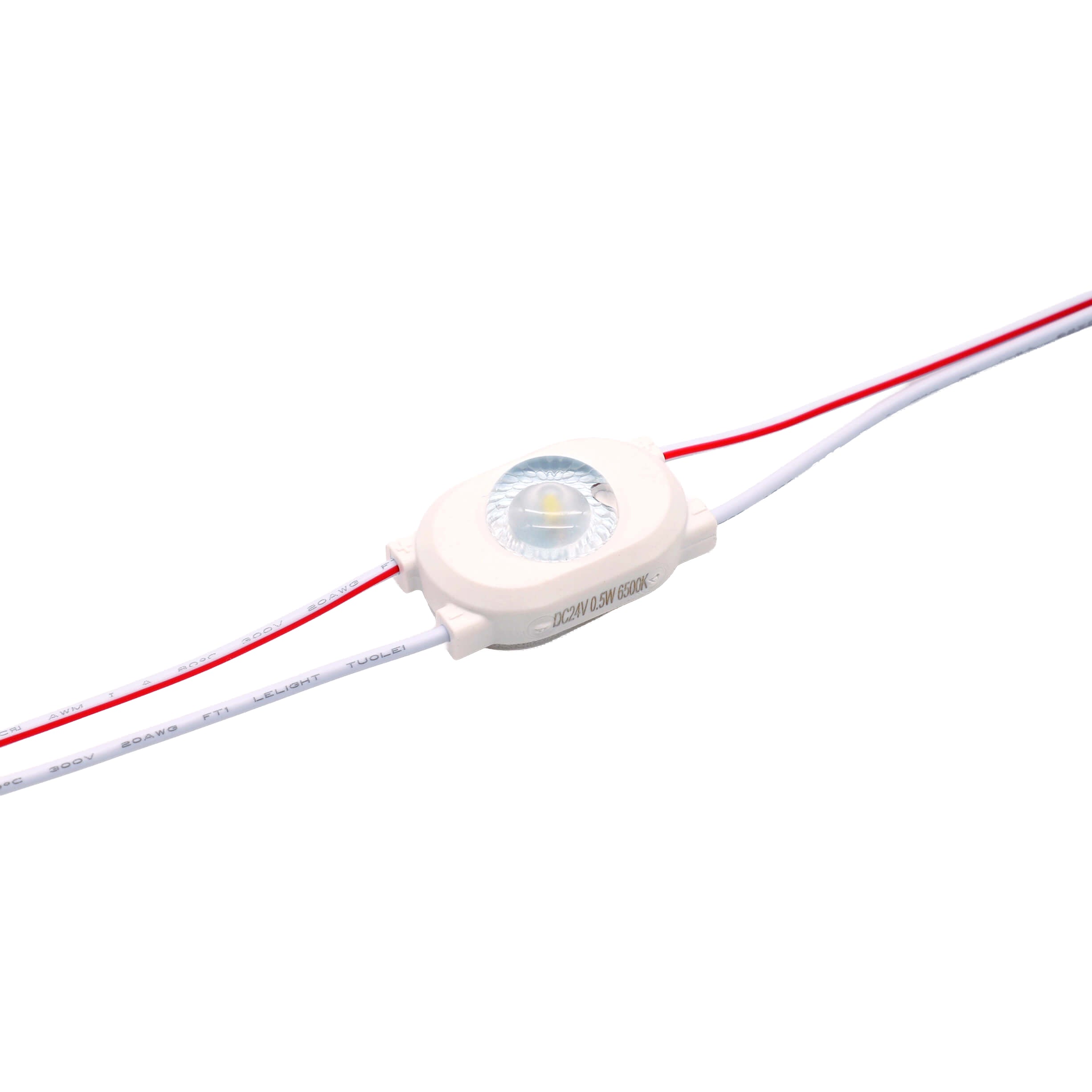

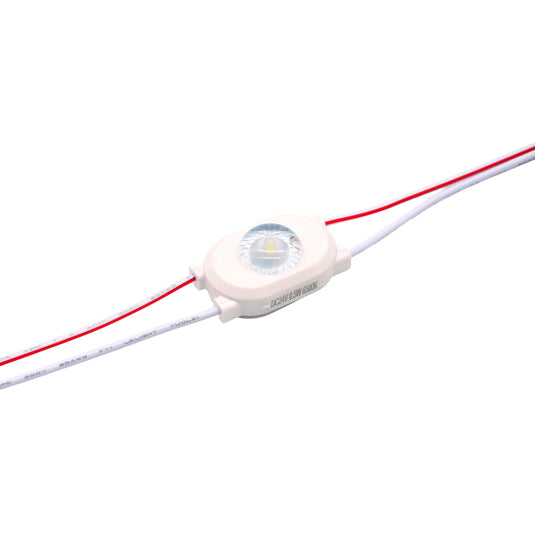

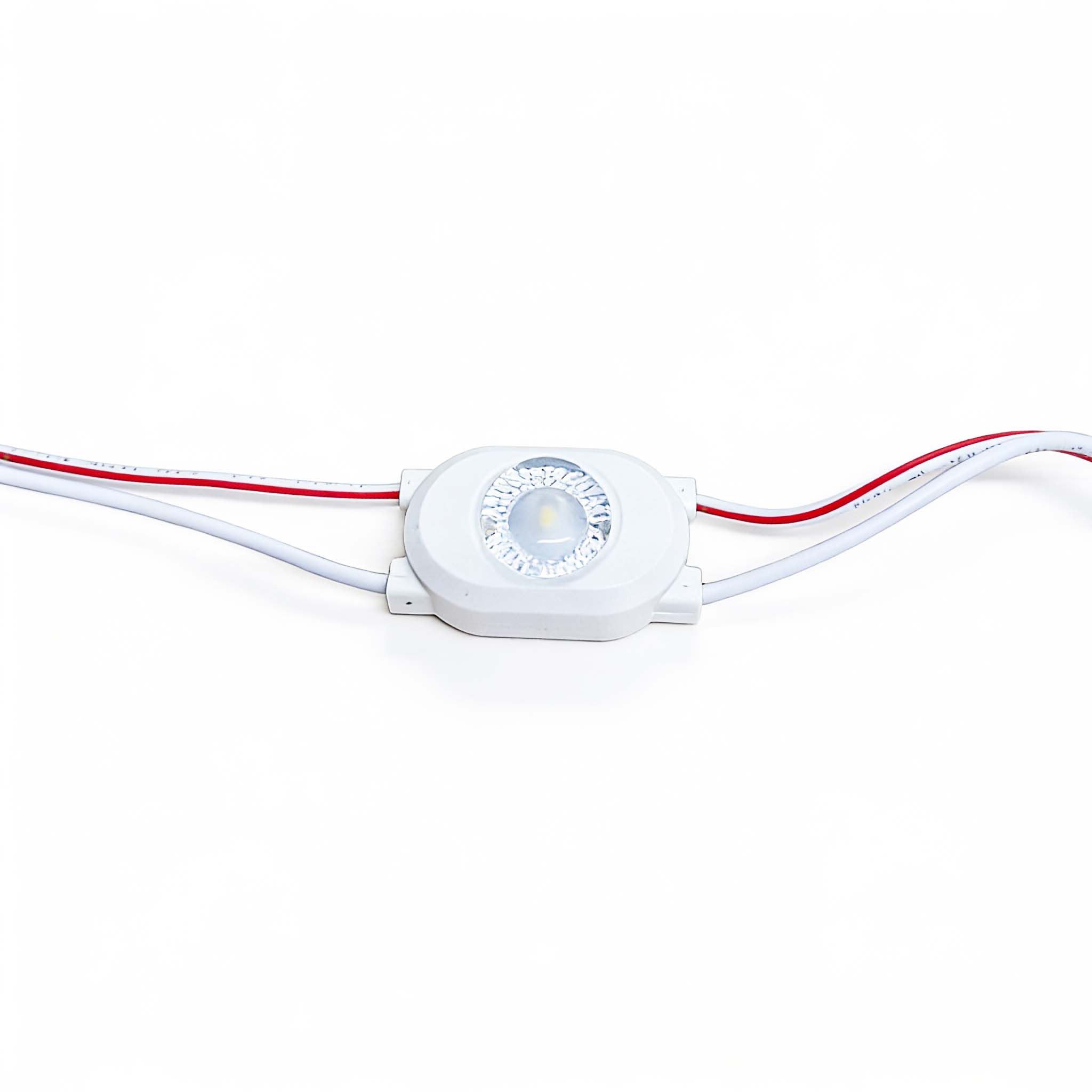

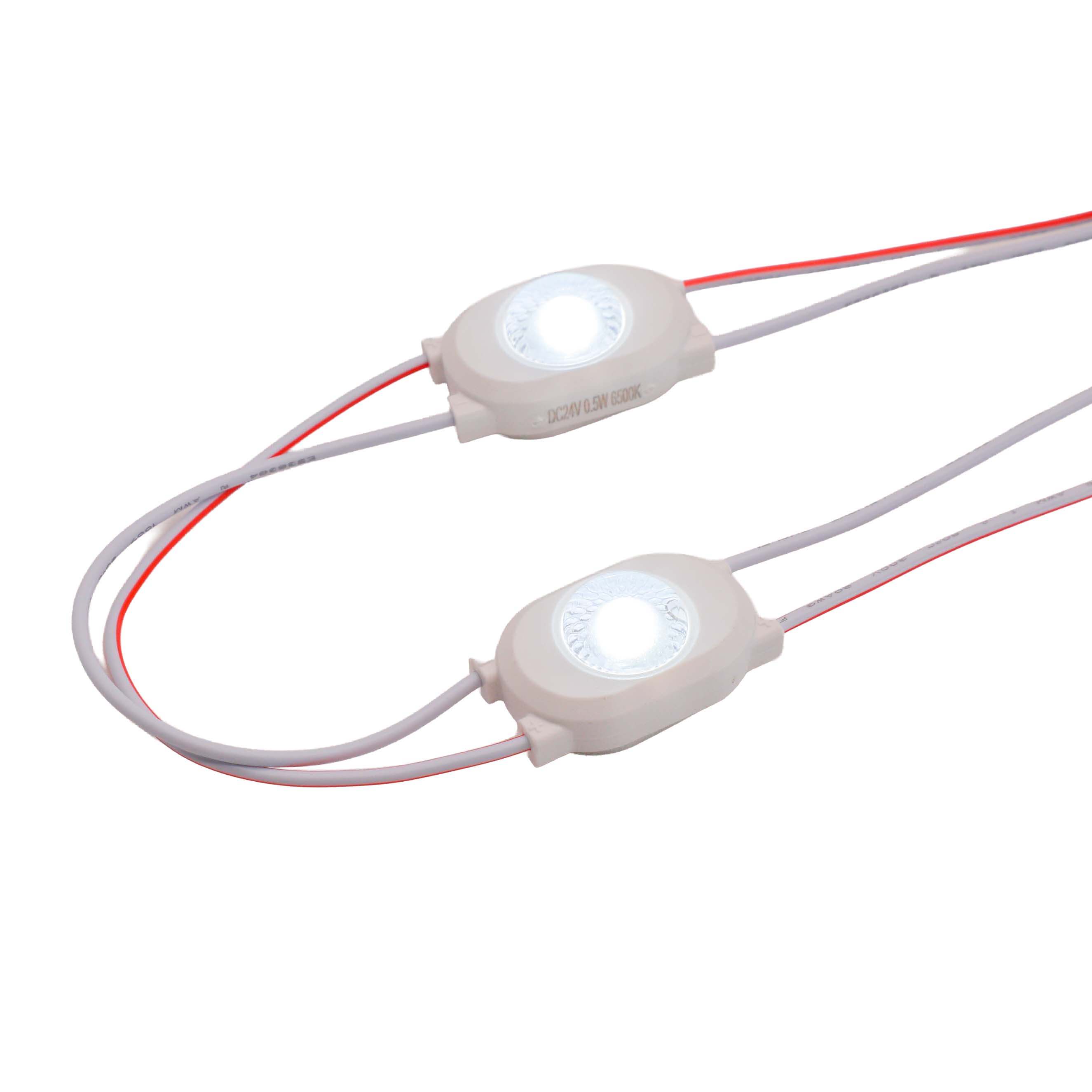

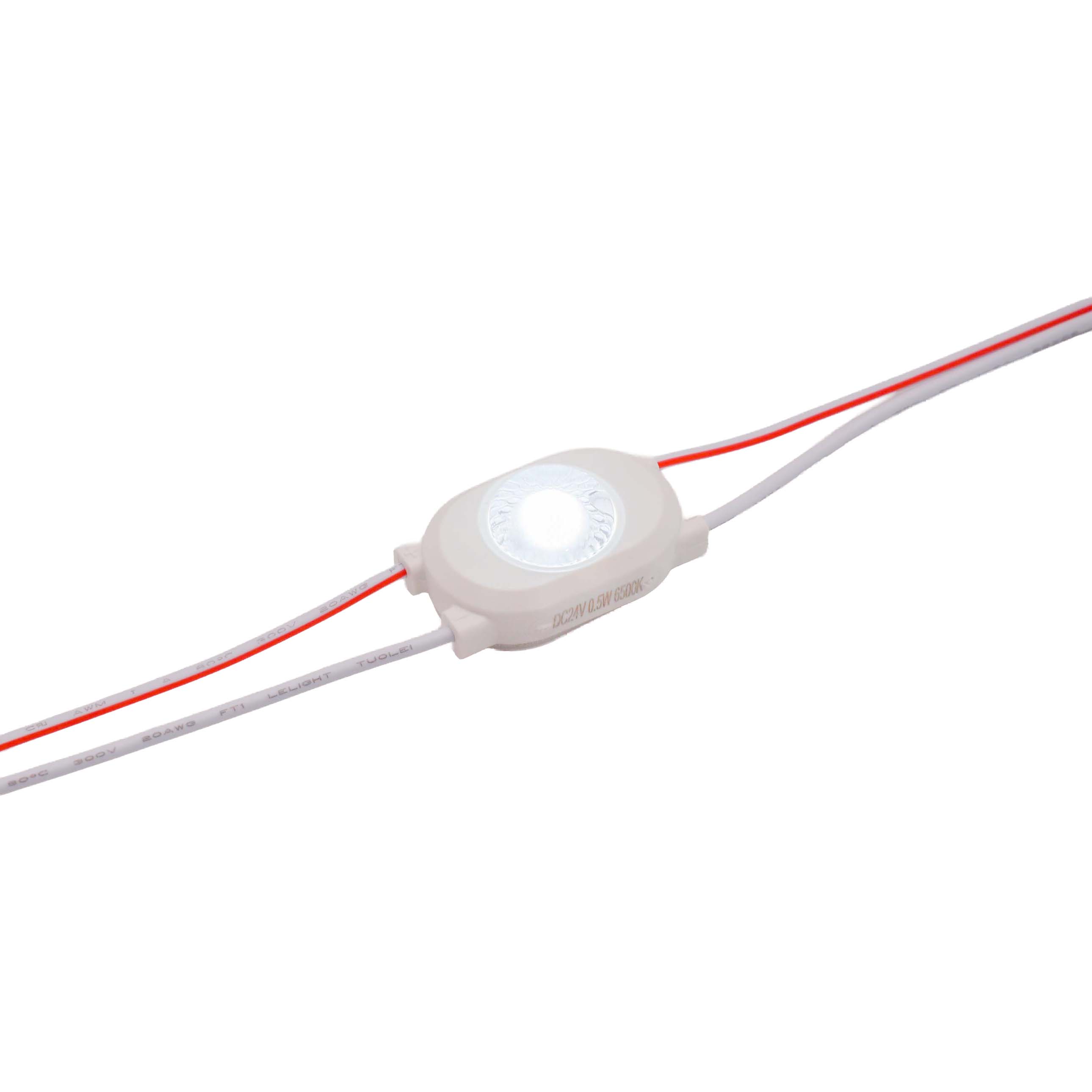

The chain is 2.8m long, with the modules spaced 140mm apart. Each module is 30 x 16 x 10mm. There's a 140mm lead at the start of the chain to reach the driver, and you can extend it with standard 2-core cable. The wires are AWG 22 with bare tinned ends: red is positive and white is negative.

Cut to fit

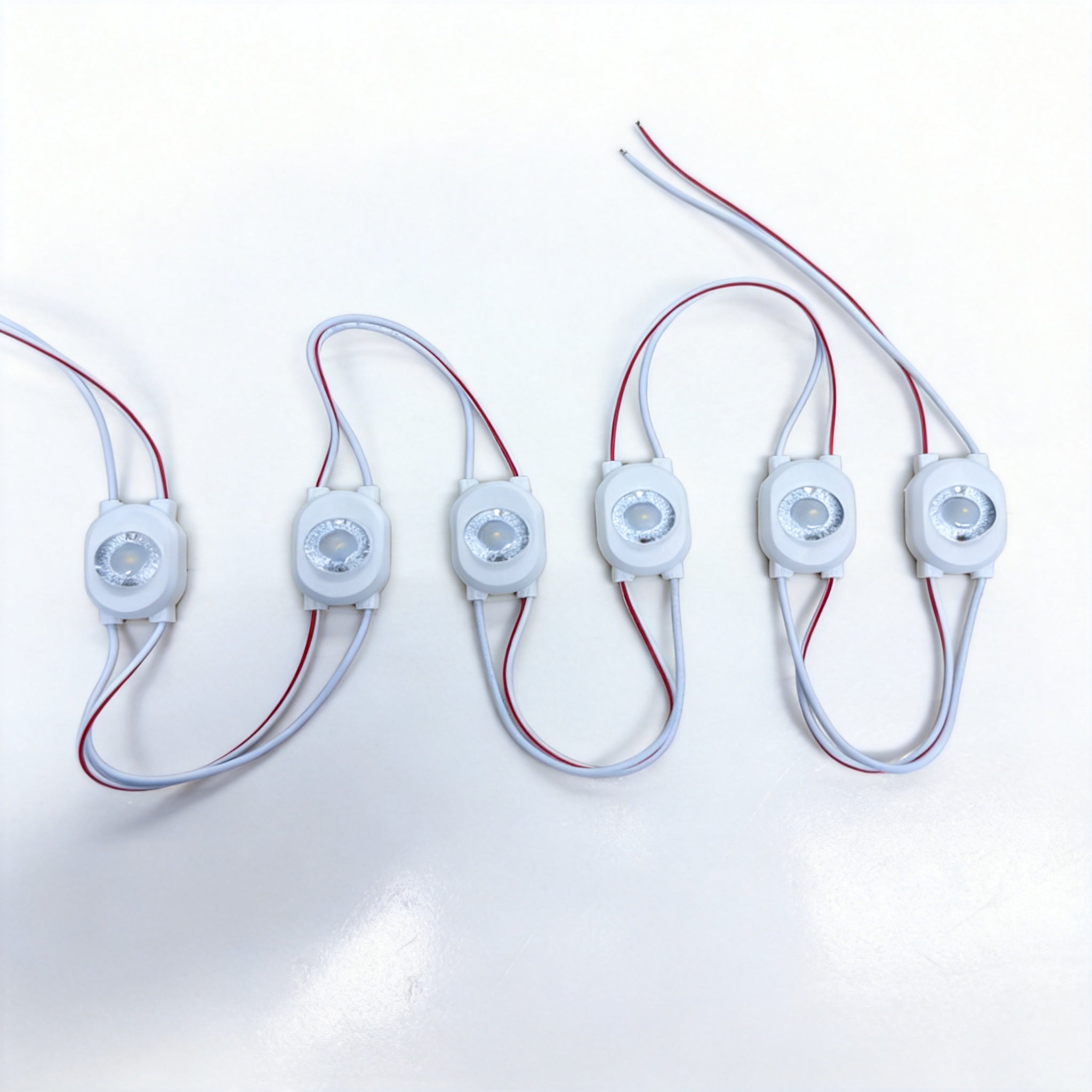

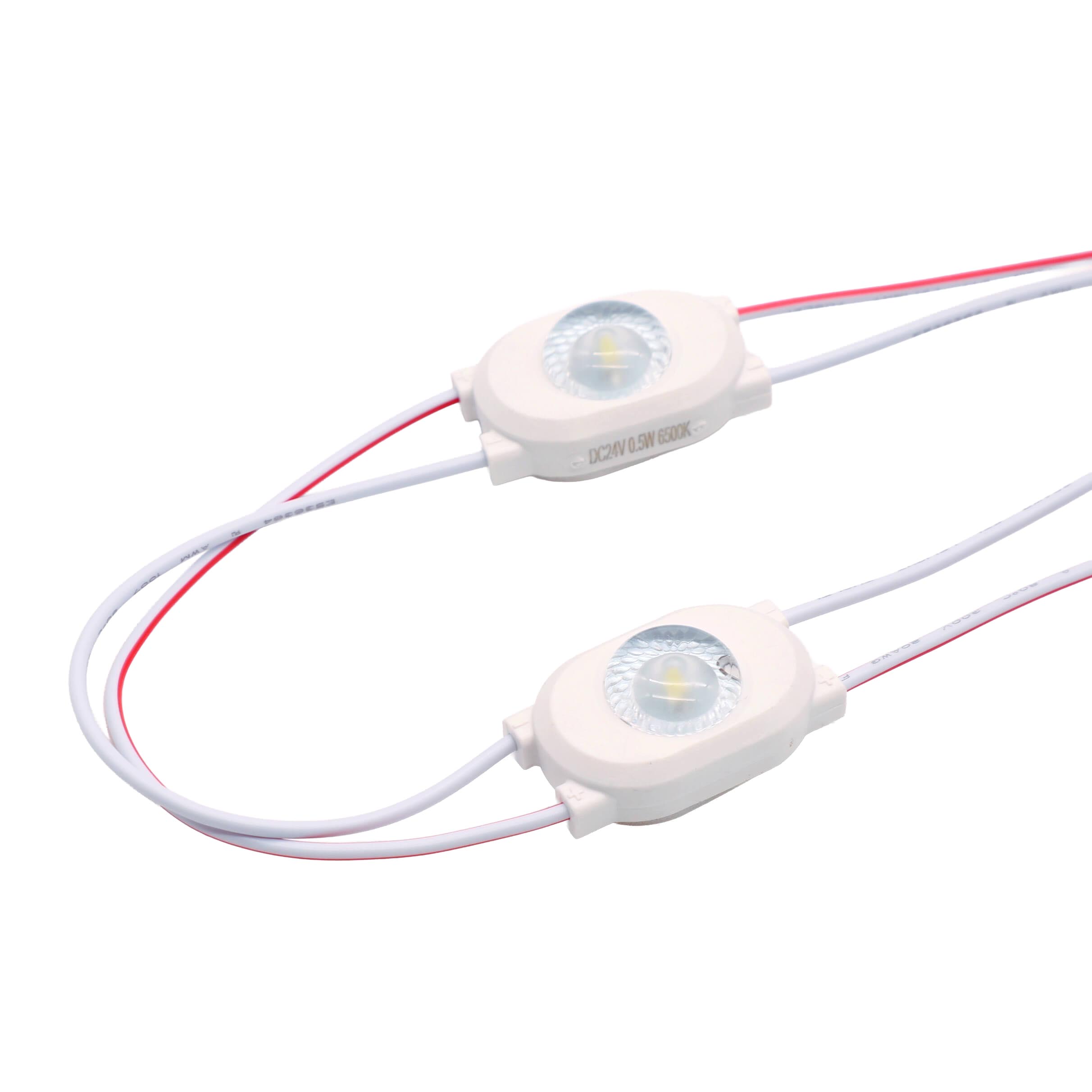

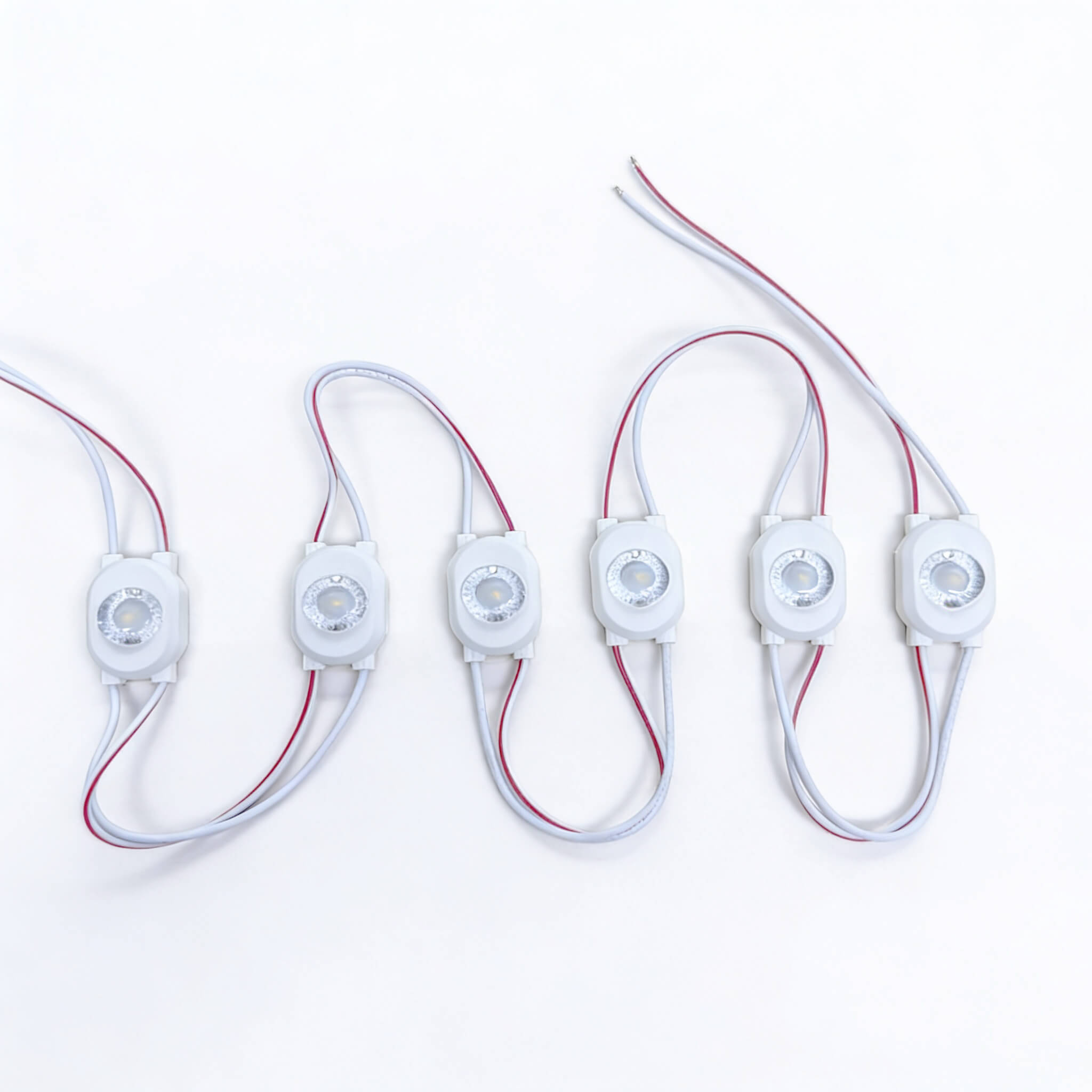

You can cut the chain between any two modules to suit letters, curves and awkward layouts. Strip the cut wires back and either terminate them or join them to an extension cable. A module you cut off can be reused at the end of another run.

Power

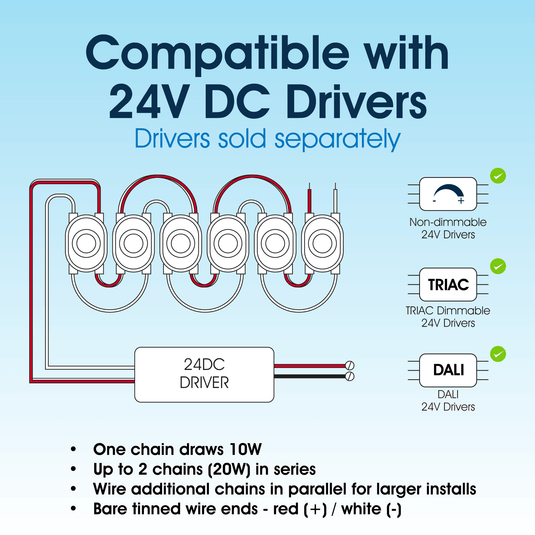

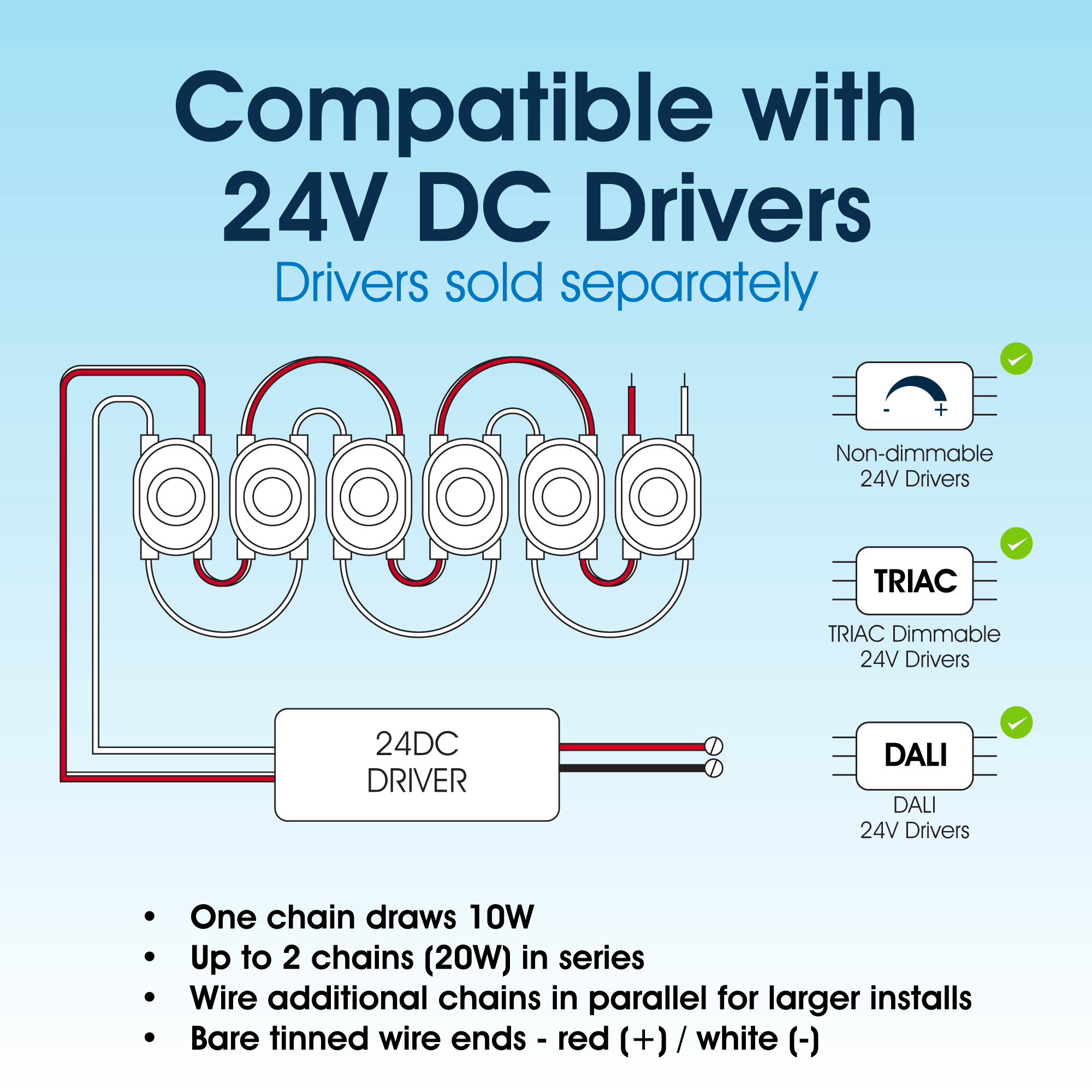

The modules run on 24V DC, so you need a 24V LED driver, sold separately. Run up to 40 modules (two full chains) in series; beyond that, wire chains in parallel. To size the driver, multiply the total wattage by 1.2: one 10w chain needs a 15w 24V driver, and four chains in parallel need at least a 60w driver. You can use a non-dimmable, TRIAC dimmable or DALI driver, depending on the job.

Indoors and outdoors

The modules are rated IP65, with a sealed PVC housing and silicone lens, so they suit outdoor shopfront, fascia, monument and projecting signs as well as indoor light boxes. Outdoors, the driver and any junction boxes need a suitable IP rating too.

Fixing

Each module has 3M adhesive backing for quick positioning, plus a screw hole for a permanent or outdoor fixing. Clean the surface with isopropyl alcohol before sticking the modules down.

Specifications

• Modules per chain: 20
• LEDs per module: 1
• Power: 0.5w per module, 10w per chain
• Light output: 55 lumens per module, 1,100 lumens per chain
• Colour: cool white 6500K
• CRI: 80
• Beam angle: 170°
• Voltage: 24V DC (driver sold separately)
• IP rating: IP65
• Module size: 30 x 16 x 10mm
• Chain length: 2.8m
• Module spacing: 140mm
• Cable: AWG 22, 140mm lead
• Average life: 20,000 hours
