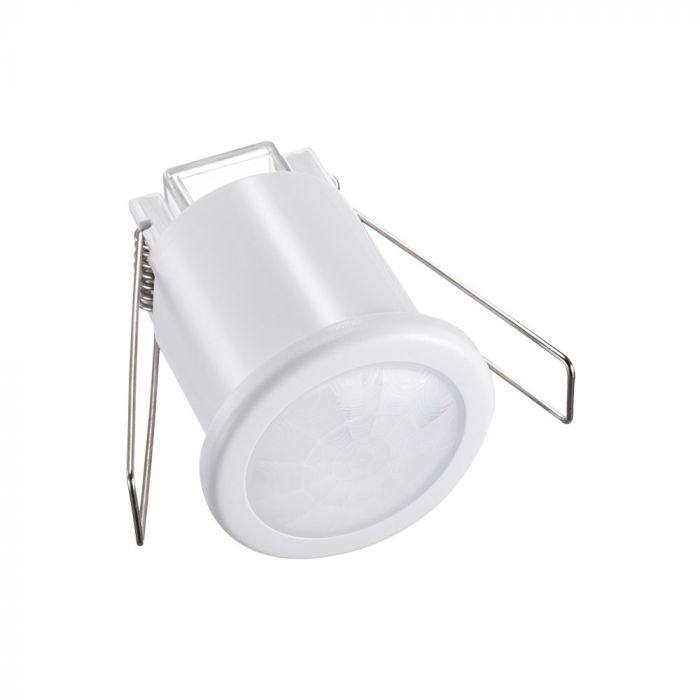

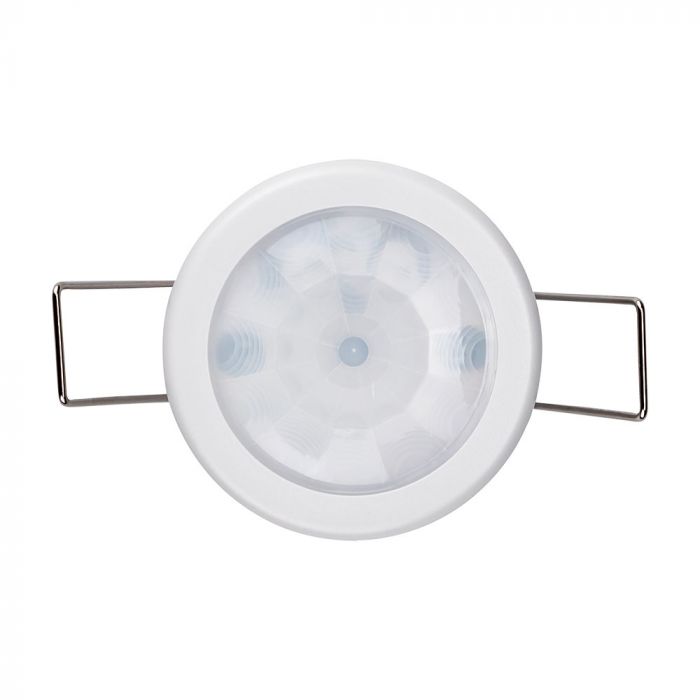

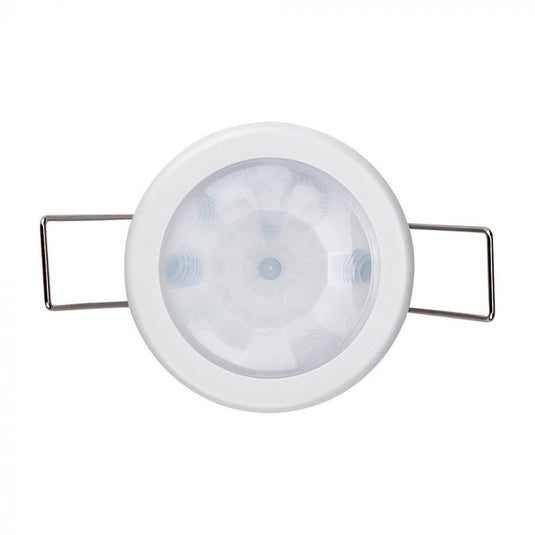

Recessed PIR Motion Sensor, White, 360°, 8m Range, 40mm Cut-Out

Lights that switch themselves off

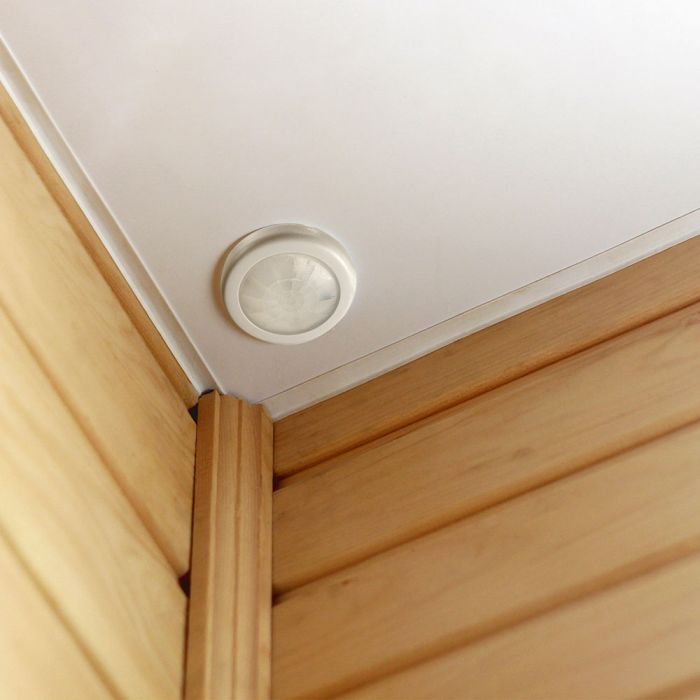

This recessed PIR sensor turns the connected lights on when it detects someone and off again after a set time with no movement, so you never leave lights burning in an empty room. It suits kitchens, pantries, store rooms, utility rooms, hallways and toilets.

Wide coverage

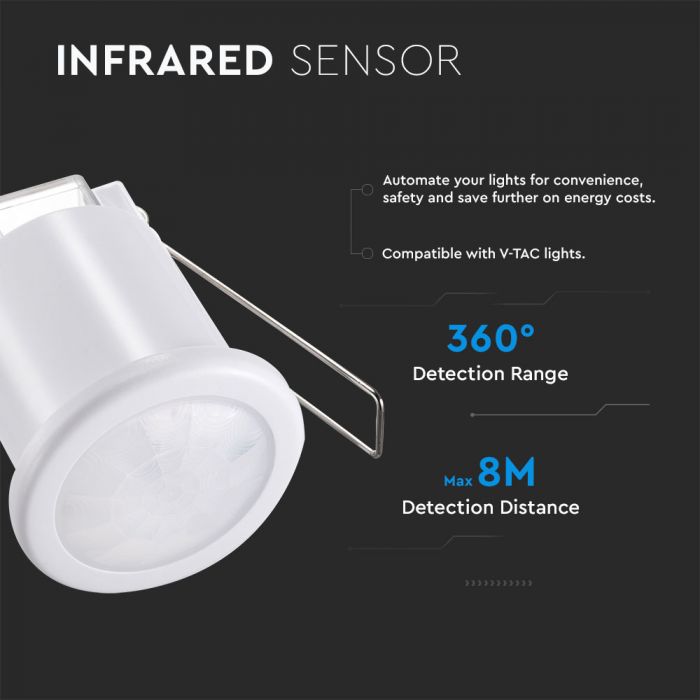

It detects all the way round, with 360° coverage and a range of up to 8m (at temperatures below 24°C). It picks up movement at walking speeds of 0.6 to 1.5m/s.

Set it to suit the room

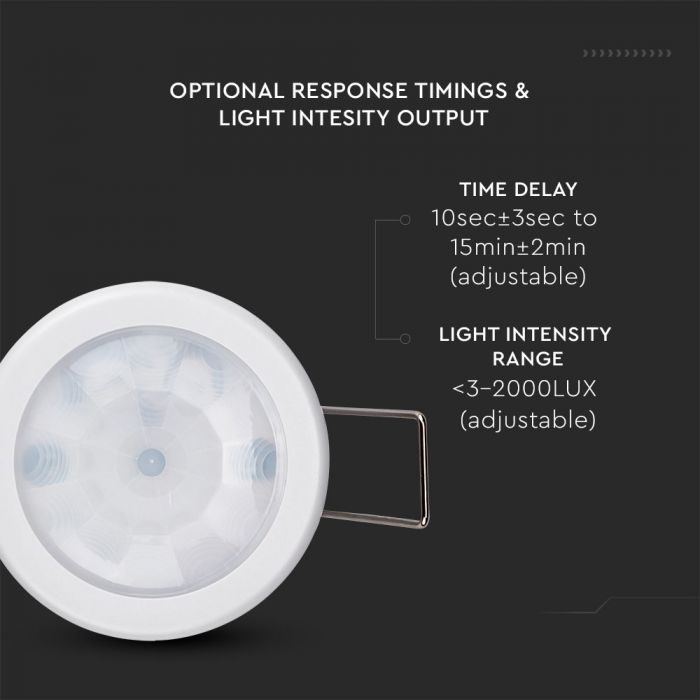

The time delay is adjustable, so lights stay on as long as you need. The daylight sensor can be set from under 3 lux to 2000 lux, so it can stop the lights coming on when there's enough daylight.

Fitting

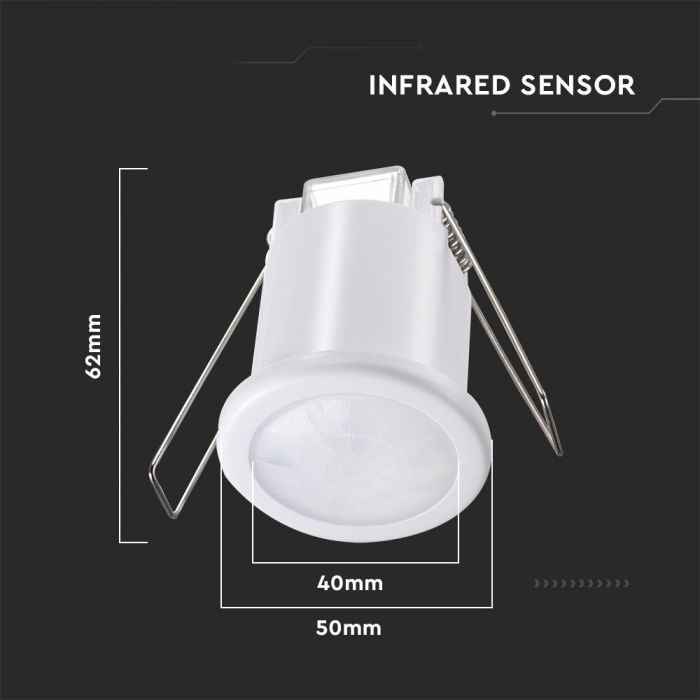

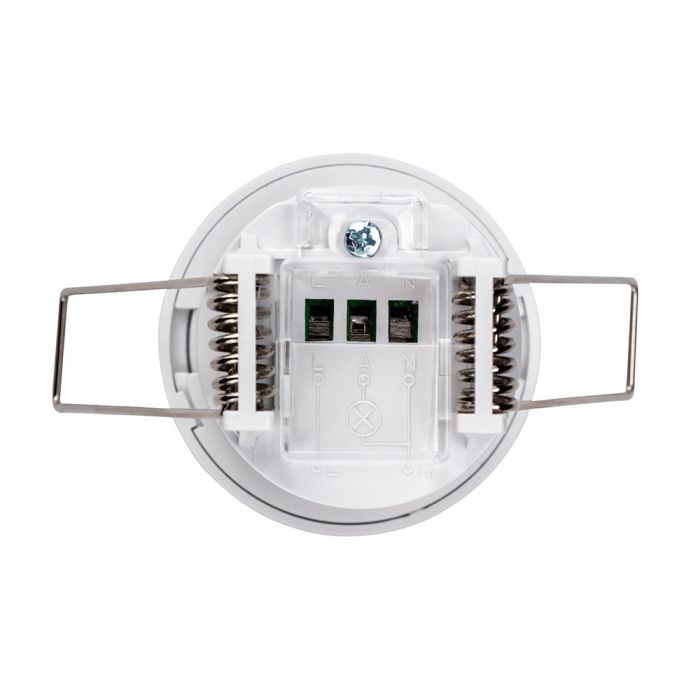

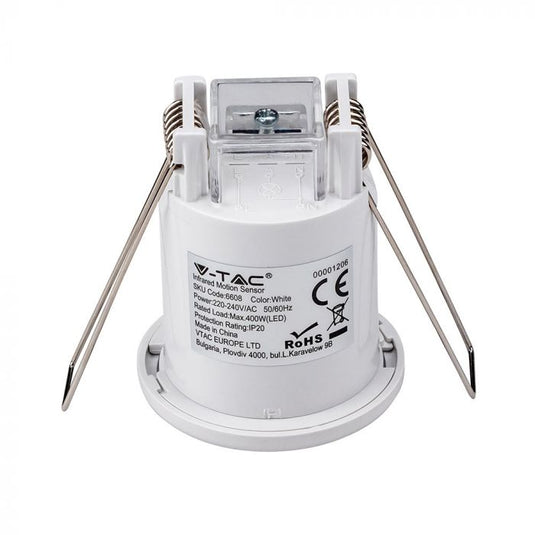

It fits flush through a 40mm cut-out, and the white PC body blends into a white ceiling. It runs on 220-240V AC mains. Installation and mains wiring must be done by a qualified electrician. It is rated IP20, so fit it indoors.

Specifications

• Type: recessed PIR motion sensor with daylight sensor
• Detection angle: 360°
• Detection range: up to 8m (below 24°C)
• Detection speed: 0.6 to 1.5m/s
• Time delay: adjustable
• Lux setting: <3 to 2000 lux, adjustable

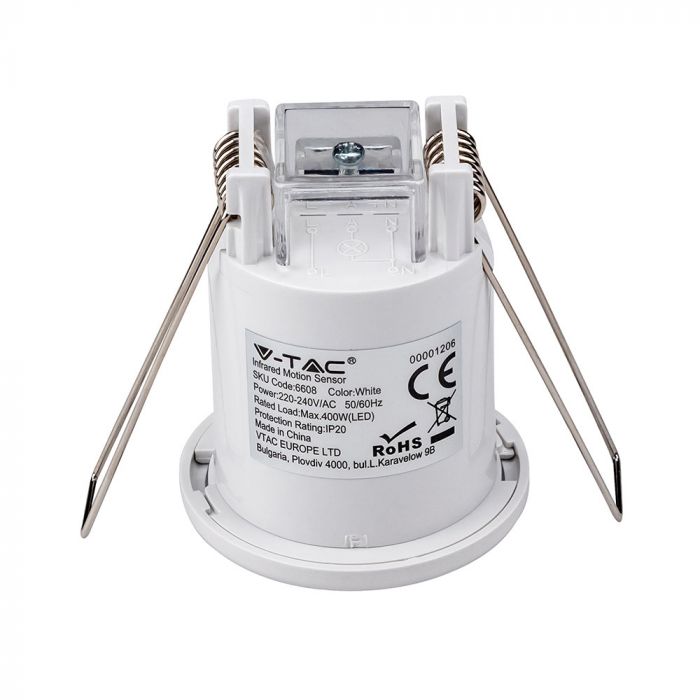

• Supply: 220-240V AC, 50/60Hz
• Cut-out: 40mm
• Body: white PC
• IP rating: IP20
