Plug and Play LED Cabinet Light, 200 x 100mm, 4.8w, 520 Lumens, Natural White 4000K, Silver, 24V

A wider light for furniture

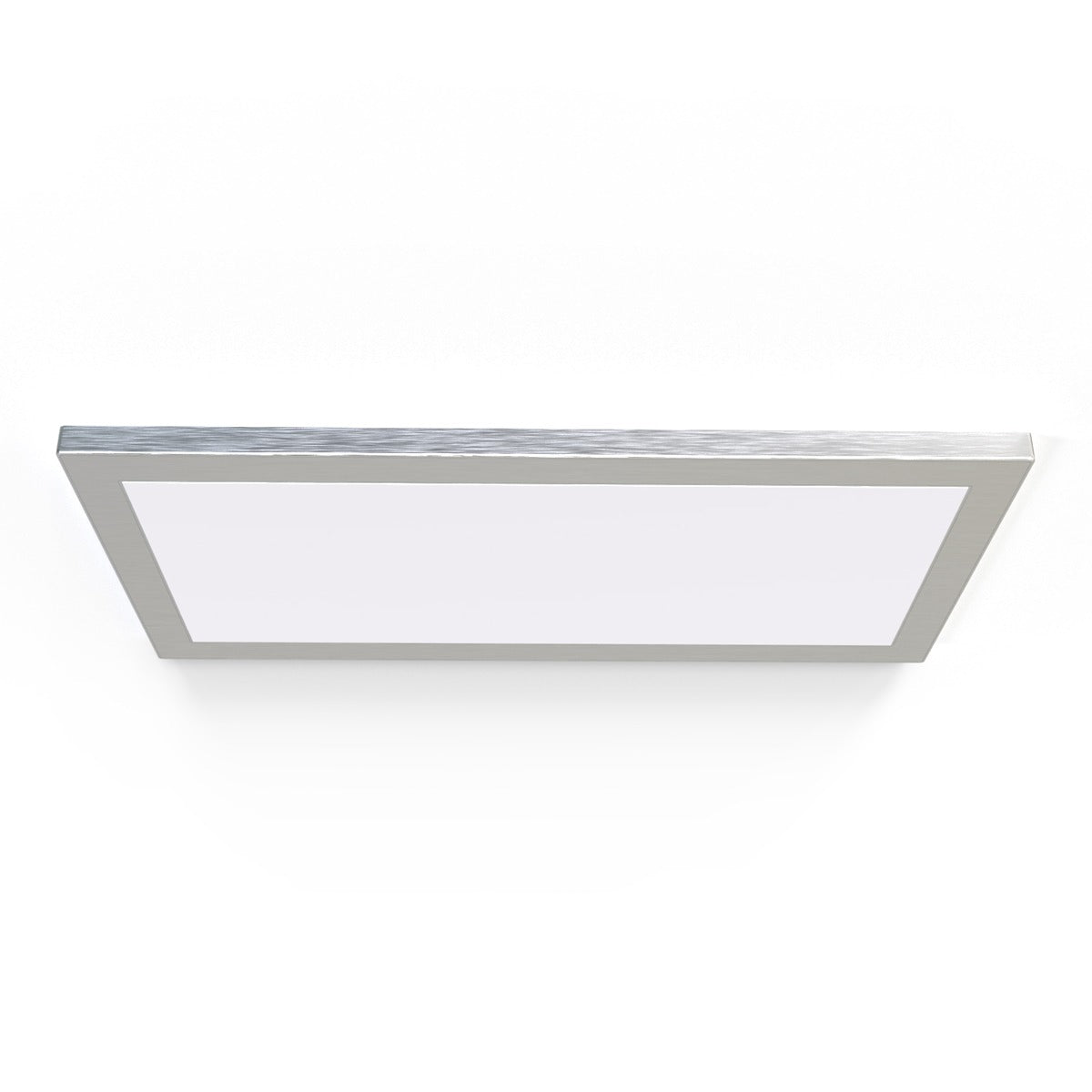

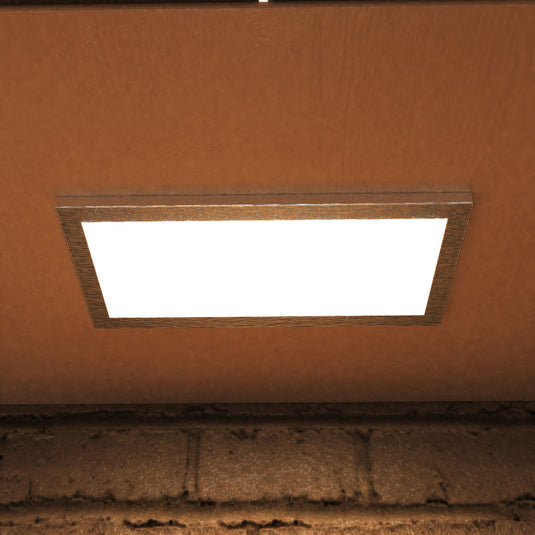

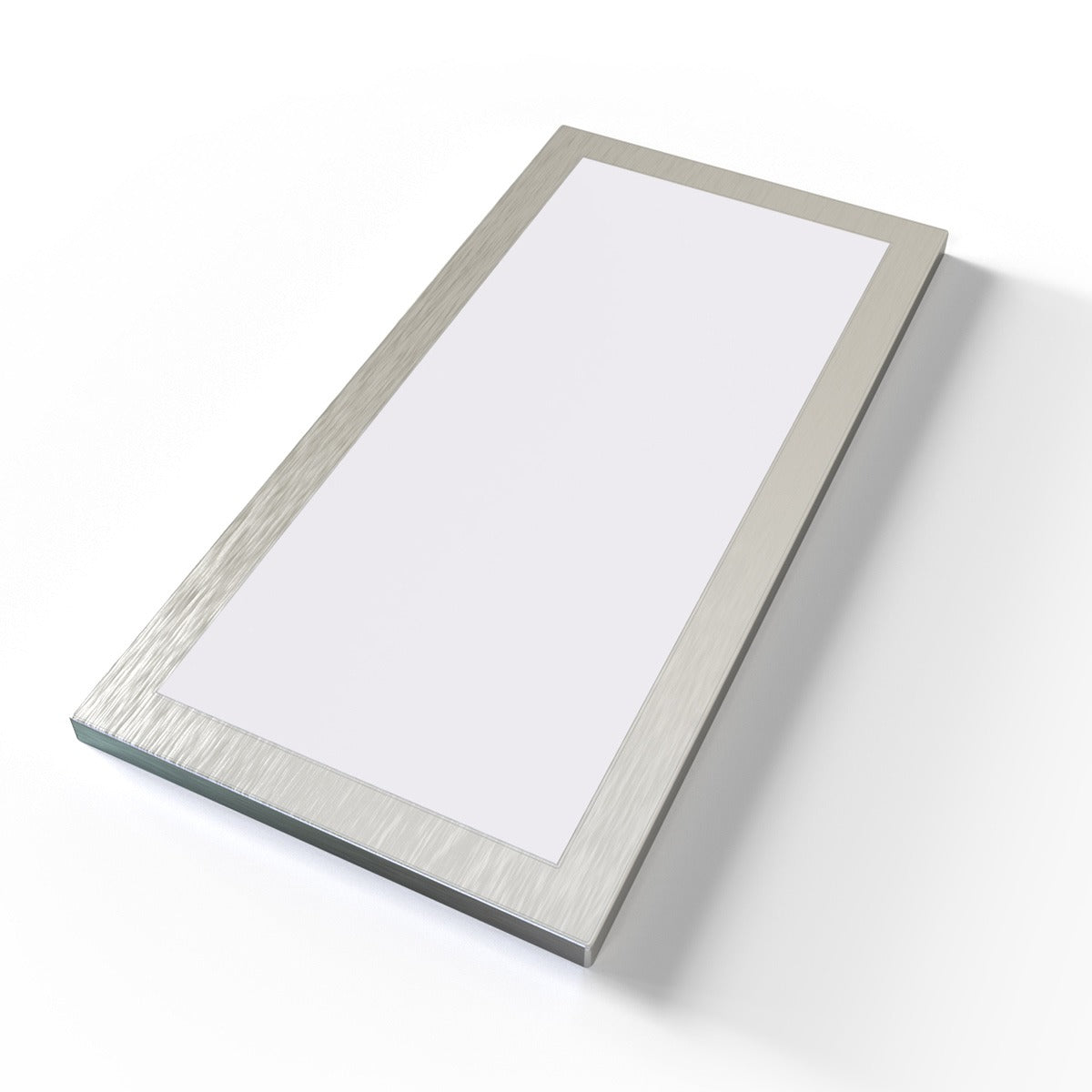

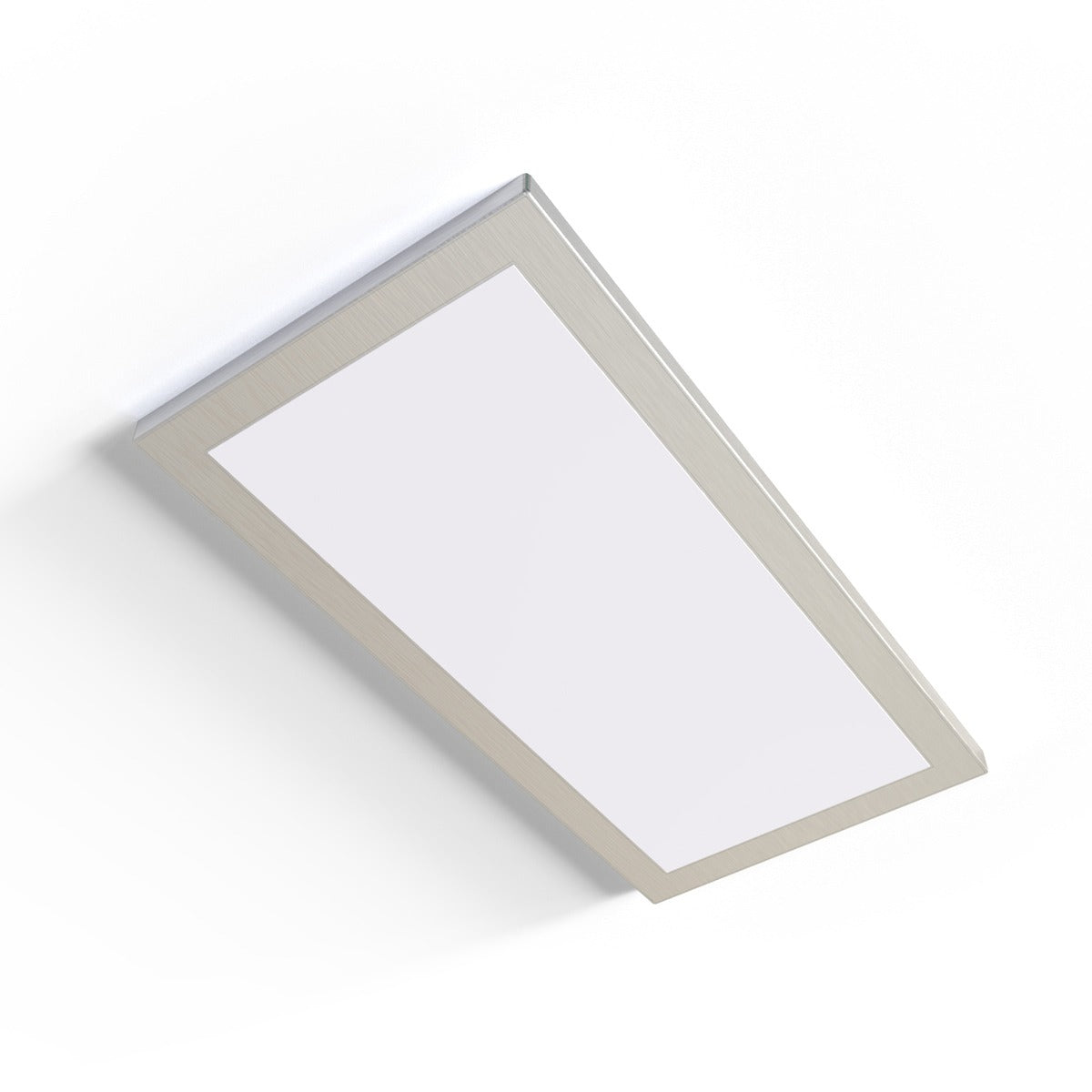

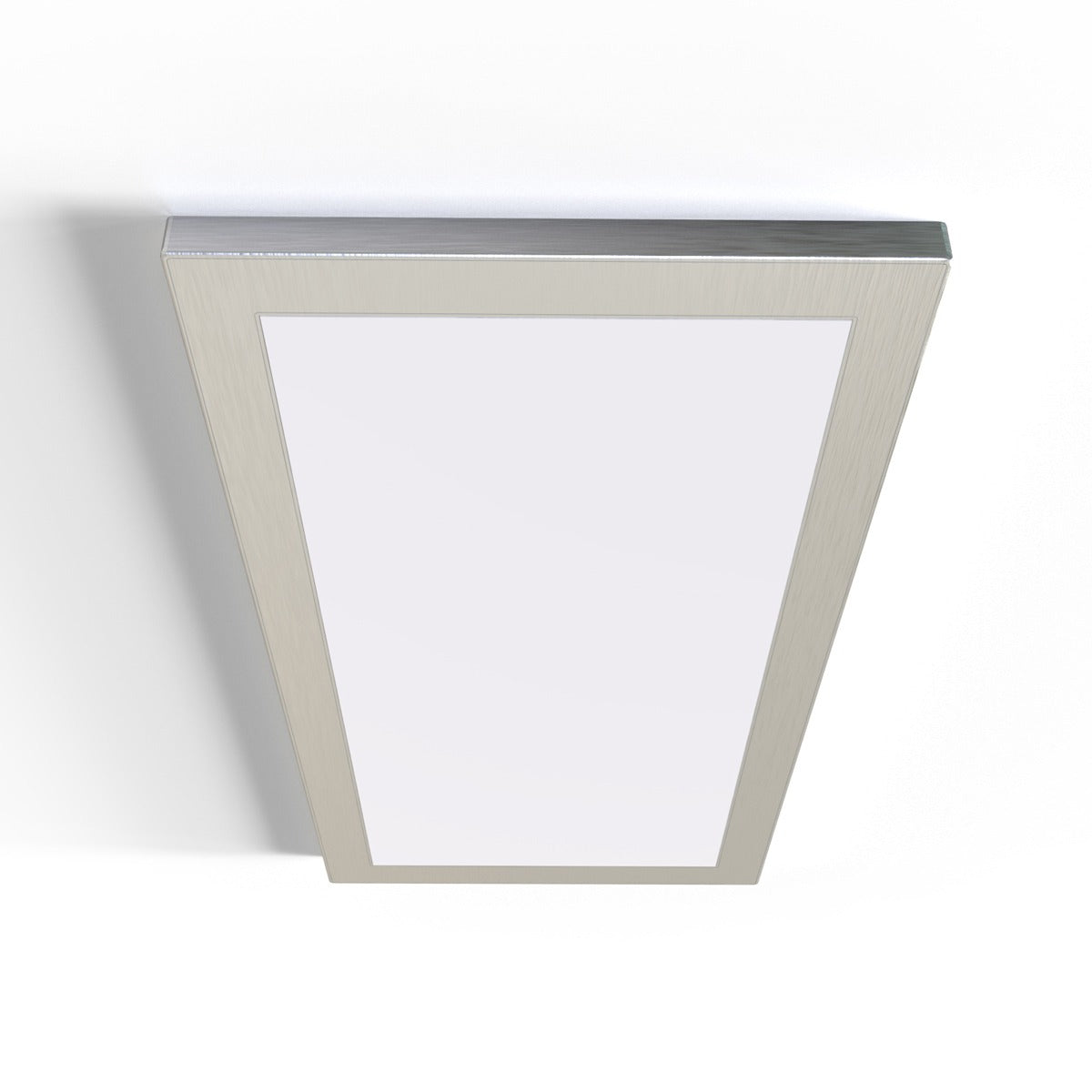

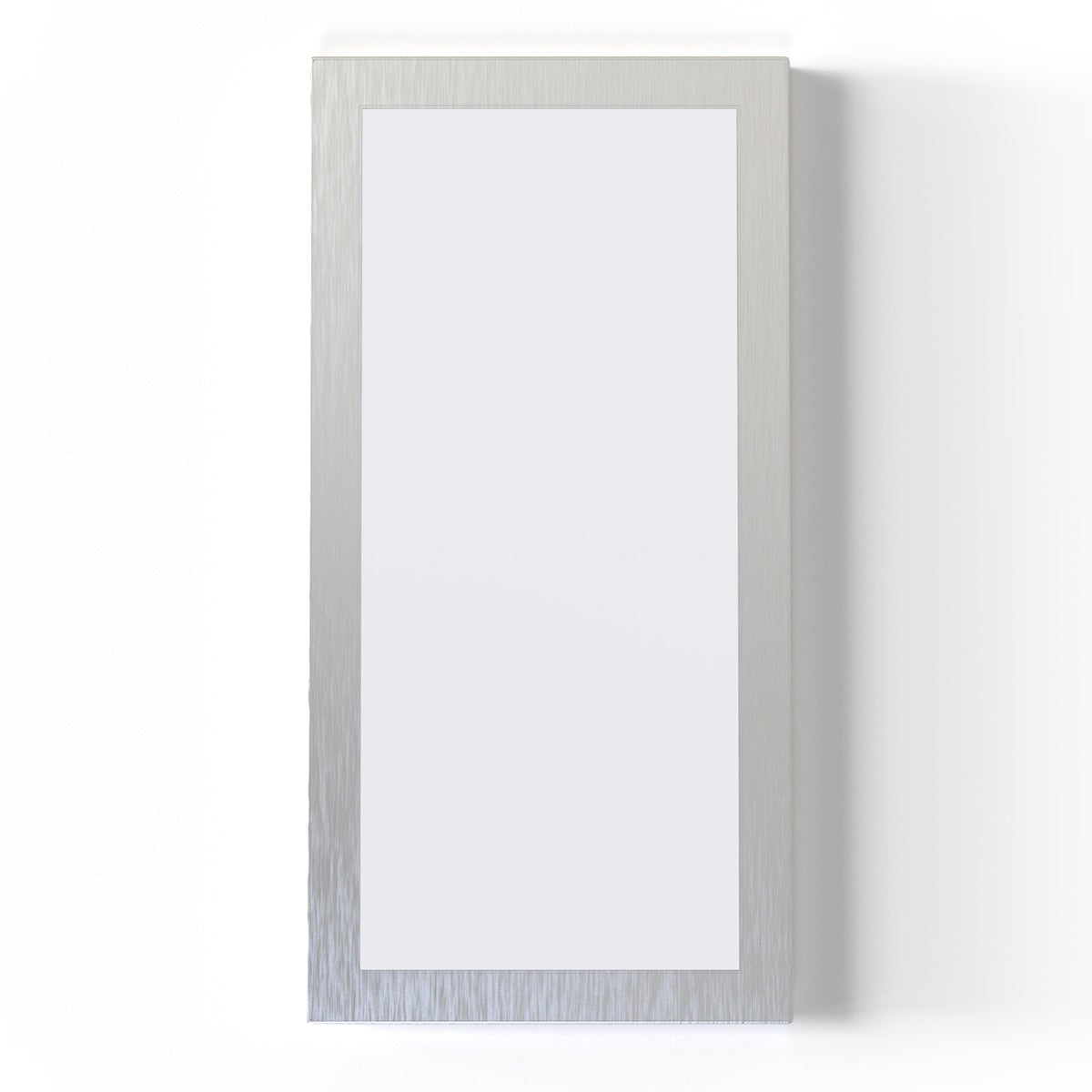

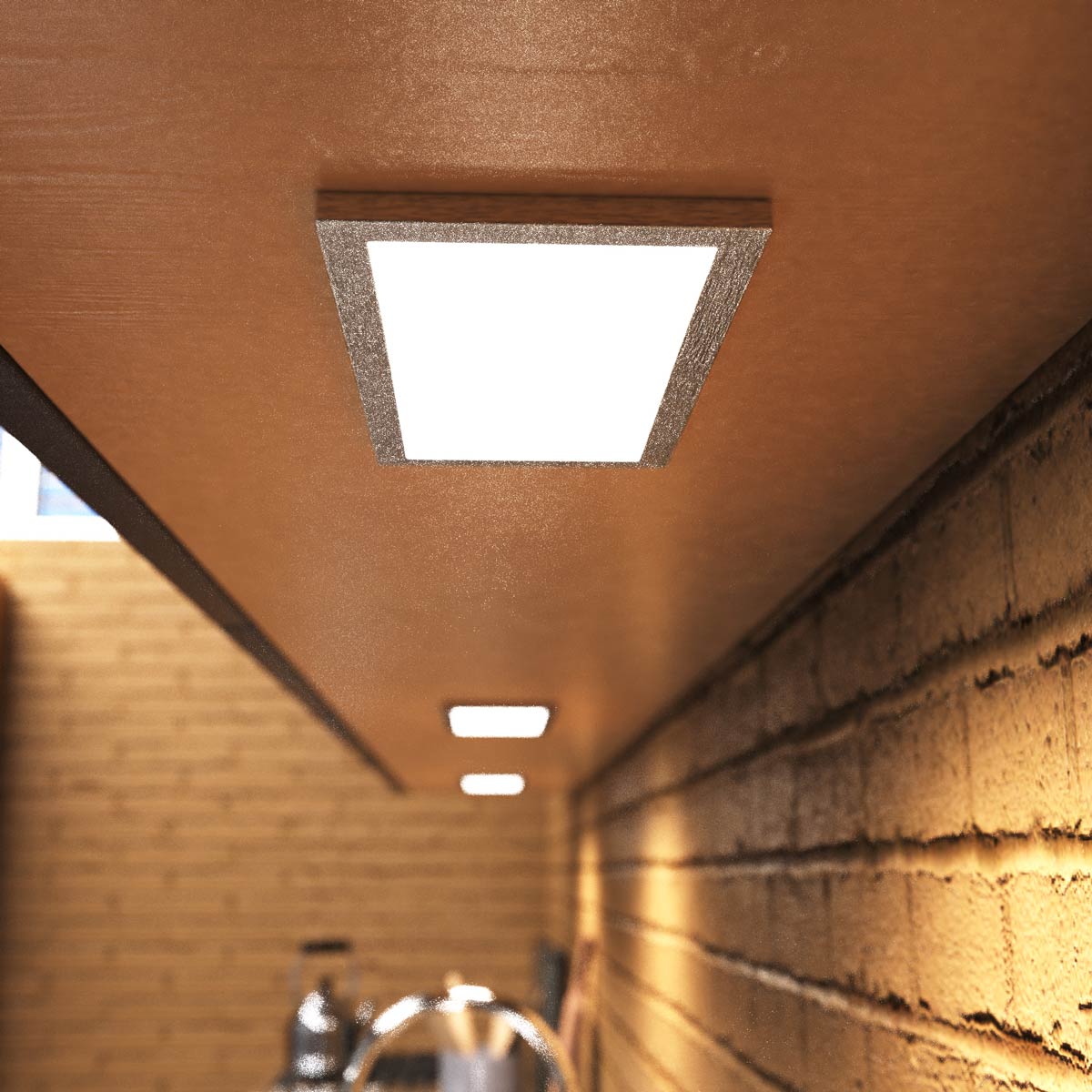

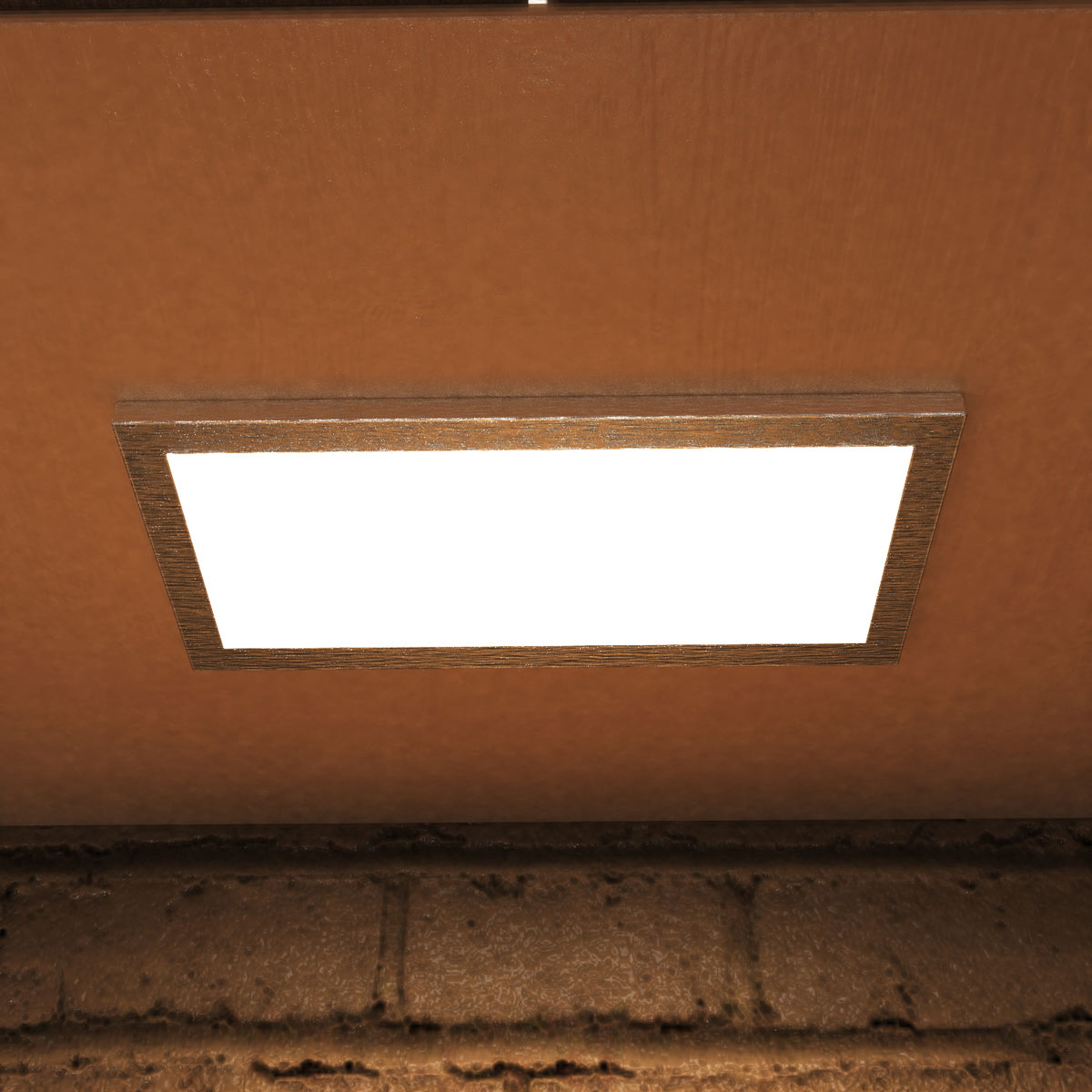

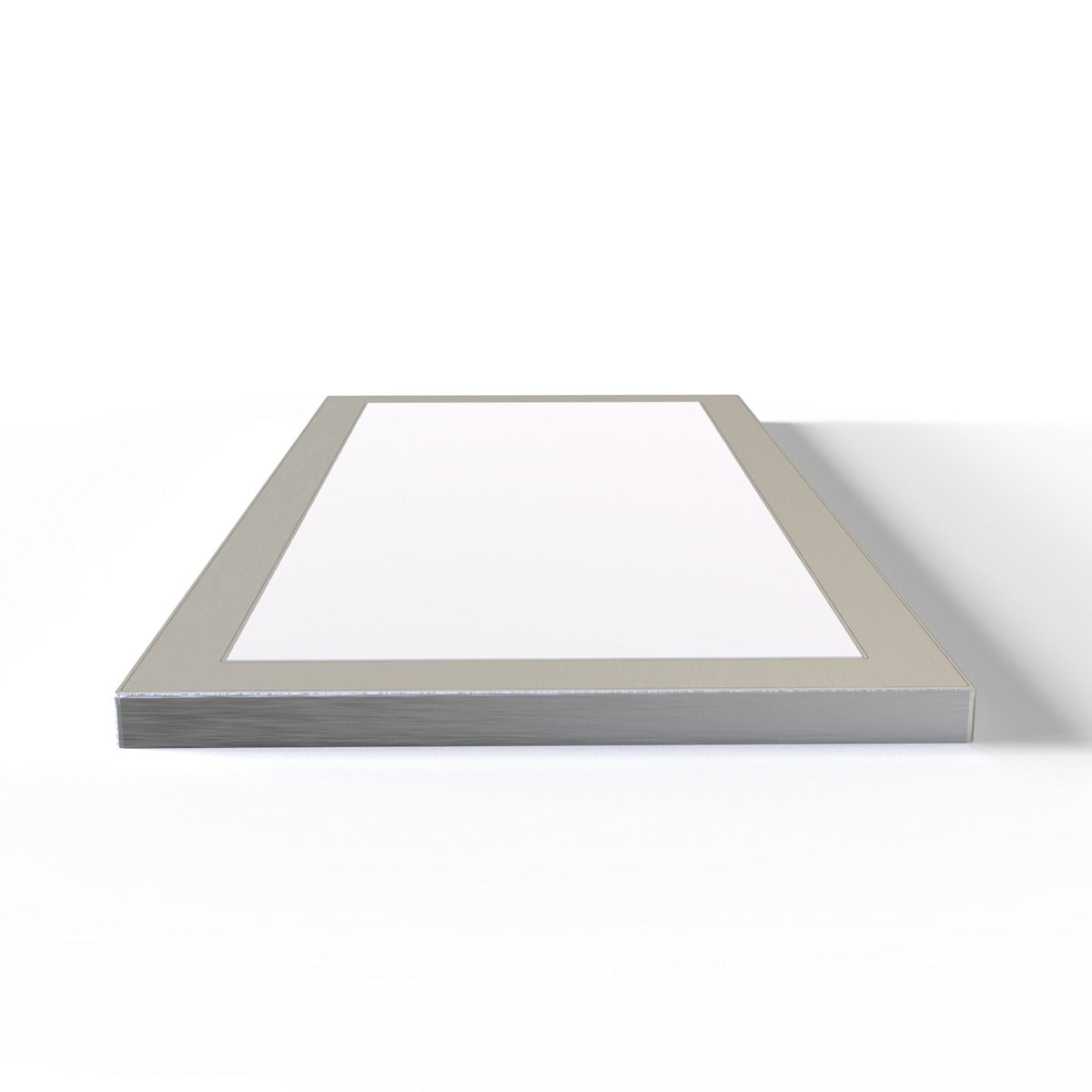

This 200 x 100mm rectangular LED cabinet light adds useful light to a wider cupboard underside, a shelf or a furniture work area. At only 7mm high it sits neatly under a shelf or cupboard, and the silver finish gives a neutral metallic look. Check the size against the space you have before fixing it.

Natural white 4000K

It gives 520 lumens of natural white 4000K light from 4.8w, a neutral light for seeing what is in a cupboard or lighting a small work area.

Magnetic cover

Once the light is fixed in place, a magnetic cover clips over and hides the mounting fixings. The cover is magnetic; the light itself is fixed to the furniture following its instructions.

Plug and play

A 1.5m Dupont lead is already fitted. Plug it into one output of a 24V plug and play furniture driver, sold separately, with no stripping wires or soldering. Add the 4.8w to the other lights on the same driver and check the driver's total wattage and number of outputs. A 2m Dupont extension lead adds reach if needed.

Sensor and dimming

An optional driver sensor can turn on all the lights on a driver when a door opens, a hand waves past or someone moves into view. A PWM touch dimmer from the same system can dim it. Don't use a mains wall dimmer with this light.

Where to use it

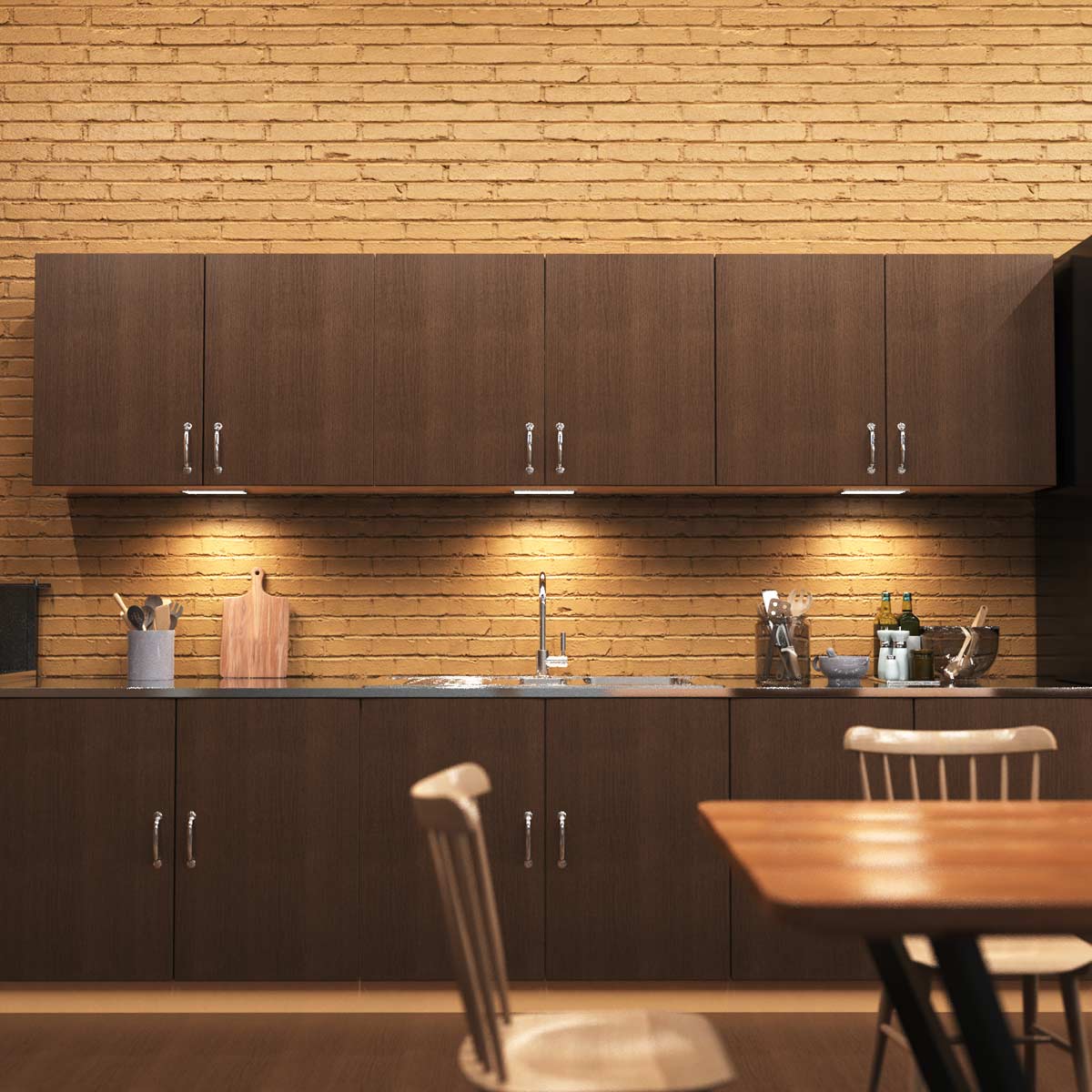

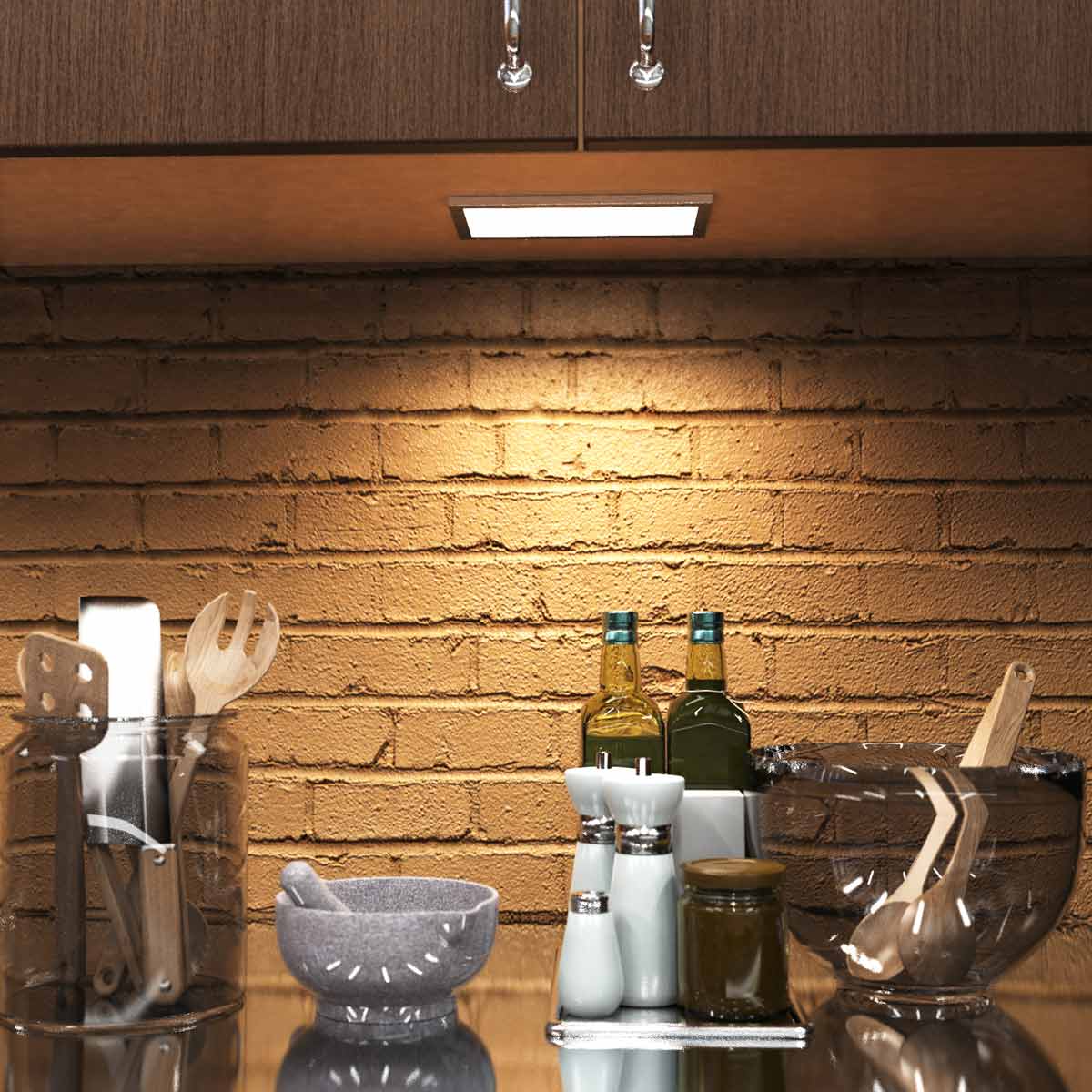

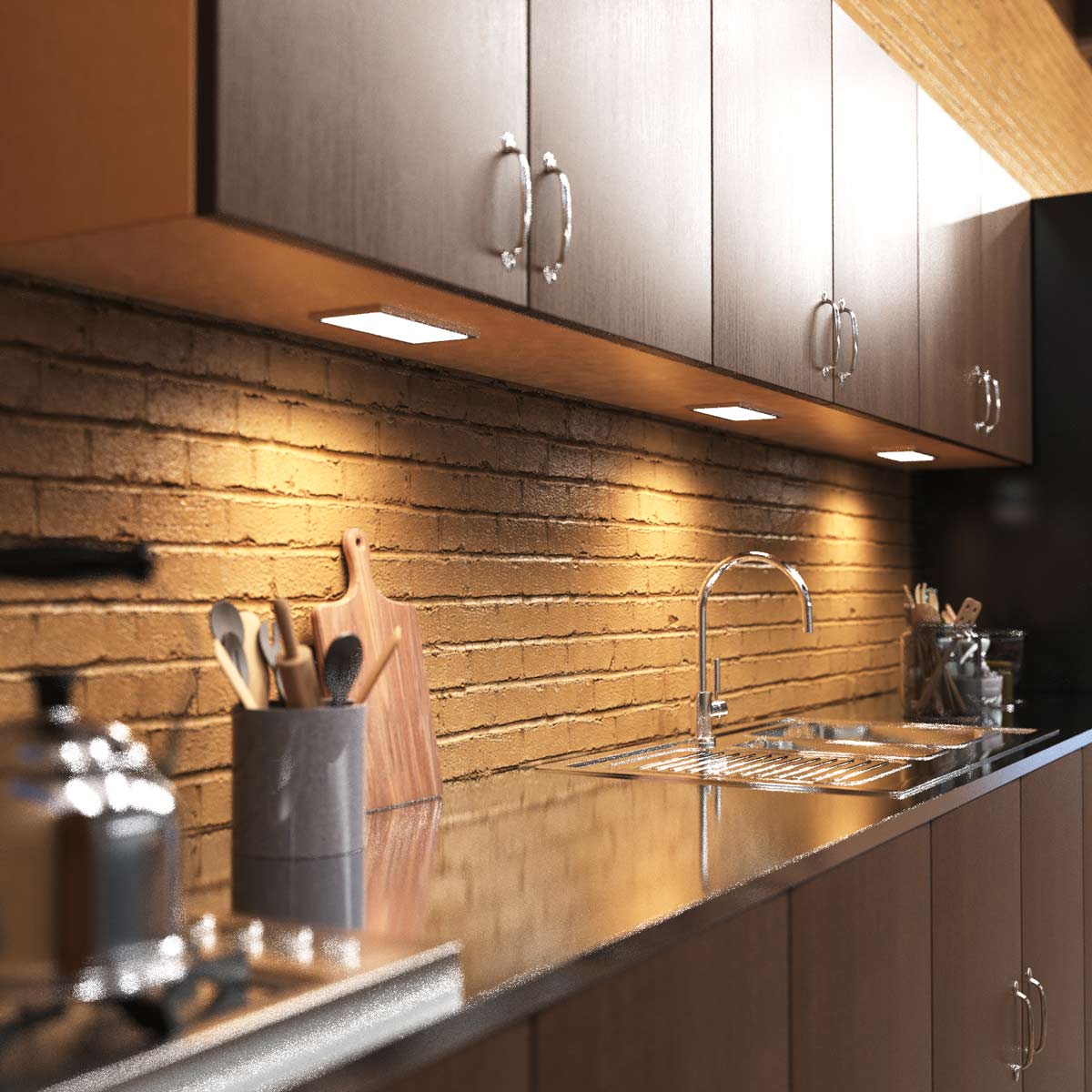

It suits cupboard upgrades, wardrobes, fitted furniture and exhibition display furniture. For a continuous line of light, pair it with LED strip or lit profiles from the same system. It is rated IP20, so use it in dry indoor furniture. Average life is 20,000 hours.

Specifications

• Power: 4.8w
• Light output: 520 lumens
• Colour: natural white 4000K
• Input: 24V DC (driver sold separately)
• Size: 200 x 100mm rectangular, 7mm high
• Finish: silver
• Lead: 1.5m, Dupont plug
• Dimming: with the plug and play PWM touch dimmer, not a mains dimmer
• IP rating: IP20
• Average life: 20,000 hours
