PIR Sensor Input Cable for the 2m Recessed LED Profile (PRO-LED-09-2M), 24V Plug and Play

Motion control at the profile

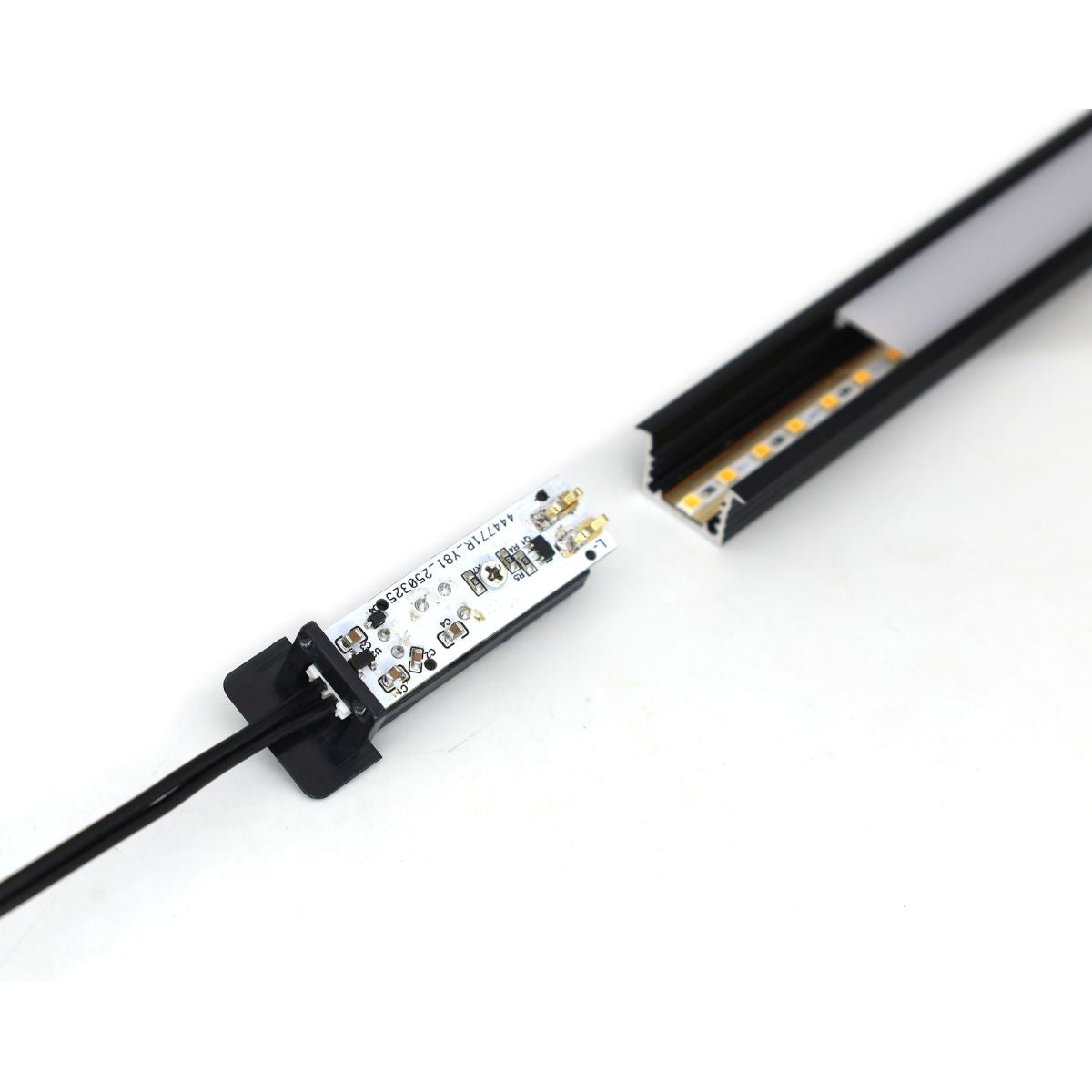

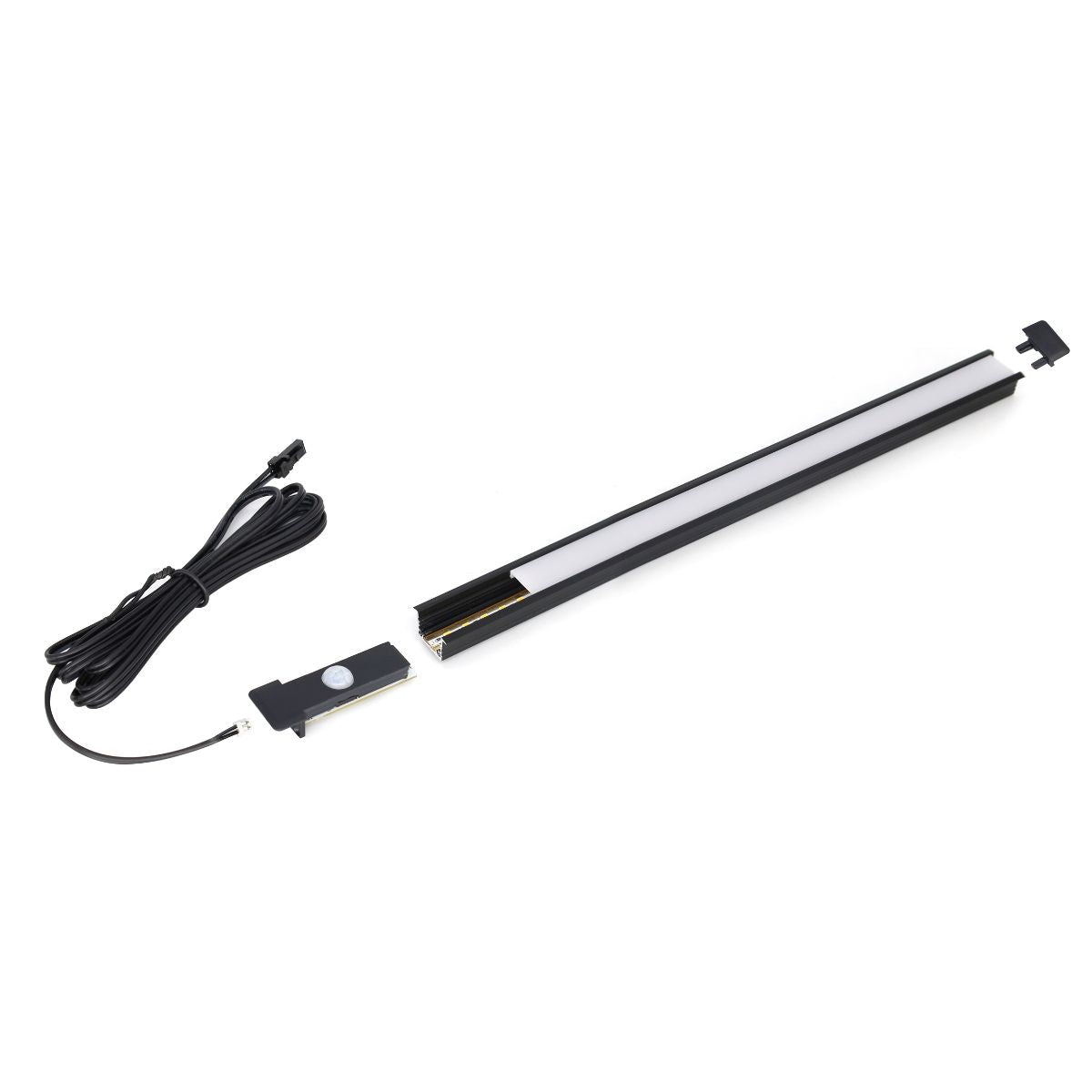

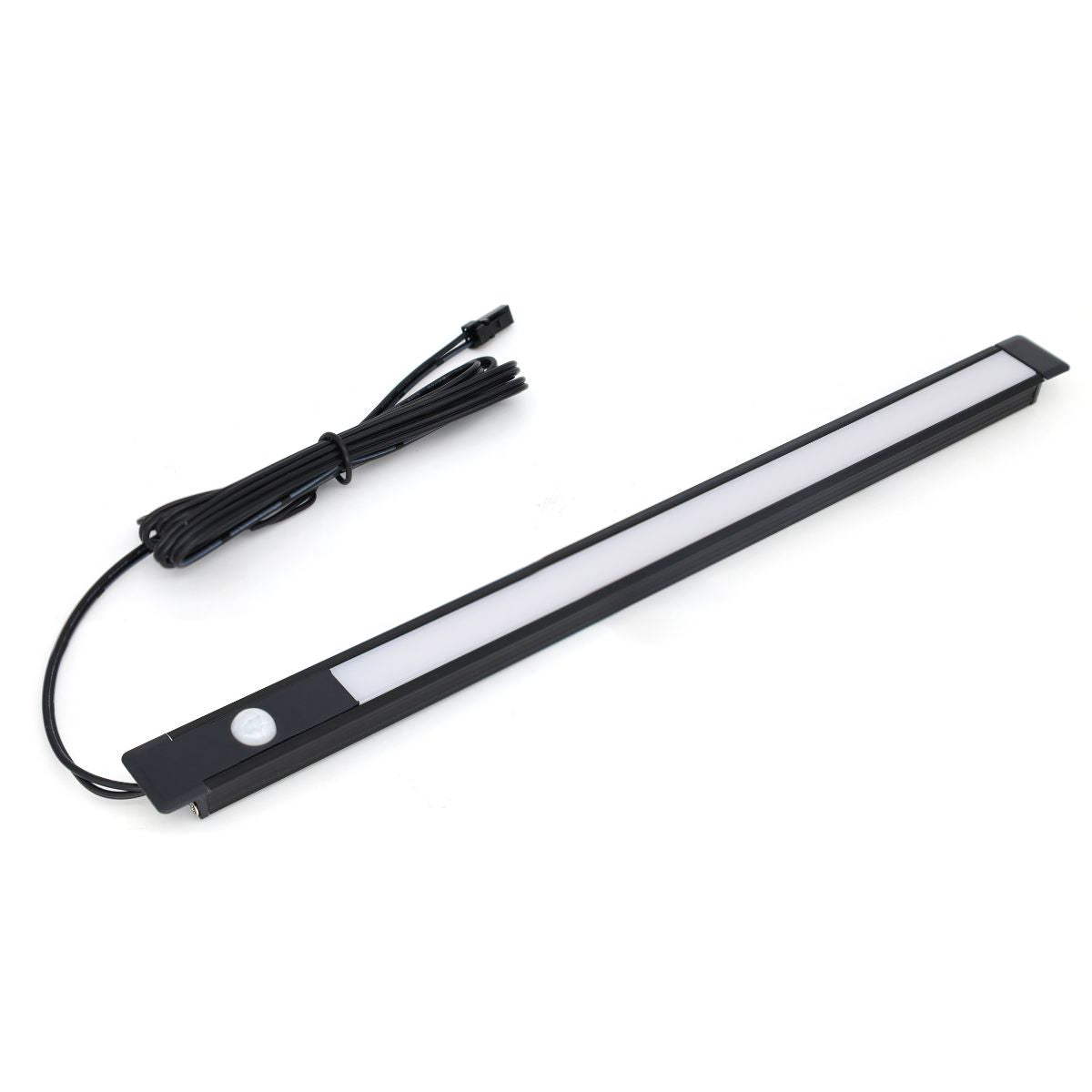

This input cable has a PIR sensor built in. It replaces the standard input cable on the recessed LED profile and turns the light on when it detects movement in front of the sensor, which suits a cupboard or furniture compartment where you want the control close to the light.

For the recessed profile only

This cable is made for the 2m recessed profile, PRO-LED-09-2M. It doesn't fit the glass, corner or surface profiles, so check the profile code before ordering.

Profile control and driver control

The sensor on this cable controls its own profile while the driver is supplying power. A sensor plugged into the driver's sensor port controls the whole driver group instead. If a driver control turns the group off, this sensor can't override it, so decide which control you want before you fit the furniture.

Plan the position

Route the cable before closing up the joinery, and place the sensor where the movement you want to detect will reach it. Test the position before fixing it. The recessed profile comes with a plain input cable; this sensor cable is an optional replacement, sold separately.

Specifications

• For profile: PRO-LED-09-2M, 2m recessed profile
• Control: PIR motion sensor
• Supply: 24V DC
• Lead: 1.5m
• In the pack: one sensor input cable
• Profile and driver: sold separately
