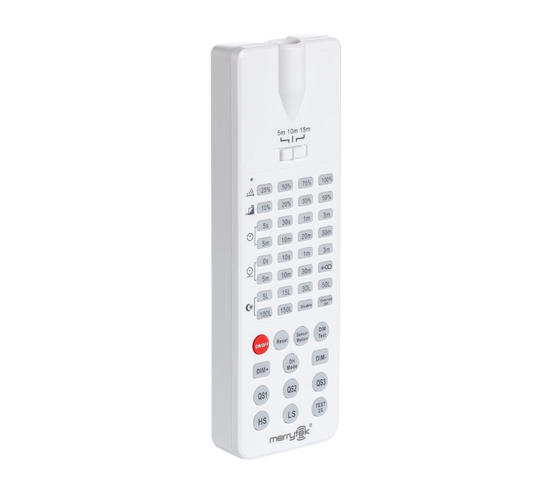

MH10 Remote Control for Microwave Sensor High Bay Lights

Set up sensor high bays from the floor

This handheld remote changes the settings on high bay lights with a built-in microwave sensor, so there's no need for a ladder or access tower every time you want to adjust them. It works with the microwave sensor high bays in this range straight out of the box.

Brightness and standby

Switch the lights on or off, set the brightness to 100%, 50% or 10%, and choose how far they dim when the area is empty, so aisles stay softly lit instead of going dark.

Detection and timing

Set the detection area to 25%, 50%, 75% or 100% to suit the space, and turn the sensitivity down if small movements set the lights off. The hold time runs from 5 seconds to 30 minutes, and the standby period from 0 to 30 minutes. A daylight threshold setting keeps lights off when there's enough natural light.

Range and size

The infrared signal reaches up to 15m. The remote is 174 x 56 x 26mm, small enough for a toolbox or lanyard, and runs on AAA batteries.

Specifications

• Type: infrared remote control
• For: high bay lights with a built-in microwave sensor
• Brightness: 100%, 50%, 10%
• Detection area: 25%, 50%, 75%, 100%
• Hold time: 5 seconds to 30 minutes
• Standby period: 0 to 30 minutes
• Other settings: sensitivity, standby dimming, daylight threshold
• Range: up to 15m
• Power: AAA batteries
• Size: 174 x 56 x 26mm
