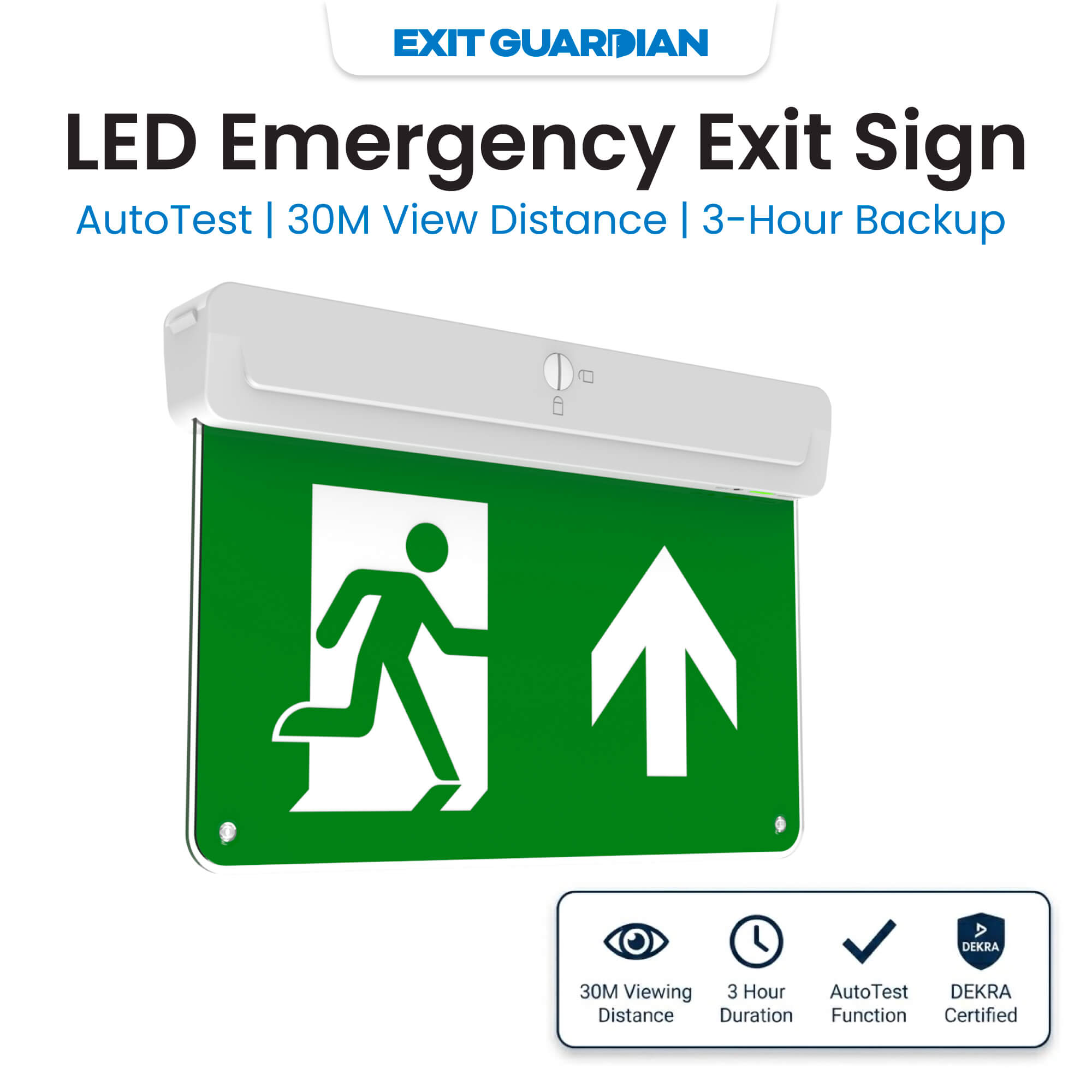

LED Emergency Exit Sign, Maintained or Non-Maintained, 3 Hour, Self-Test, 30m Viewing

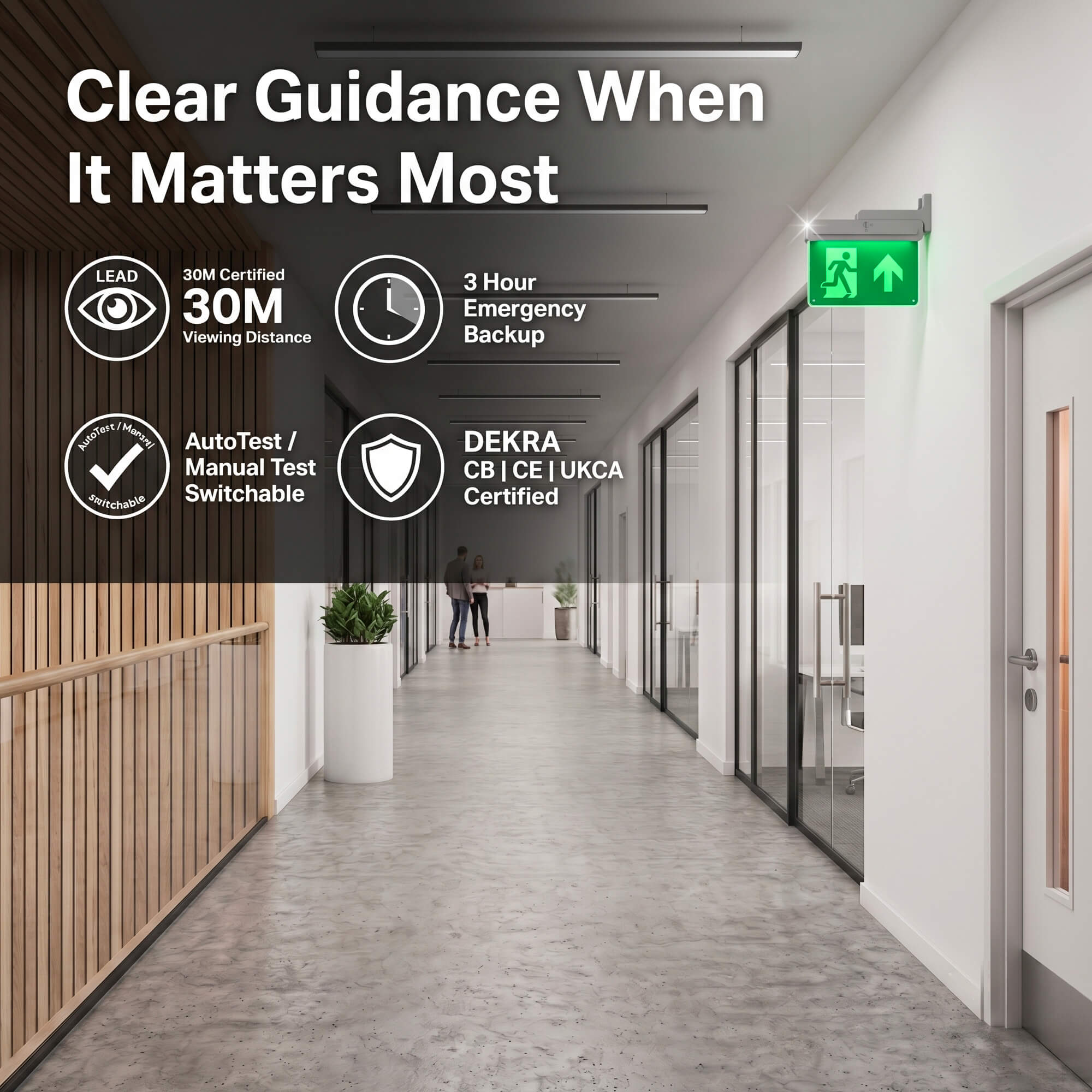

A clear exit sign

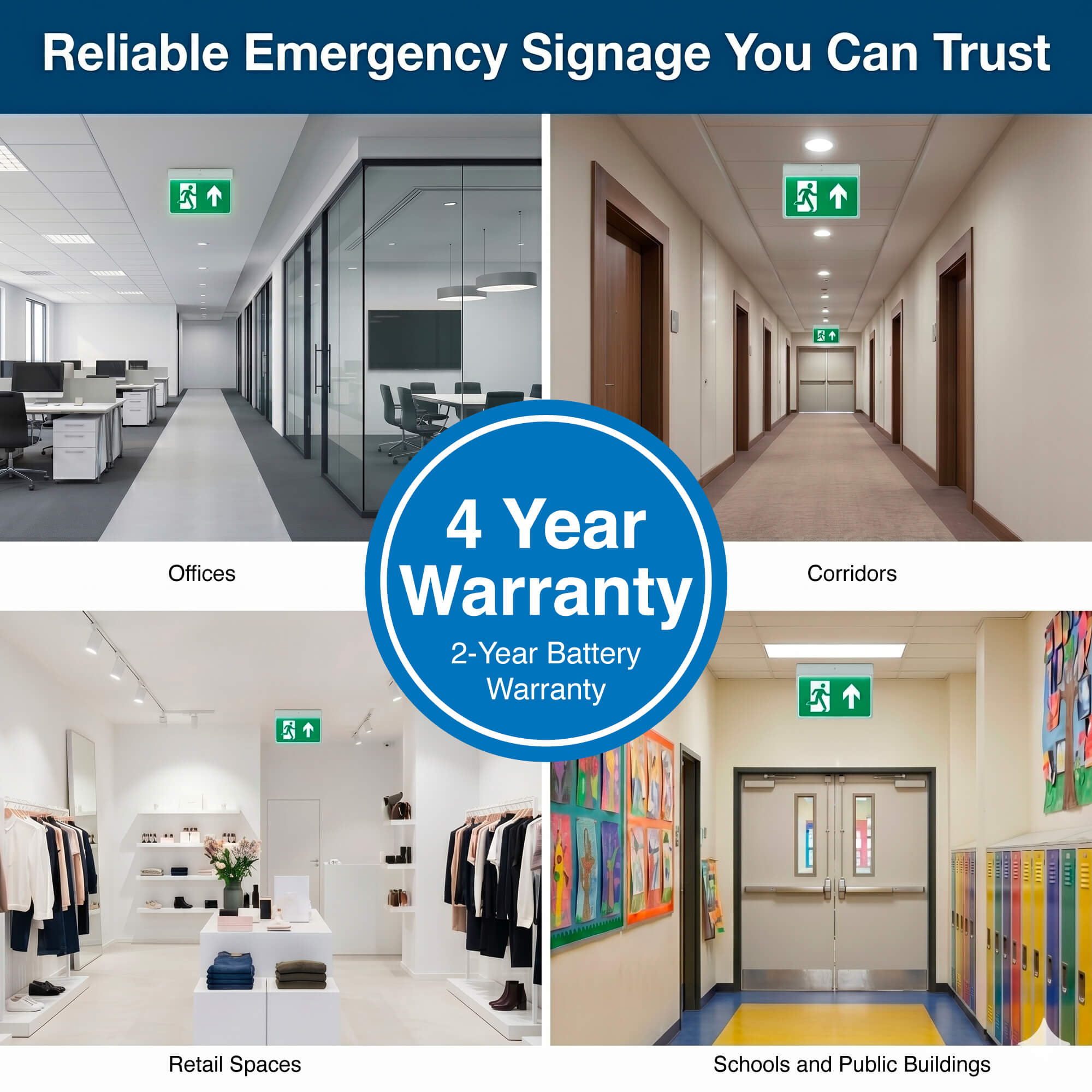

This LED exit sign shows the way out with a viewing distance of 30 metres, so it can be read across corridors, stairwells, shops, offices and public buildings. It is slim and neat, so it looks professional without dominating the space.

Maintained or non-maintained

Set it to maintained, so the sign stays lit all the time, or non-maintained, so it lights only when the mains fails. That lets one product suit different buildings and fire plans.

3 hours of backup

If the power fails, a 3.2V 1100mAh LiFePO4 battery keeps the sign lit for up to 3 hours, so people can still see the escape route. The sign draws a maximum of 3W, and 0.7W in emergency mode.

Self-testing

The sign can test itself automatically, or you can switch it to manual testing. A test button and a green LED show its status at a glance, so routine checks are quick. It is DEKRA CB, CE and UKCA approved.

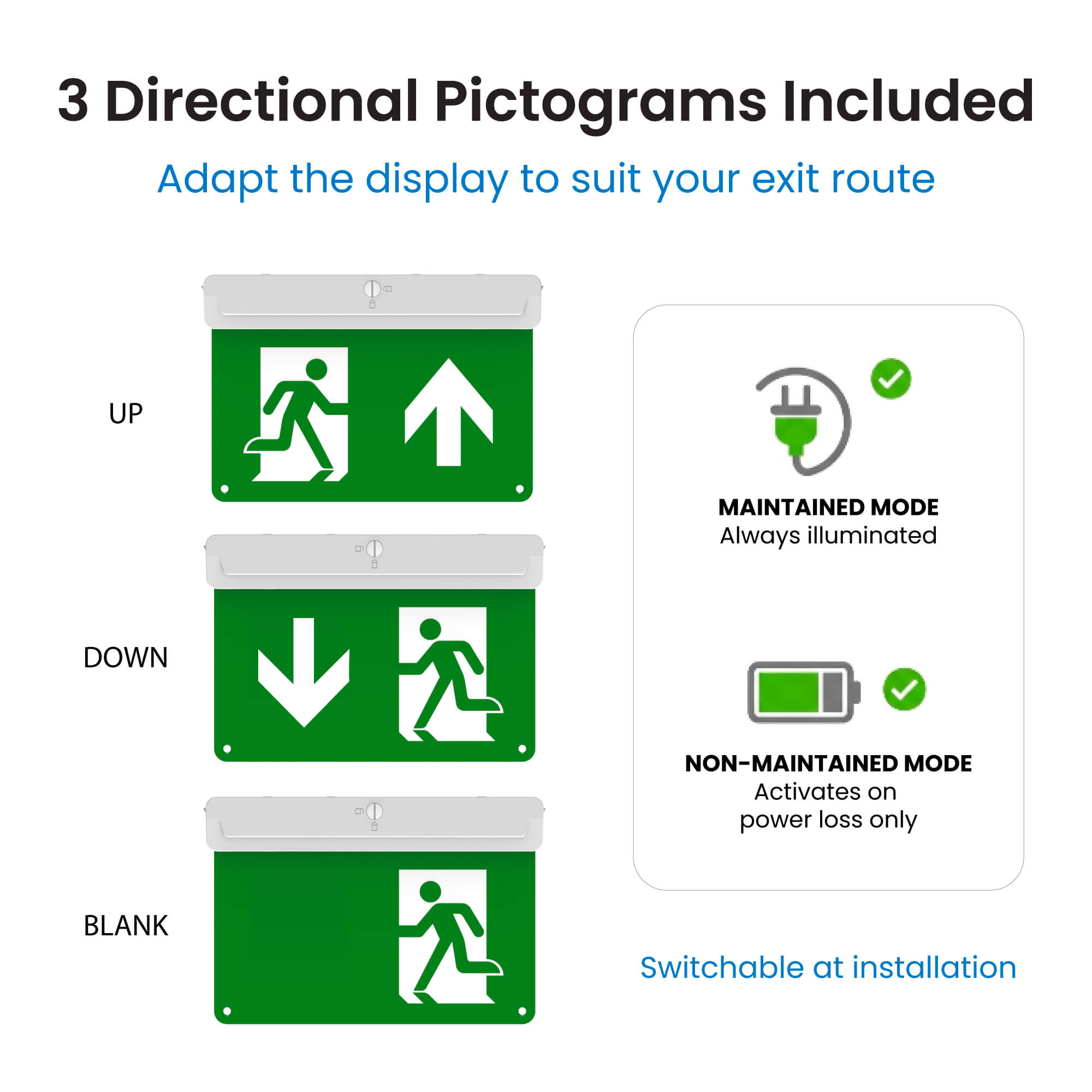

Pictograms included

Up, down and blank pictograms come in the box, so you can set the sign to point the right way for each exit, stair or corridor.

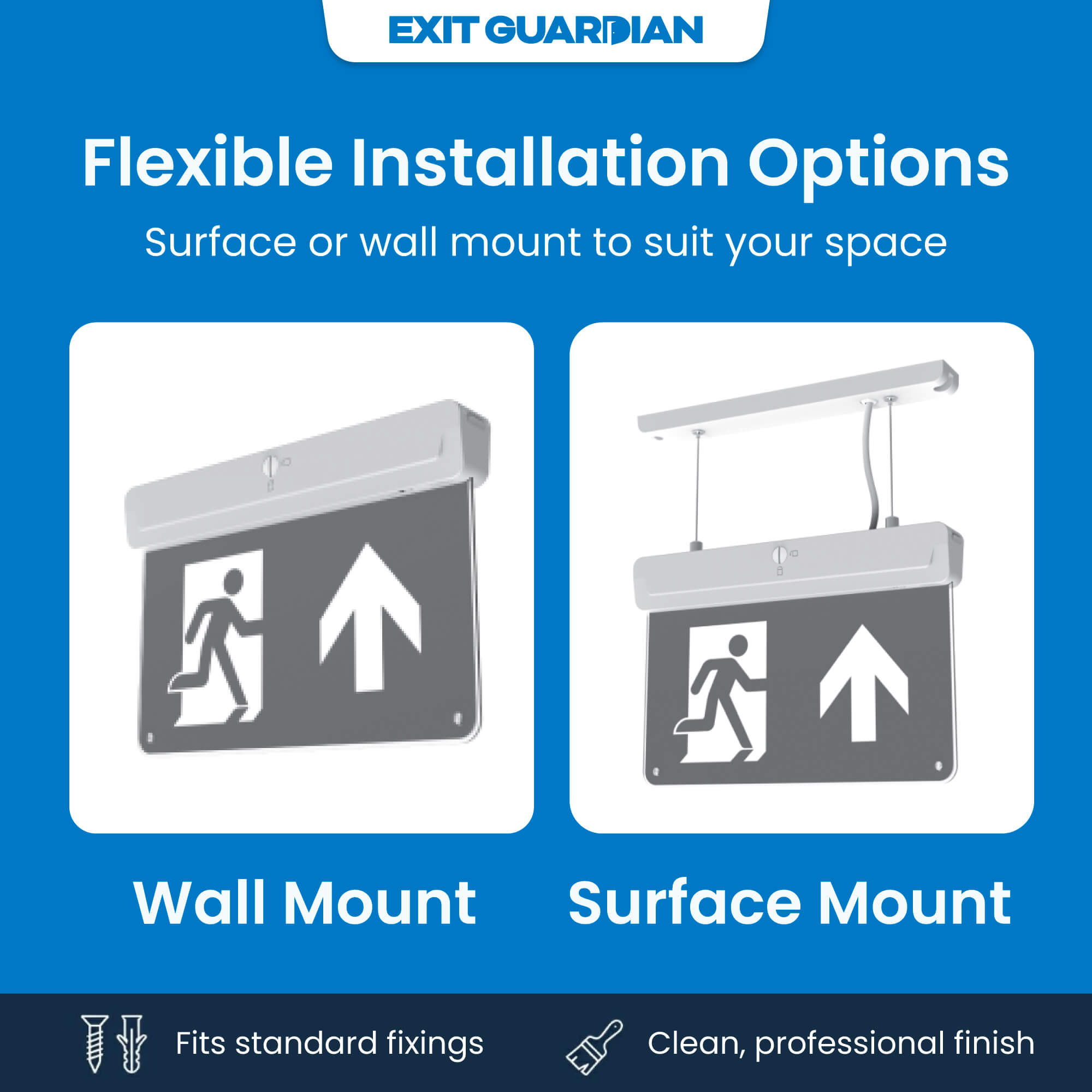

Fitting

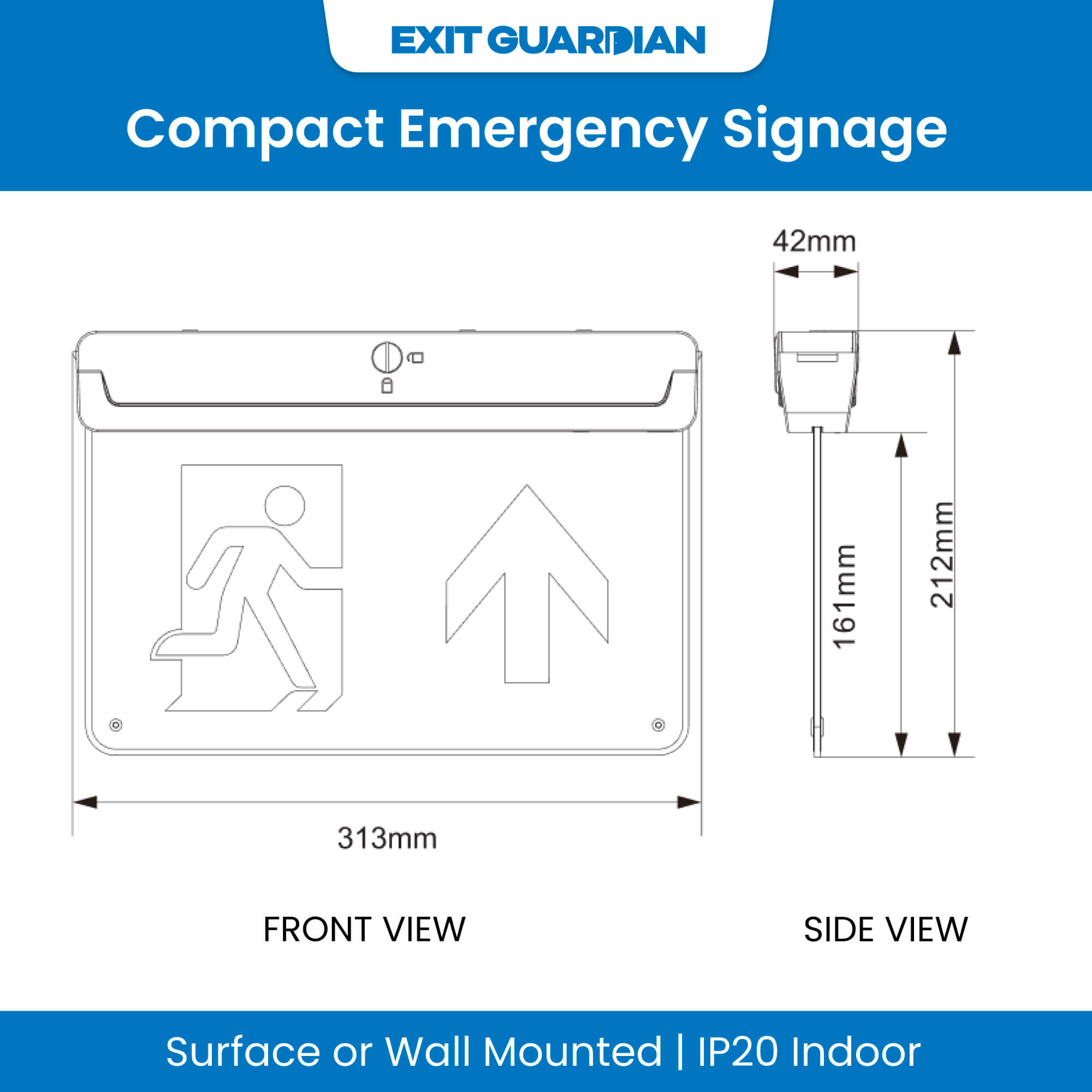

Mount it on a wall, recess it or suspend it, whichever suits the route. It runs on AC220-240V and works at temperatures from 0 to 45°C. It measures 310 x 237 x 42mm. Have a qualified electrician fit it and check it against your emergency lighting plan.

Specifications

• Type: LED emergency exit sign
• Mode: maintained or non-maintained
• Emergency duration: 3 hours
• Viewing distance: 30m
• Pictograms: up, down and blank included
• Power: 3W maximum, 0.7W in emergency
• Battery: 3.2V 1100mAh LiFePO4
• Testing: auto test or manual test, test button, green LED
• Mounting: wall, recessed or suspended
• Size: 310 x 237 x 42mm
• Supply: AC220-240V
• Operating temperature: 0 to 45°C
• Approvals: DEKRA CB, CE, UKCA
