Door or Swipe Sensor for LED Cabinet Lights, 12-24V DC, White

Lights that come on when you need them

This small sensor switches 12V or 24V LED lights on and off for you. Use it as a door sensor in a cupboard, wardrobe or walk-in closet, so the lights come on when the door opens and go off when it closes. Or use it as a swipe sensor under kitchen units or a work shelf: wave a hand underneath and the lights switch on or off, with no need to touch a switch with messy hands.

Power and load

It works with 12V or 24V DC LED lighting. It handles up to 15W at 12V DC or 30W at 24V DC. Add up the wattage of everything connected and keep it within the limit for your voltage; overloading can damage the sensor and the lights.

Small and discreet

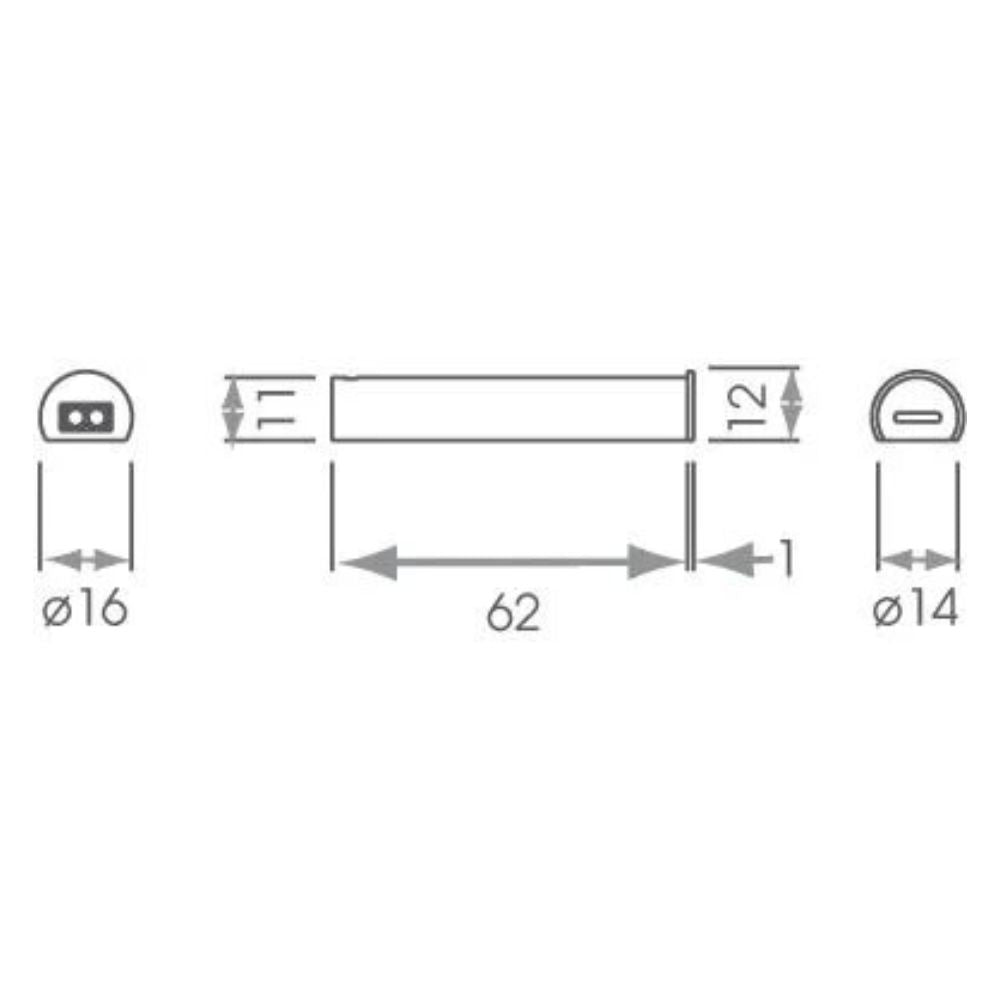

The white body is 62mm long, with a 16mm diameter front and a 14mm diameter back, so it hides easily behind a cabinet face frame or under a shelf, and blends in with white units.

Fitting

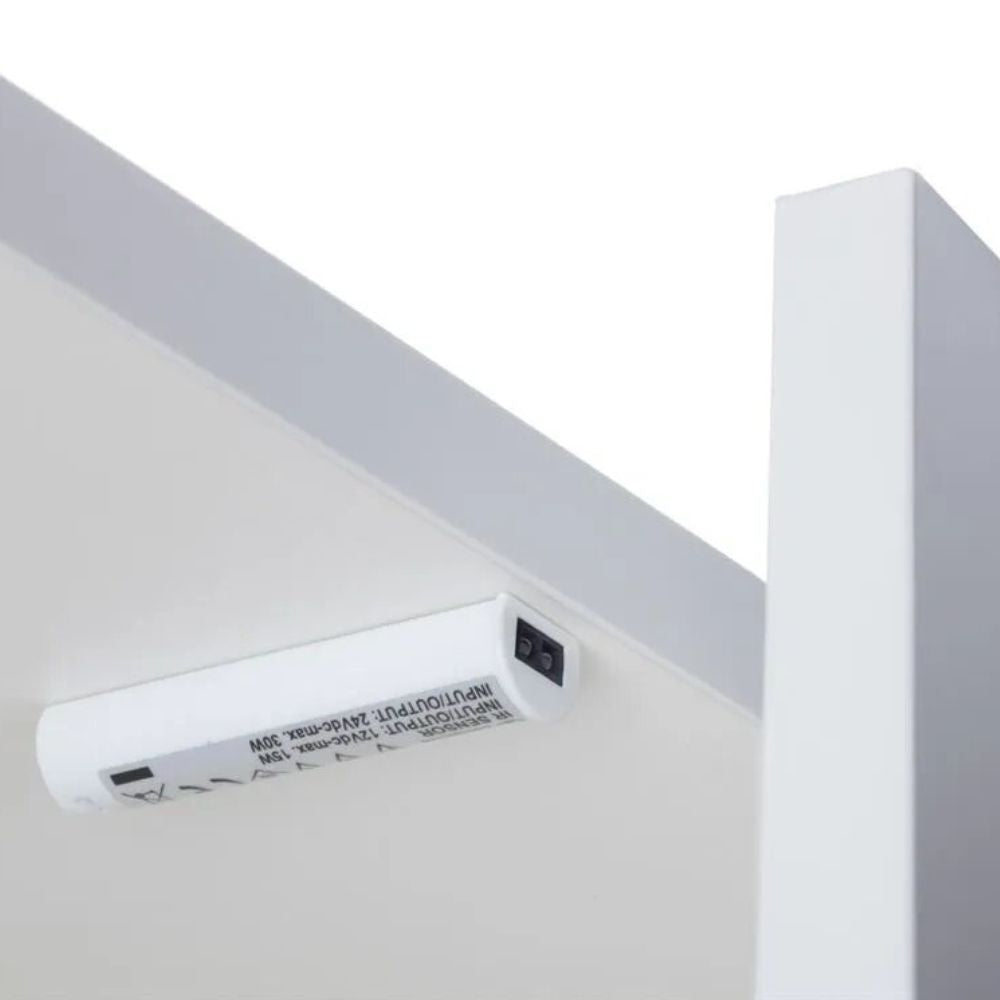

Fit it on the surface, or recess it into a hole for a flush finish. It's rated IP20, so keep it in dry indoor spaces away from splashes.

Specifications

• Modes: door or swipe
• Voltage: 12-24V DC
• Maximum load: 15W at 12V, 30W at 24V
• Mounting: recessed or surface
• Length: 62mm
• Front: 16mm diameter, 11mm high
• Back: 14mm diameter, 12mm high
• Finish: white
• IP rating: IP20
