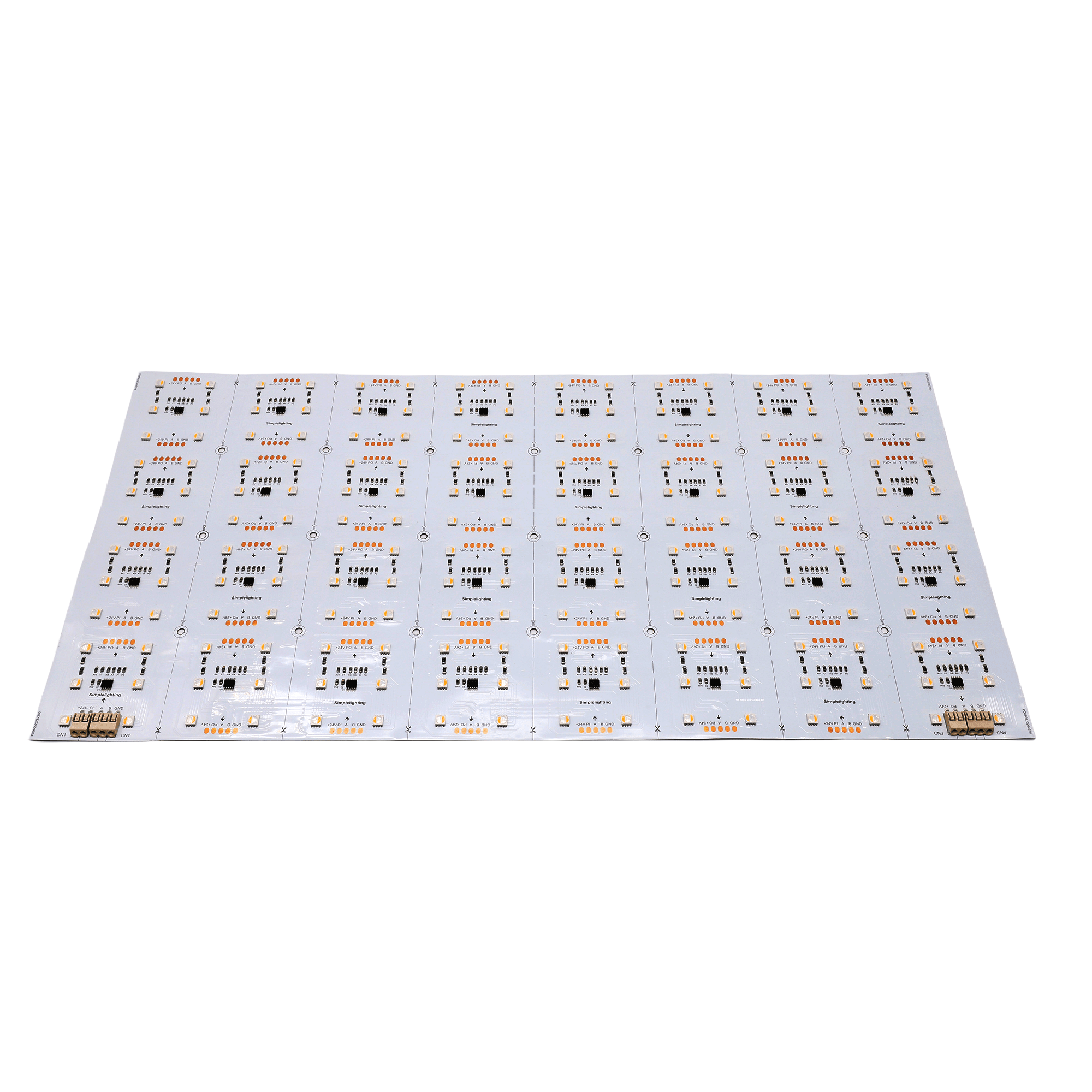

DMX Pixel LED Sheet, Cuttable, 240 x 480mm, RGB plus 2700K Warm White, 24V DC, 62w

DMX pixel effects across a whole sheet

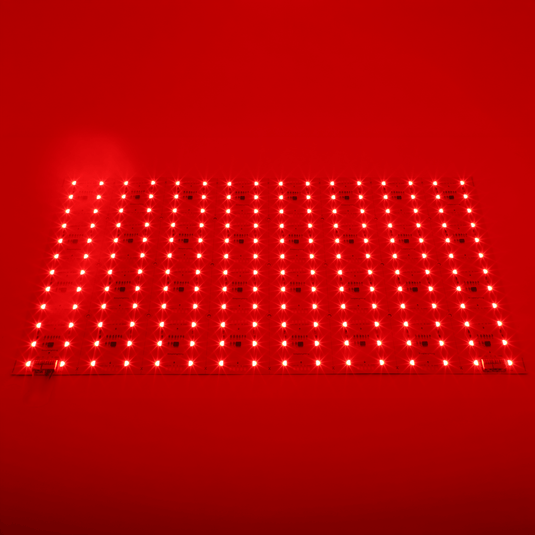

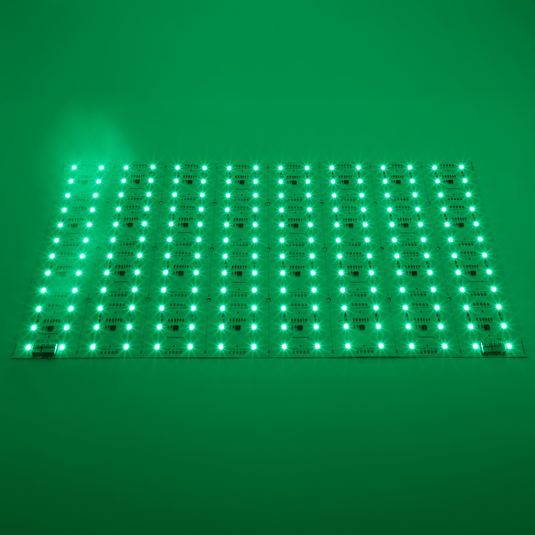

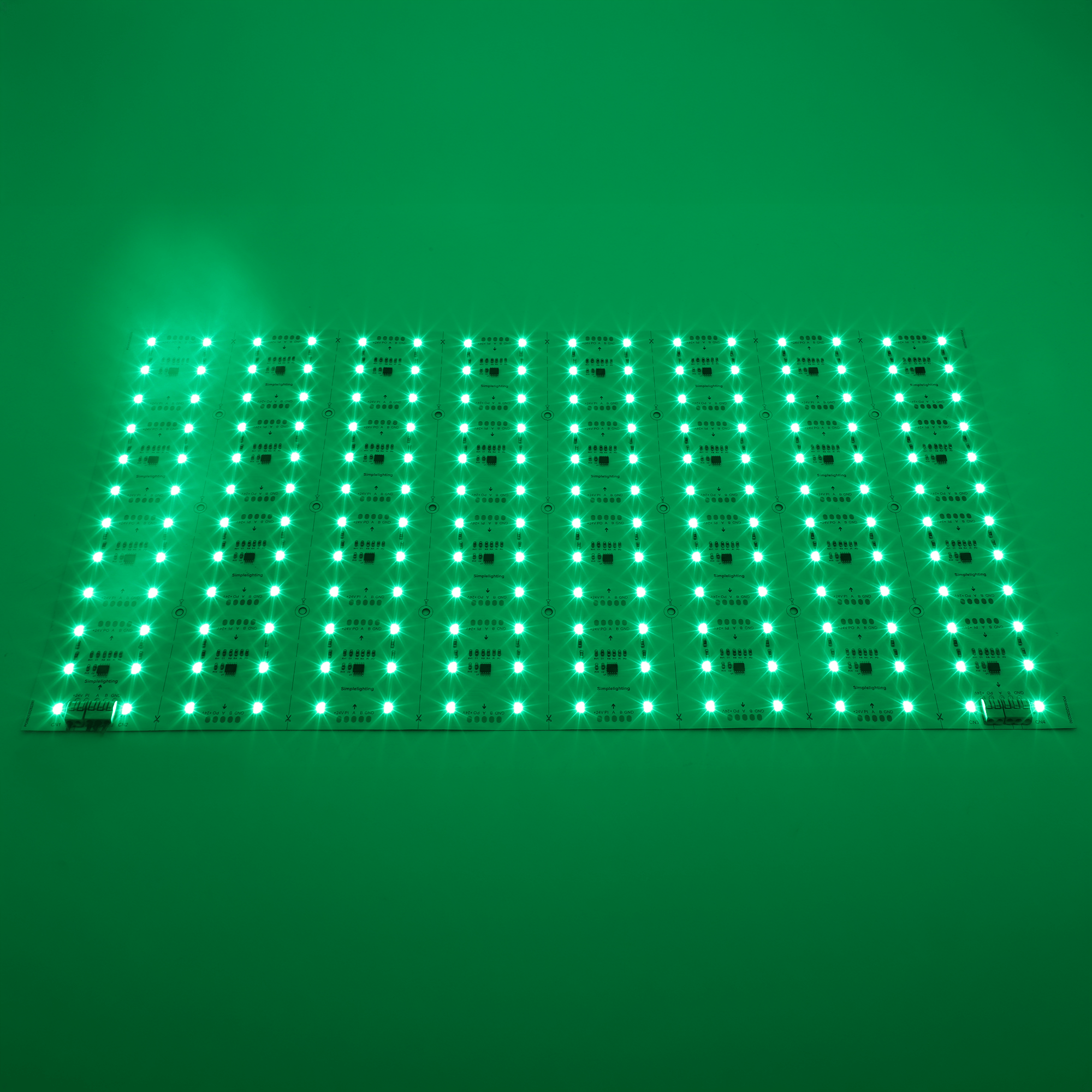

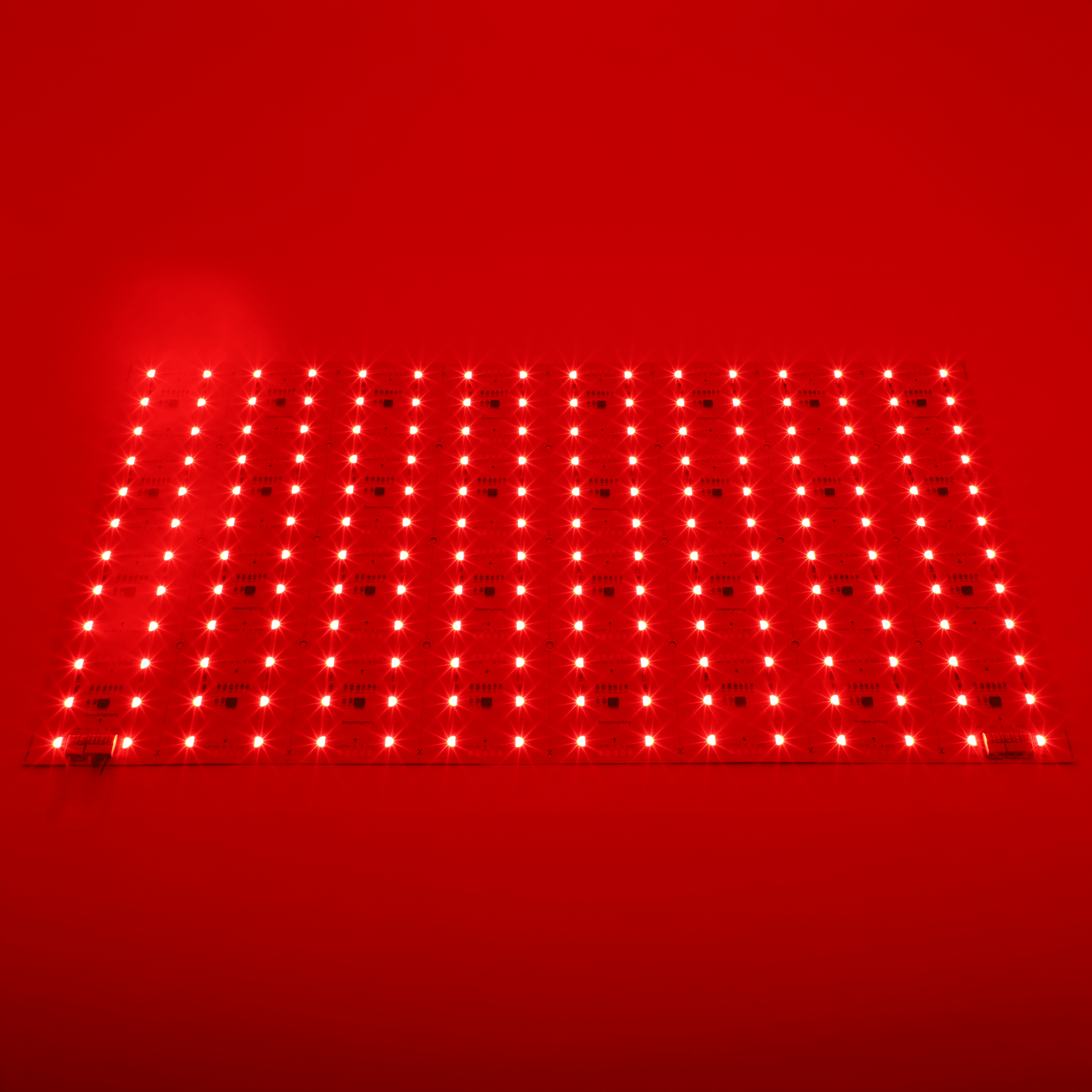

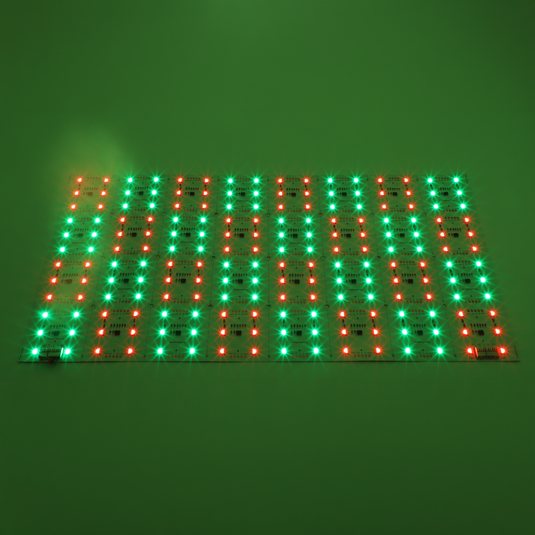

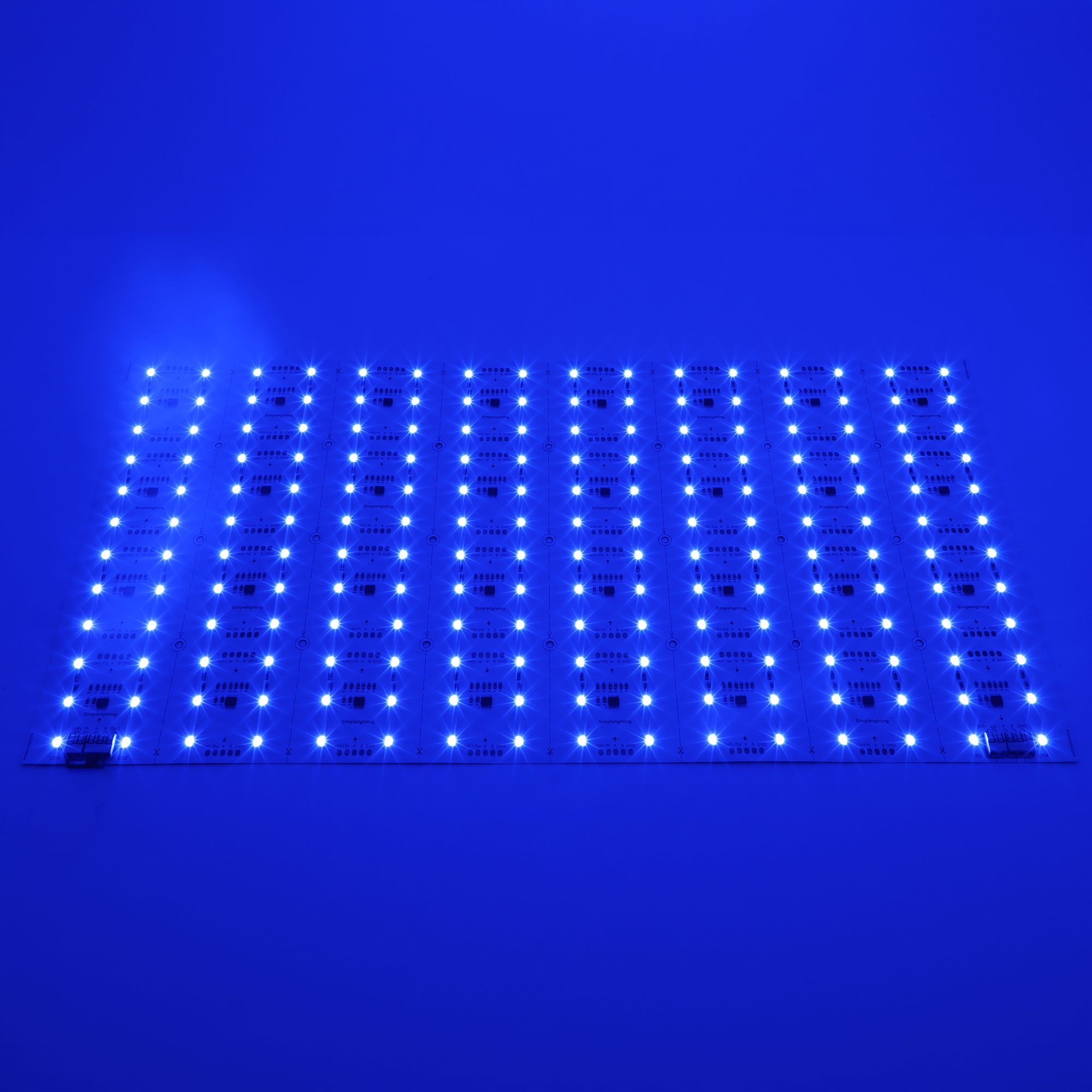

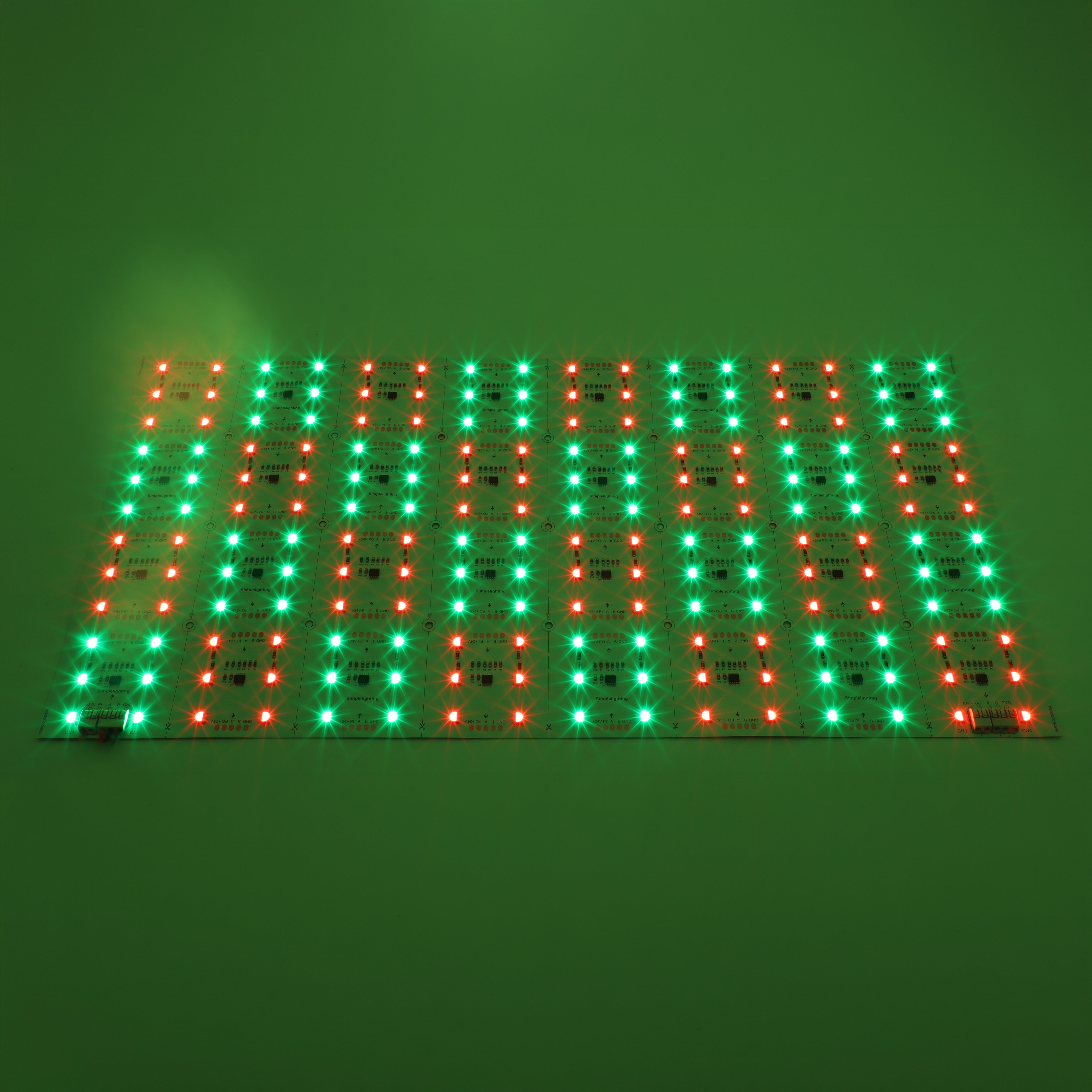

This 240 x 480mm LED sheet has DMX pixel control. Its sections are individually addressable, so colours can chase, flow, fade in gradients or run programmed animations across the surface, rather than the whole sheet changing one colour at a time. That gives strong visual impact in retail displays and signage.

RGB plus warm white

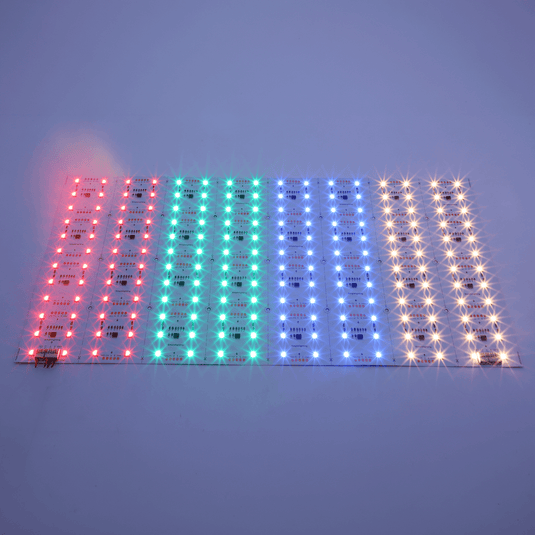

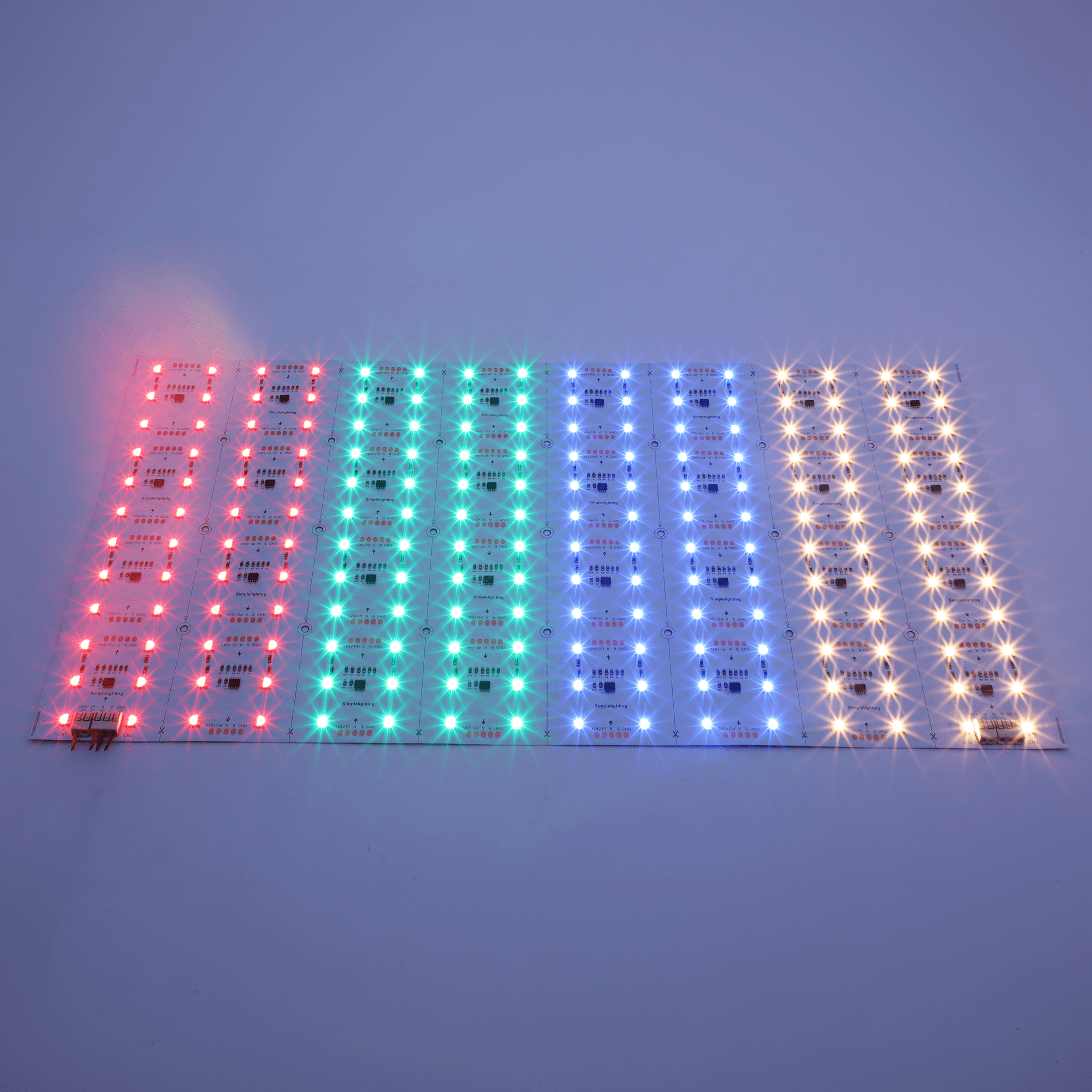

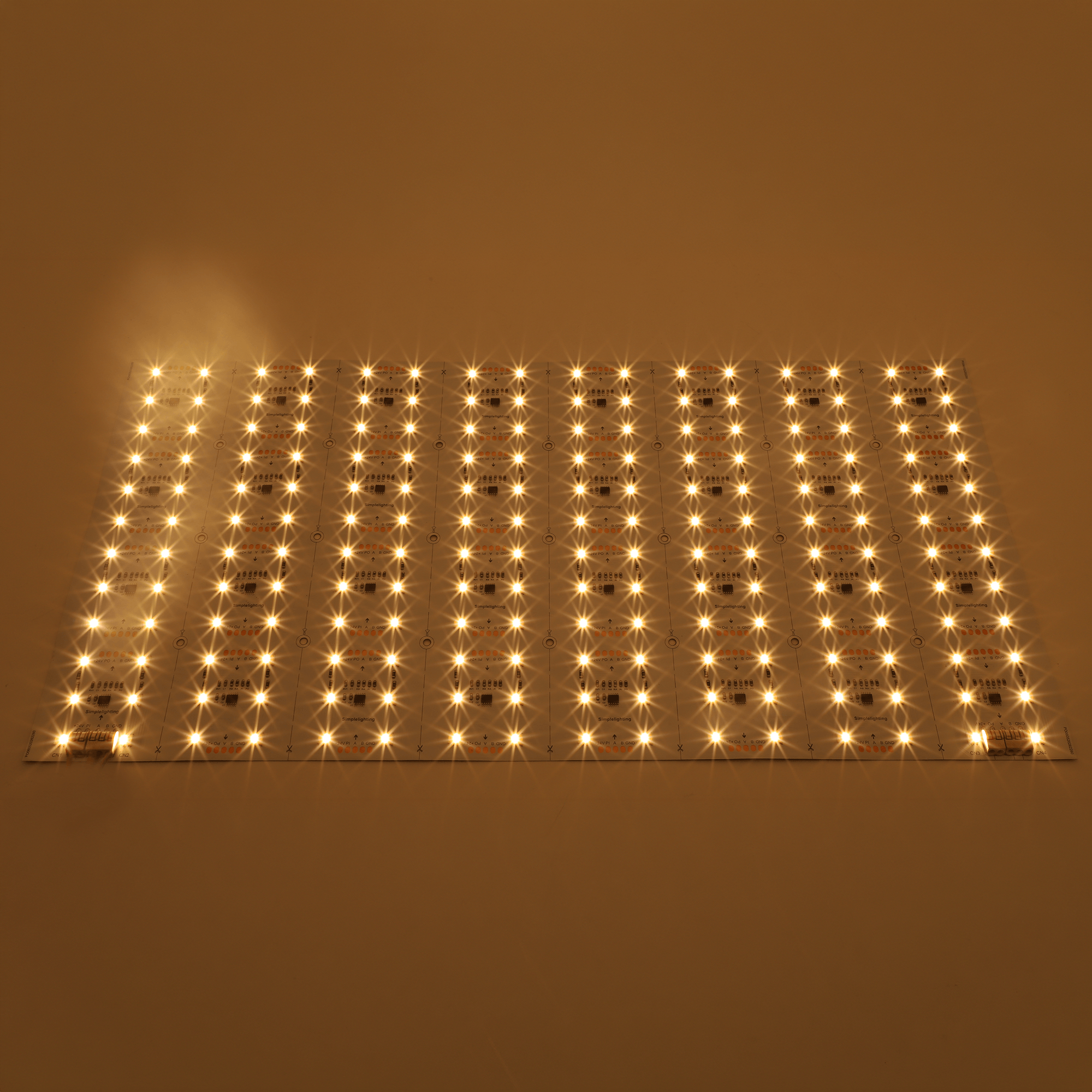

The sheet combines RGB colour with a dedicated 2700K warm white channel, so you can run bold colour for branding and displays, or switch to a comfortable warm white when colour is not needed.

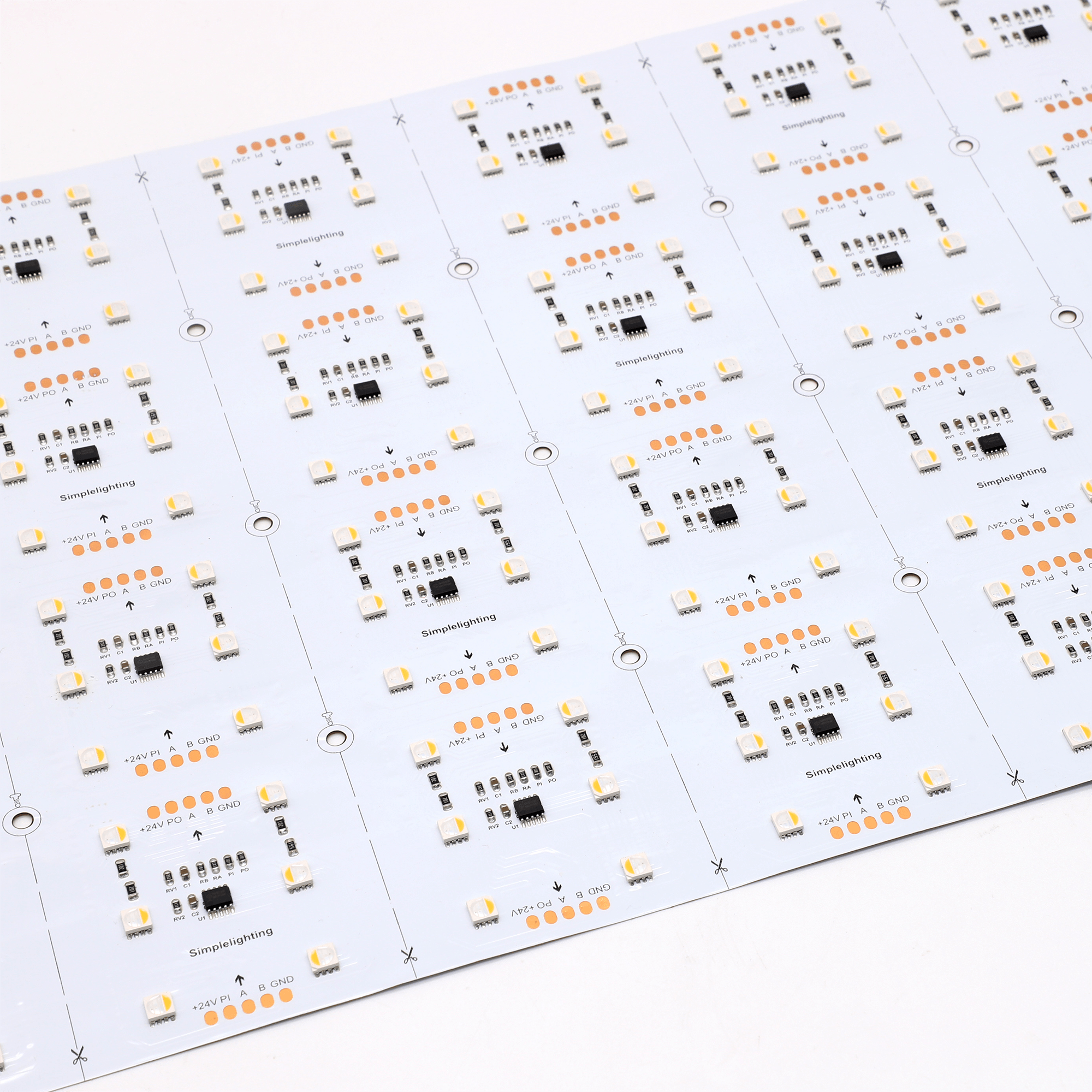

Cut to fit

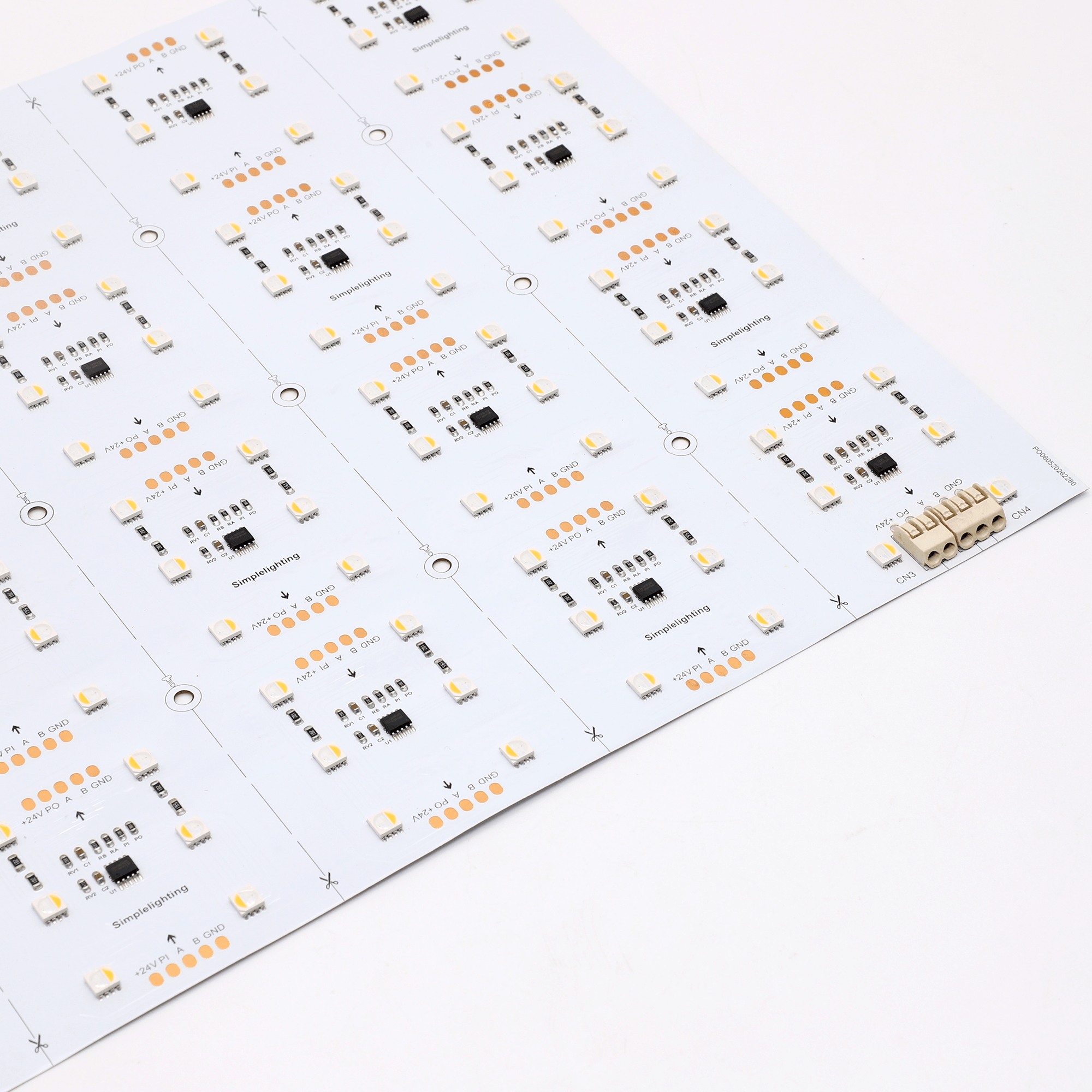

The sheet is cuttable, so you can shape it to fit bespoke joinery, display units, signs, feature walls and curved or irregular surfaces, using only what the job needs.

Natural colour

CRI is above 90, so products, artwork and materials look natural under the light, which suits shops, galleries, hotels, restaurants and premium homes.

Power and control

The sheet uses 62w at 24V DC. Allow at least 20% headroom on the driver: a 100W 24V LED driver suits one sheet. The driver supplies power only: control comes from a DMX512 master, or from a DMX console or pixel software with the correct addressing for mapped animations. The 110° beam spreads the light evenly across the surface.

Indoor use

Rated IP20 for dry indoor locations, with an average life of 50,000 hours.

Specifications

• Sheet size: 240 x 480mm
• Control: DMX pixel, individually addressable sections
• Colour: RGB plus 2700K warm white
• CRI: above 90
• Power: 62w per sheet
• Voltage: 24V DC
• Suggested driver: 100W 24V
• Beam angle: 110°
• Dimmable: yes
• Cuttable: yes
• IP rating: IP20
• Average life: 50,000 hours
• Driver and DMX controller: not included
