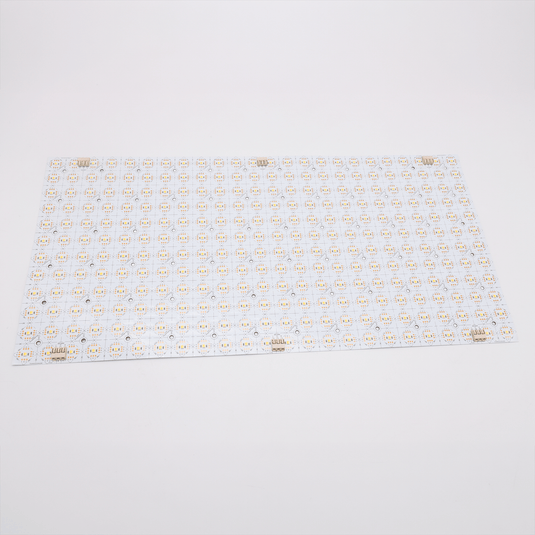

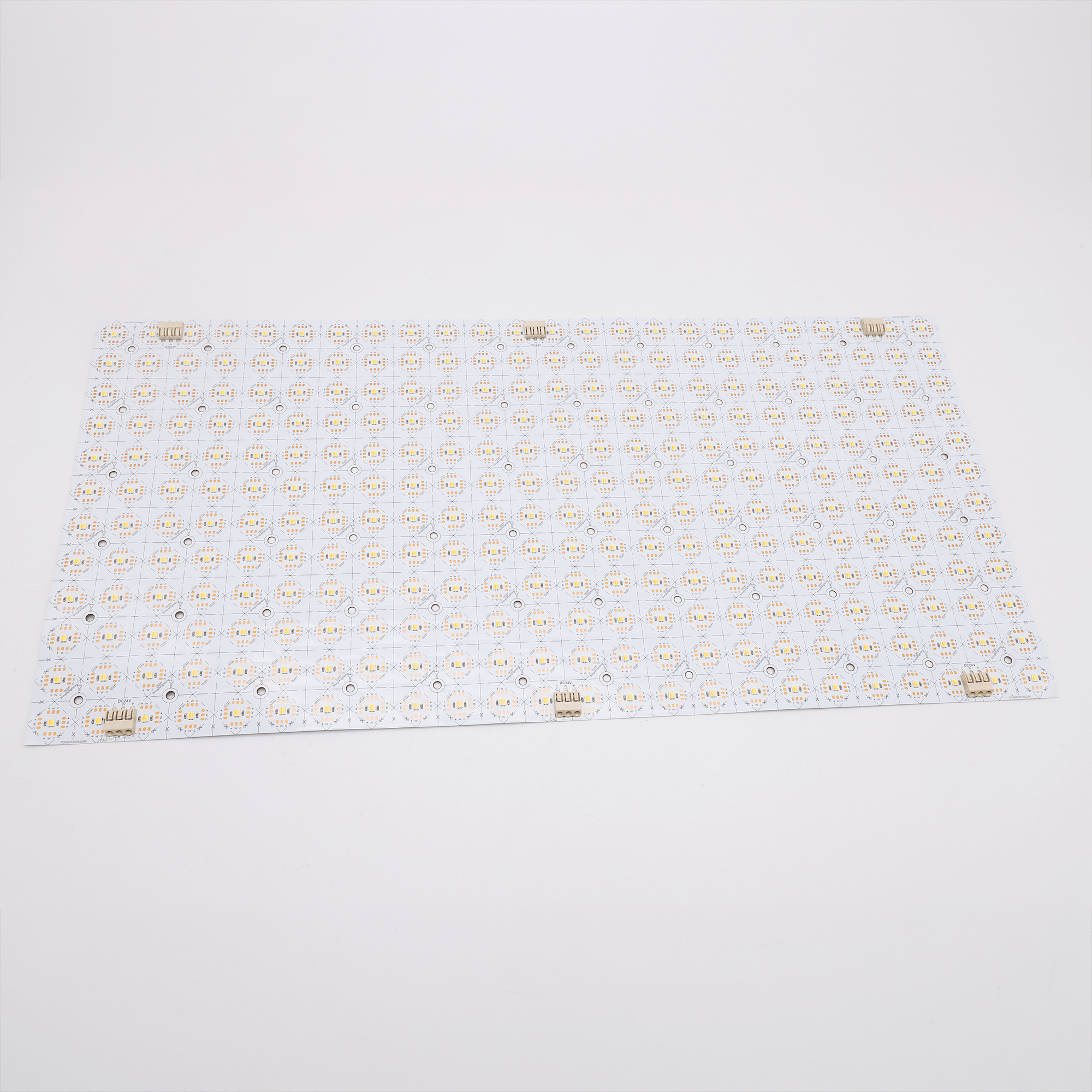

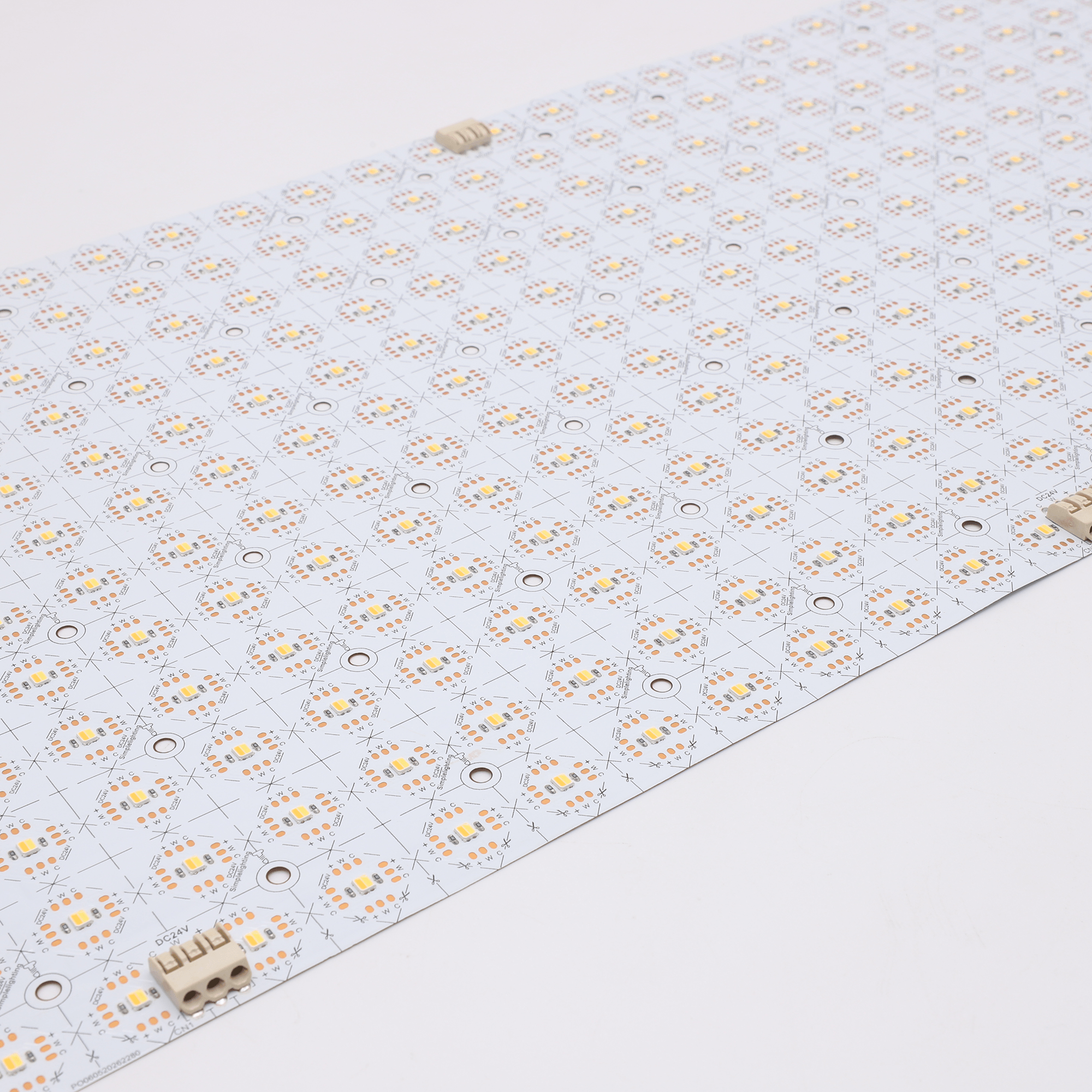

Colour Tunable LED Sheet, Cuttable, 240 x 480mm, 2700K to 6500K, 24V DC, 50w

Warm to cool white from one sheet

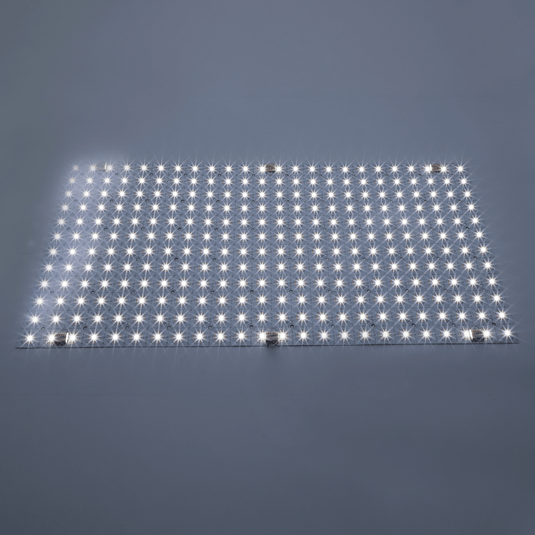

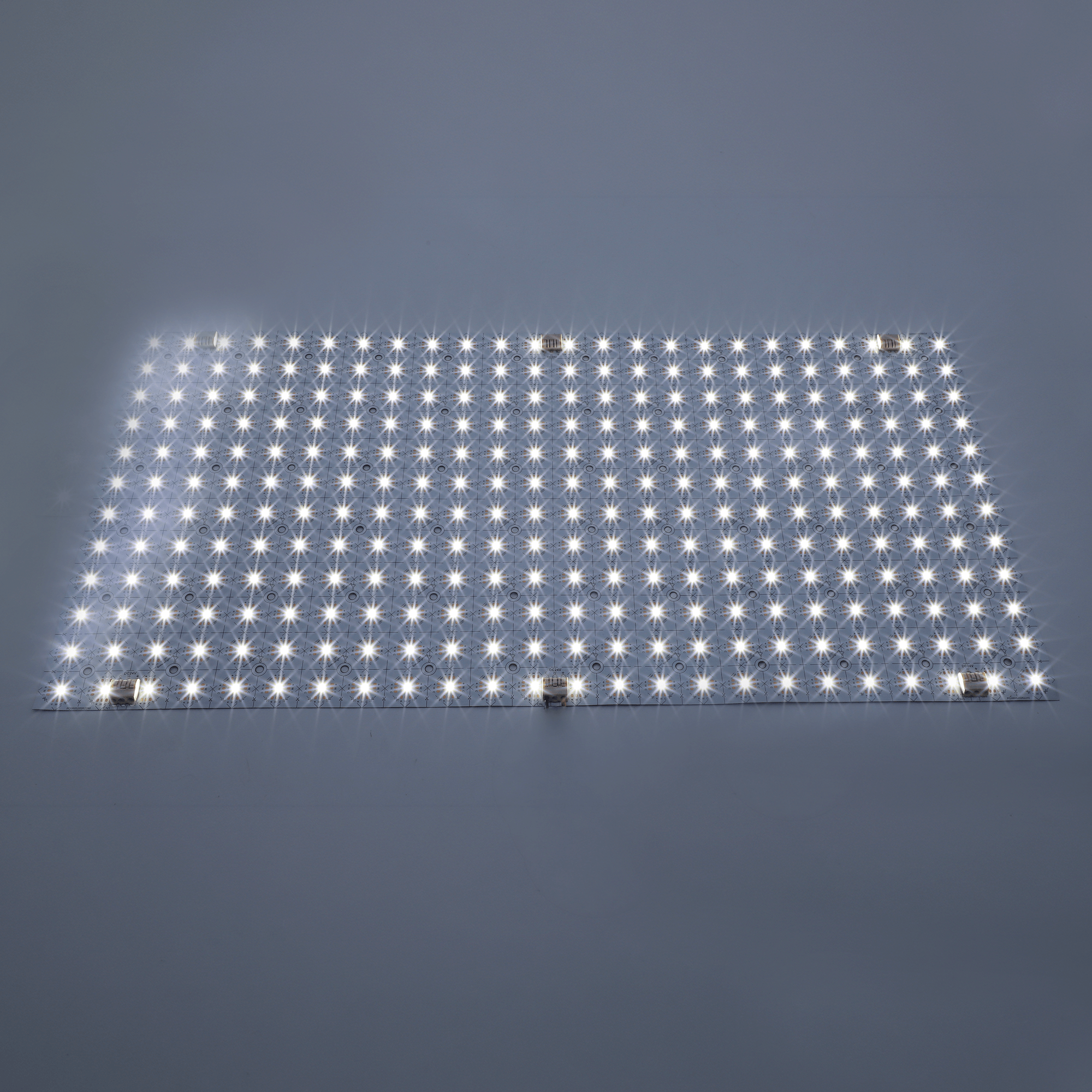

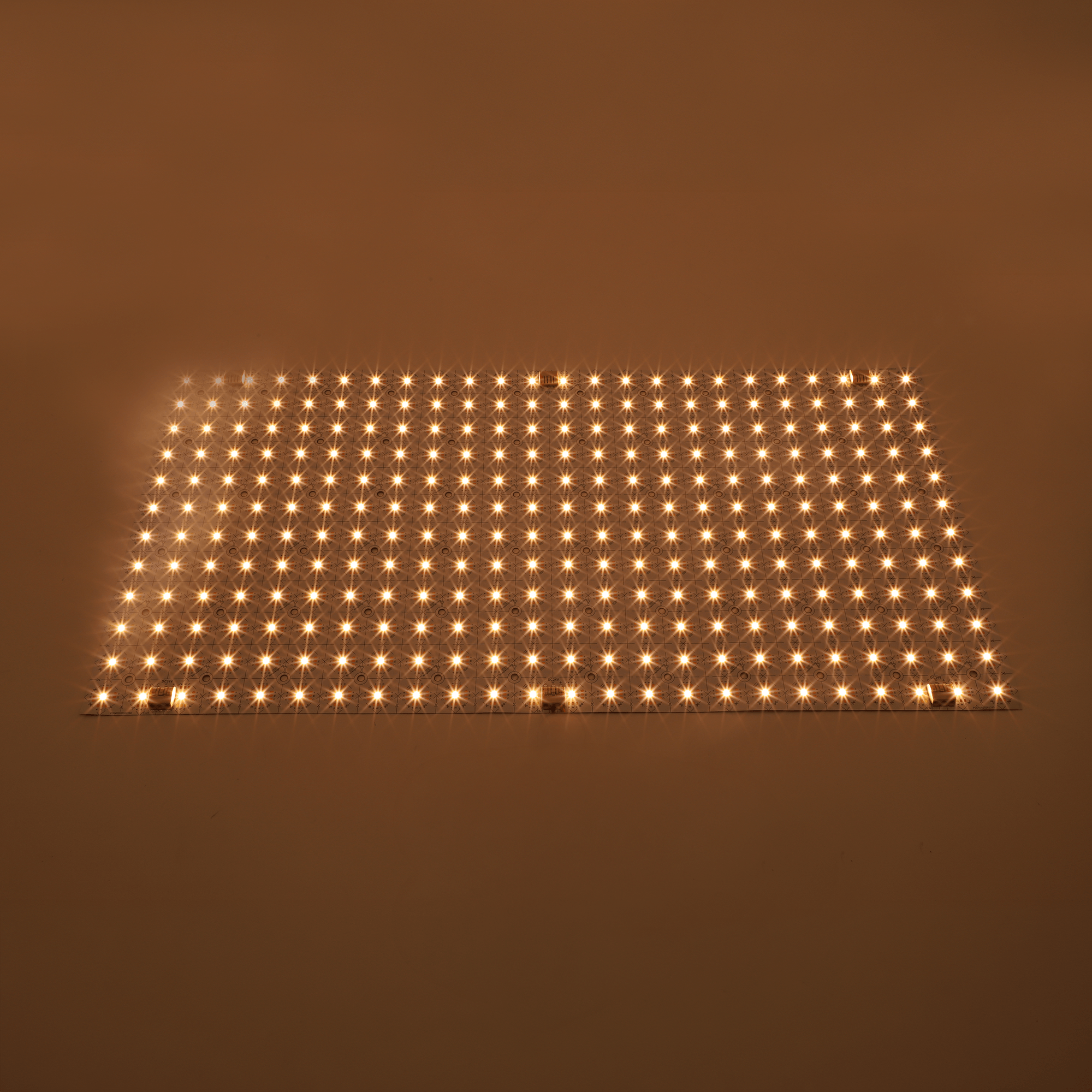

This 240 x 480mm LED sheet is colour tunable. With a compatible CCT controller you can set it anywhere from 2700K warm white through 4000K natural white to 6500K cool white, so the same sheet can give a cosy feel in a hotel or restaurant, show products clearly in a shop, or light detailed work.

Colour temperature and brightness can be set from a remote, a wall panel, smart controls or a DMX system, depending on the controller you choose.

Cut to fit

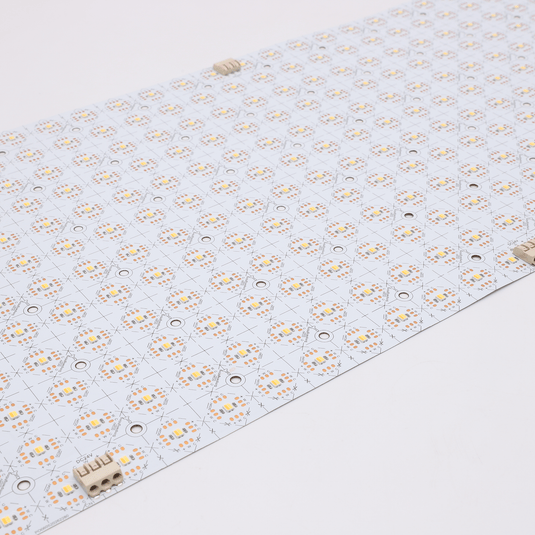

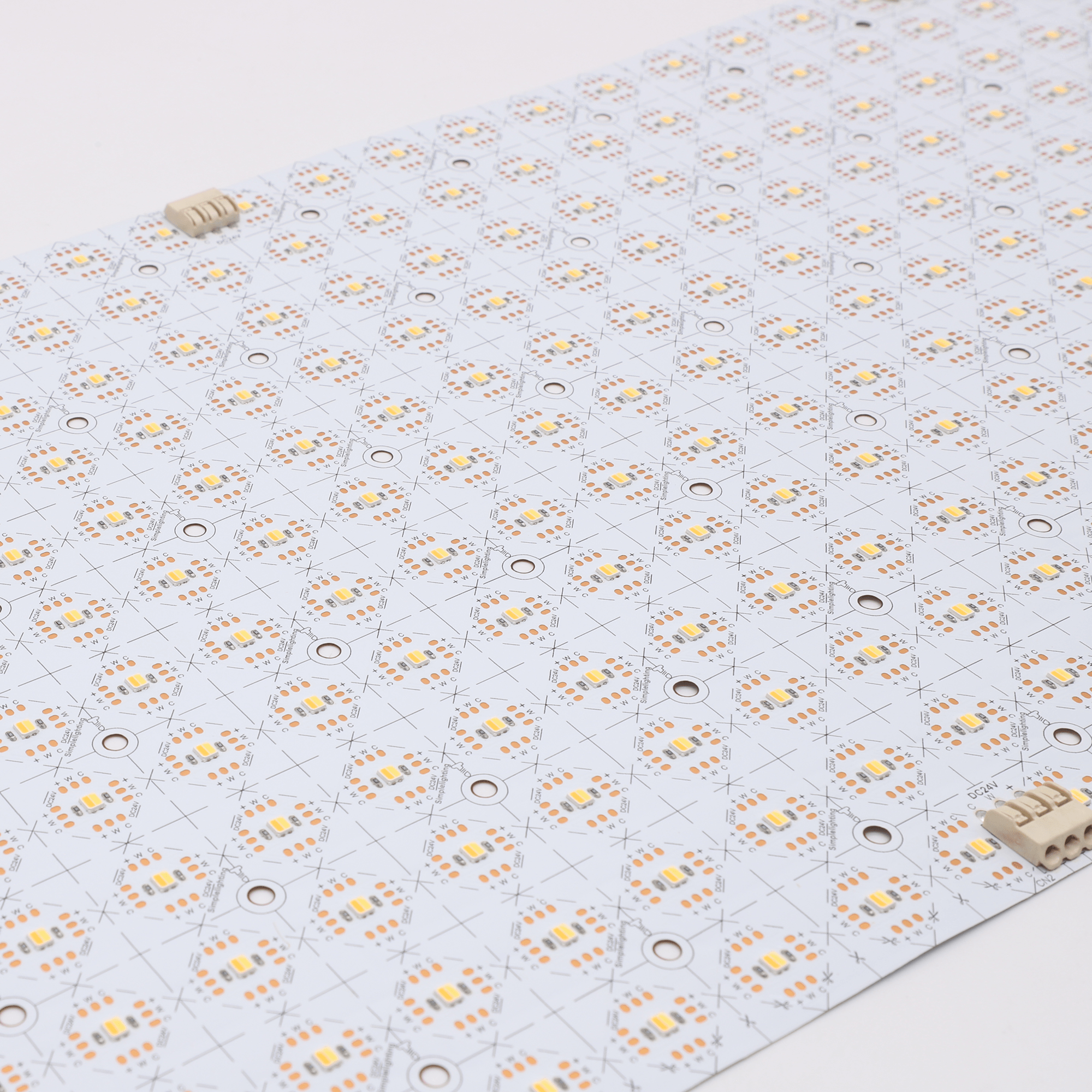

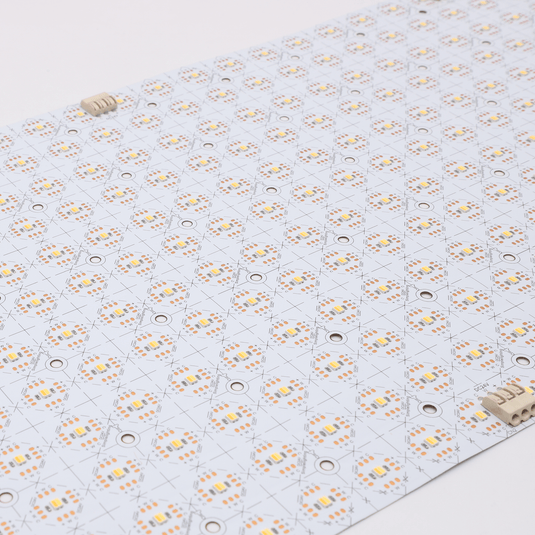

The sheet is cuttable, so you can trim it to fit bespoke joinery, shelving, display units, signs, feature walls and irregular layouts, without the gaps you get from fixed-size panels, and with less waste.

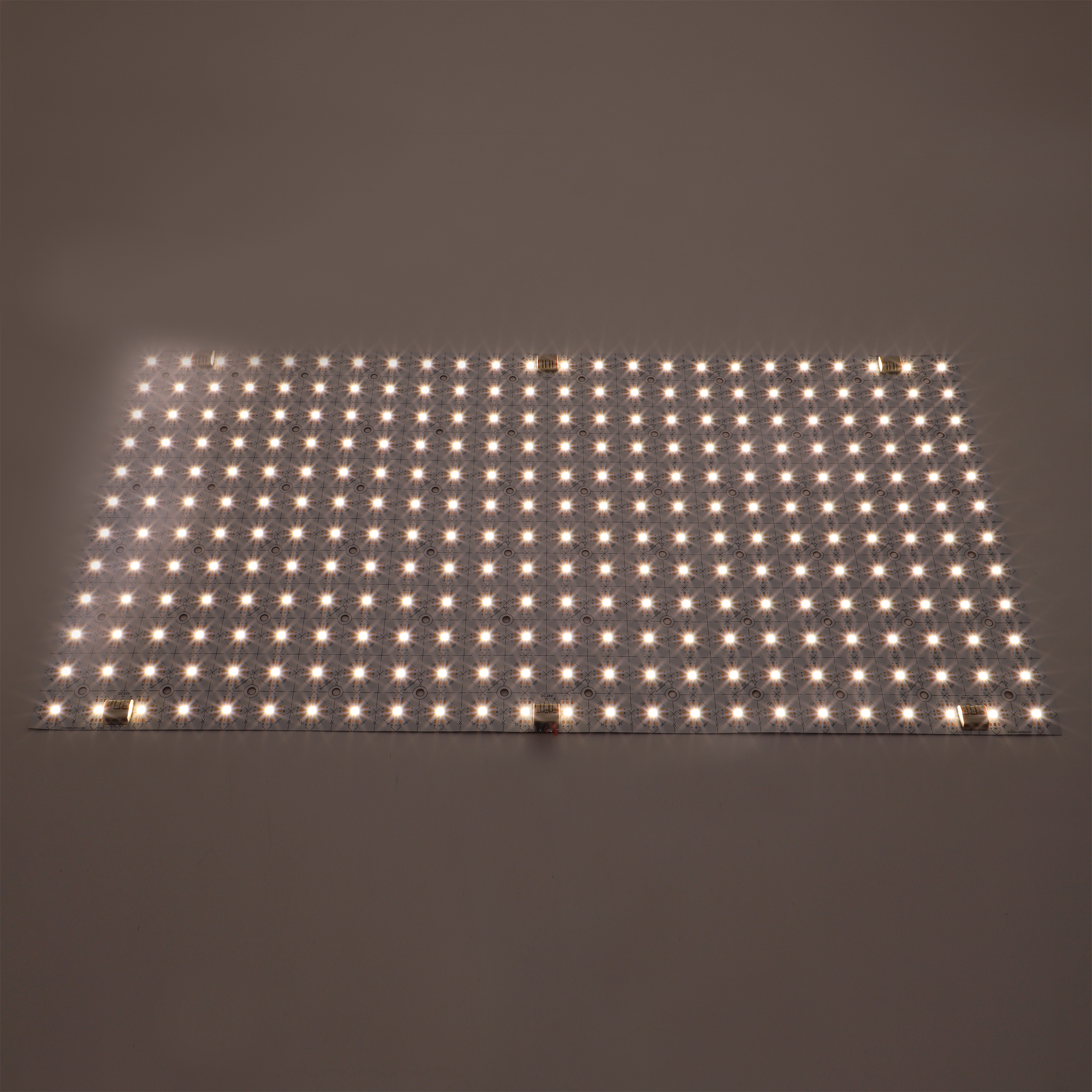

Bright and even

The sheet gives 4250 lumens from 50w. The 110° beam spreads the light evenly across the surface, without the hotspots and harsh shadows of smaller fittings, which suits backlighting, display units and architectural details.

Natural colour

CRI is above 90, so products, materials, worktops and artwork look natural under the light.

Power and control

The sheet uses 50w at 24V DC and needs both a compatible 24V LED driver and a CCT controller. The driver turns mains into 24V DC power; the controller runs the warm and cool white channels and the dimming. A driver on its own lights the sheet but cannot change the colour temperature. Choose a 24V LED driver with at least 20% headroom over the 50w load.

Indoor use

Rated IP20 for dry indoor locations, with an average life of 50,000 hours.

Specifications

• Sheet size: 240 x 480mm
• Colour: tunable white, 2700K to 6500K
• CRI: above 90
• Power: 50w per sheet
• Light output: 4250 lumens per sheet
• Voltage: 24V DC
• Beam angle: 110°
• Dimmable: yes, with a compatible CCT controller
• Cuttable: yes
• IP rating: IP20
• Average life: 50,000 hours
• Driver and CCT controller: not included
