Acoustic Slat Wall LED Lighting Kit, 4 x 2.4m, Warm White 2700K, with Driver and Remote

Light lines for a slatted wall

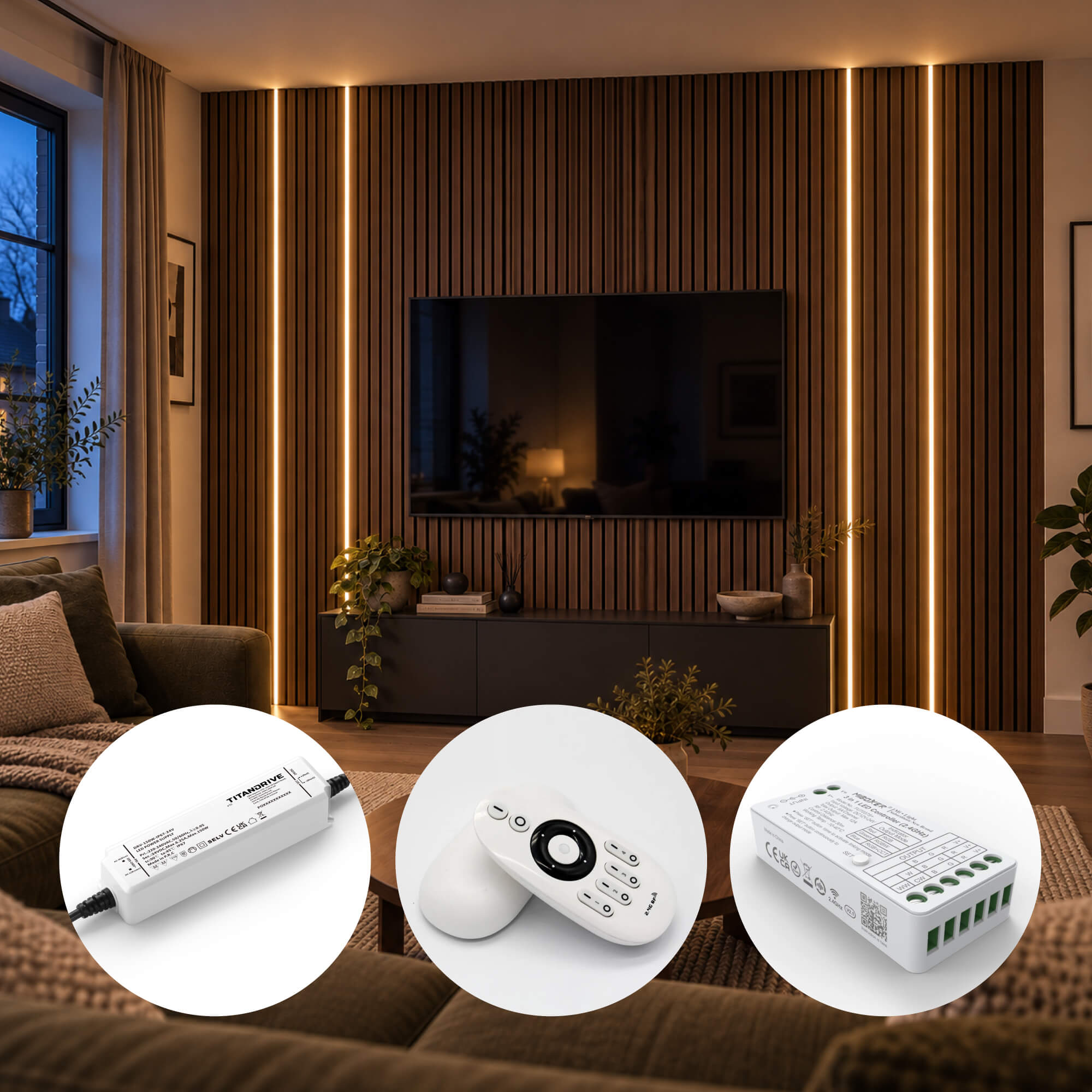

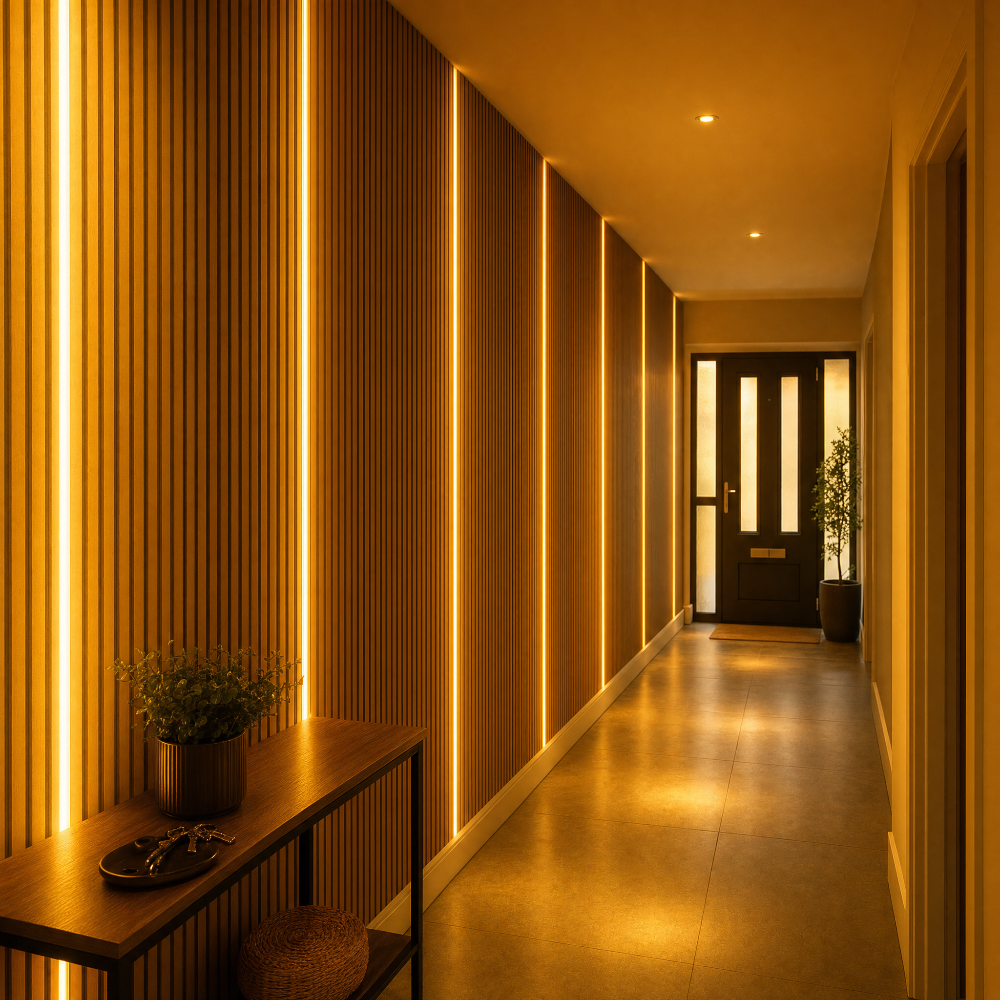

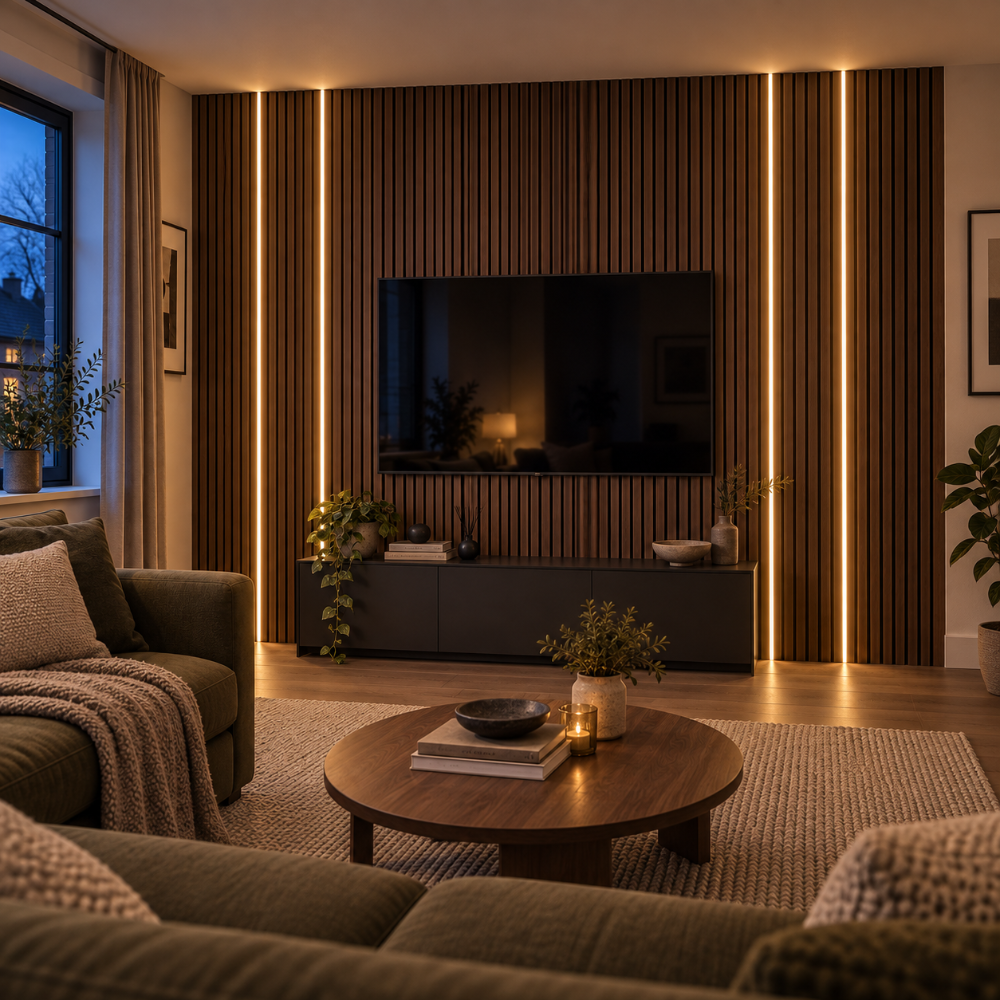

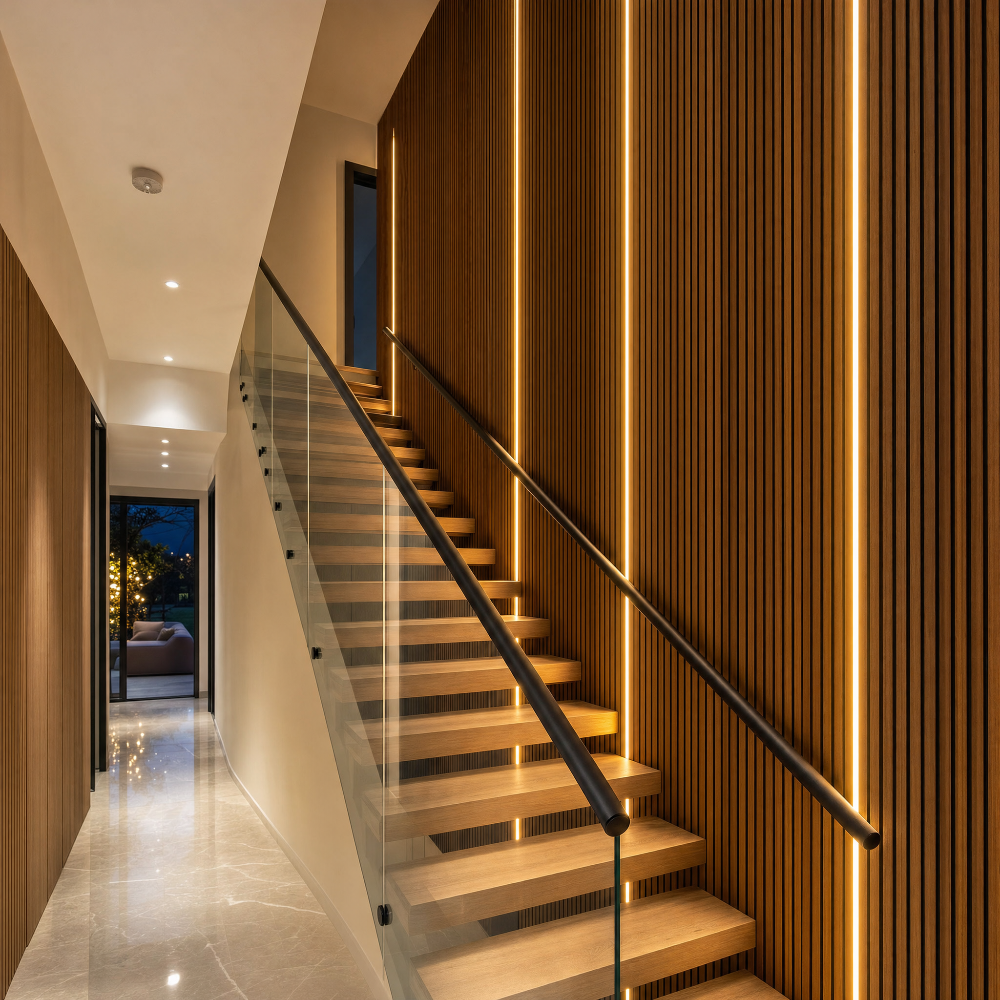

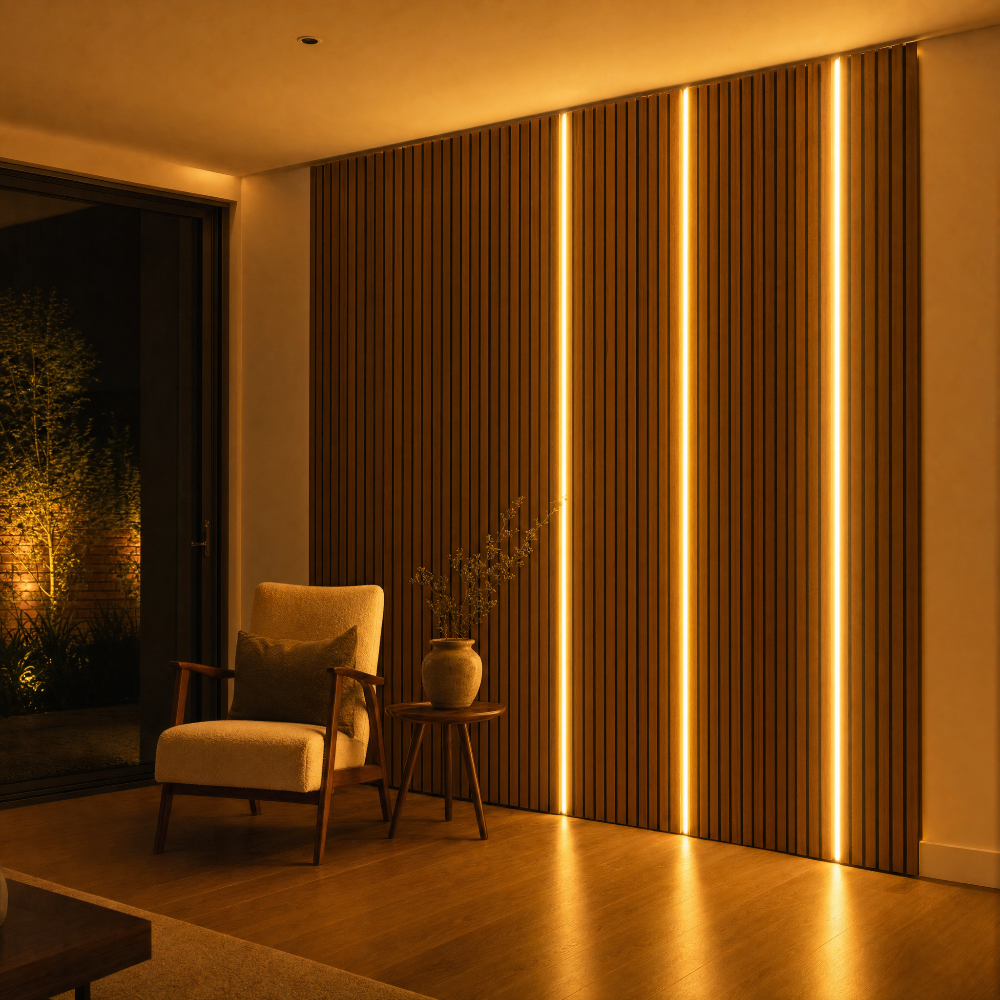

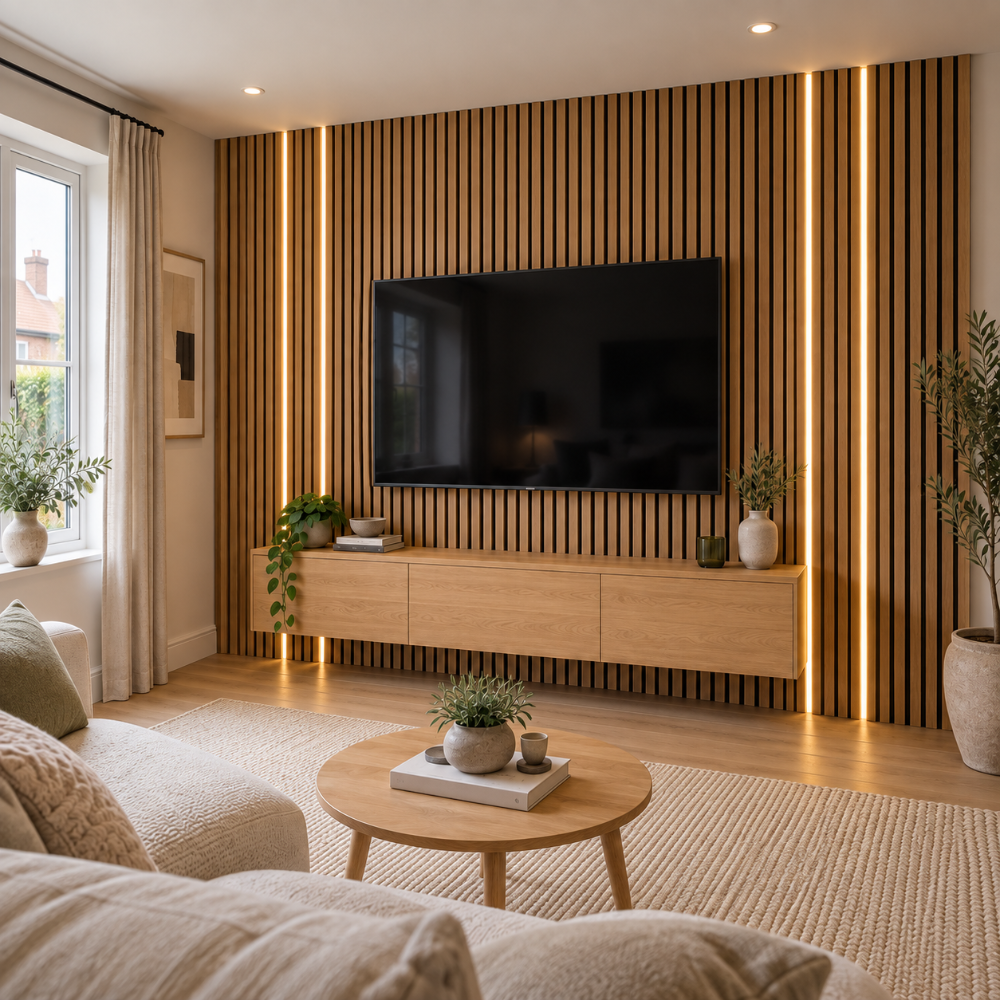

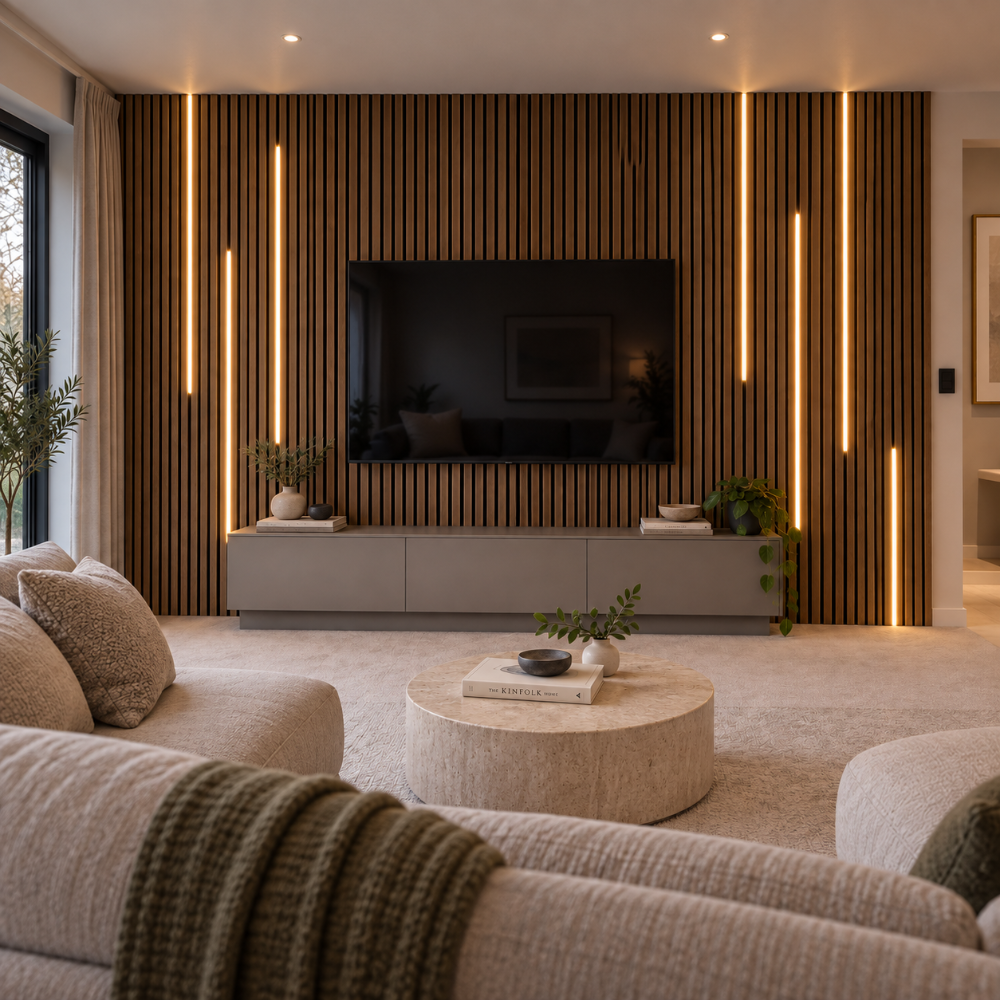

This kit has four separate 2.4m warm white LED neon lights, a matching 24V DC driver and a remote. The lights sit in the grooves of acoustic slat wall panels to pick out a media wall, a hallway, a staircase or a feature wall in a lounge. The four lengths add up to 9.6m, but they are separate lights, not one continuous strip.

Warm, even light

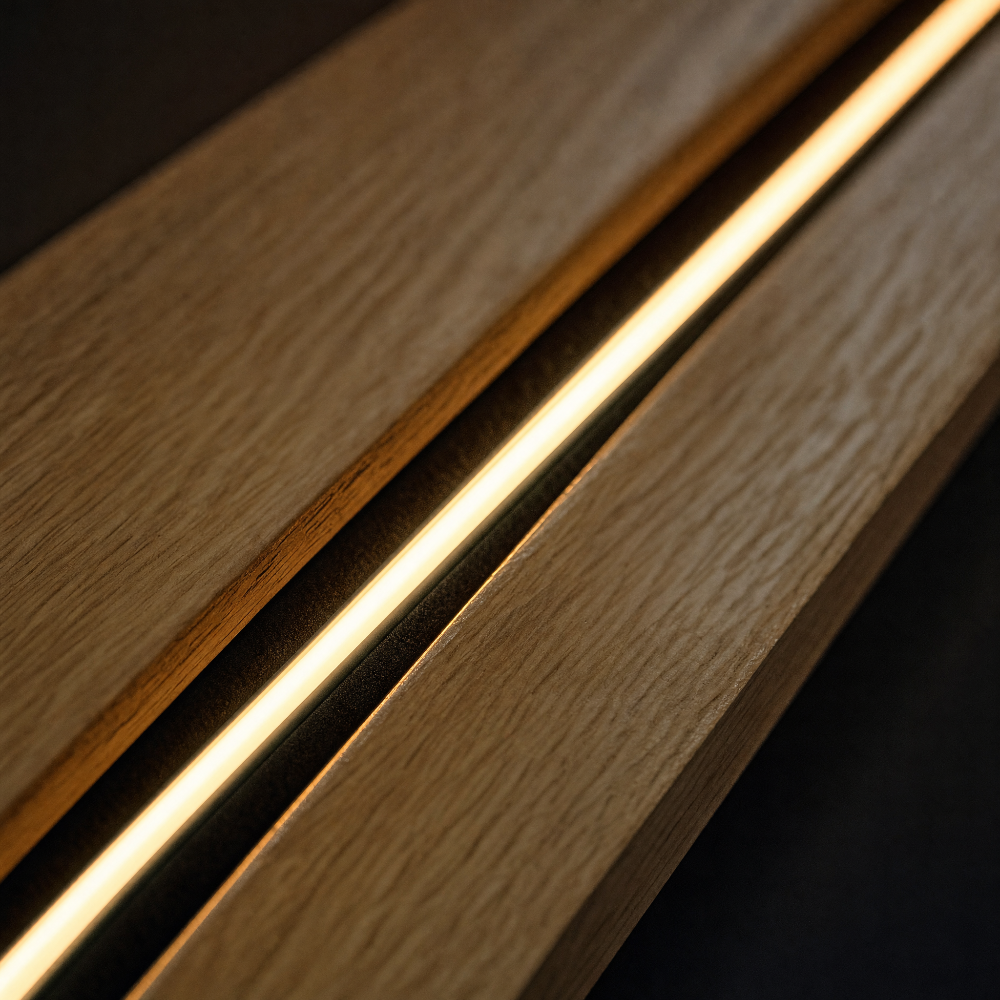

Each light gives warm white light at 2700K with a CRI above 90. The diffused cover gives a smooth glow without visible LED dots, and each full light gives 164 lumens, which suits ambient feature lighting. Use other lighting for reading, working and general room light. The colour is fixed warm white and does not change.

Check the fit

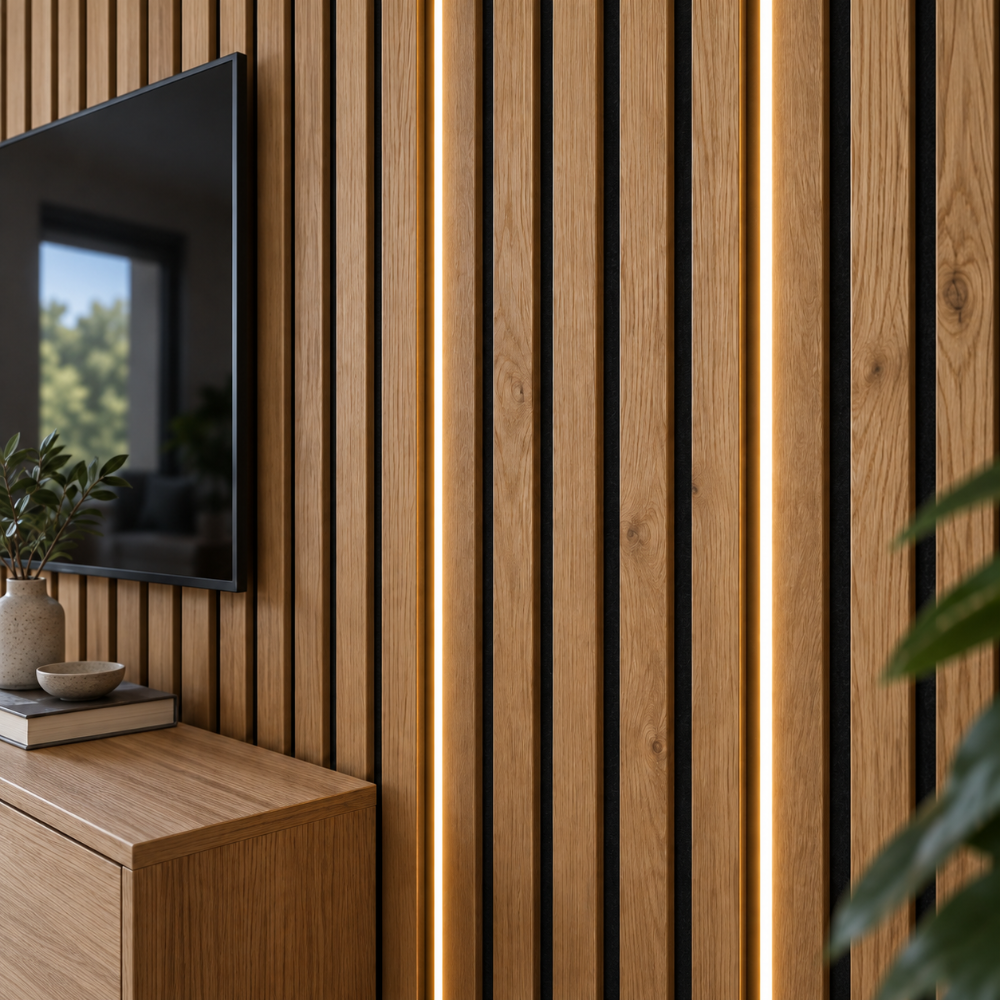

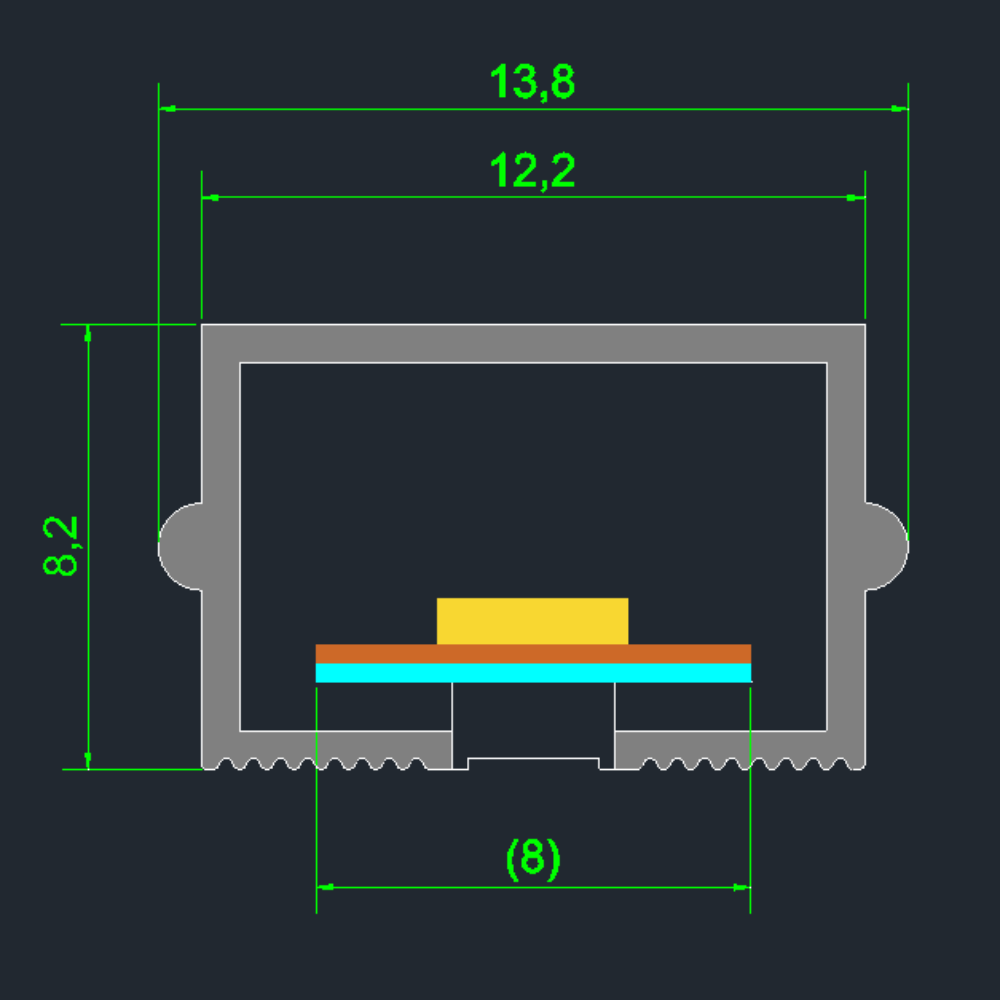

Each light is 13.8mm wide and 8.2mm high, in matte black that blends into darker grooves when off. Measure the width and depth of your panel grooves and plan the cable route before you order, as panel sizes vary.

Cutting and wiring

Each light can be shortened at the marked 50mm cutting points. Isolate the power and measure carefully before you cut; an off-cut cannot be plugged back in without a new connection. Each light has a 1m lead with bare red and black wires, so wiring is needed. The lights run on 24V DC from the supplied driver: never connect the neon straight to the mains. Follow the wiring and polarity instructions, and have a qualified electrician make the mains connection.

Indoors only

The neon is IP67 when uncut, and cutting opens the sealed end. The driver is IP20, so keep it dry and accessible. The kit is for indoor slat walls.

Other kit sizes

The same lights come in 1, 2, 3 and 4 light kits, each with a driver or with a driver and remote. A light on its own is also available.

Specifications

• In the kit: 4 x 2.4m LED neon lights, 24V DC LED driver, remote
• Total length: 9.6m (4 separate lights)
• Colour: warm white 2700K
• CRI: above 90
• Light output: 164 lumens per full light
• Power: 26.4w per full light, 105.6w total light load
• Voltage: 24V DC
• Size: 13.8mm wide, 8.2mm high
• Finish: matte black
• Cut points: every 50mm
• Lead: 1m per light, bare red and black wires
• IP rating: IP67 neon (uncut), IP20 driver
