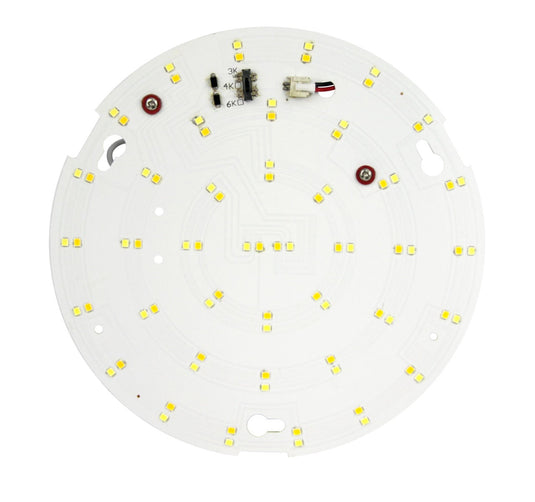

9.5w LED Bulkhead Gear Tray with Emergency Backup, Colour Switchable, 190mm

Upgrade an old bulkhead

This 9.5w LED gear tray fits inside a bulkhead fitting, so you can retrofit an old fluorescent or halogen bulkhead without replacing the whole light. It is 190mm across and 30mm deep and suits a wide range of bulkhead bodies.

Emergency backup built in

The gear tray has its own emergency function. If the mains supply fails, it keeps giving light so people can find their way out of a stairwell, corridor or plant room safely.

Three colours from one tray

A switch on the tray sets the colour to warm white (3000K), natural white (4000K) or cool white (6500K). The colour rendering index is above 80, so colours look natural under it.

Built for daily use

The LEDs sit on an aluminium PCB and give steady, flicker-free light over a 120° beam. The rated life is 30,000 hours.

Fitting

The tray connects to 220-240v mains through 3-way or 4-way quick-fit terminals, with no separate driver. It is IP20, so the bulkhead body provides any weather protection. It is not dimmable and has no sensor. If you're not confident with electrics, have an electrician fit it.

Specifications

• Type: LED bulkhead gear tray
• Power: 9.5w
• Emergency function: yes
• Colour: switchable, 3000K, 4000K or 6500K
• CRI: above 80
• Beam angle: 120°
• Diameter: 190mm
• Depth: 30mm
• Finish: white
• Terminals: 3-way or 4-way quick-fit
• Voltage: 220-240v
• Dimmable: no
• Sensor: none
• IP rating: IP20
• Rated life: 30,000 hours
