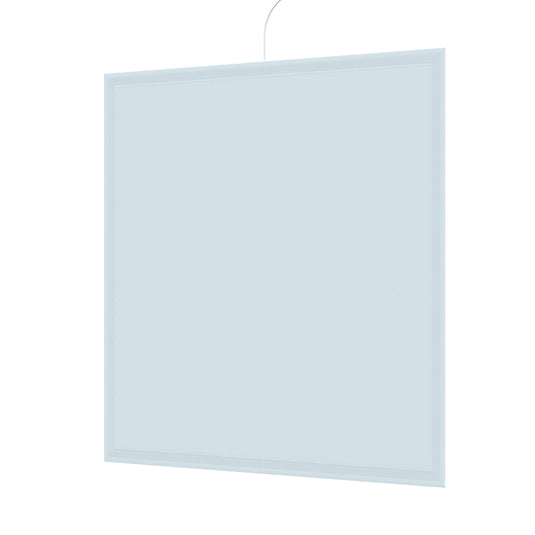

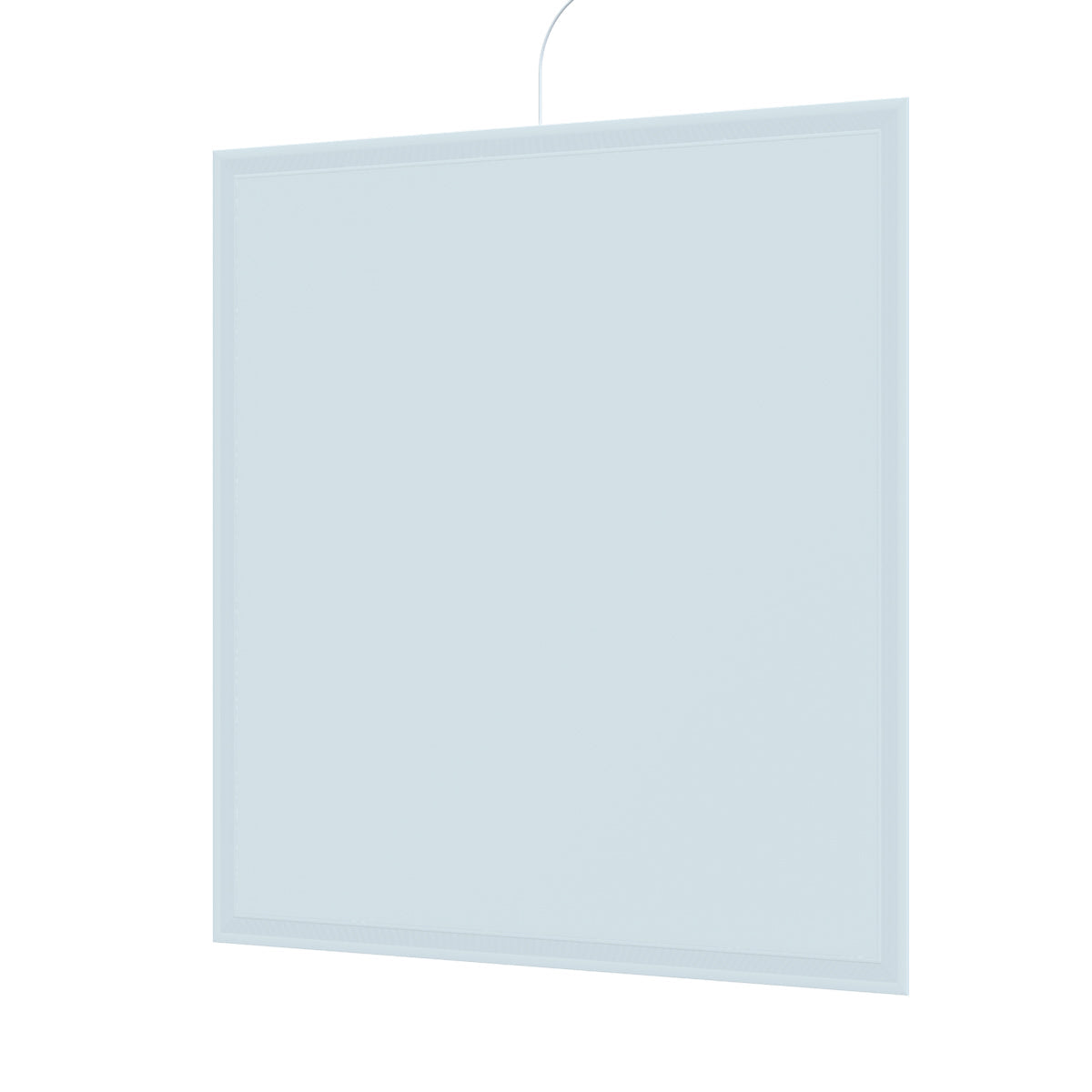

600x600 Back-Lit LED Panel with DALI Dimmable Driver, 36w, 3600 Lumens, Cool or Natural White

A commercial panel with DALI control

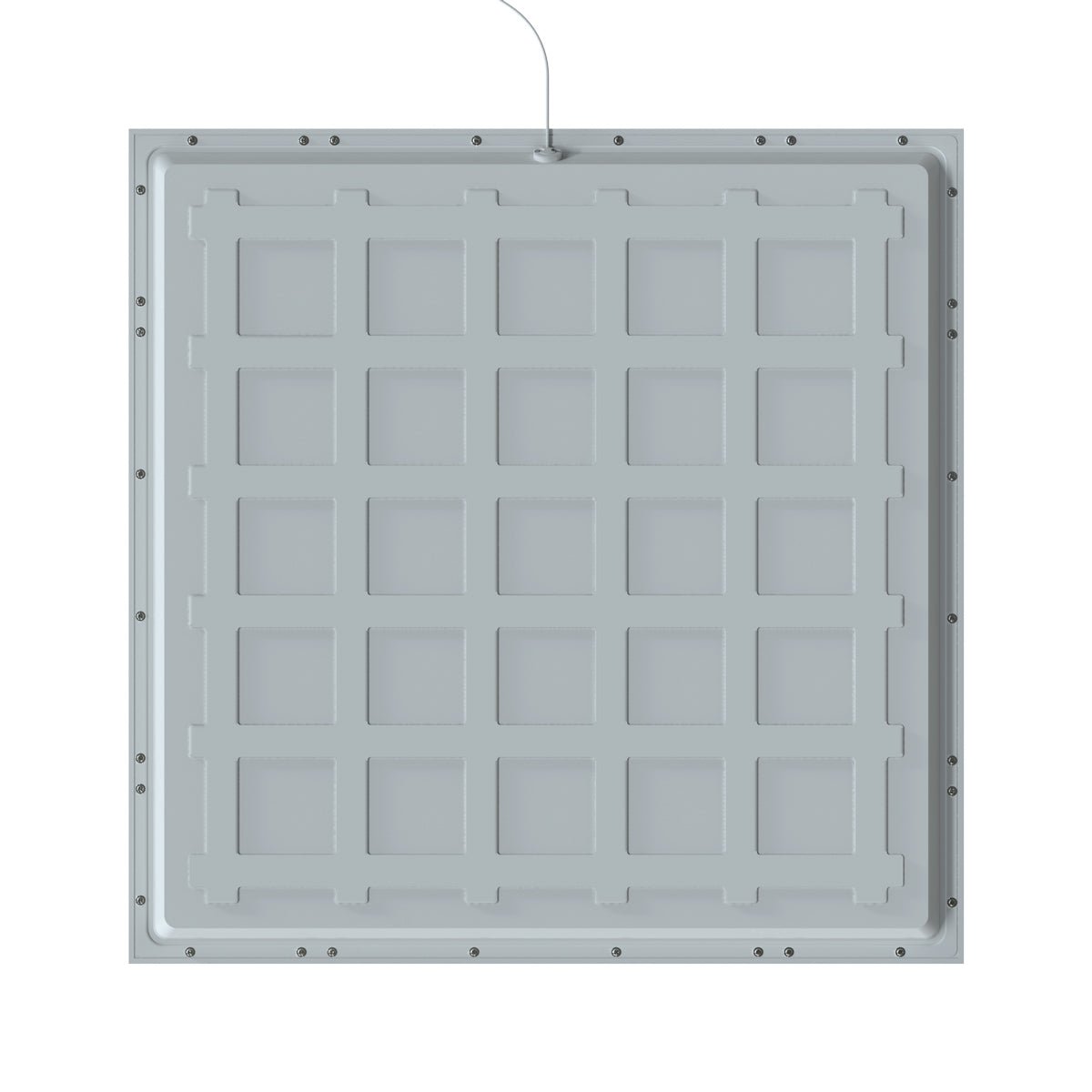

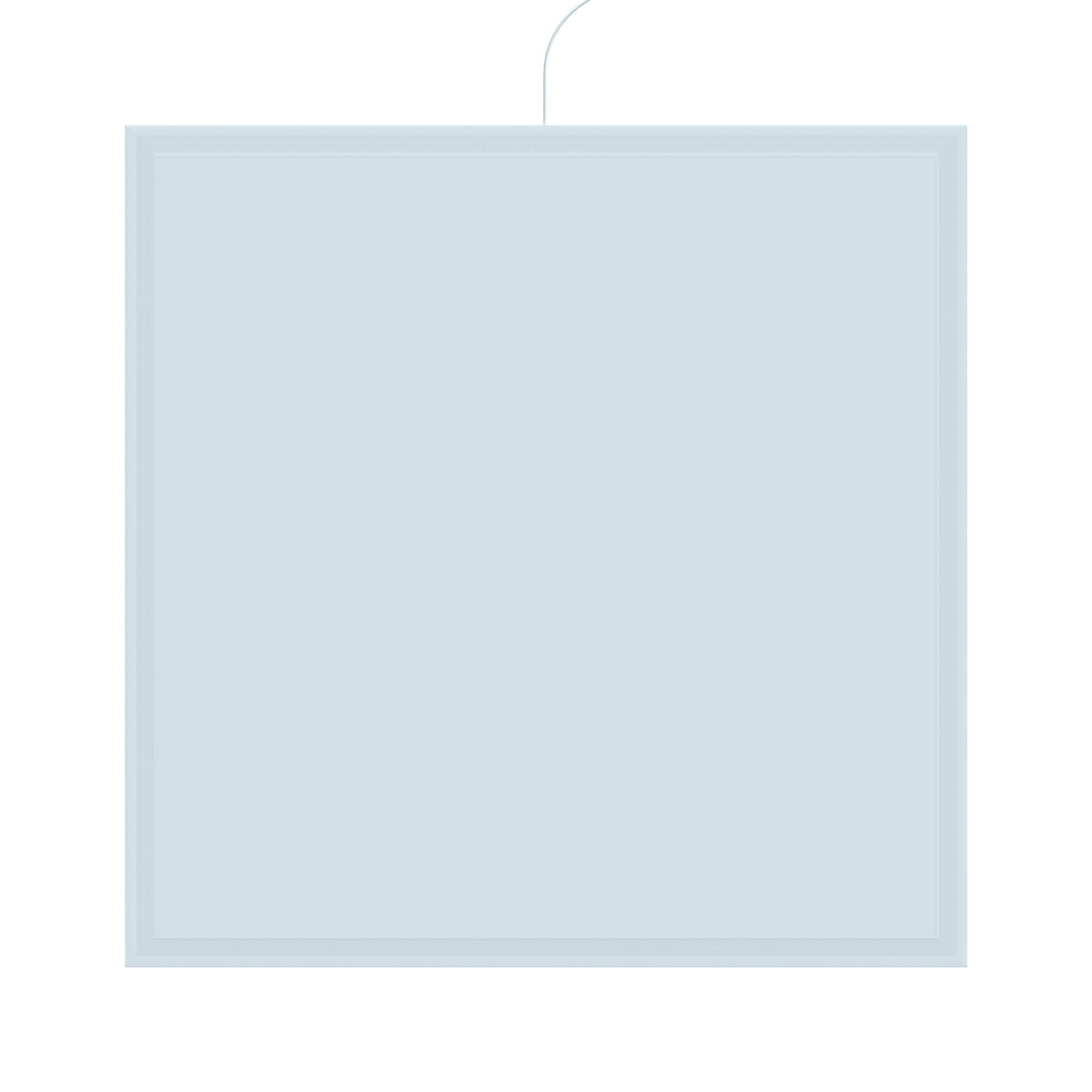

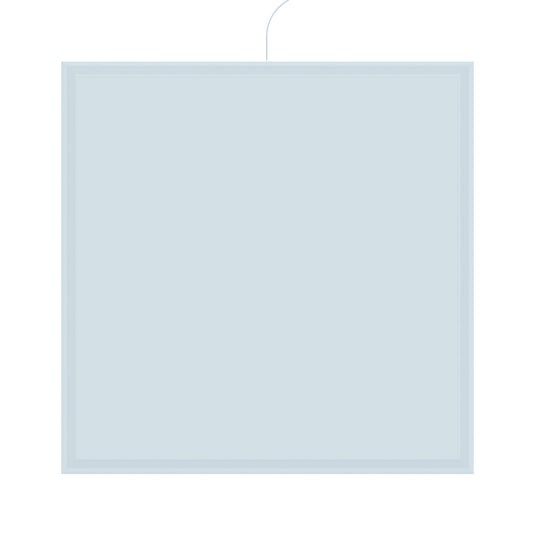

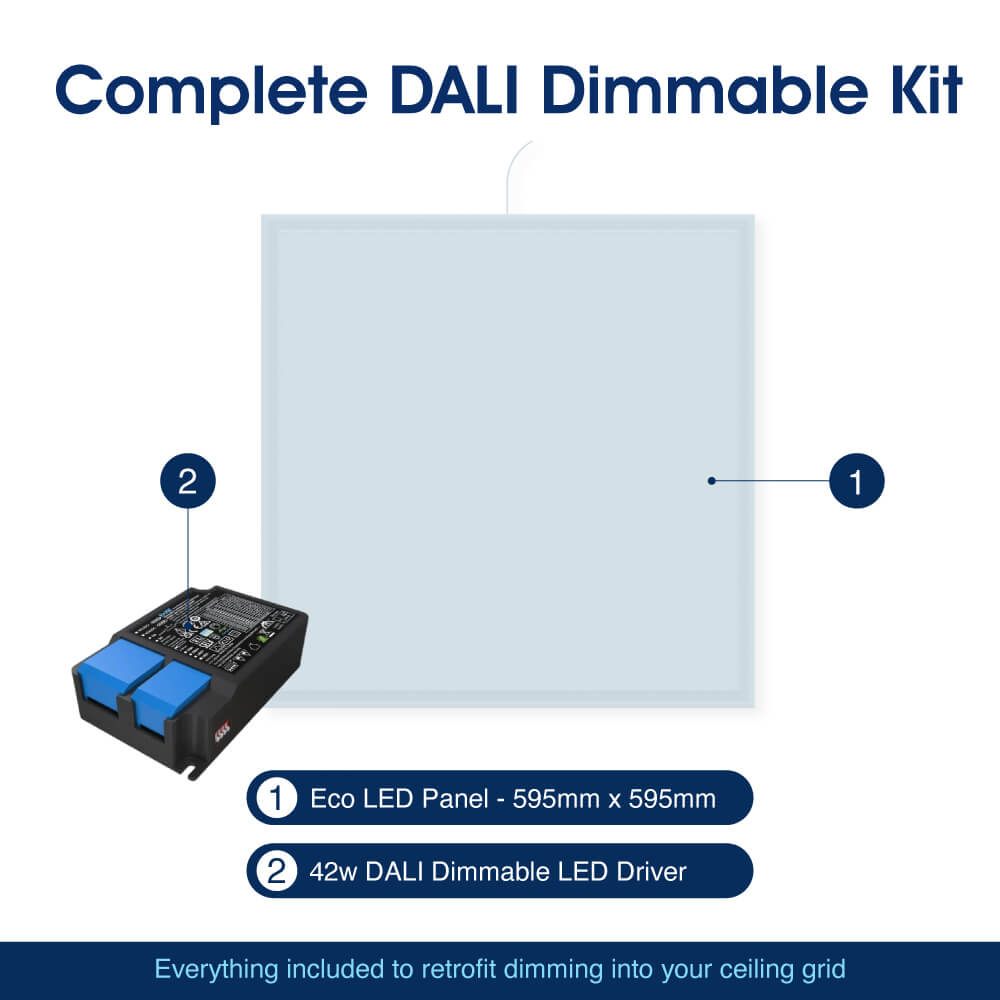

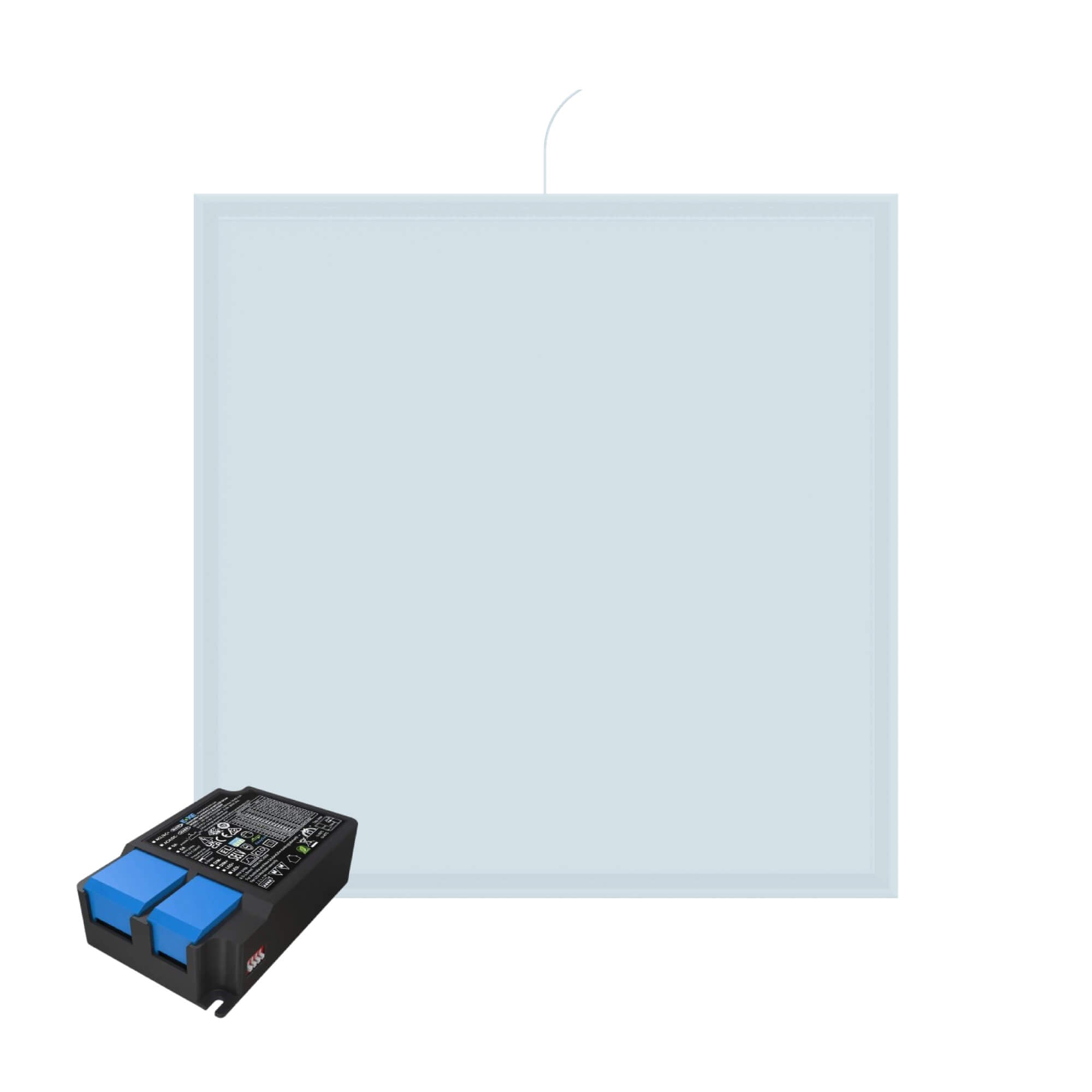

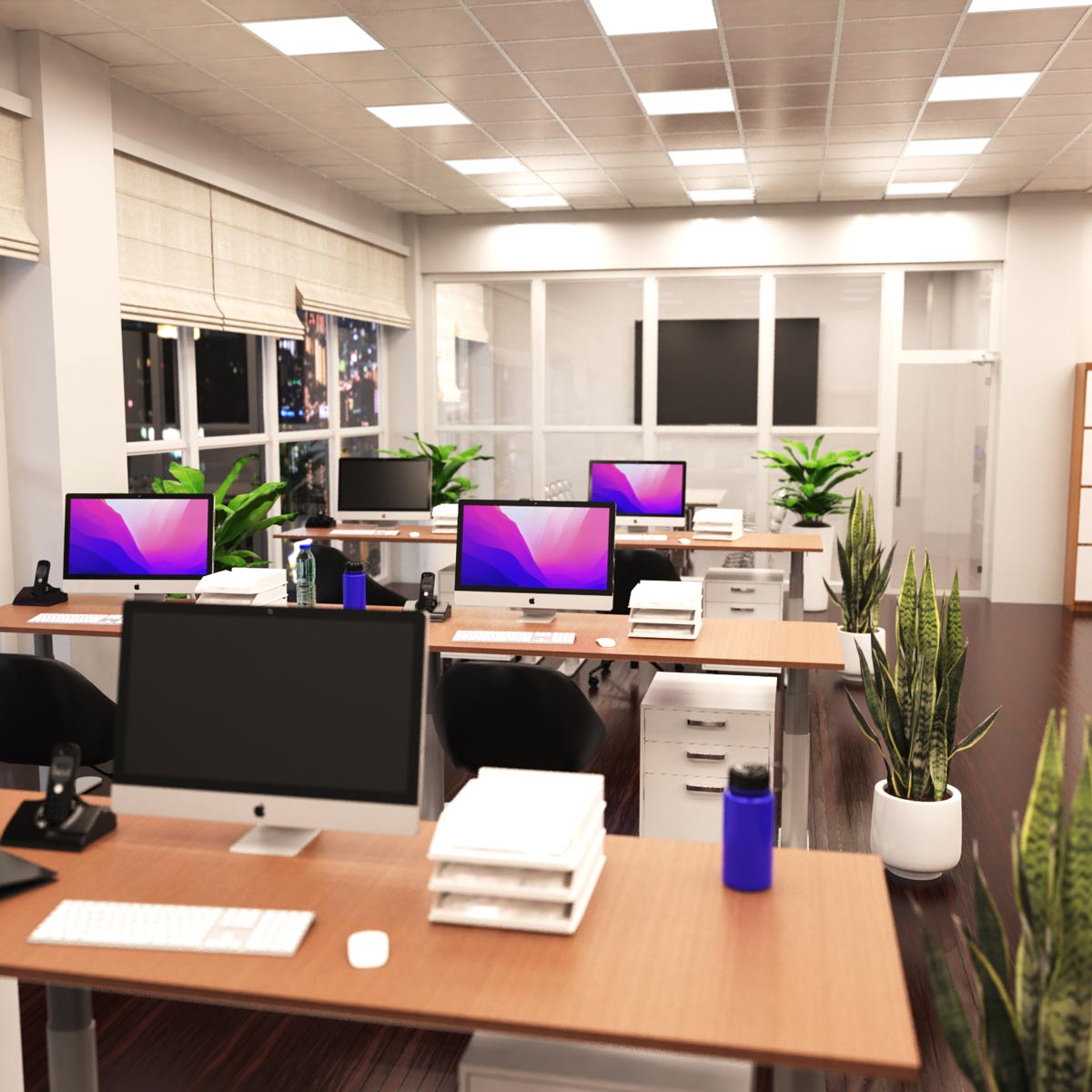

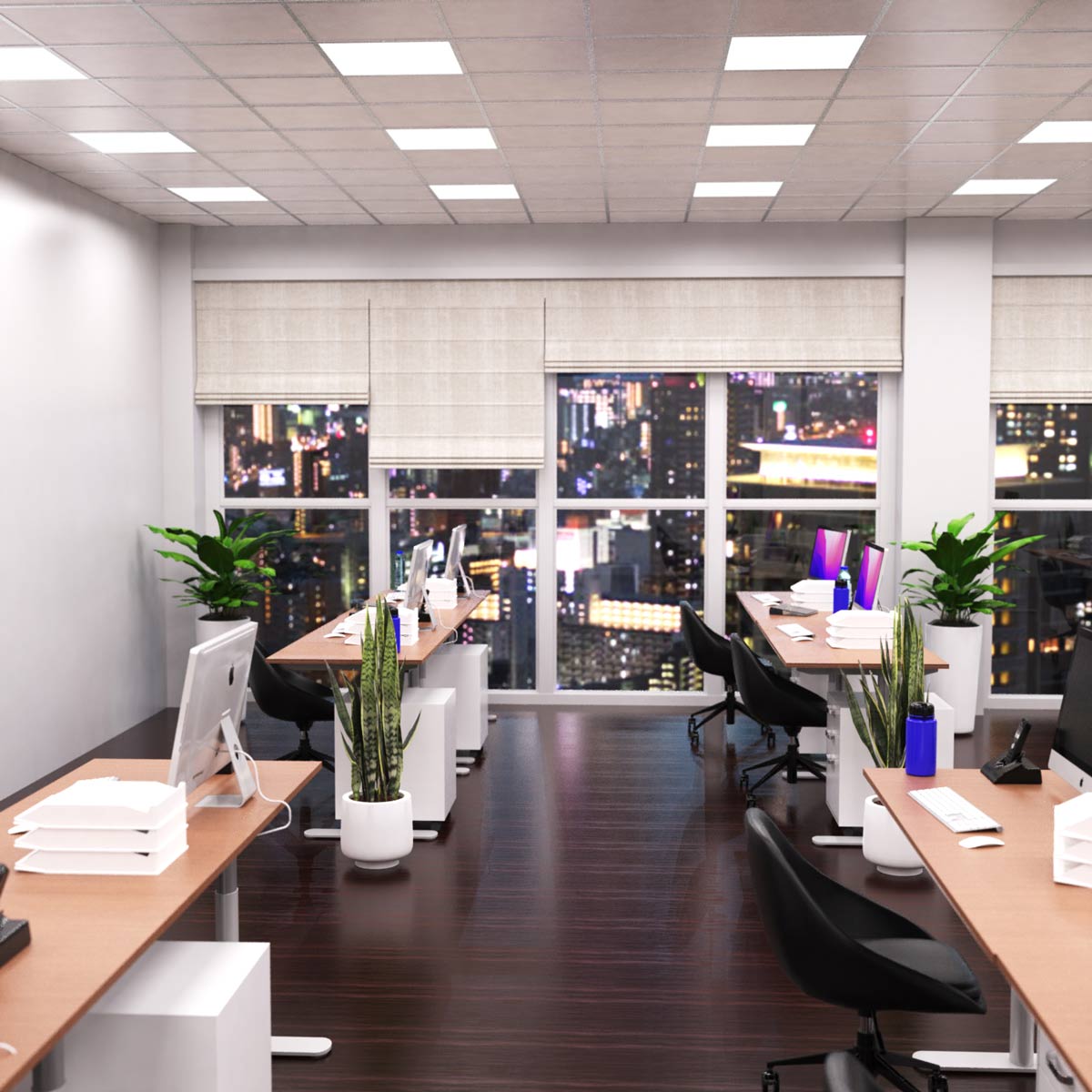

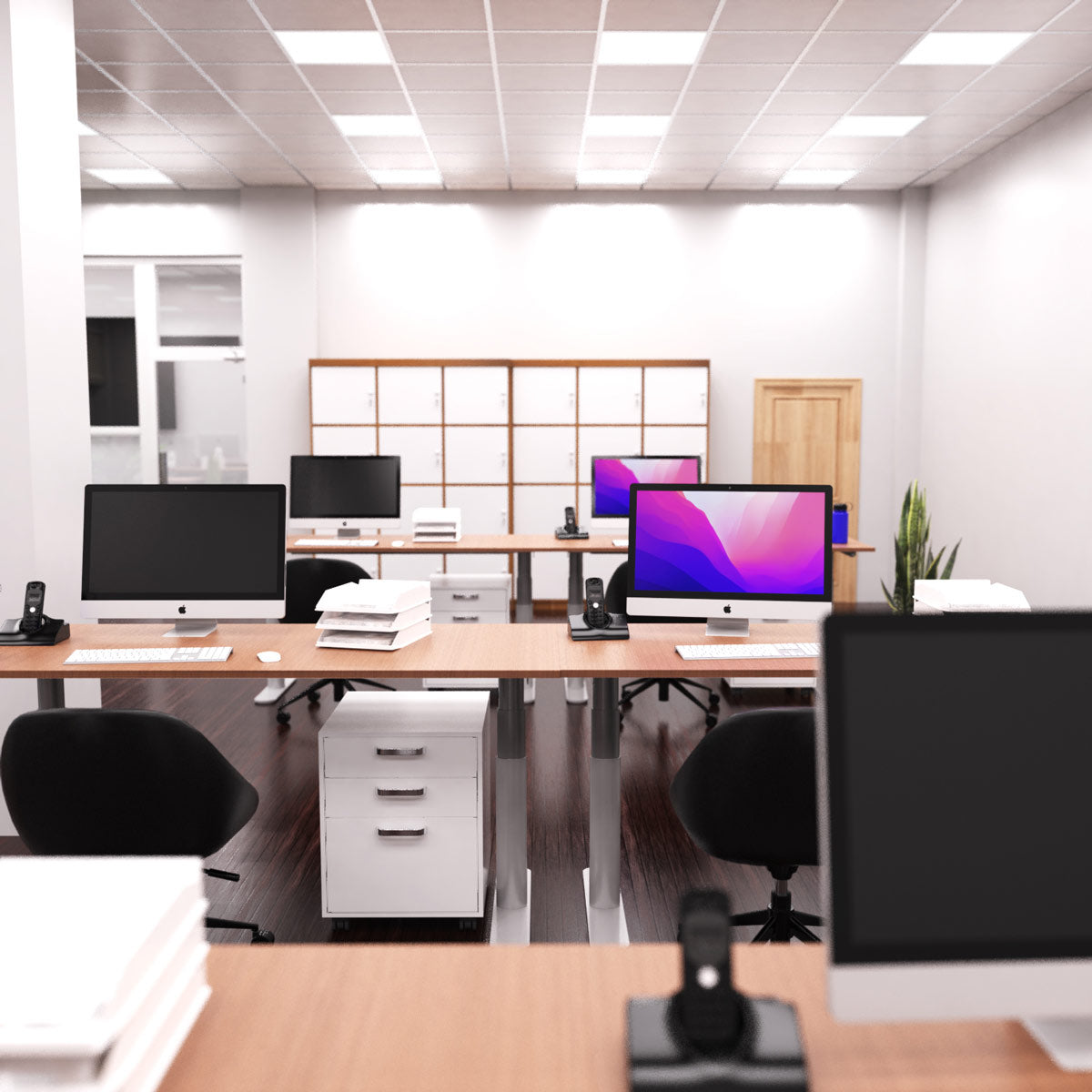

This 600x600 LED panel comes as a kit with its own DALI dimmable driver. It is made for offices, schools, shops and other commercial spaces with a lighting control system, and drops into a standard suspended ceiling grid. It gives 3600 lumens from 36w.

Back-lit for even light

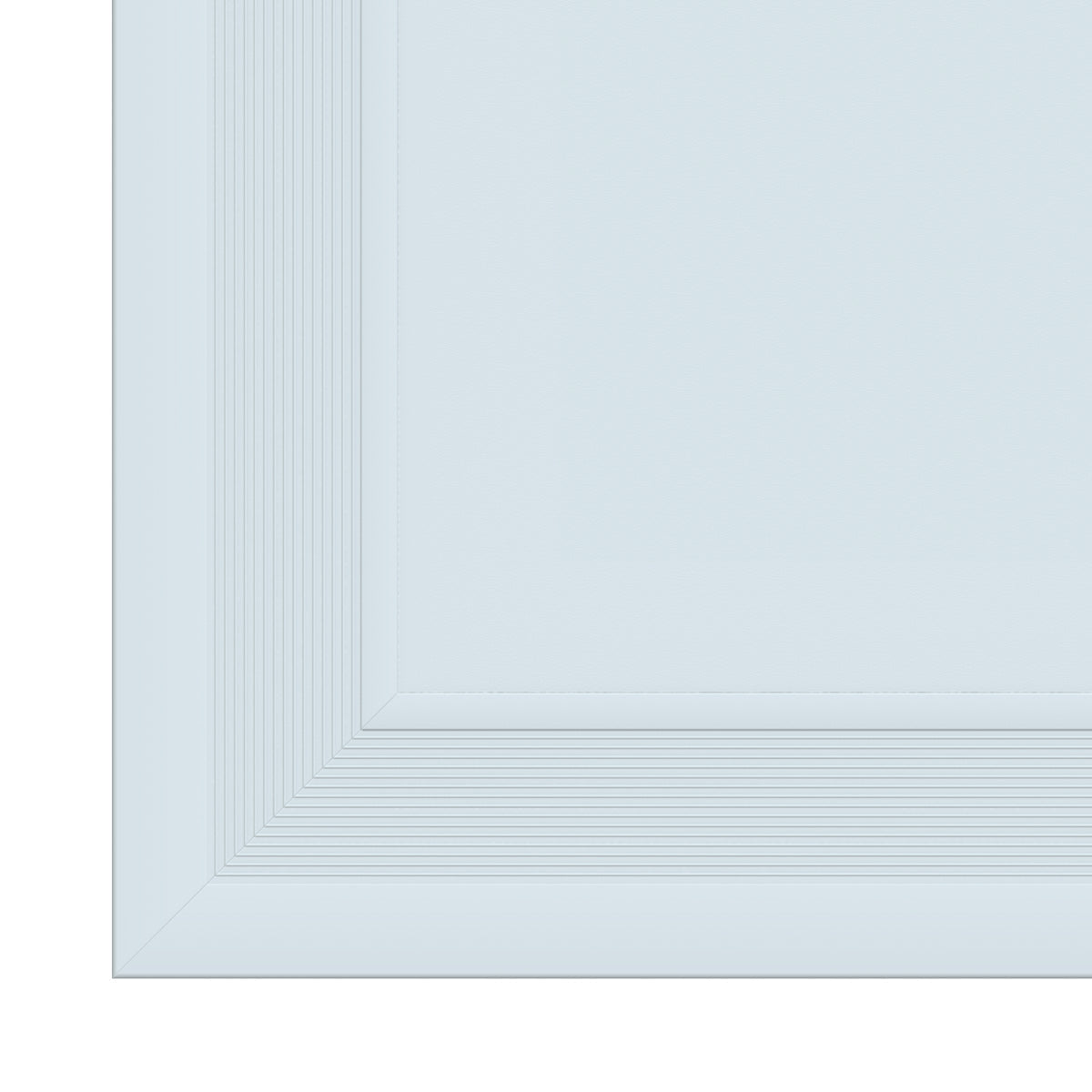

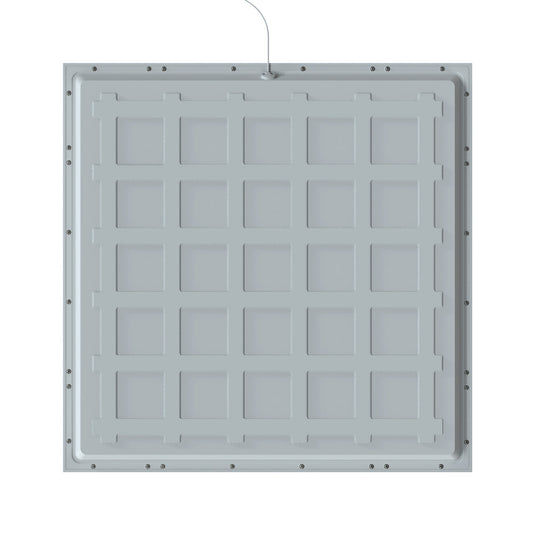

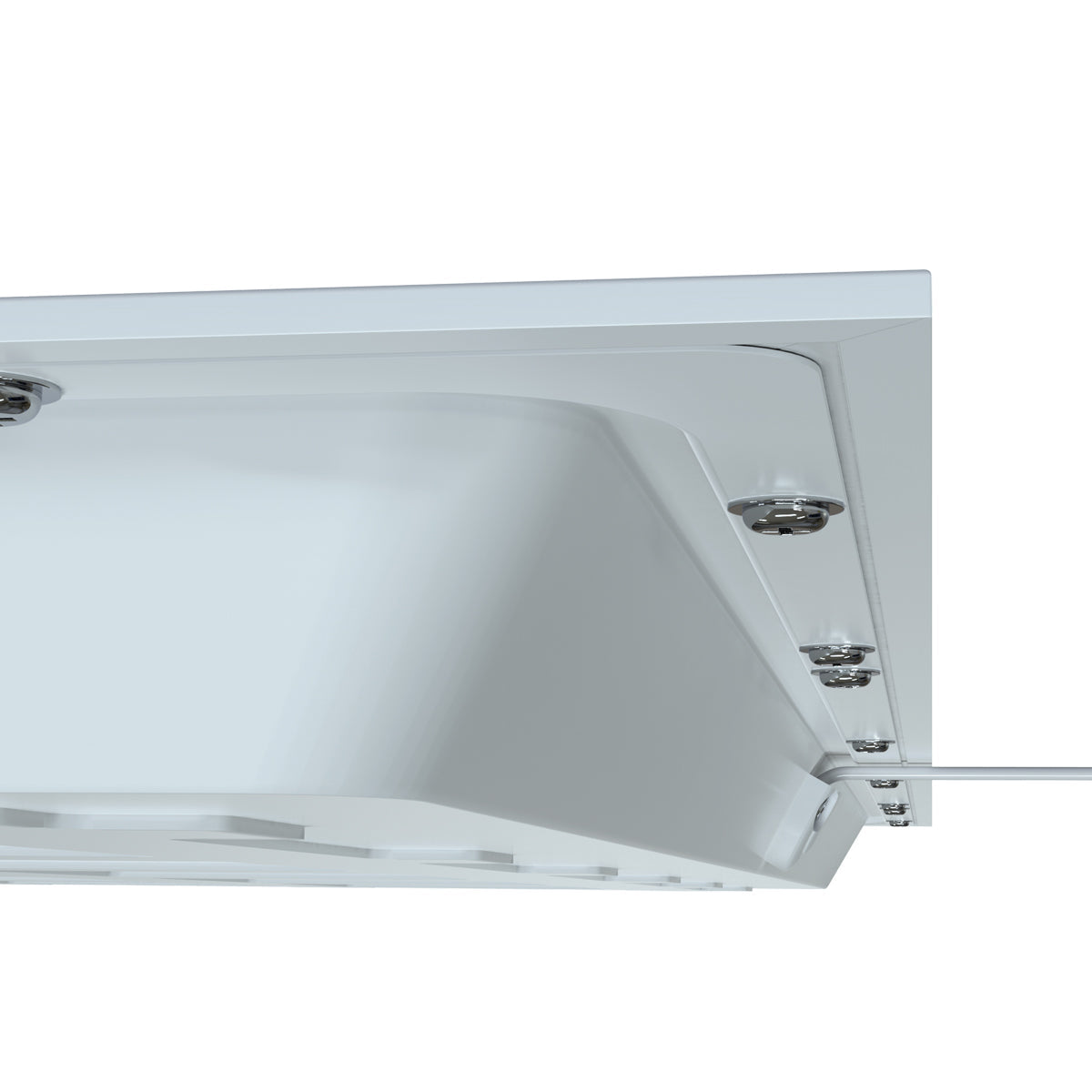

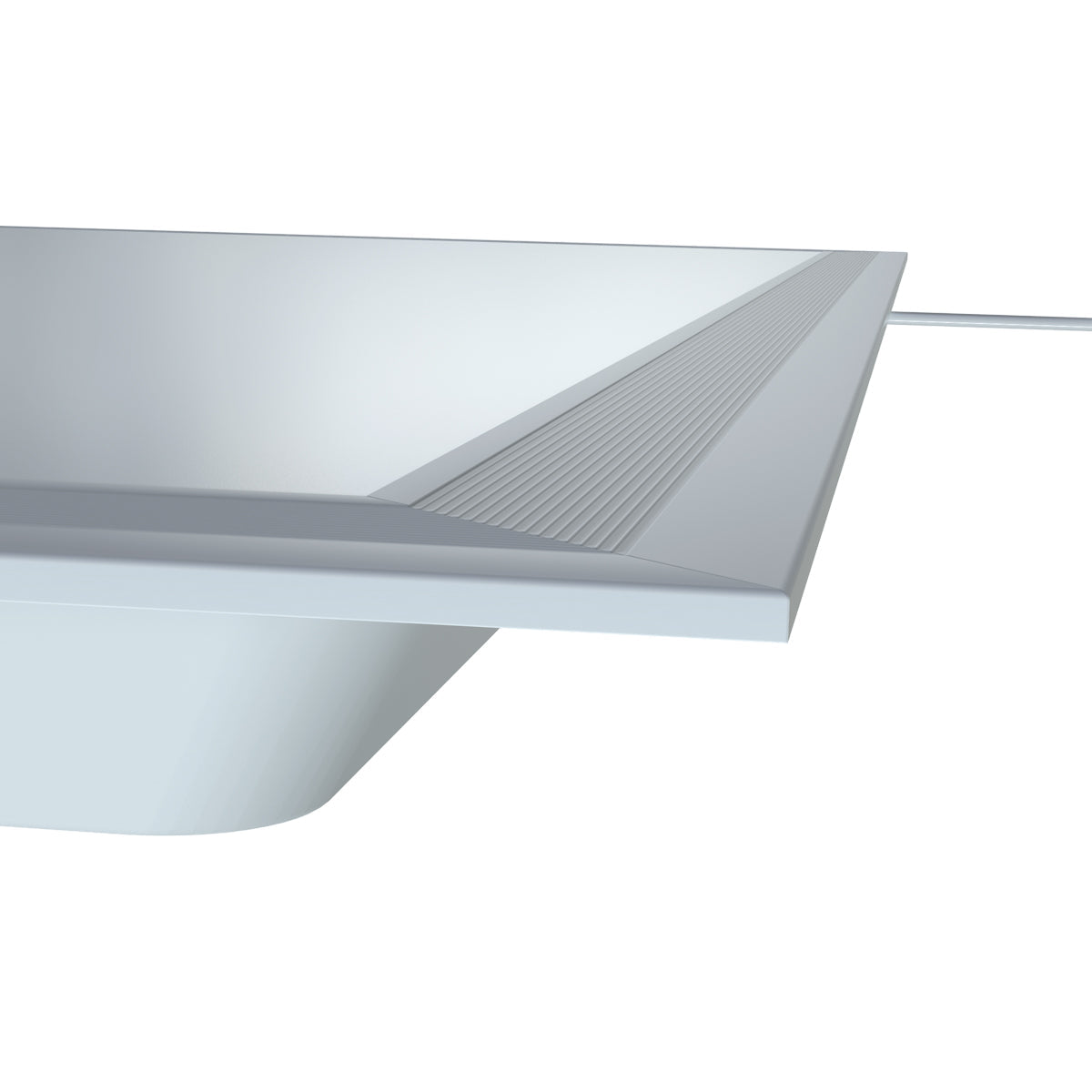

The LEDs sit behind the diffuser, so light spreads evenly across the whole face of the panel with no hot spots or patchy edges. A wide 120° beam covers open-plan areas with fewer fittings.

Three ways to dim

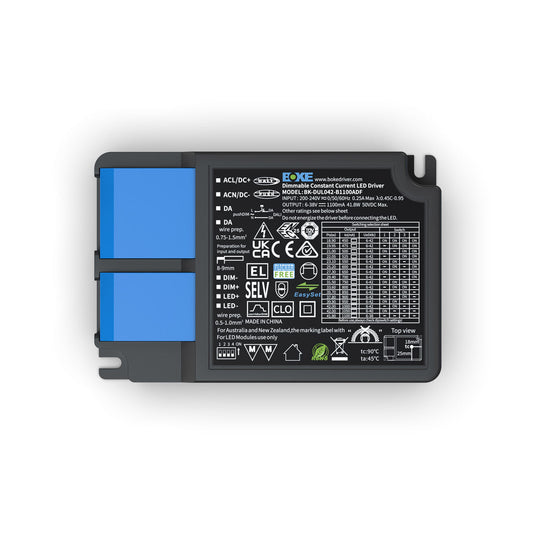

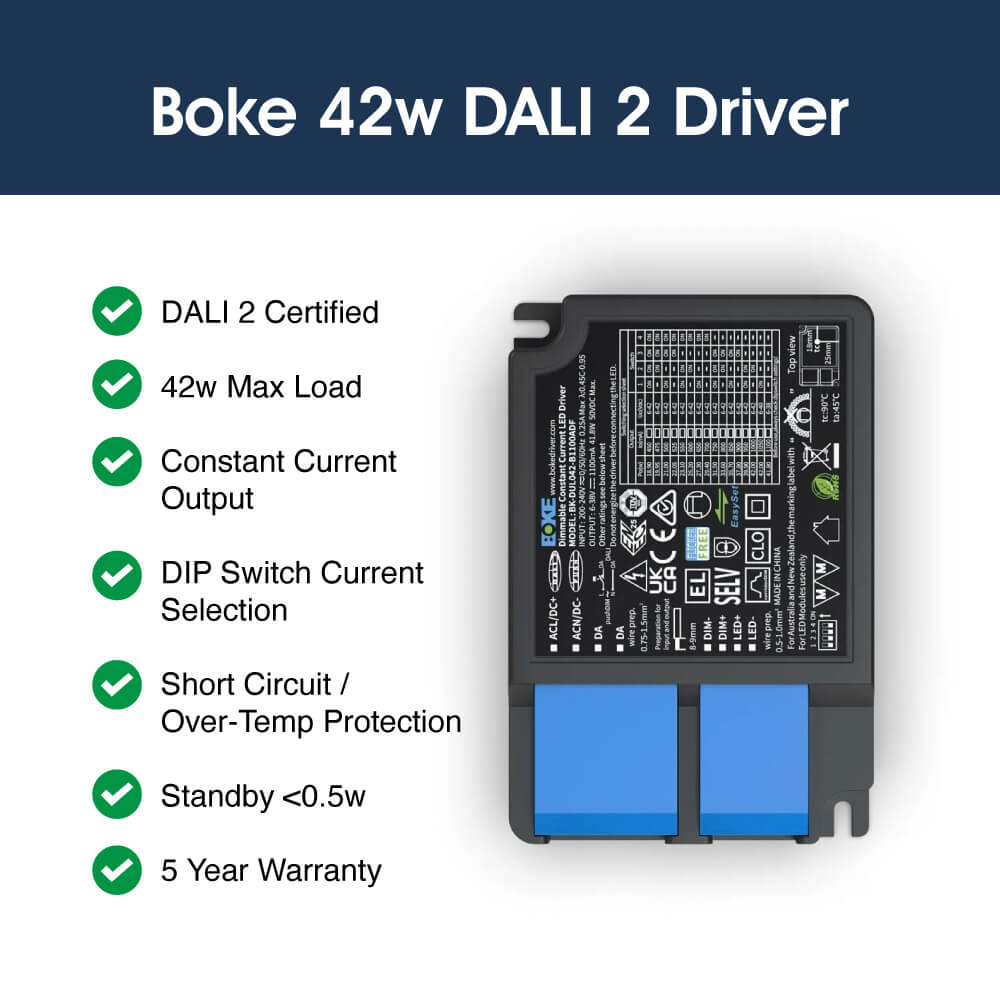

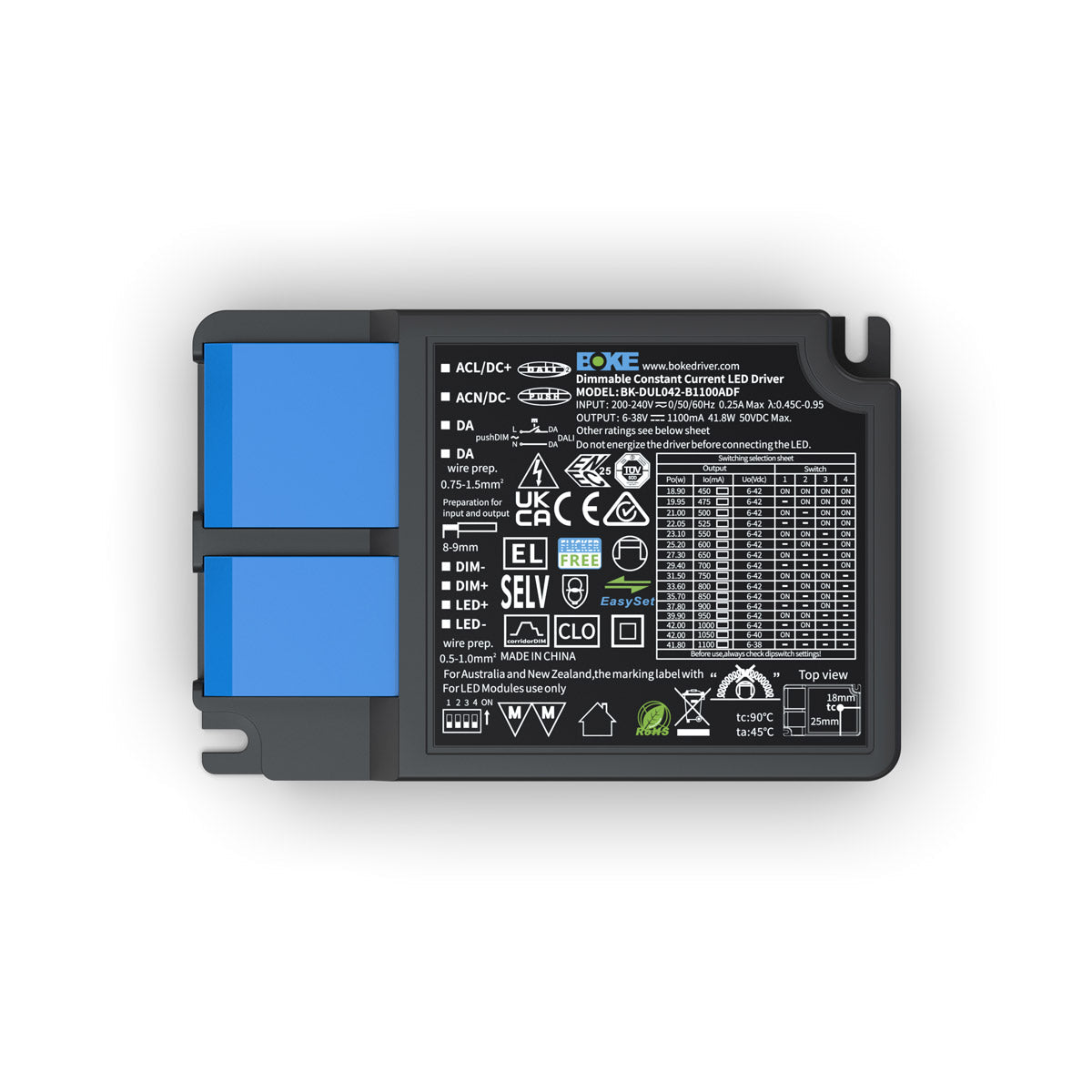

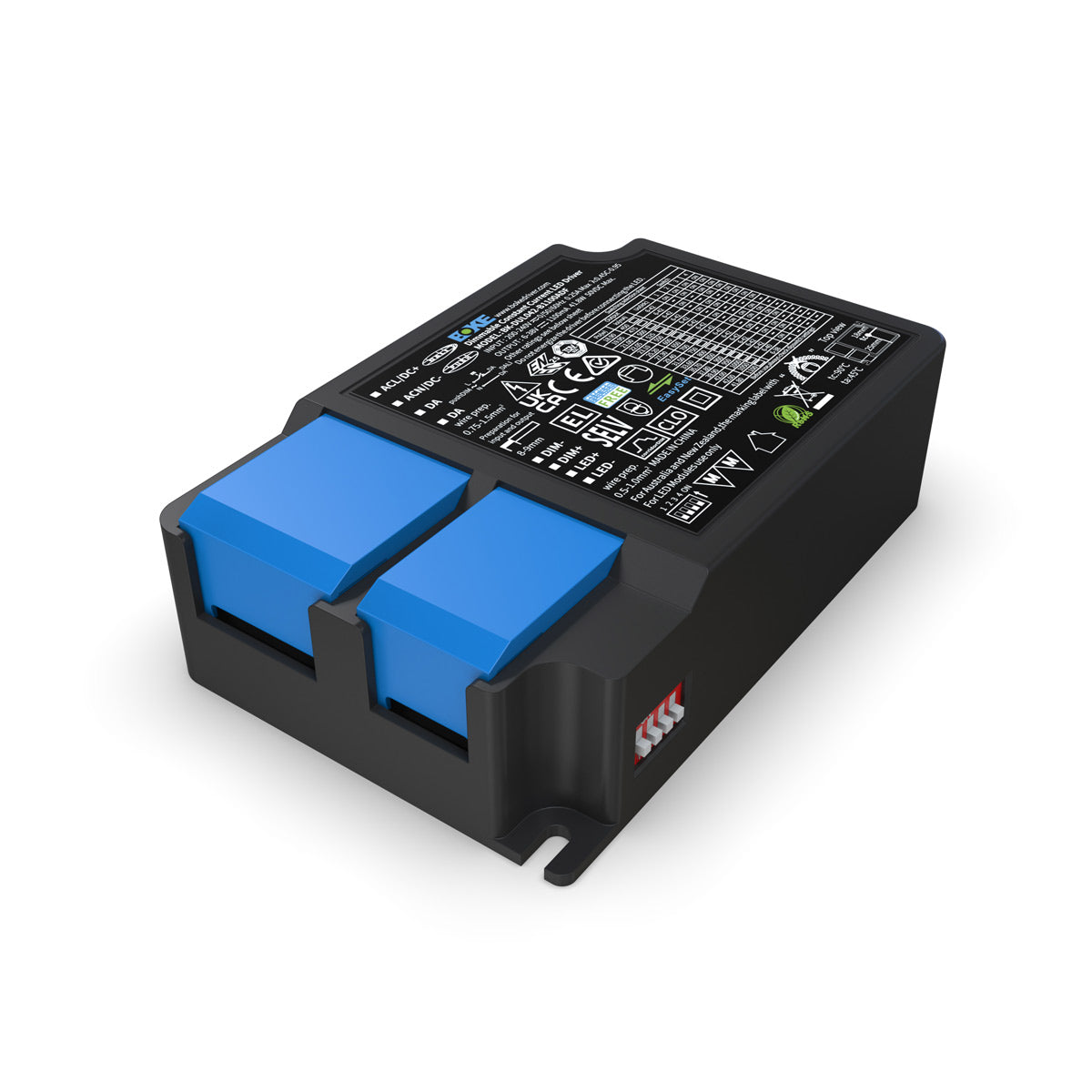

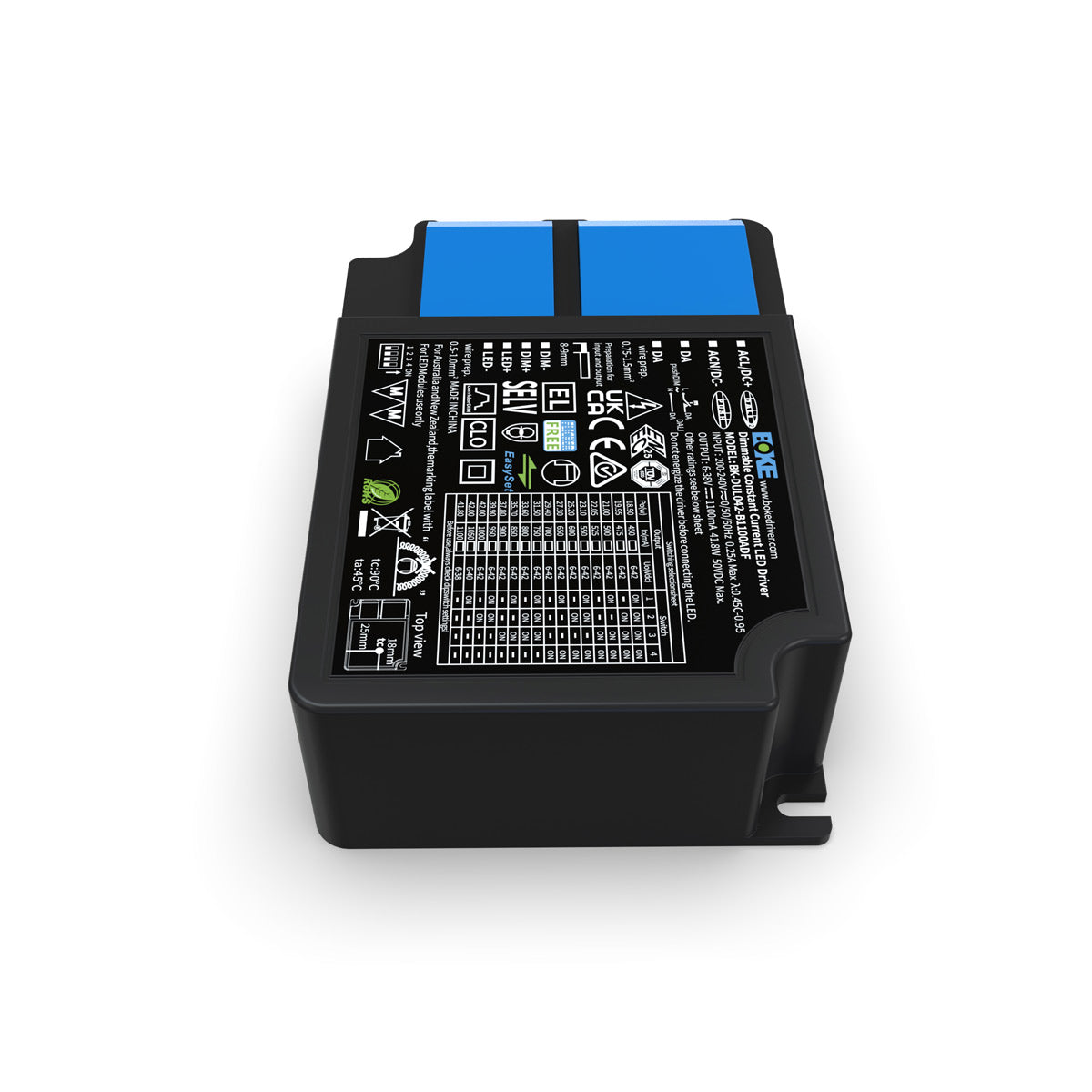

The 42w DALI 2 driver dims by DALI if you have a system in place, or by push dimming or 0-10v if you don't. It runs on 220-240v and gives a 6-42v output with an adjustable current of 0.45-1.1A. It can be wired into the mains or fitted with a plug.

Cool or natural white

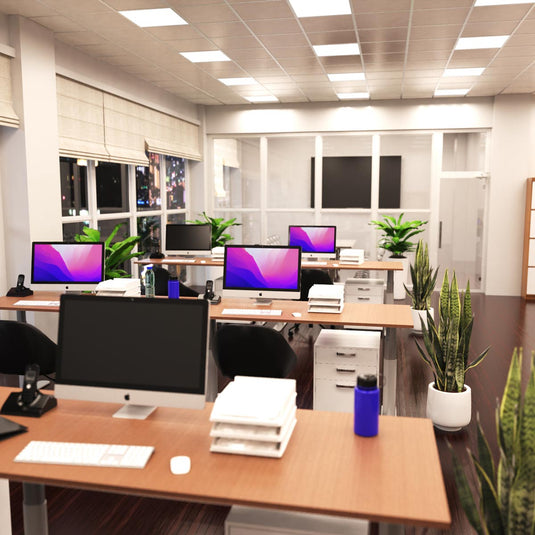

Choose cool white for a crisp, high-clarity light in offices, classrooms and shops, or natural white (4000K) for a more balanced tone in meeting rooms, receptions and general work areas.

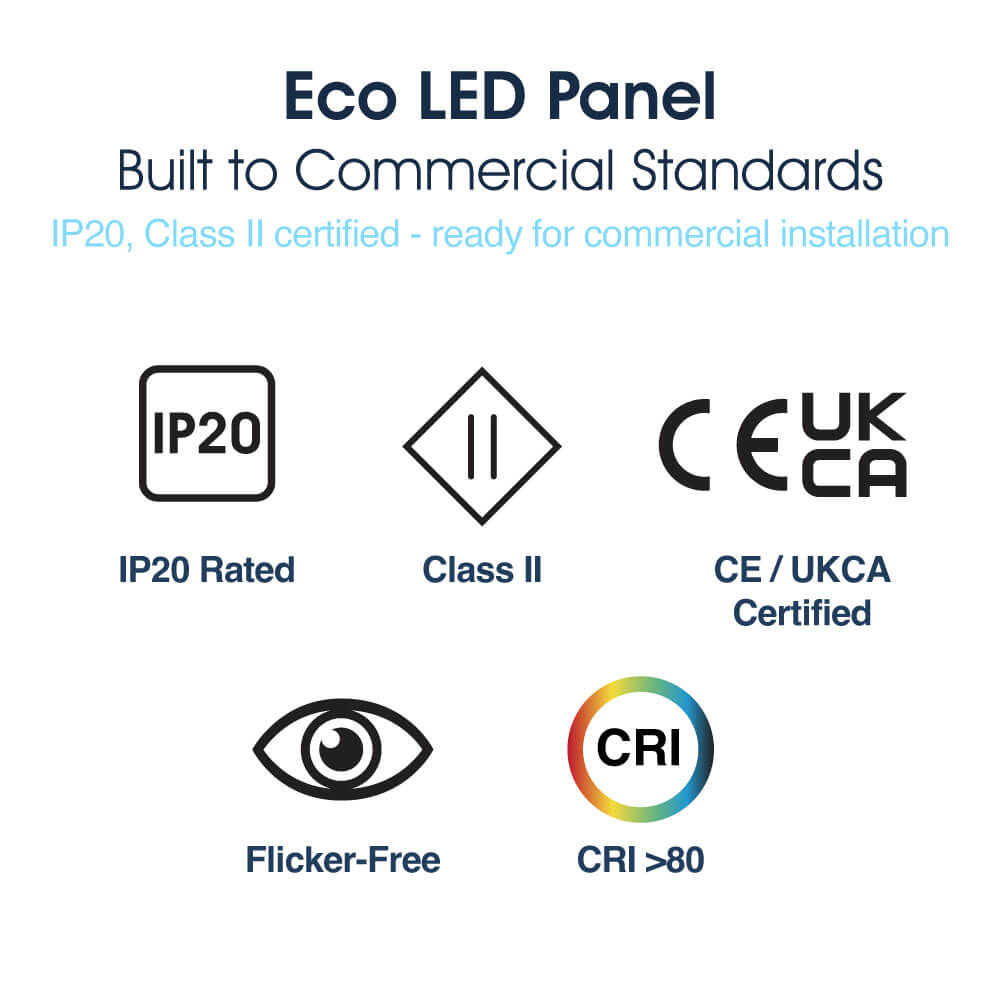

Built to commercial standards

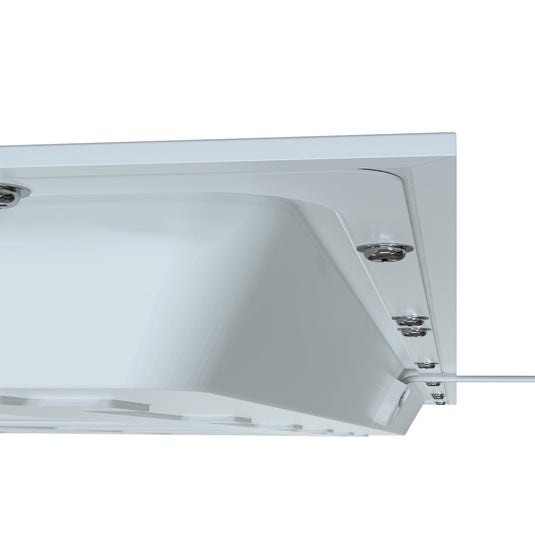

The panel is 34mm deep, IP20 and Class II, and gives flicker-free light with a CRI above 80. Rated life is 30,000 hours.

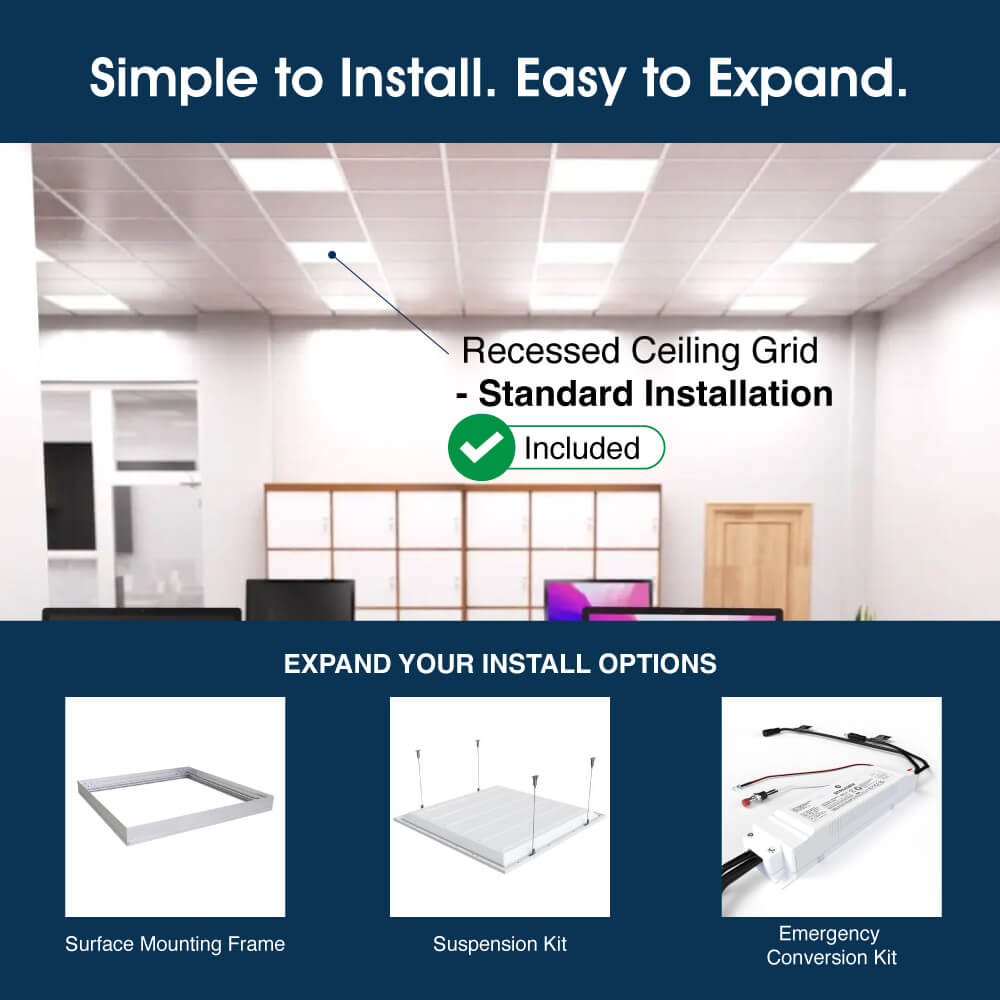

Other ways to fit it

A surface mounting frame, a suspension kit and an emergency conversion kit (maintained or non-maintained) are sold separately.

Specifications

• Panel size: 595 x 595mm (600x600)
• Depth: 34mm
• Power: 36w
• Brightness: 3600 lumens
• Beam angle: 120°
• Colour: cool white or natural white 4000K
• CRI: above 80
• Class: II
• IP rating: IP20
• Driver: 42w DALI 2
• Dimming: DALI, push dimming or 0-10v
• Driver input: 220-240v
• Driver output: 6-42v, 0.45-1.1A
• Rated life: 30,000 hours
