595x595 LED Panel with DALI Dimmable Driver, 40w, Colour Selectable 3000K/4000K/6000K, TP(a) Diffuser

A commercial panel with DALI control

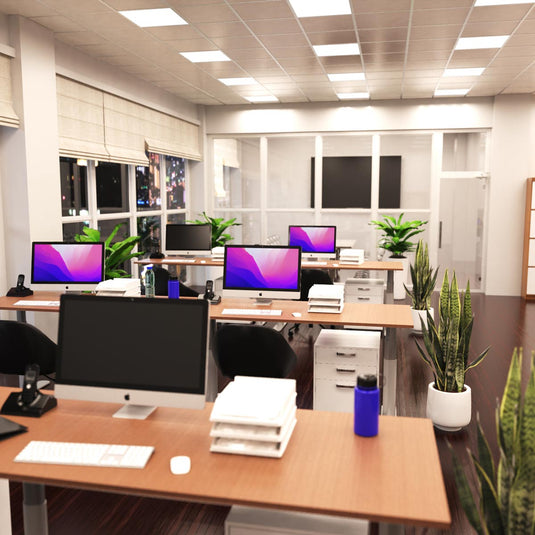

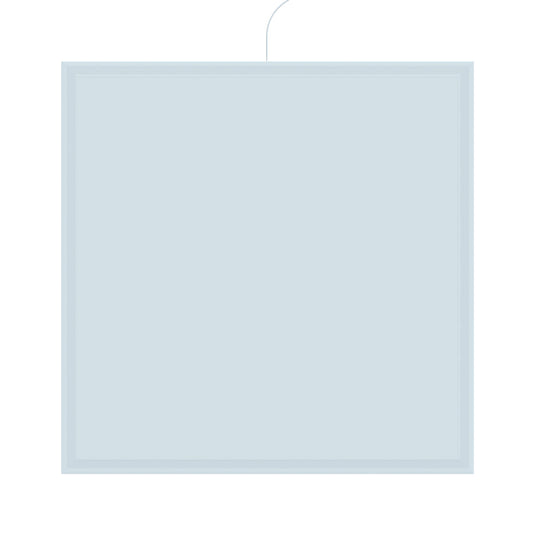

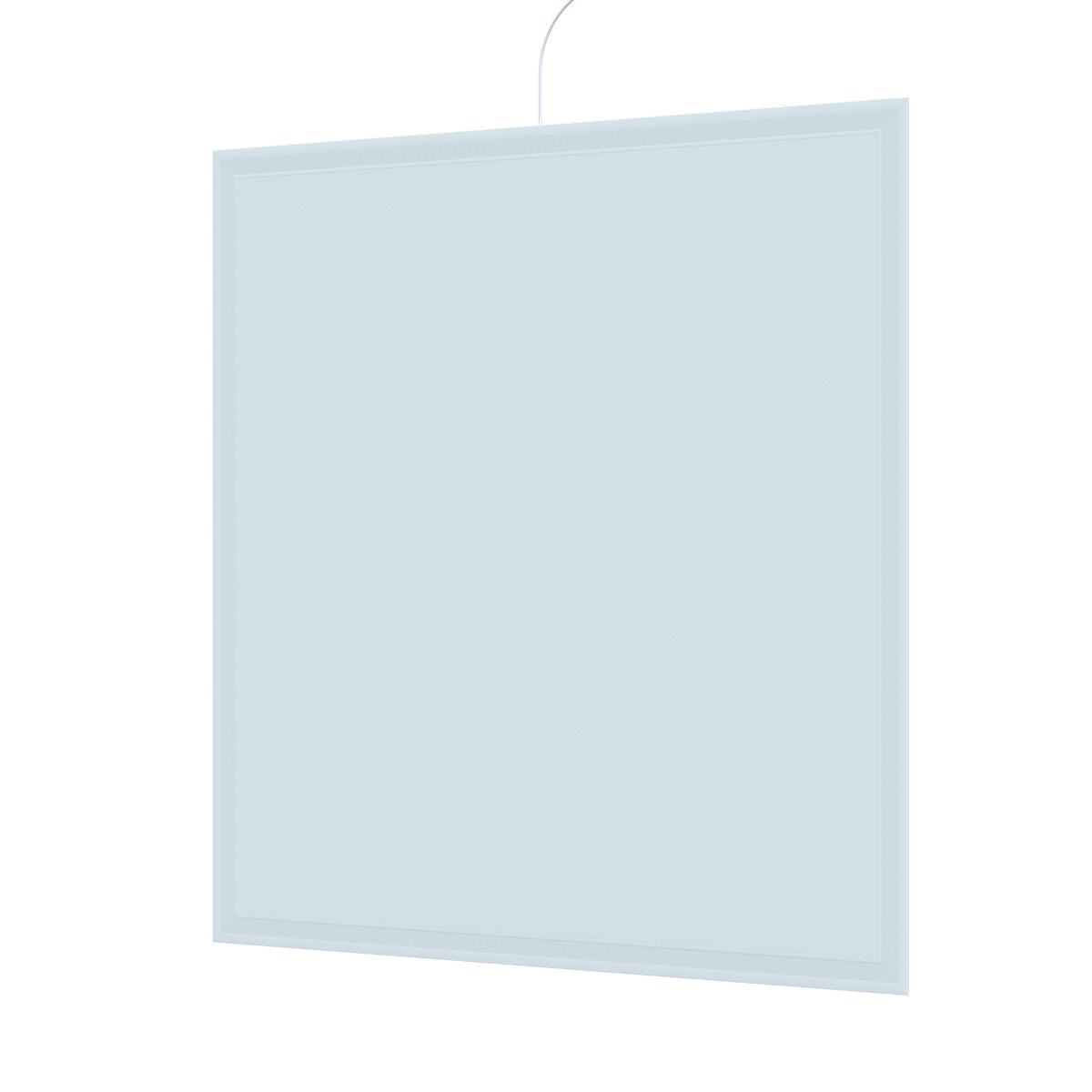

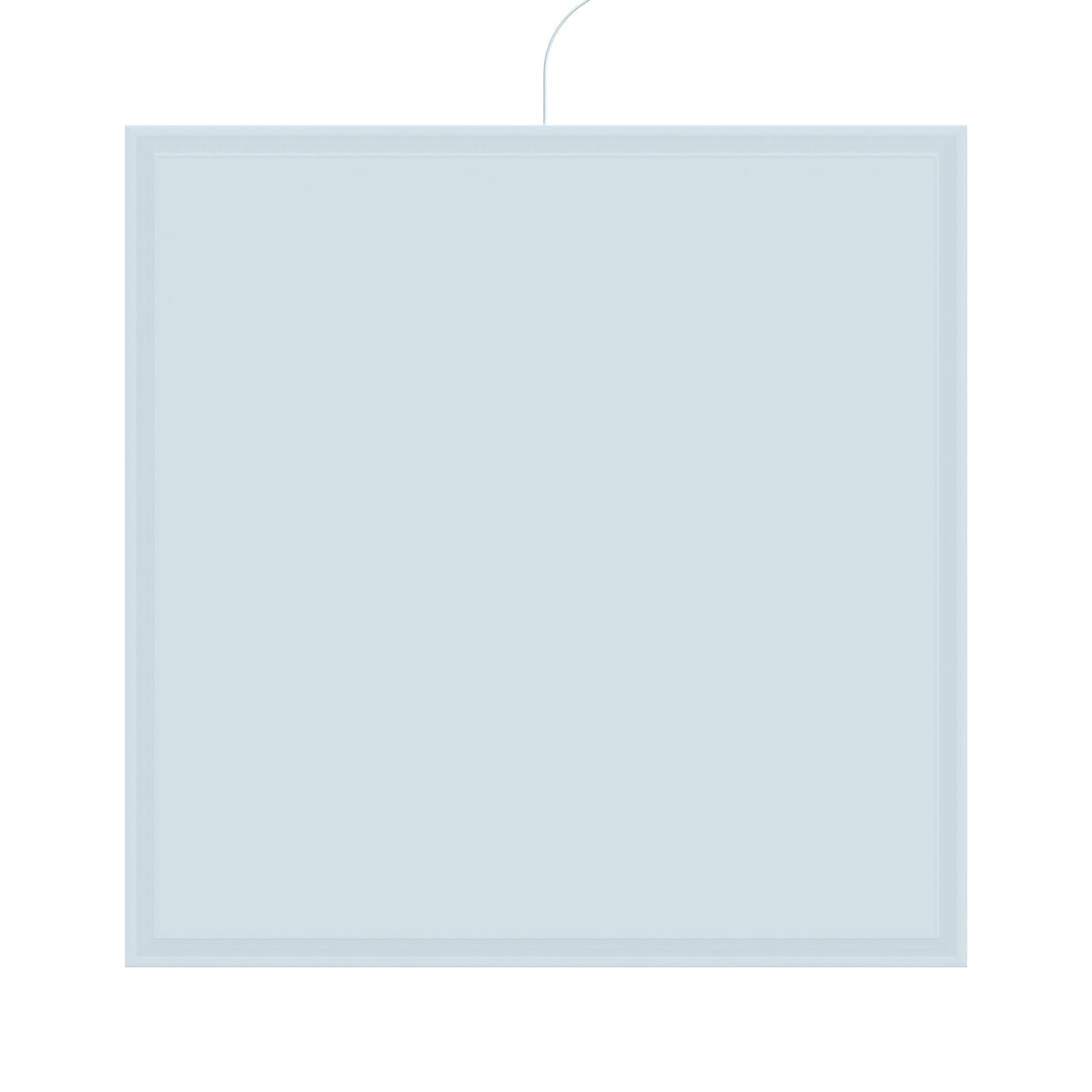

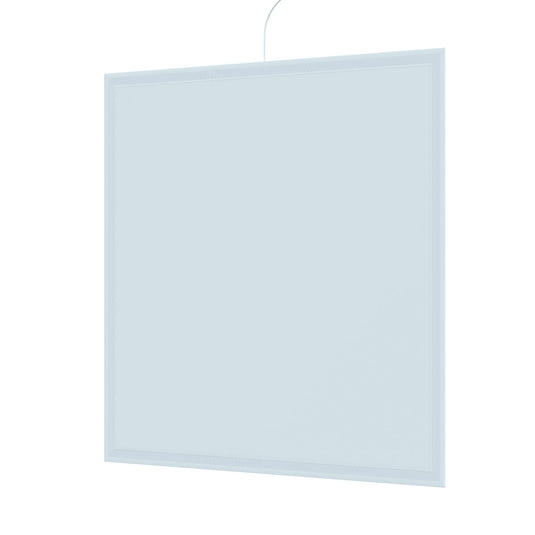

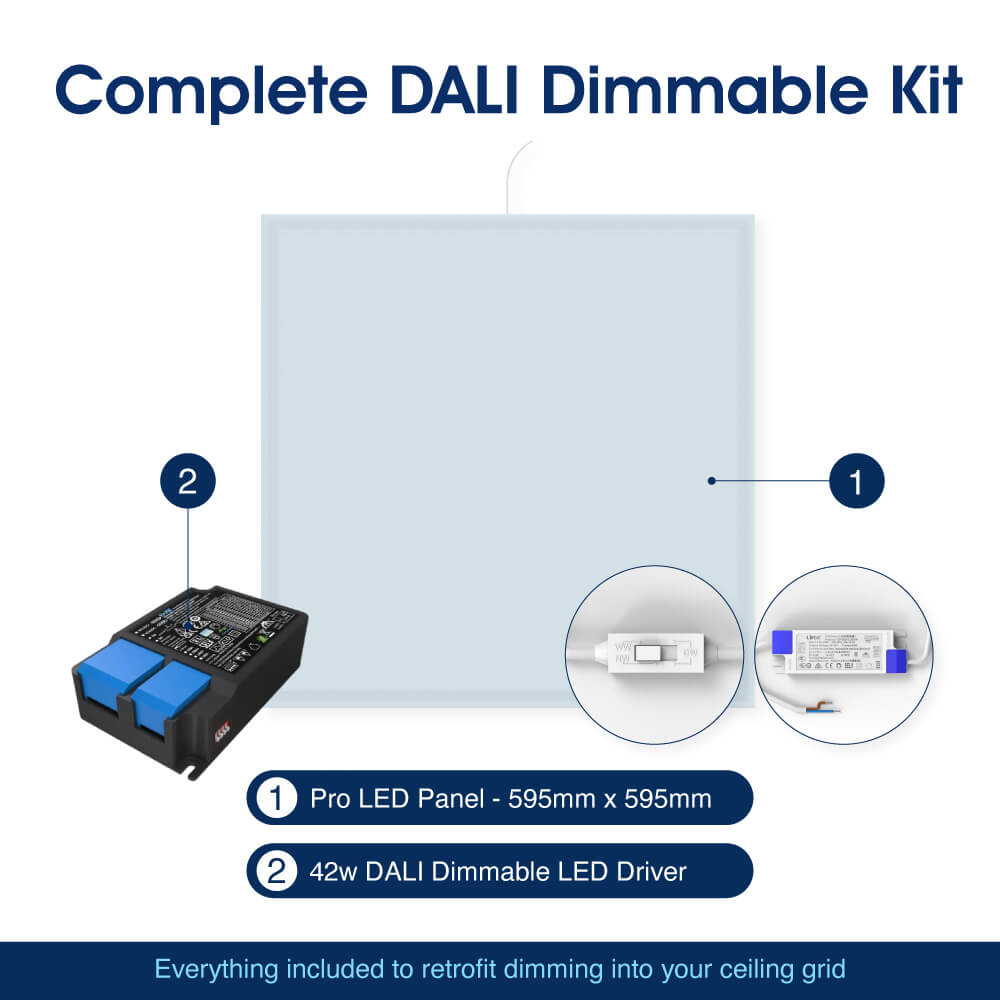

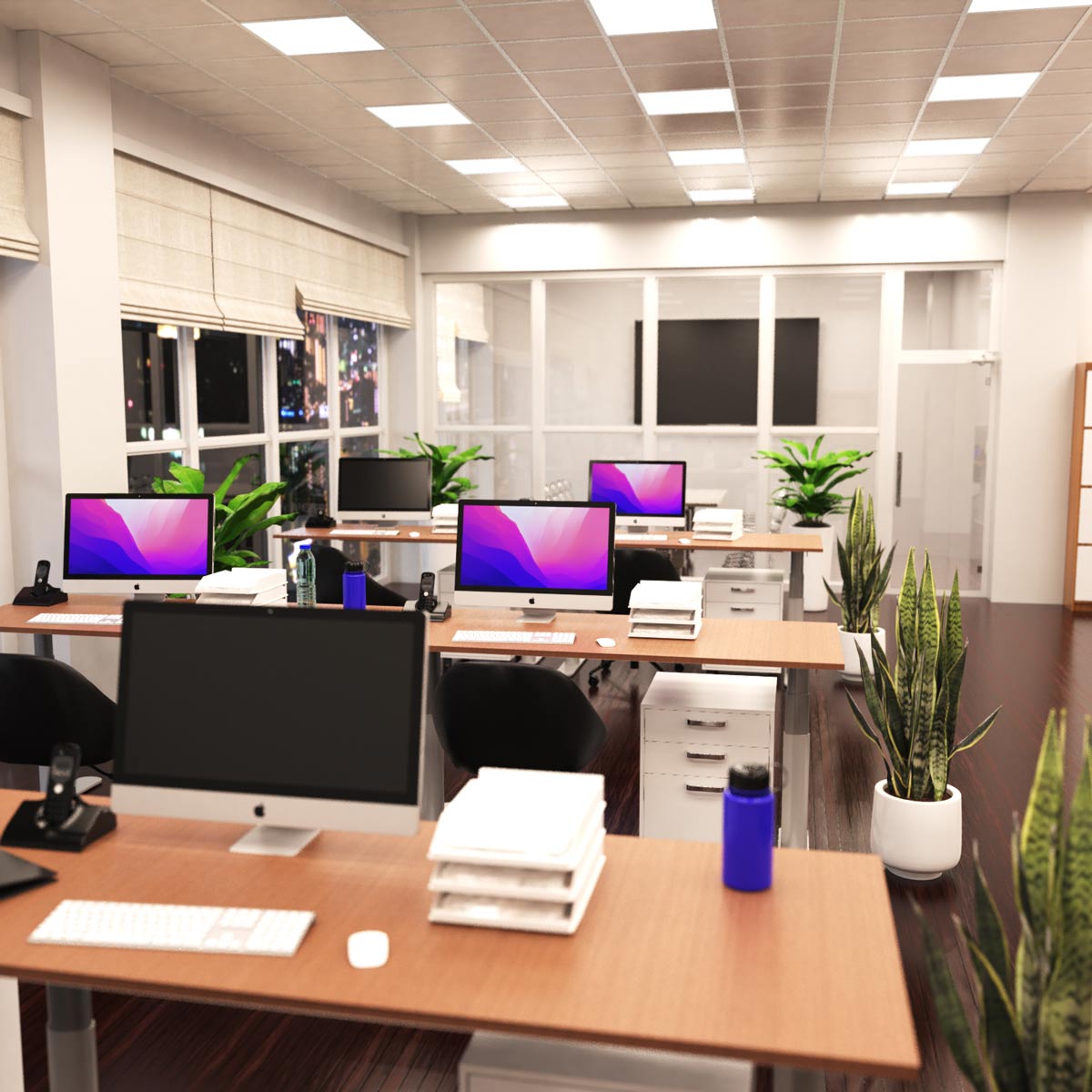

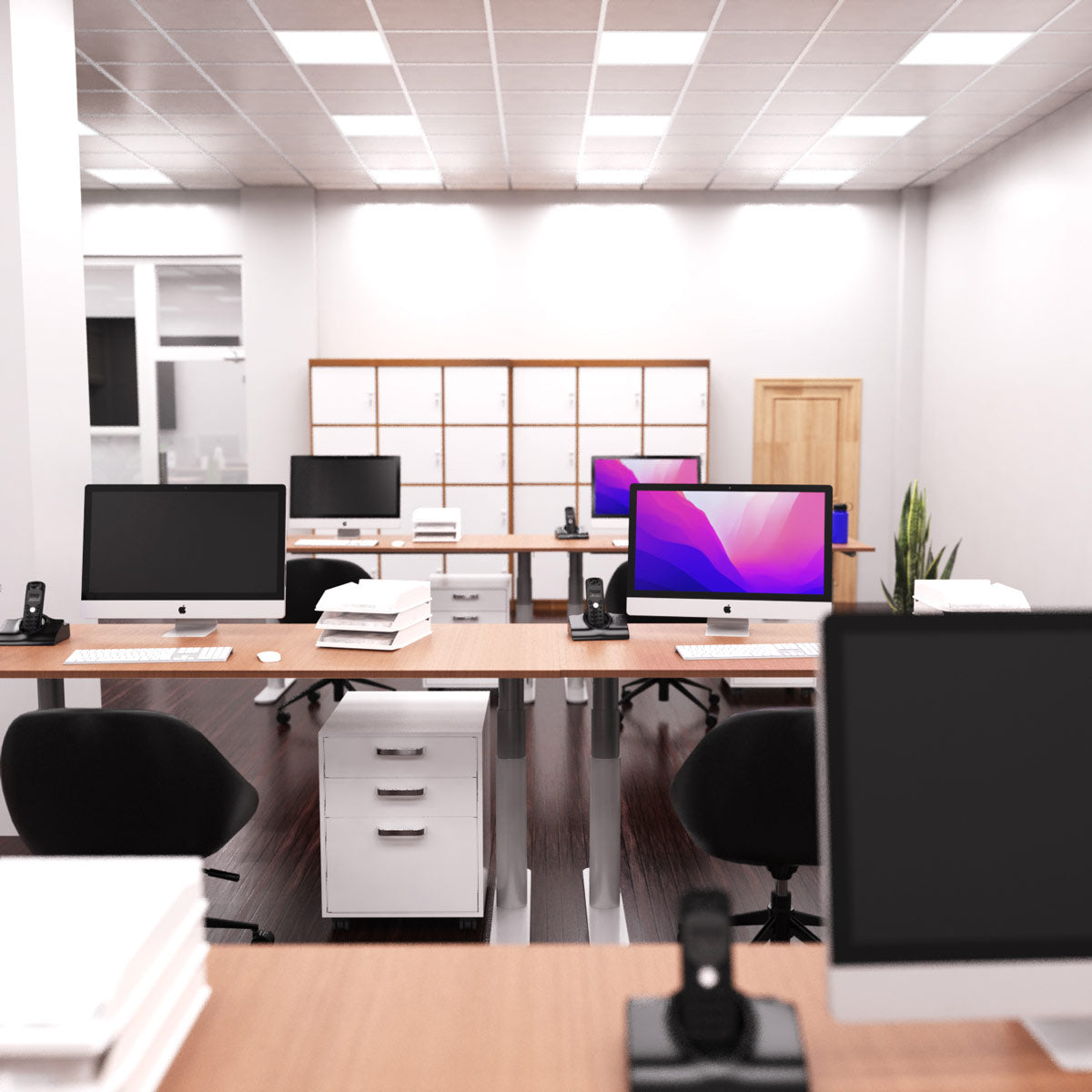

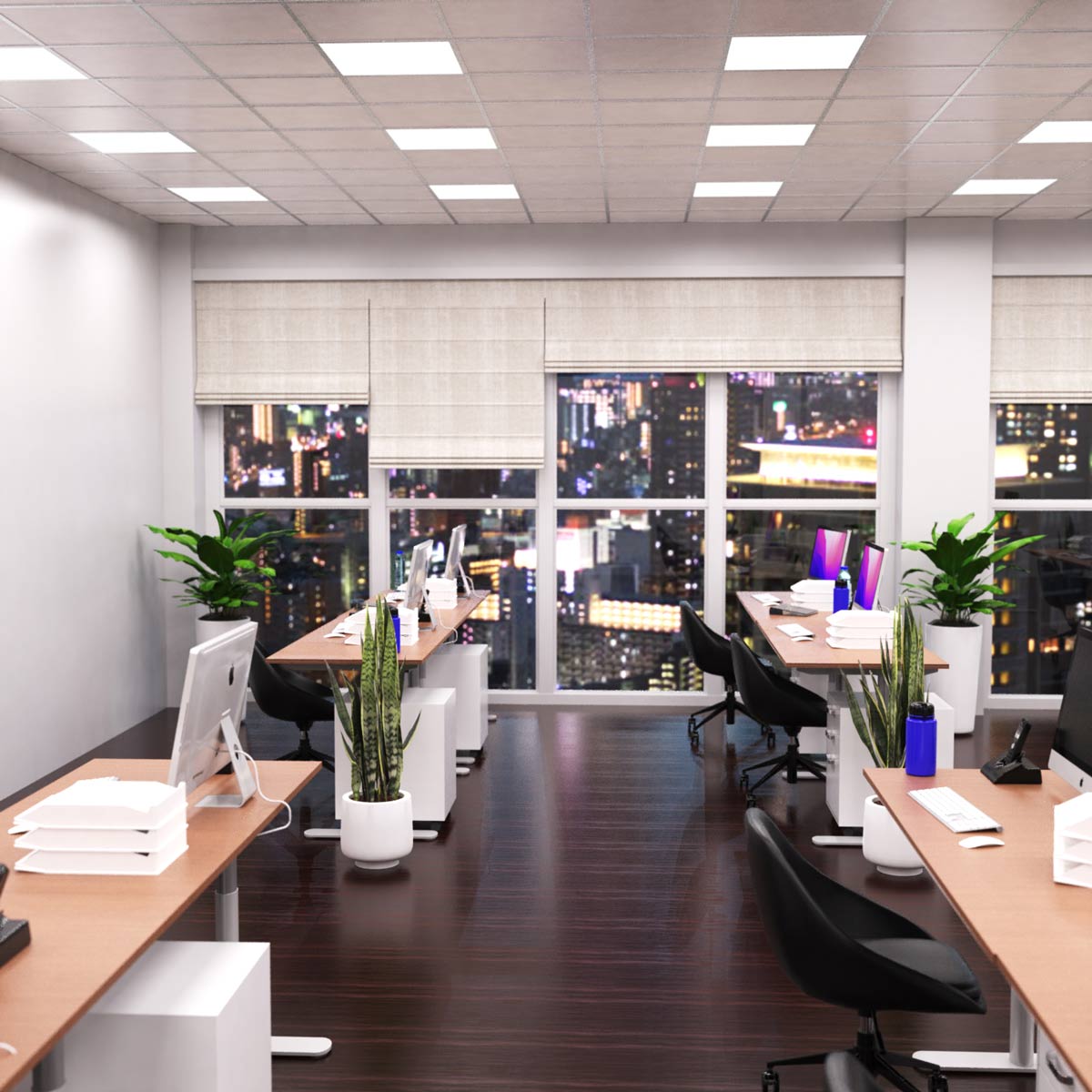

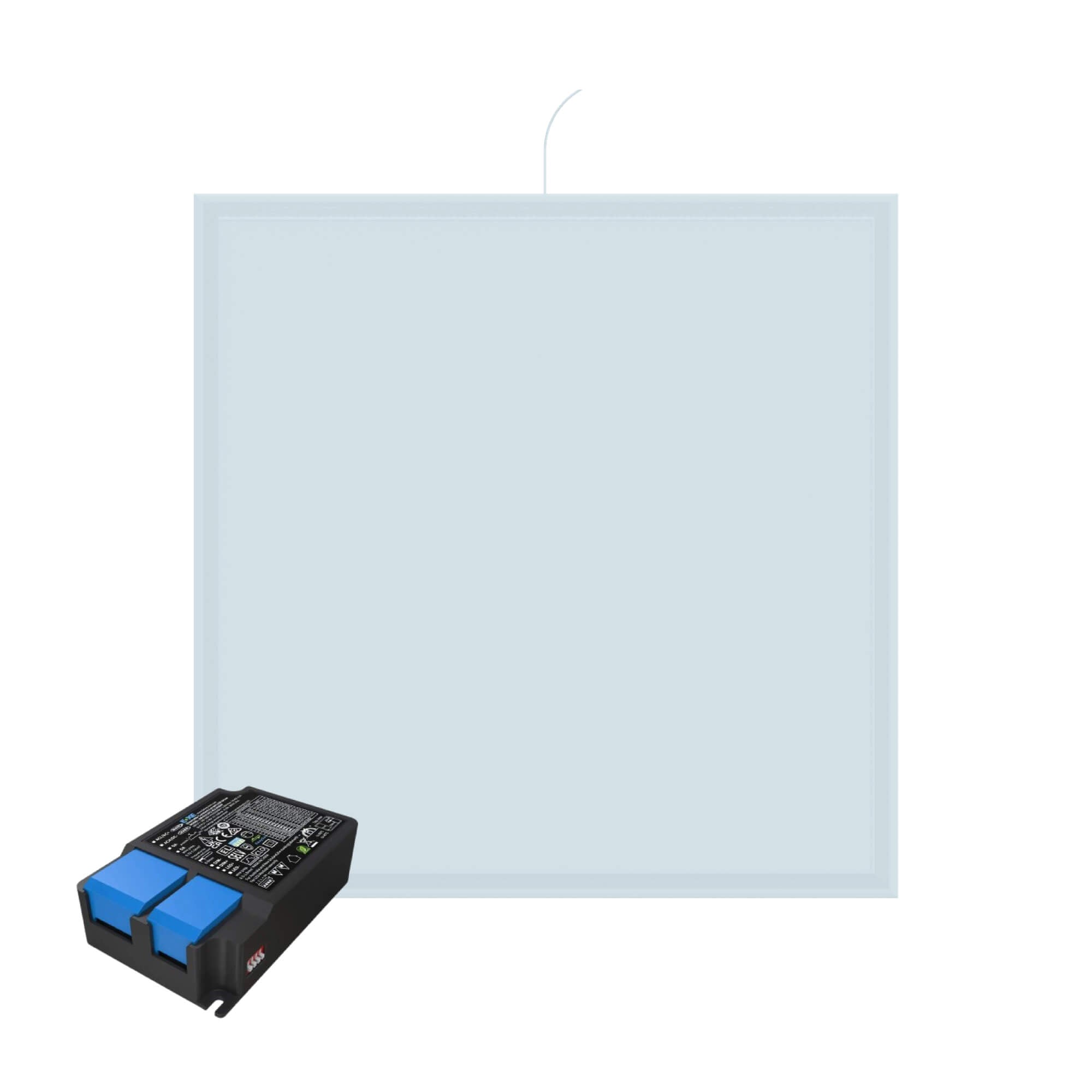

This 595x595 LED panel comes as a kit with its own DALI dimmable driver. It is made for offices, schools, healthcare settings and shops, and drops into a standard suspended ceiling grid. It gives 3600 to 4000 lumens from 40w, up to 100 lumens per watt, with even light and no harsh hot spots.

Three ways to dim

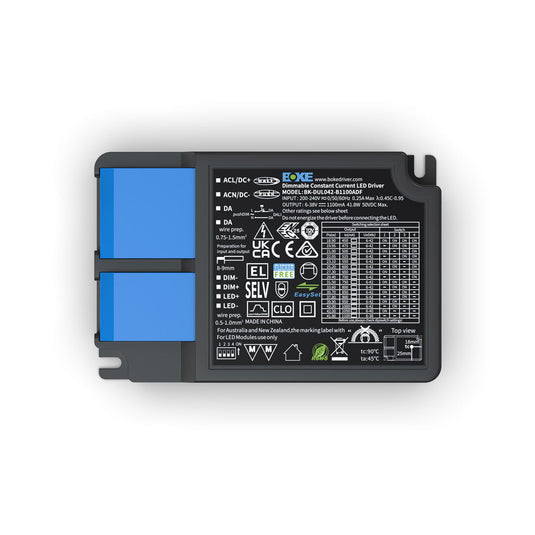

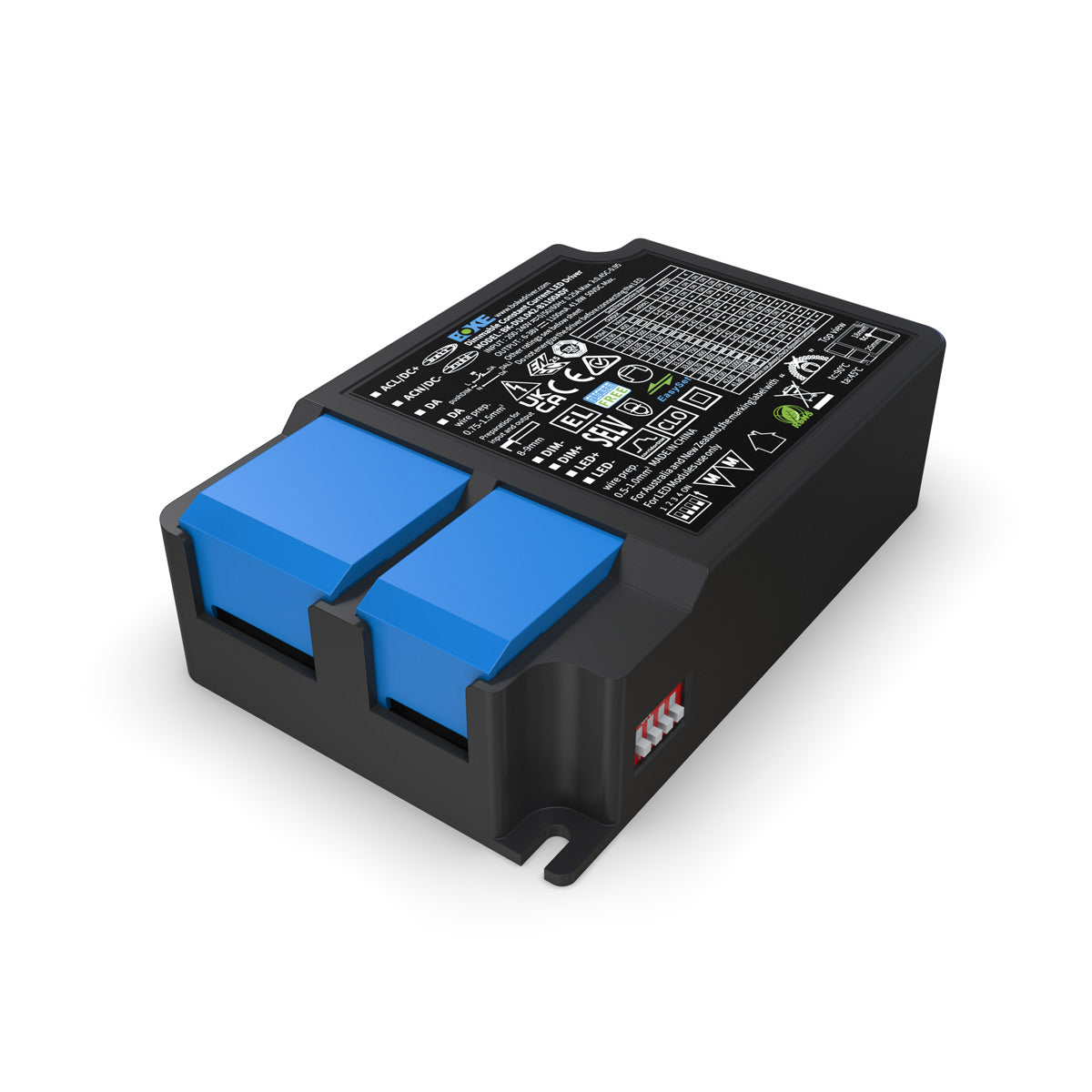

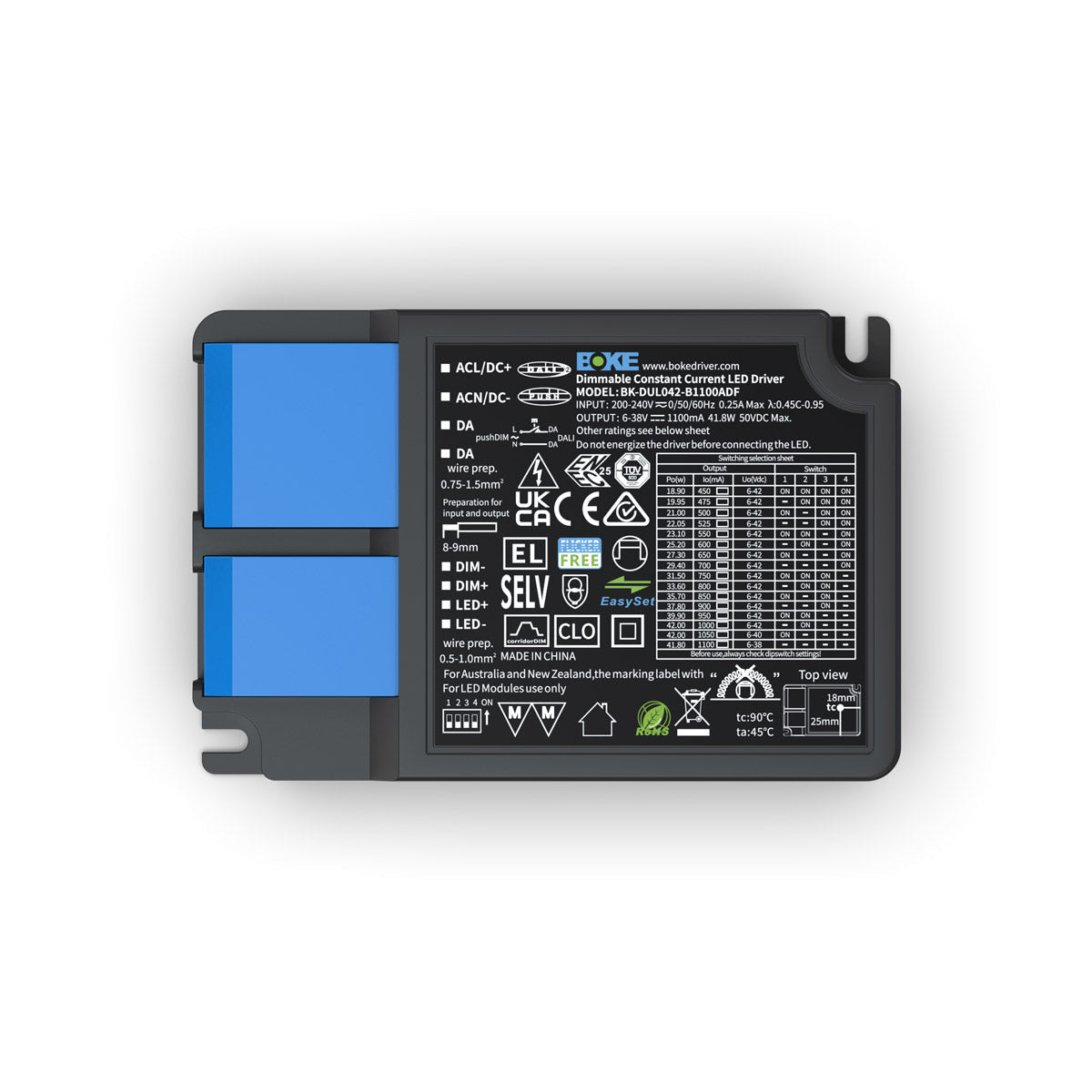

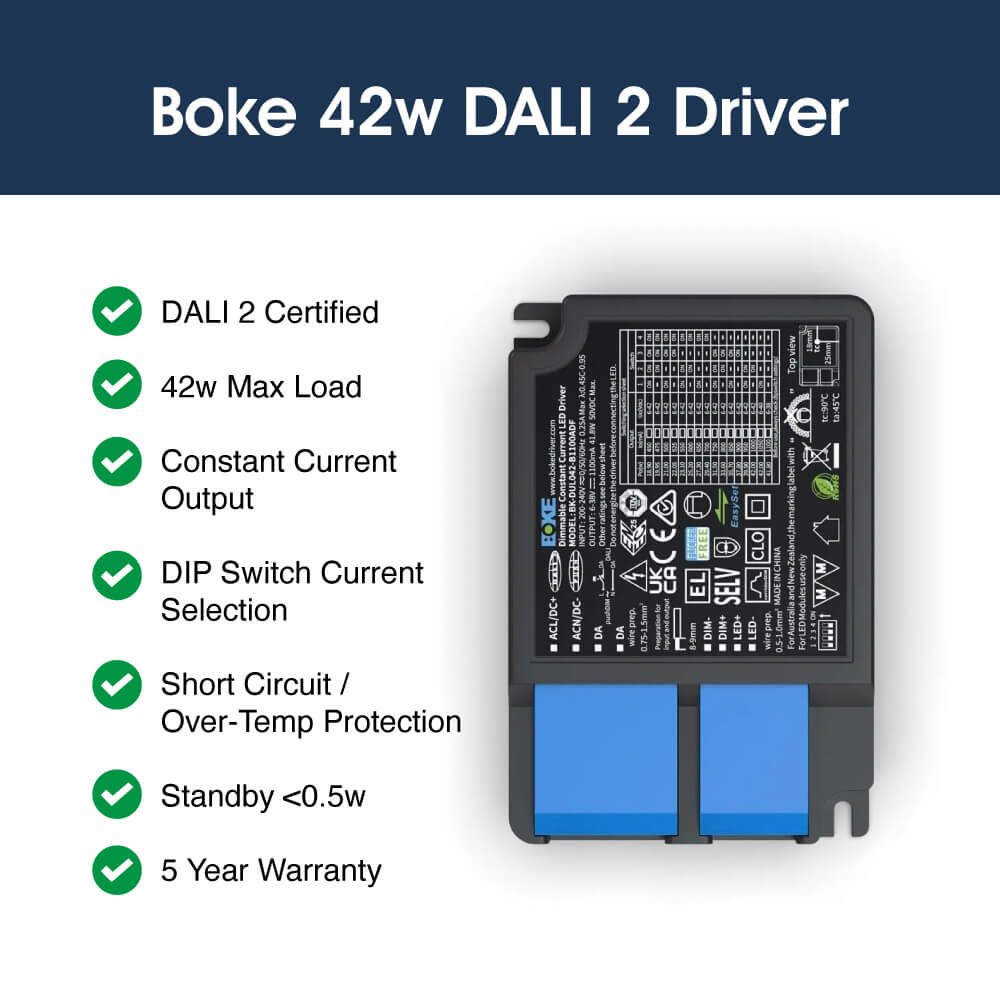

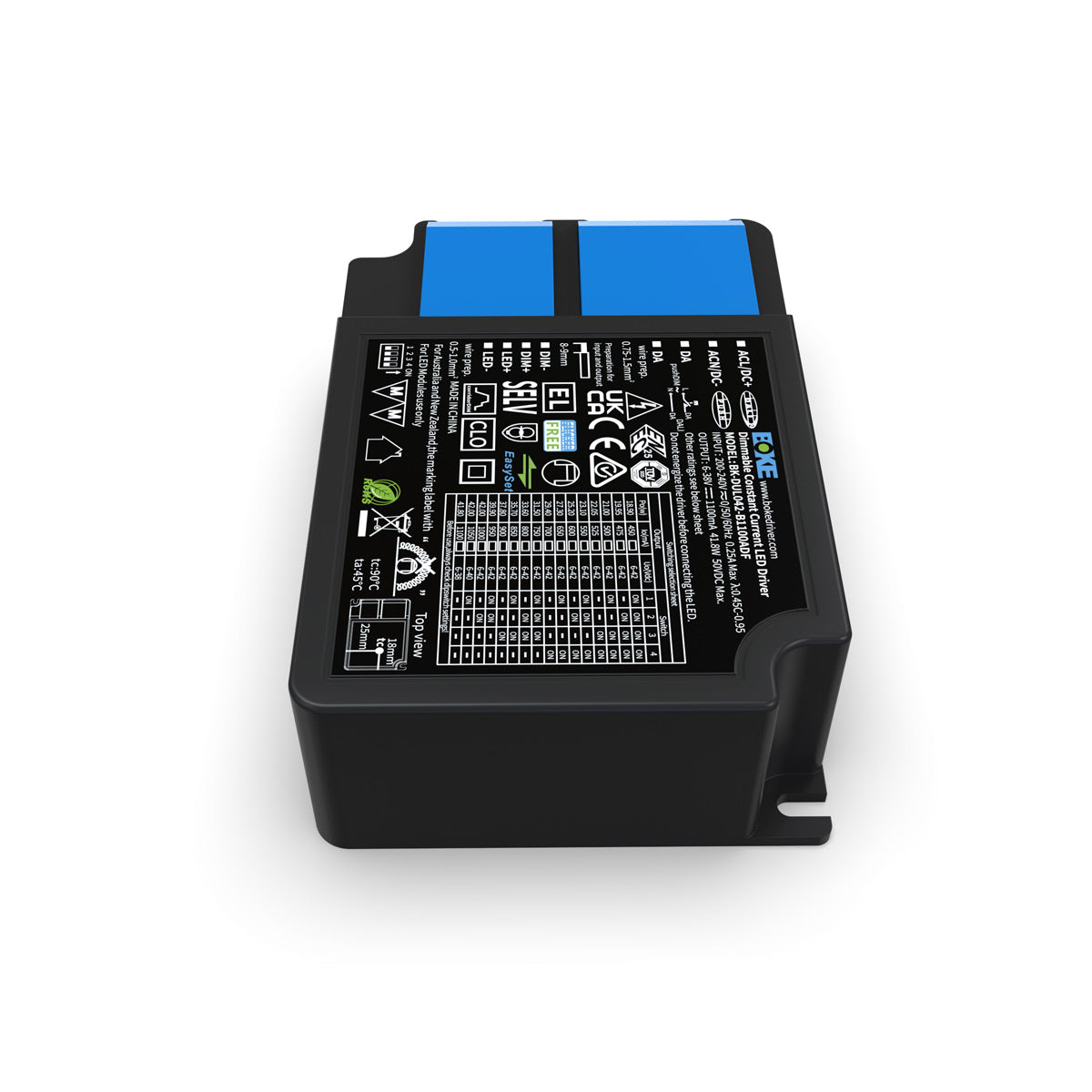

The 42w driver dims by DALI if you have a system in place, or by push dimming or 0-10v if you don't. With DALI you can set schedules and zones, and dim the lights when rooms are empty or there is plenty of daylight, which cuts running costs. The driver runs on 220-240v and gives a 6-42v output at 0.45-1.1A. It measures 123.5 x 81.5 x 23mm, small enough for the ceiling void.

Choose the colour

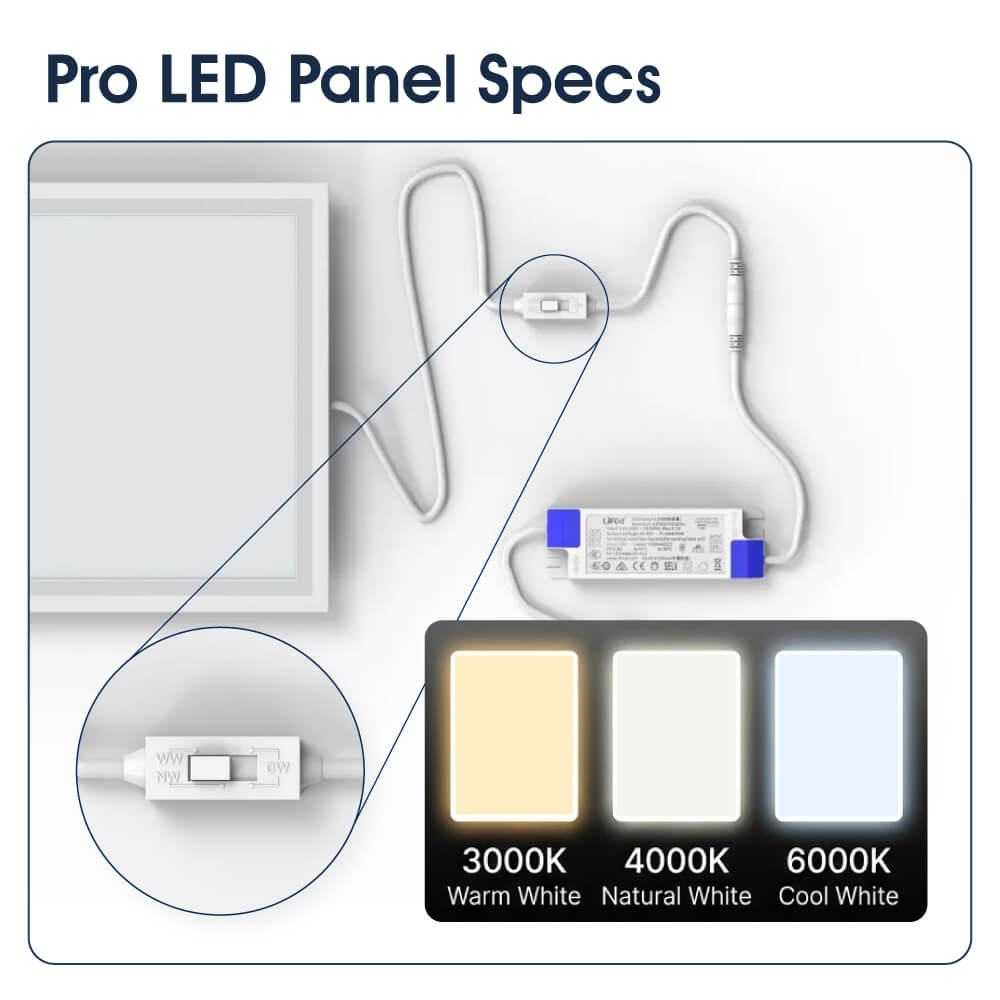

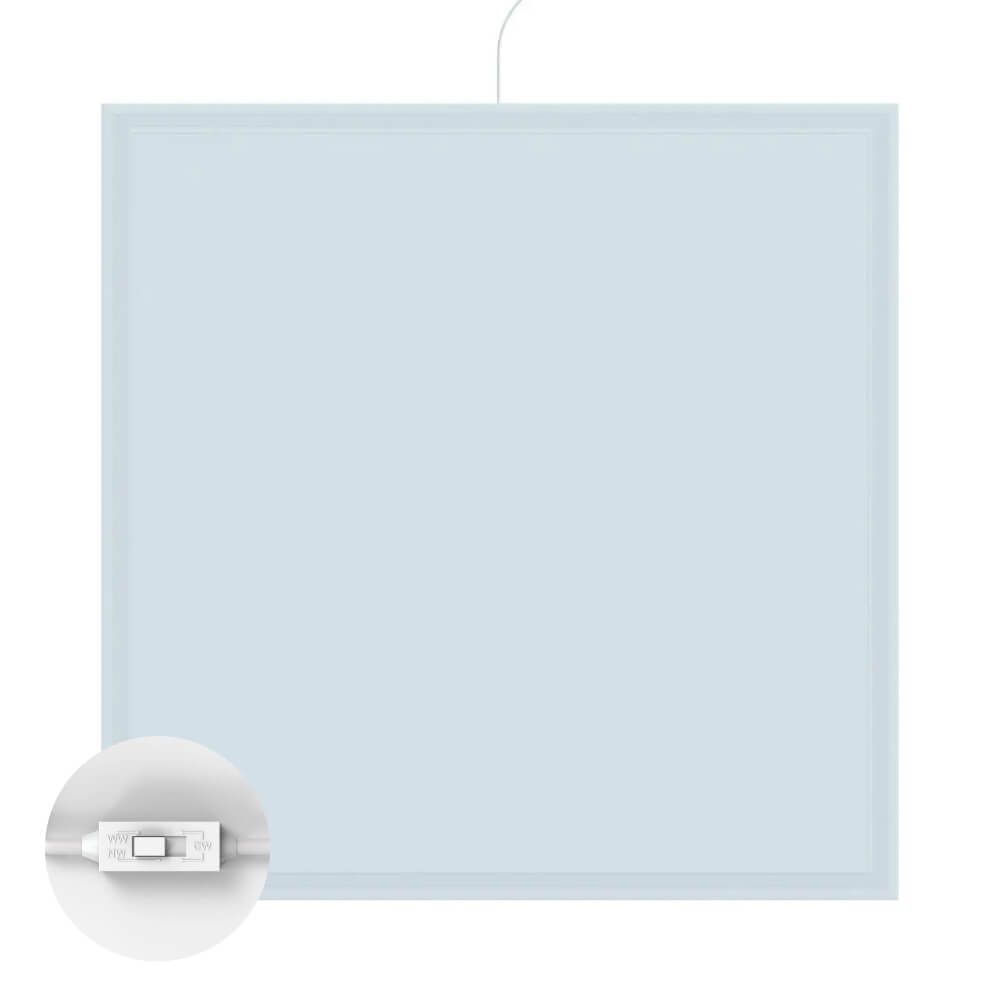

A switch on the panel lead sets warm white 3000K for receptions and hospitality, natural white 4000K for general areas, or cool white 6000K for offices, classrooms and clinical spaces. Set it when you fit the panel or change it later. CRI above 80 keeps colours looking natural.

Built to commercial standards

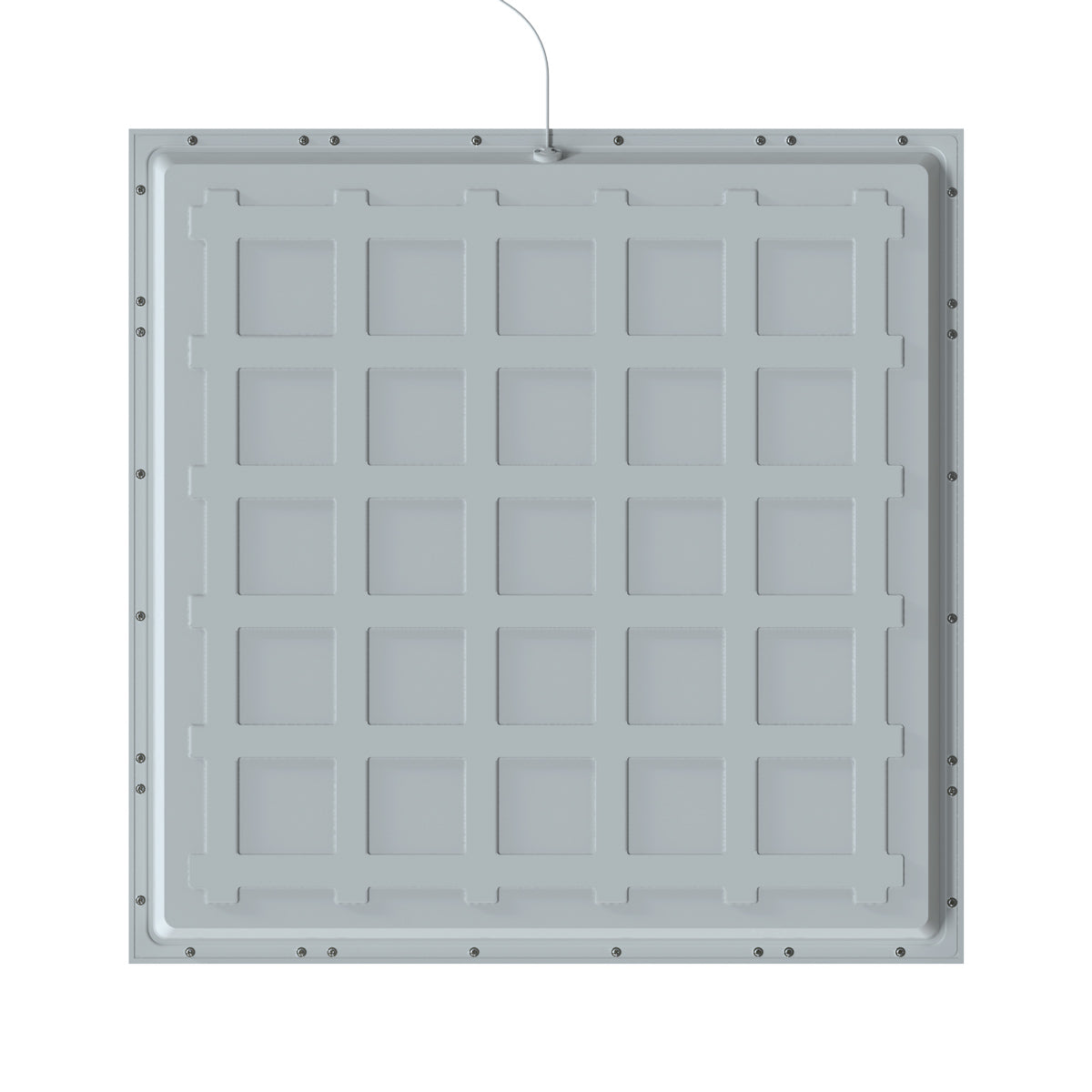

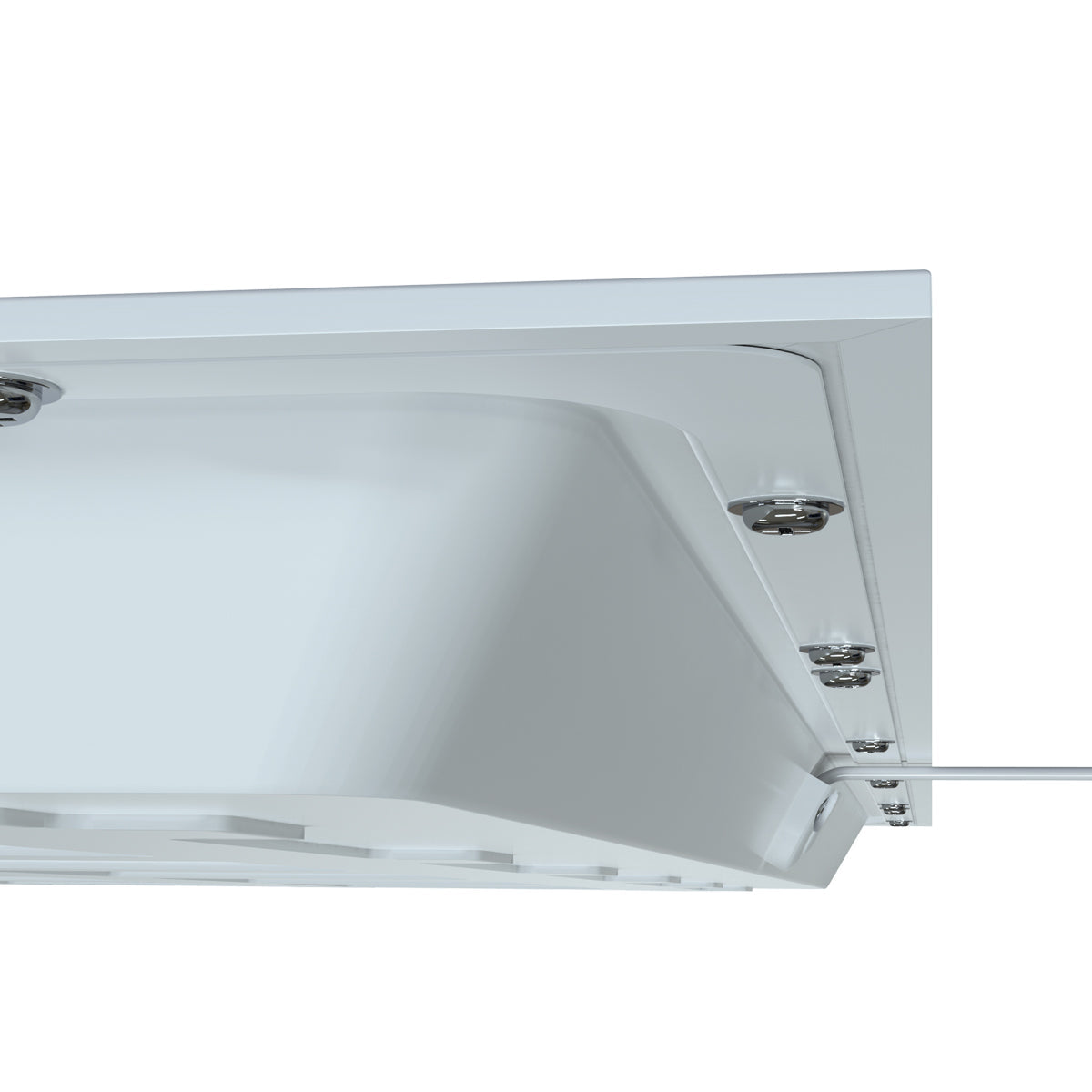

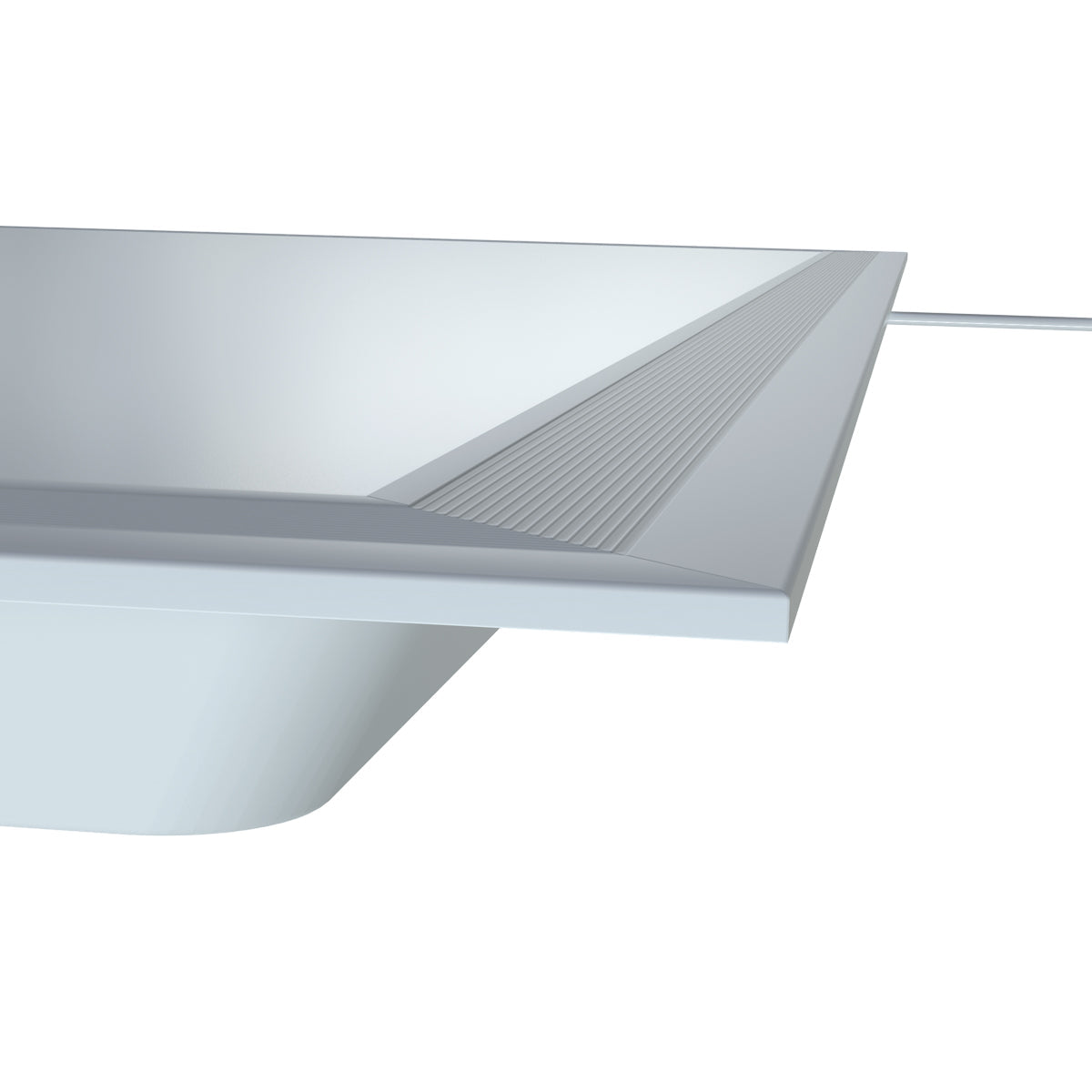

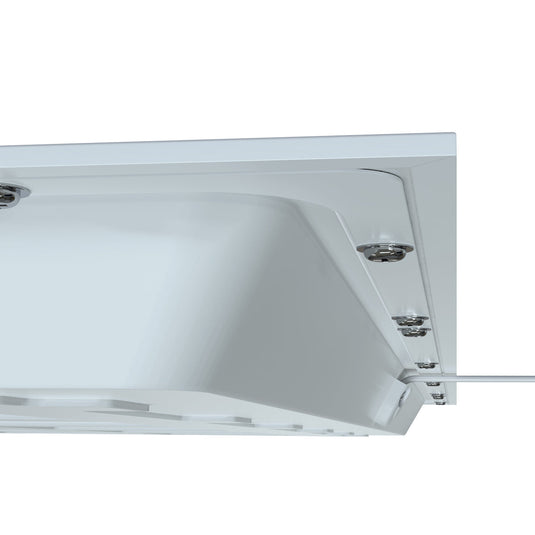

The panel has a TP(a) fire-rated diffuser and protection against overheating, overload and short circuits. It is 32mm deep, IP20 and Class II, and gives flicker-free light. Rated life is 30,000 hours.

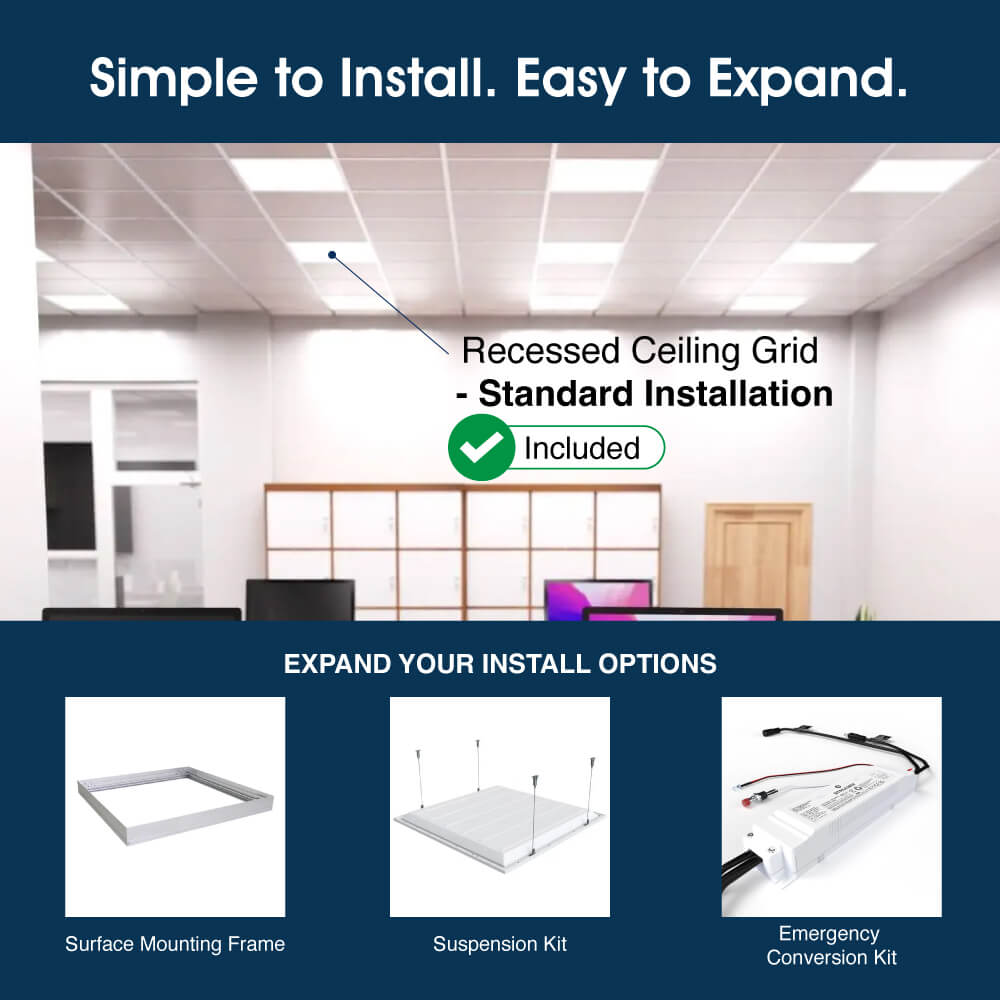

Other ways to fit it

A suspension kit, a surface mounting frame and an emergency conversion kit (3 hours of light after a power cut) are sold separately.

Specifications

• Panel size: 595 x 595mm
• Depth: 32mm
• Power: 40w
• Brightness: 3600 to 4000 lumens
• Colour: 3000K, 4000K or 6000K by switch
• CRI: above 80
• Diffuser: TP(a) fire-rated
• Class: II
• IP rating: IP20
• Driver: 42w DALI
• Dimming: DALI, push dimming or 0-10v
• Driver input: 220-240v
• Driver output: 6-42v, 0.45-1.1A
• Driver size: 123.5 x 81.5 x 23mm
• Rated life: 30,000 hours
