4 Zone Single Colour Dimming Touch Wall Panel, DMX512 Master and 2.4GHz RF Remote, White Glass

Two ways to dim single colour lighting

This touch panel fits on the wall like a light switch and dims single colour LED lighting in two ways. As a DMX512 master, it sends standard DMX signals over a wired DMX line to compatible decoders, with one of its 4 DMX channels for each zone. As a 2.4GHz RF remote, it controls compatible RF receivers wirelessly, so there is no signal cable to run between the panel and the receivers.

Four zones and saved scenes

Set up four zones and adjust each one on its own, for example for different parts of a room or different rooms, or set them all to the same brightness together. Save up to four scenes and recall each with one touch.

Smooth dimming

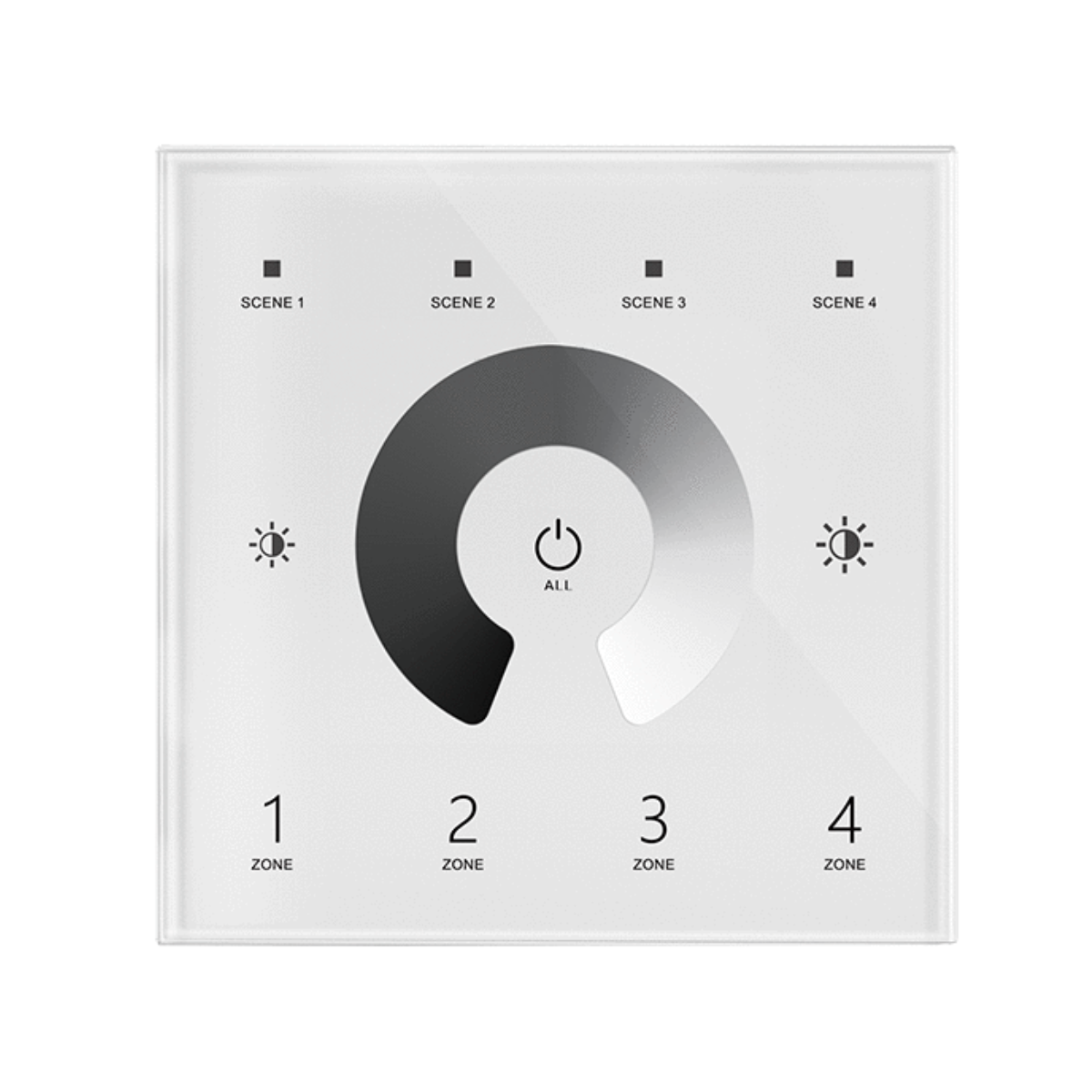

A glass touch ring sets the brightness in 256 steps from 0 to 100%, so dimming is smooth rather than limited to a few preset levels. An LED indicator and a beep confirm each change, and the beep can be turned off.

What it works with

The panel is the control end of the system. It sends control signals and does not power the LEDs. In DMX mode, pair it with a DMX decoder that drives the lighting; it works with standard DMX512 decoders, including ones already installed. In RF mode, pair it with compatible 2.4GHz RF receivers.

Fitting

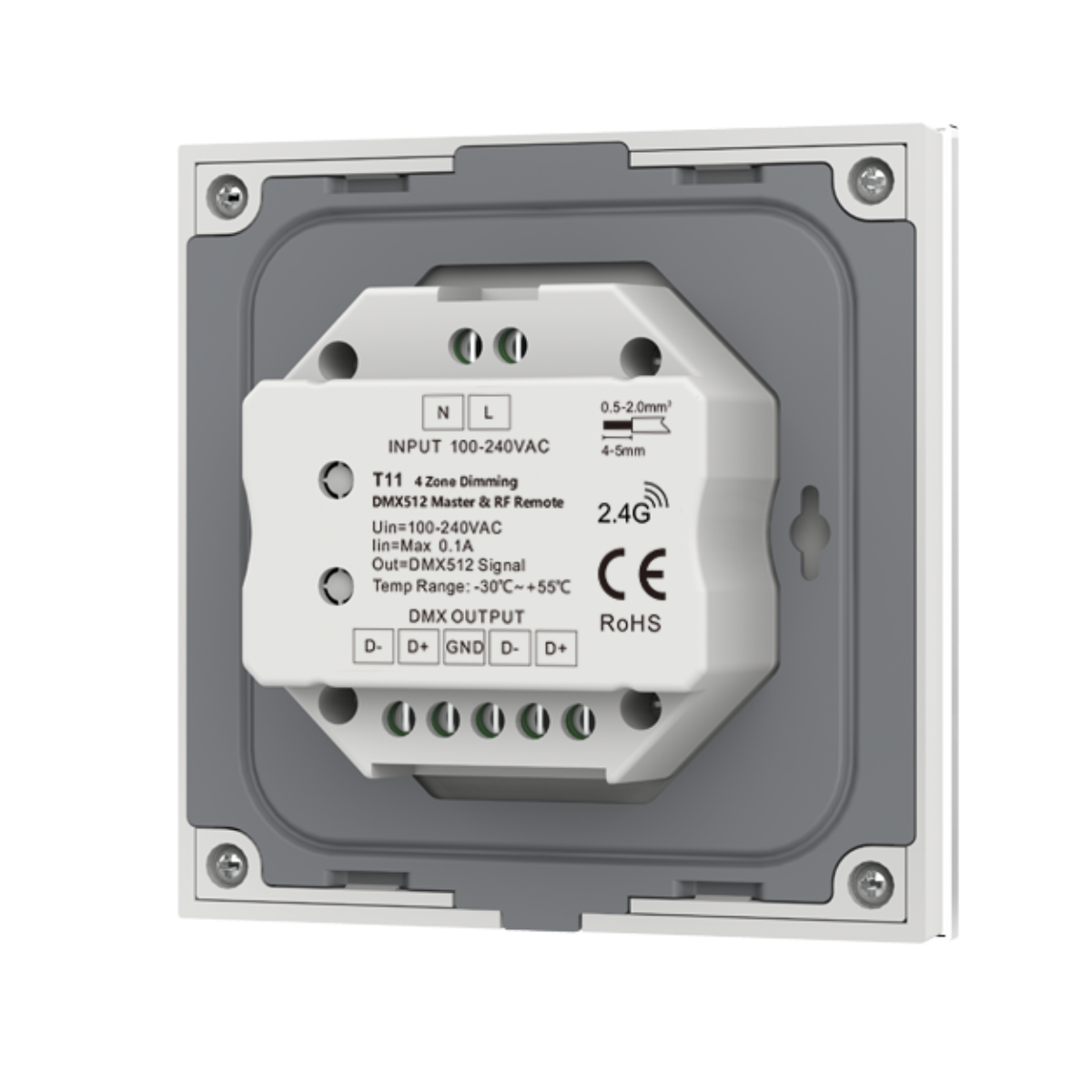

The panel runs straight from 100-240V AC mains, with no separate power supply, and fits a standard European wall box. Have a qualified electrician fit it. It is rated IP20 for dry indoor locations and works from -30°C to 55°C.

Specifications

• Type: 4 zone single colour dimming touch wall panel
• Control: DMX512 master (4 DMX channels) or 2.4GHz RF remote
• Zones: 4
• Scenes: up to 4
• Dimming: 256 steps, 0 to 100%
• Face: glass touch, white
• Supply: 100-240V AC
• Mounting: standard European wall box
• Size: 86 x 86 x 36.5mm
• Working temperature: -30°C to 55°C
• IP rating: IP20
• Decoder or receiver: not included
