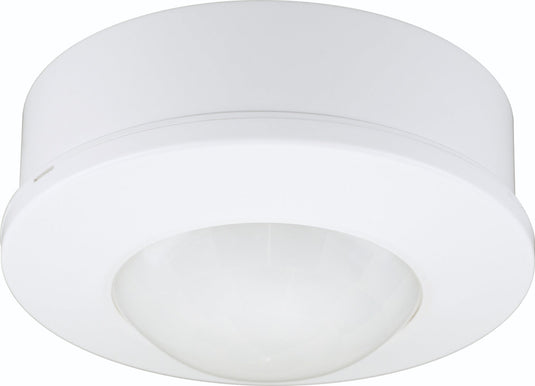

360° Ceiling PIR Motion Sensor, White, 8m Range, Surface or Recessed, IP20

Lights that come on as you walk in

This ceiling PIR sensor switches the connected lights on when it detects someone and off again after a set time with no movement. Its 8m reach suits smaller rooms: flats, corridors, storage rooms and private offices, where a longer-range sensor would switch on lights in the next area too.

360° coverage

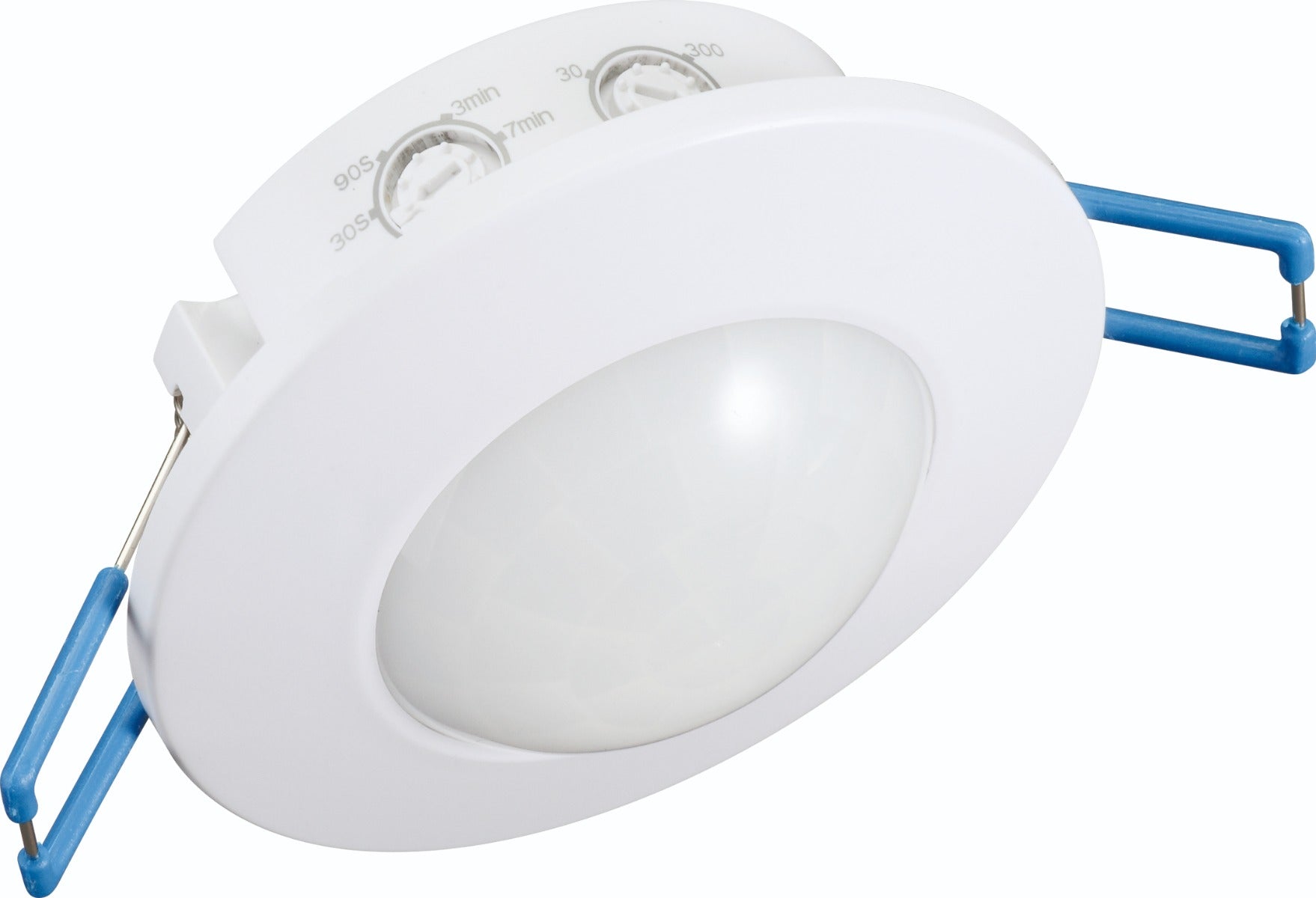

Mounted on the ceiling, it watches a full circle around it, up to 8m away (at temperatures below 24°C), so it picks up someone coming in from a doorway or walking across the room. It works best fitted at a height of 2.2m to 4m, and can be surface mounted or recessed into the ceiling.

Set it to suit the room

The time delay runs from 10 seconds to 30 minutes, so lights stay on briefly in a corridor or longer in a room people use for a while. The daylight sensor can be set from below 3 lux up to 2000 lux, so the lights do not come on when there is already enough natural light.

White finish

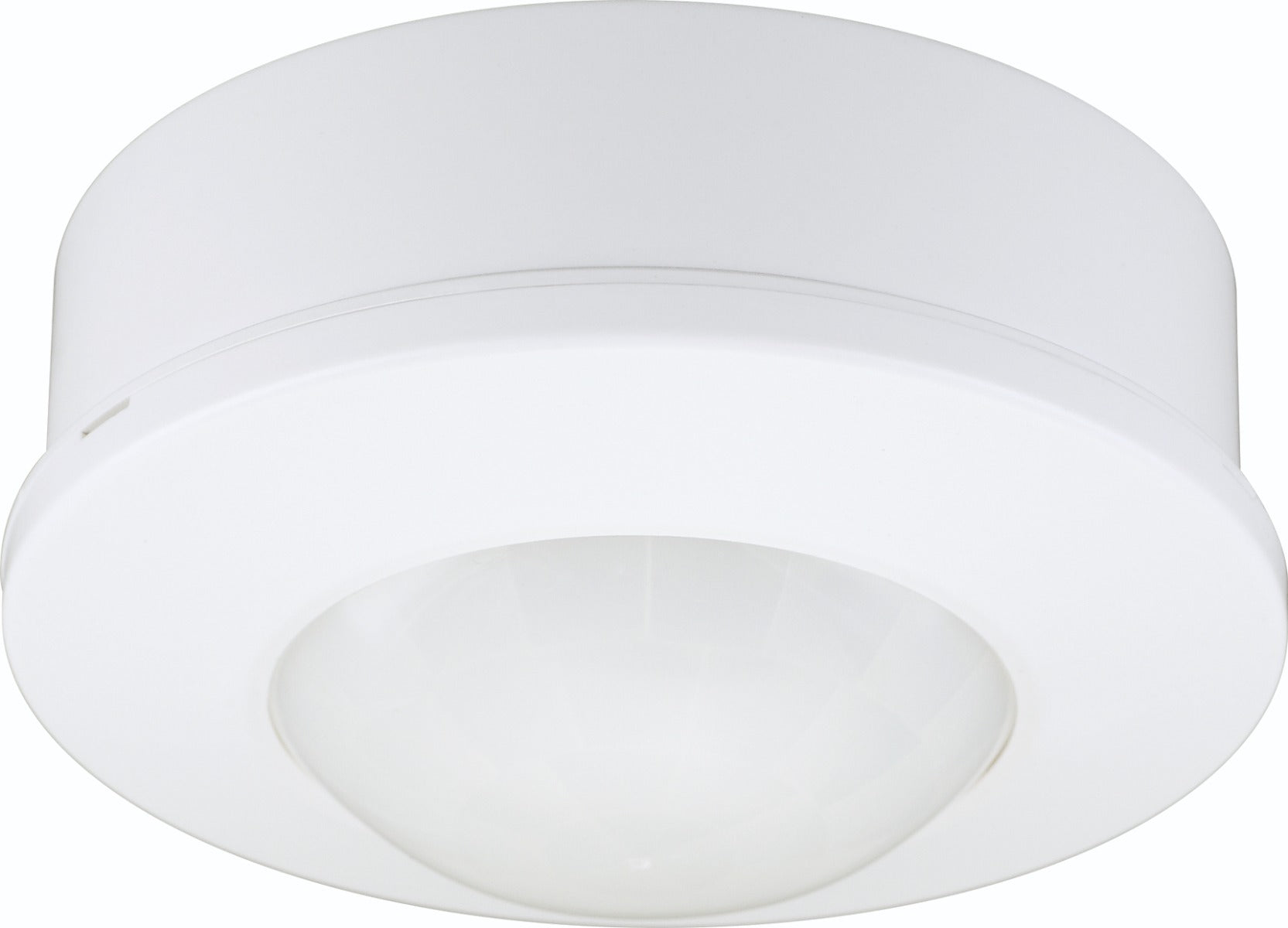

The compact white housing blends into a white ceiling. It is UV-resistant polycarbonate, so it does not fade or yellow over time. The sensor is rated IP20, for dry indoor rooms only.

Load and supply

It handles up to 600W of LED or energy-saving lighting, or 1200W of incandescent lighting, on a 220-240V AC supply. Have a qualified electrician fit it.

Specifications

• Type: ceiling PIR motion sensor with daylight sensor
• Detection angle: 360°
• Detection range: up to 8m (below 24°C)
• Mounting: surface or recessed, ceiling
• Mounting height: 2.2m to 4m
• Time delay: 10 seconds to 30 minutes
• Lux setting: below 3 lux to 2000 lux
• Maximum load: 600W LED or energy-saving, 1200W incandescent
• Supply: 220-240V AC
• Body: white UV-resistant polycarbonate
• IP rating: IP20
