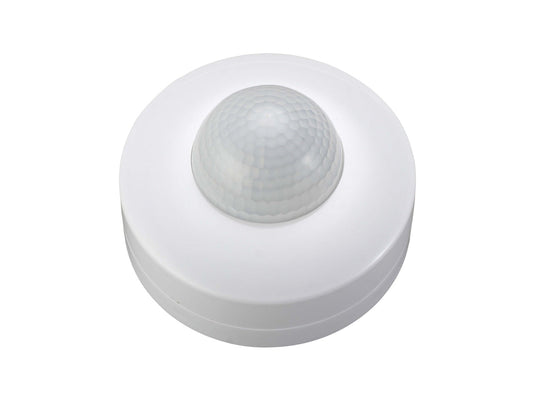

360° Ceiling PIR Motion Sensor, White, 12m Range, Surface Mounted, IP20

Lights that come on as you walk in

This ceiling PIR sensor switches the connected lights on when it detects someone and off again after a set time with no movement. It suits offices, living areas, bedrooms and wide corridors, so lights are not left on in empty rooms.

360° coverage, 12m reach

Mounted on the ceiling, it watches a full circle around it and picks up movement up to 12m away (at temperatures below 24°C). Fitted in the middle of a room it covers entrances, walkways and work areas at once, so one sensor can often do the job of several.

Set it to suit the room

The time delay runs from about 10 seconds to 15 minutes, so lights stay on briefly in a corridor or longer in a room people use for a while. The daylight sensor can be set from below 3 lux up to 2000 lux, so the lights do not come on when there is already enough natural light.

White finish, surface mounted

The smooth white housing blends into a white ceiling and wipes clean easily. It is UV-resistant polycarbonate, so it keeps its finish over time. It mounts on the surface of a standard ceiling, with no cut-out needed. The sensor is rated IP20, for dry indoor rooms only.

Load and supply

It handles up to 300W of LED or energy-saving lighting, or 1200W of incandescent lighting, on a 220-240V supply. Have a qualified electrician fit it.

Specifications

• Type: ceiling PIR motion sensor with daylight sensor
• Detection angle: 360°
• Detection range: up to 12m (below 24°C)
• Time delay: about 10 seconds to 15 minutes
• Lux setting: below 3 lux to 2000 lux
• Maximum load: 300W LED or energy-saving, 1200W incandescent
• Supply: 220-240V
• Body: white UV-resistant polycarbonate
• Mounting: surface, ceiling
• IP rating: IP20
