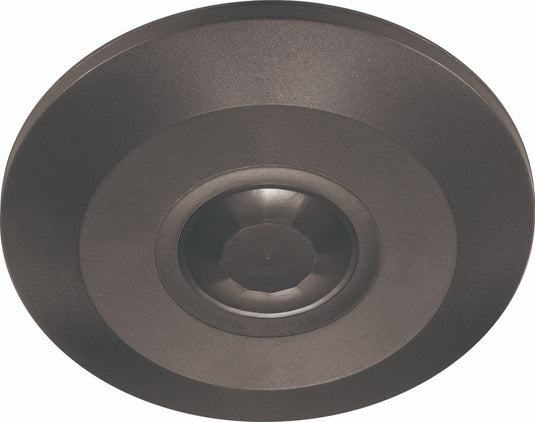

360° Ceiling PIR Motion Sensor, Black, 8m Range, IP20

Lights that come on as you walk in

This ceiling PIR sensor switches the connected lights on when it detects someone and off again after a set time with no movement. Its 8m reach suits smaller rooms: flats, corridors, storage rooms and private offices, where a longer-range sensor would switch on lights in the next area too.

360° coverage

Mounted on the ceiling, it watches a full circle around it, up to 8m away (at temperatures below 24°C), so it picks up someone coming in from a doorway or walking across the room. It works best fitted at a height of 2.2m to 4m.

Set it to suit the room

The time delay runs from 10 seconds to 15 minutes, so lights stay on briefly in a corridor or longer in a room people use for a while. The daylight sensor can be set from below 3 lux up to 2000 lux, so the lights do not come on when there is already enough natural light.

Black finish

The black housing suits dark ceilings and modern interiors. It is UV-resistant polycarbonate, so it does not fade or yellow over time. The sensor is rated IP20, for dry indoor rooms only.

Load and supply

It handles up to 400W of LED or energy-saving lighting, or 800W of incandescent lighting, on a 220-240V AC supply. Have a qualified electrician fit it.

Specifications

• Type: ceiling PIR motion sensor with daylight sensor
• Detection angle: 360°
• Detection range: up to 8m (below 24°C)
• Mounting height: 2.2m to 4m
• Time delay: 10 seconds to 15 minutes
• Lux setting: below 3 lux to 2000 lux
• Maximum load: 400W LED or energy-saving, 800W incandescent
• Supply: 220-240V AC
• Body: black UV-resistant polycarbonate
• IP rating: IP20
