2m Input Cable for the 2m Corner LED Profile (PRO-LED-04-2M), 24V Plug and Play

Power a cut piece of profile

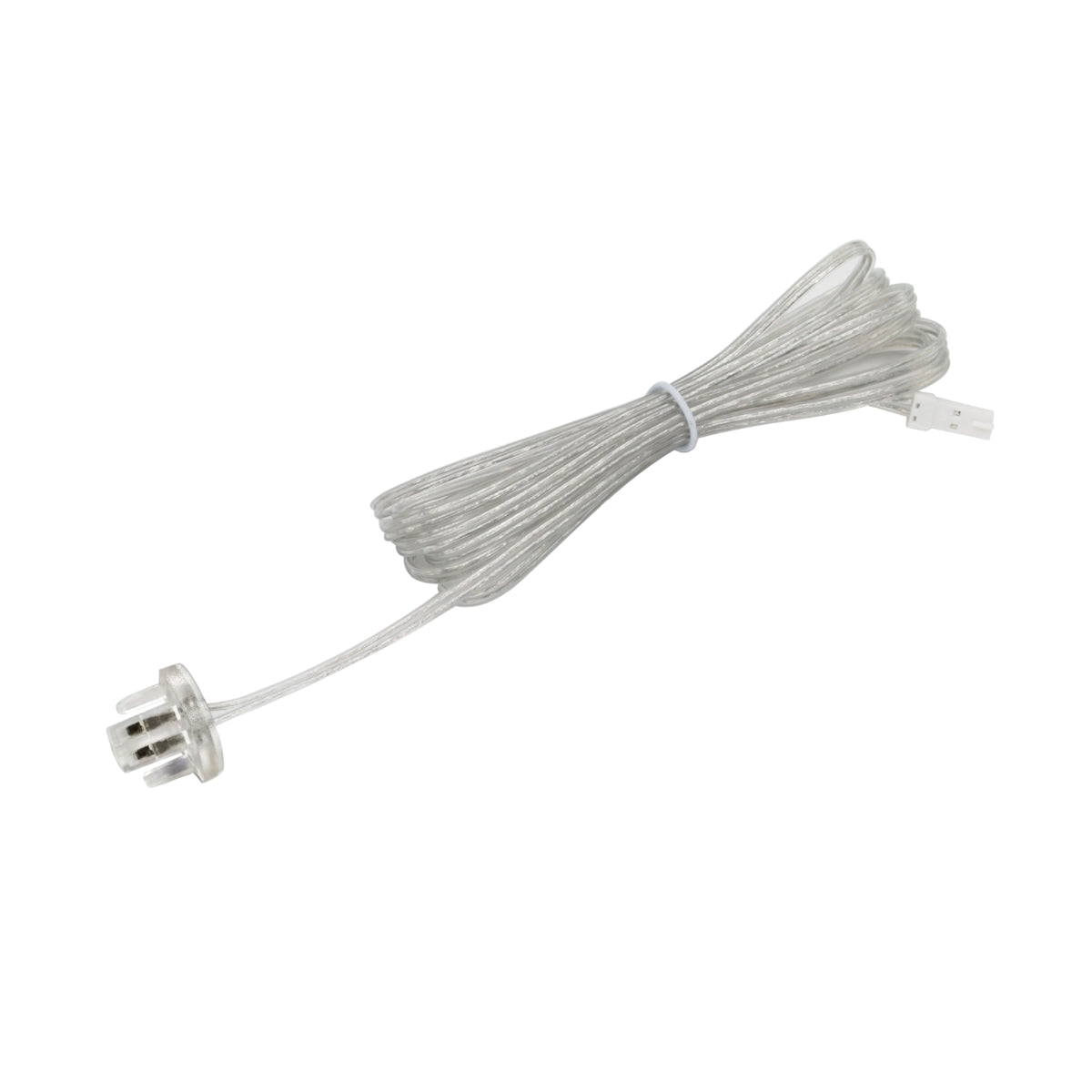

This 2m input cable connects a piece of the corner LED profile to a compatible 24V plug and play furniture driver, with push-fit connections and no wire stripping or soldering. Each 2m profile already comes with one matching cable and its mounting brackets. If you cut the profile into two pieces and want to power the second one separately, this is the extra cable you need.

Matches the corner profile

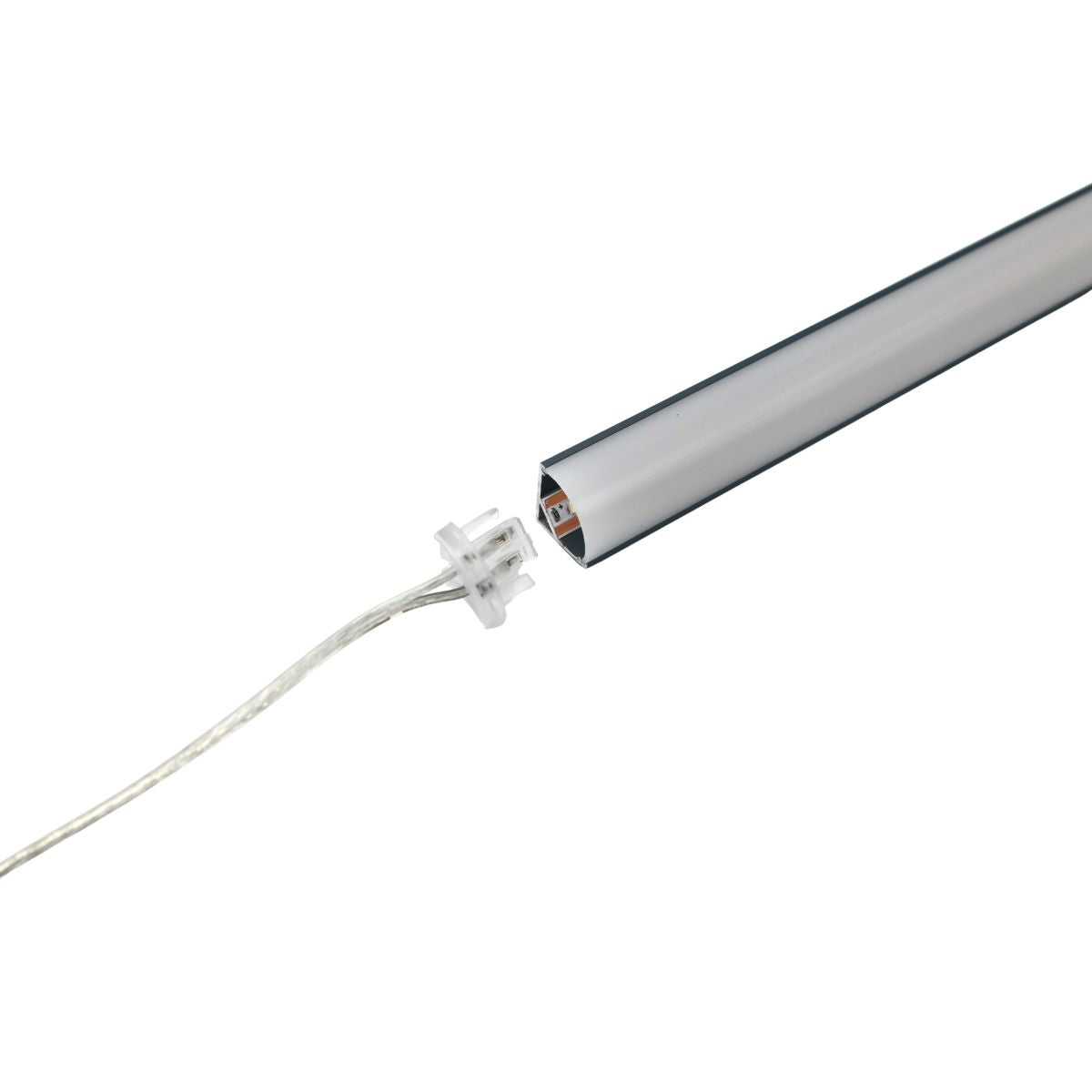

This cable is for the 2m corner profile, PRO-LED-04-2M. The connector at the profile end is made for that fitting, so choose the cable by profile type; input cables for different profiles don't swap.

Plan the route to the driver

Allow one driver light output for each separately powered piece of profile. Measure the cable route around the furniture and add that piece's wattage to the driver load. If you only need more reach on an existing lead, a 2m Dupont extension is the part to use instead.

For cabinet making and DIY

A spare input cable lets you use cut pieces in separate cupboards, shelves or display compartments. Plan each piece's power connection before fitting the furniture.

Specifications

• Length: 2m
• For profile: PRO-LED-04-2M, 2m corner profile
• Supply: 24V DC
• Connections: push-fit, profile input to driver
• In the pack: one input cable
• Profile and driver: sold separately
