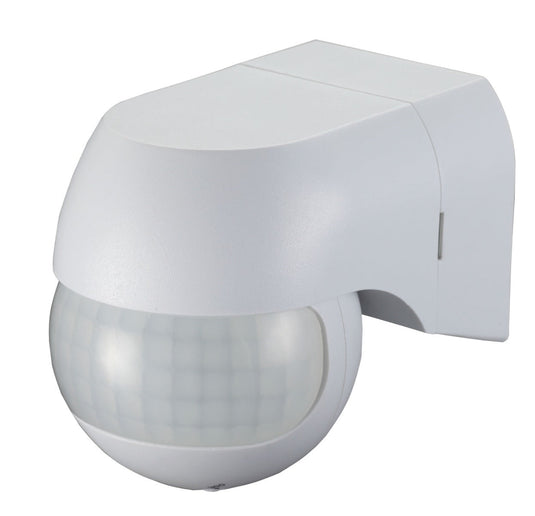

180° White Wall PIR Motion Sensor, IP44, 12m Range

Outside lights that come on when needed

This wall PIR sensor switches the connected lights on when it picks up movement and off again after a set time. Use it on an entrance, path, driveway or boundary wall, so the lights come on as someone approaches rather than staying on all night.

Wide 180° coverage

The sensor watches a 180° field and detects movement up to 12m away at temperatures below 24°C, so lights come on before a visitor reaches the door. Fit it at a height of 1.8m to 2.5m for the best coverage.

Set it to suit the space

The time delay runs from 10 seconds to 15 minutes, so you can choose how long the lights stay on after the last movement. The daylight sensor can be set from 3 to 2000 lux, so the lights only come on once it gets dark.

Made for sheltered outdoor walls

The housing is IP44, protected against splashing water, and suits porches, garages and sheltered walls. It is made of UV-resistant polycarbonate, so it doesn't fade or crack in the sun. The white finish blends with light walls, render and white window frames.

Load and fitting

It handles up to 400W of LED or energy-saving lighting, or 800W of incandescent lighting, on a 220-240V supply. Have a qualified electrician fit it.

Specifications

• Type: wall mounted PIR motion sensor with daylight sensor
• Detection angle: 180°
• Detection range: up to 12m (below 24°C)
• Mounting height: 1.8m to 2.5m
• Time delay: 10 seconds to 15 minutes
• Lux setting: 3 to 2000 lux
• Maximum load: 400W LED or energy-saving, 800W incandescent
• Supply: 220-240V
• Body: white UV-resistant polycarbonate
• IP rating: IP44
