17.5W LED Bulkhead Gear Tray with 3 Hour Emergency, Colour Switchable 3000K/4000K/6500K

An LED upgrade for bulkhead fittings

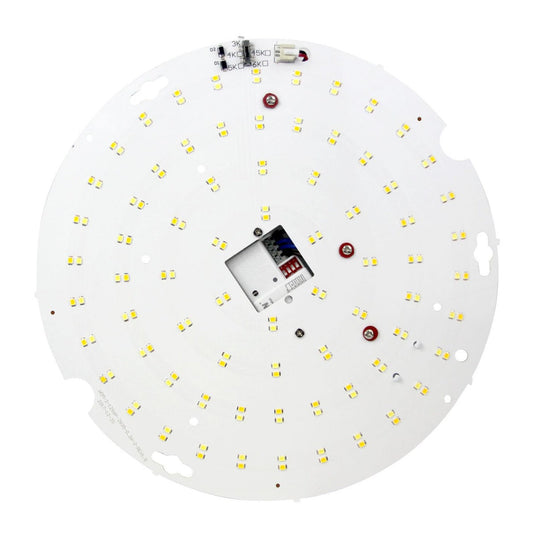

This gear tray fits inside a bulkhead and turns it into an LED light with emergency backup. It's a quick way to retrofit old bulkheads in stairwells, corridors and shared spaces, and it works in new fittings too.

Emergency light

If the power fails, the built-in emergency feature keeps the light on for up to three hours, long enough for people to find their way out safely.

Pick the colour

A CCT switch on the tray sets warm white 3000K, natural white 4000K or cool white 6500K, so one product can suit different areas of a building.

Light output

The tray gives 1725 lumens from 17.5w. The 120° beam spreads the light wide and evenly, which helps when lights are spaced along a corridor. The LEDs are flicker-free with a CRI above 80, and sit on an aluminium circuit board. Average life is 35,000 hours.

Fitting

The tray runs straight from 220-240v mains, so there's no separate driver. Push-fit terminals make the wiring quick, and an installation guide is included. It works from -10°C to +40°C.

Things to know

The tray is rated IP20 on its own, so it should be fitted inside a bulkhead housing. It is not dimmable.

Specifications

• Power: 17.5w
• Light output: 1725 lumens
• Colour: switchable, 3000K, 4000K or 6500K
• Emergency: up to 3 hours
• Beam angle: 120°
• CRI: above 80
• Driver: built in, flicker-free
• Terminals: push-fit
• Size: 243mm diameter, 30mm high
• Finish: white
• Input voltage: 220-240v
• Operating temperature: -10°C to +40°C
• Dimmable: no
• IP rating: IP20 (tray)
• Average life: 35,000 hours
