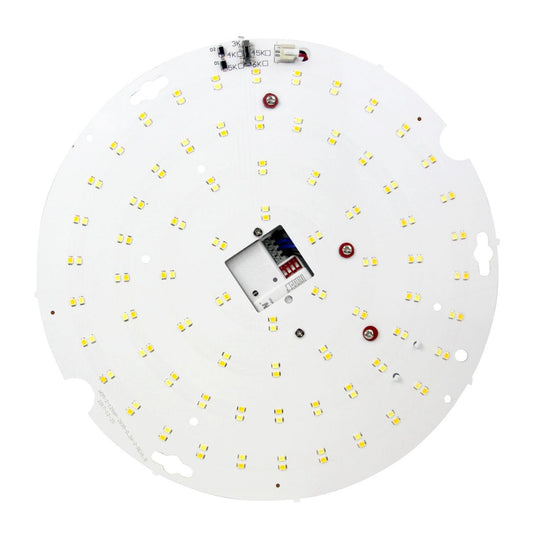

16W LED Bulkhead Gear Tray, Colour Switchable 3000K/4000K/6500K, 1725 Lumens

A new LED heart for an old bulkhead

This gear tray replaces the old or broken tray inside a bulkhead fitting and turns it into an LED light. It's a quick way to retrofit bulkheads in hallways, stairwells, entrances, living rooms and bedrooms without replacing the whole fitting. It is a gear tray only.

Pick the colour

A CCT switch sets warm white 3000K for a relaxed feel, natural white 4000K for everyday use, or cool white 6500K for crisp, bright light.

Output

The tray gives 1725 lumens from 16w over a wide 120° beam, so one fitting covers a good area. The LEDs are flicker-free and sit on an aluminium circuit board. Average life is 30,000 hours.

Fitting

The tray runs straight from 220-240v mains, with no transformer or driver. Wires push into the 3-way or 4-way quick-fit terminals, so there's no fiddly wiring. It works in temperatures from -10°C to +40°C. If you're not used to electrical work, use a qualified electrician.

Things to know

The tray is rated IP20 on its own, so it should be fitted inside a bulkhead housing. It is not dimmable and has no emergency function.

Specifications

• Power: 16w
• Light output: 1725 lumens
• Colour: switchable, 3000K, 4000K or 6500K
• Beam angle: 120°
• Terminals: 3-way or 4-way quick-fit push
• Size: 243mm diameter, 30mm high
• Finish: white
• Input voltage: 220-240v
• Operating temperature: -10°C to +40°C
• Emergency: no
• Dimmable: no
• IP rating: IP20 (tray)
• Average life: 30,000 hours
