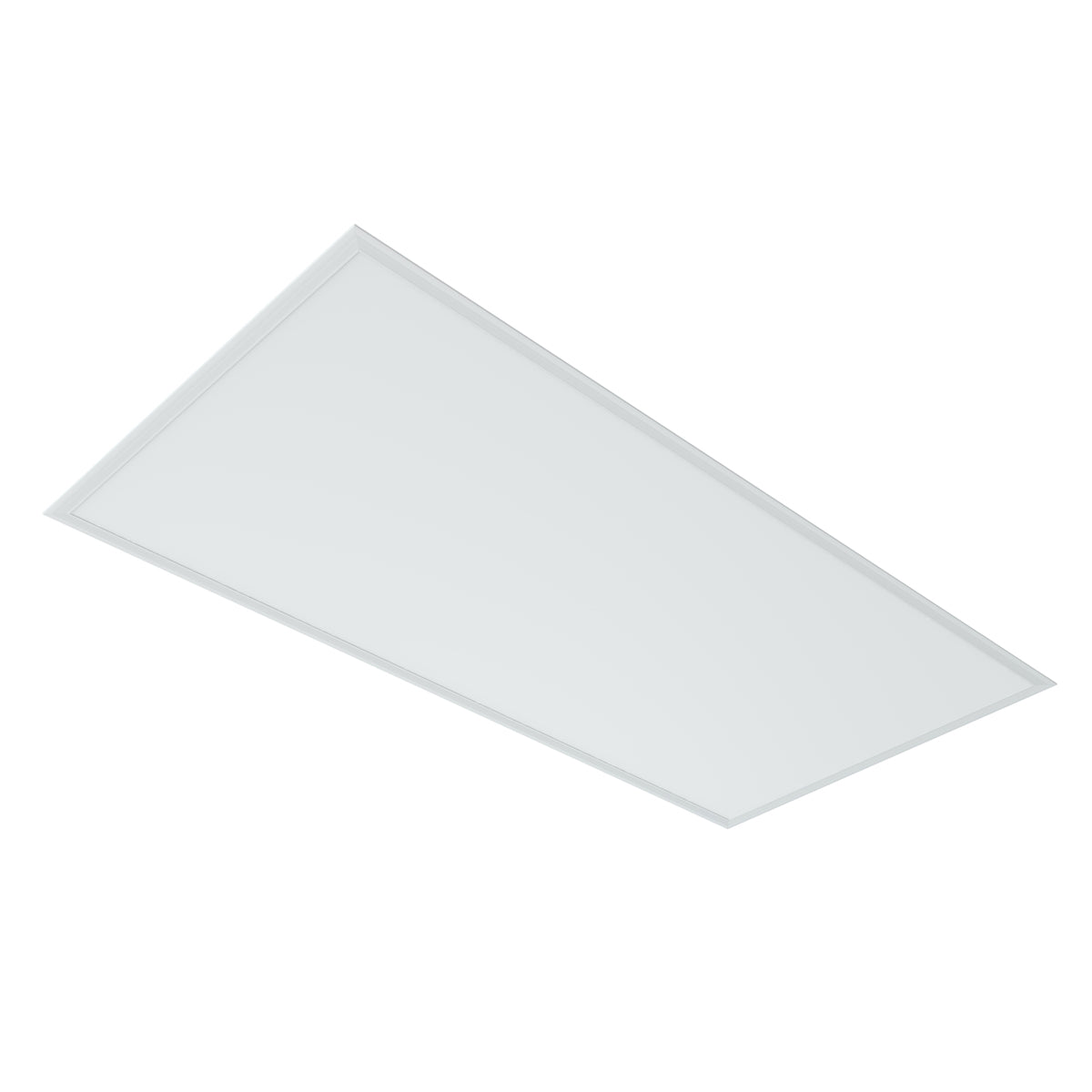

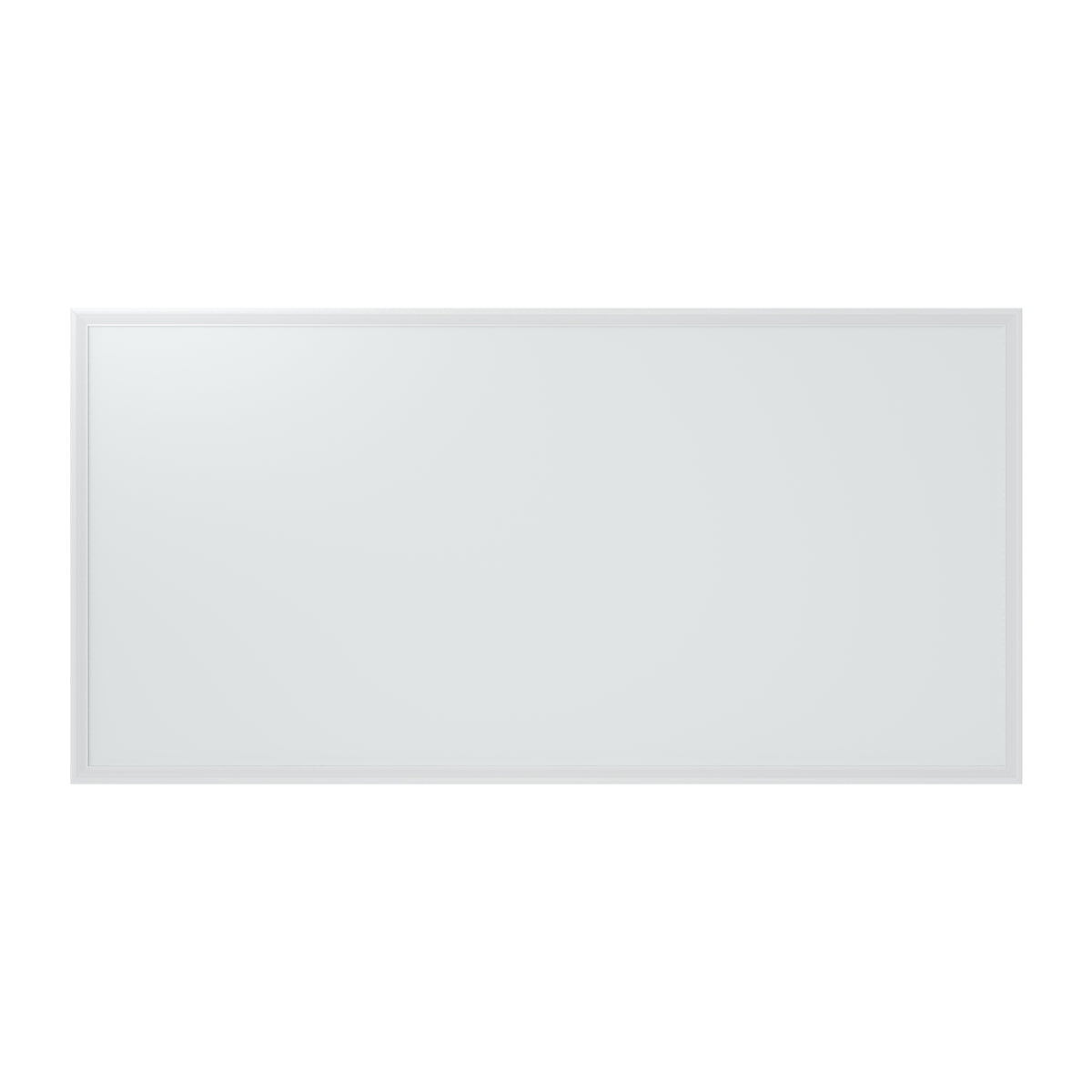

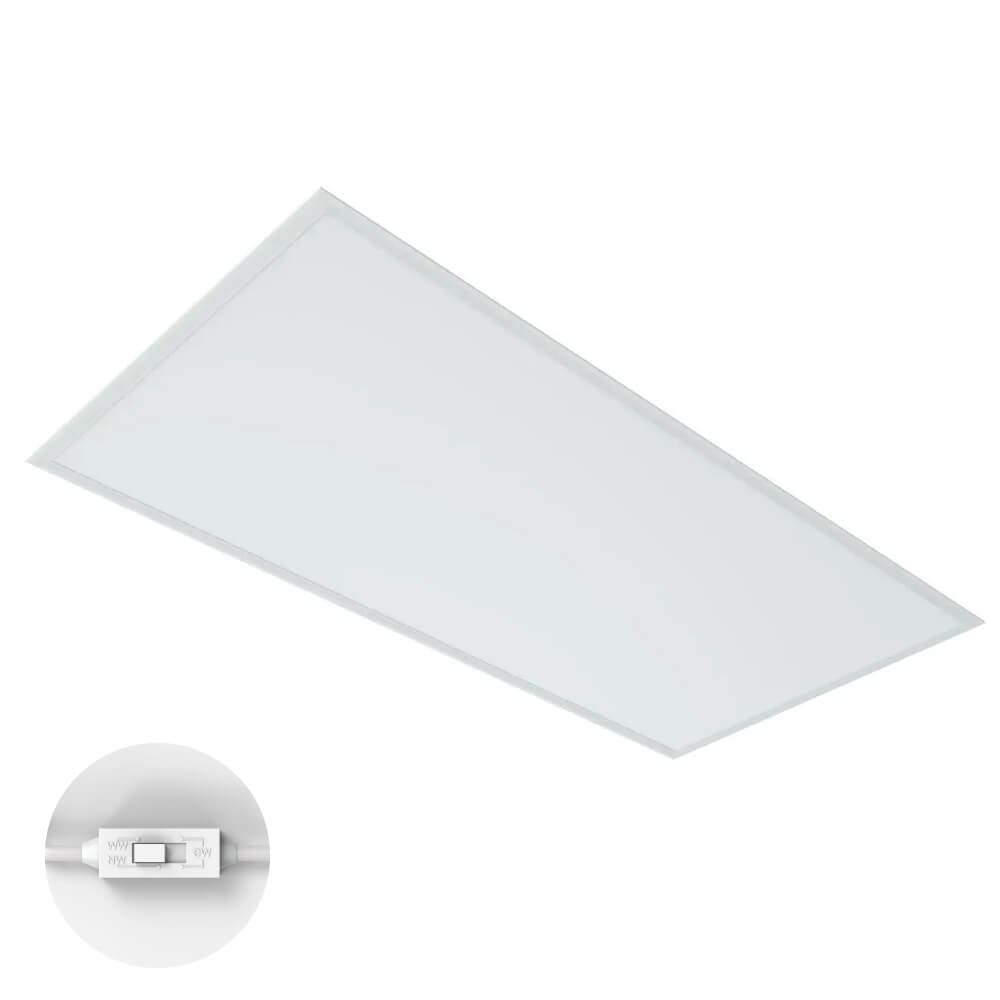

1200x600 LED Panel with DALI 2 Dimmable Driver, 60w, 6000 Lumens, Colour Switchable

A commercial panel with DALI control

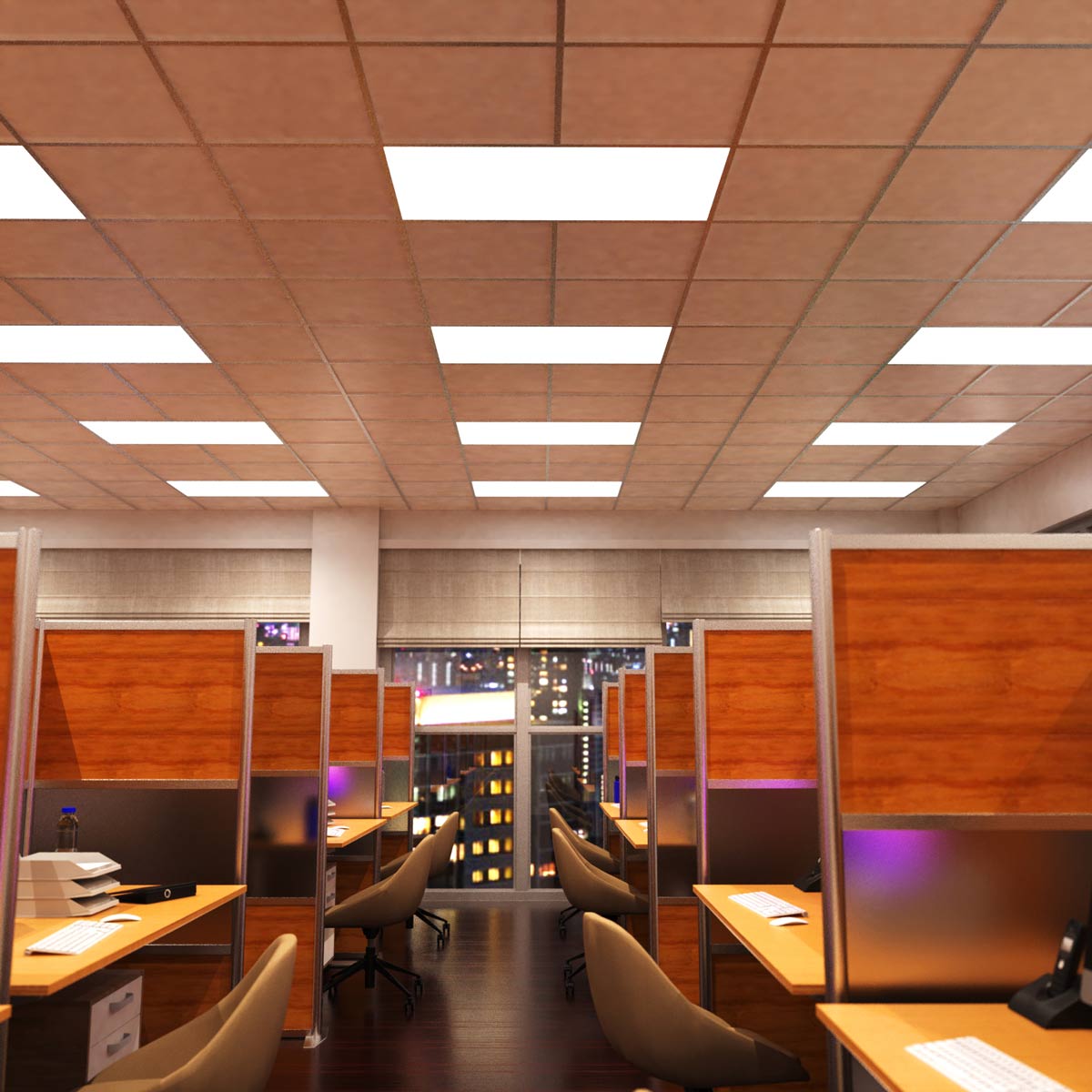

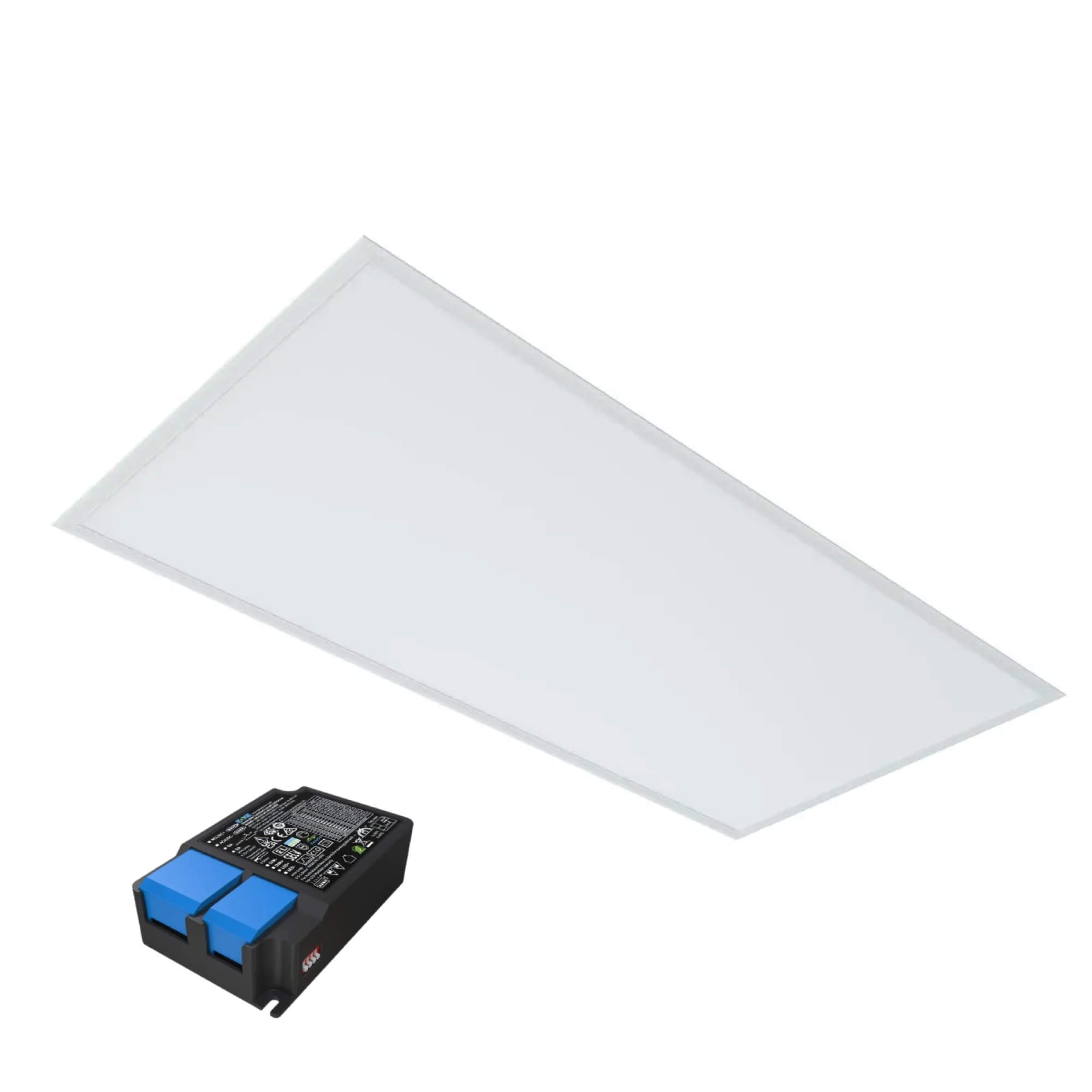

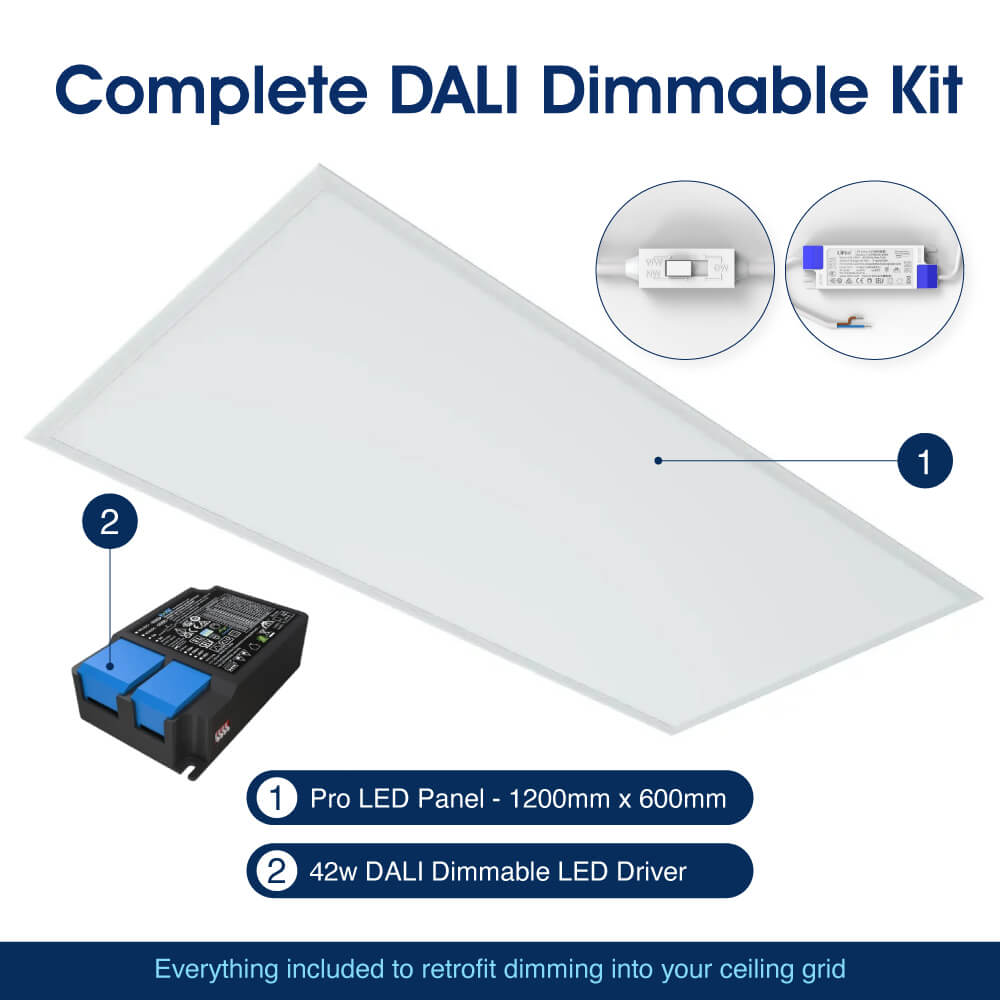

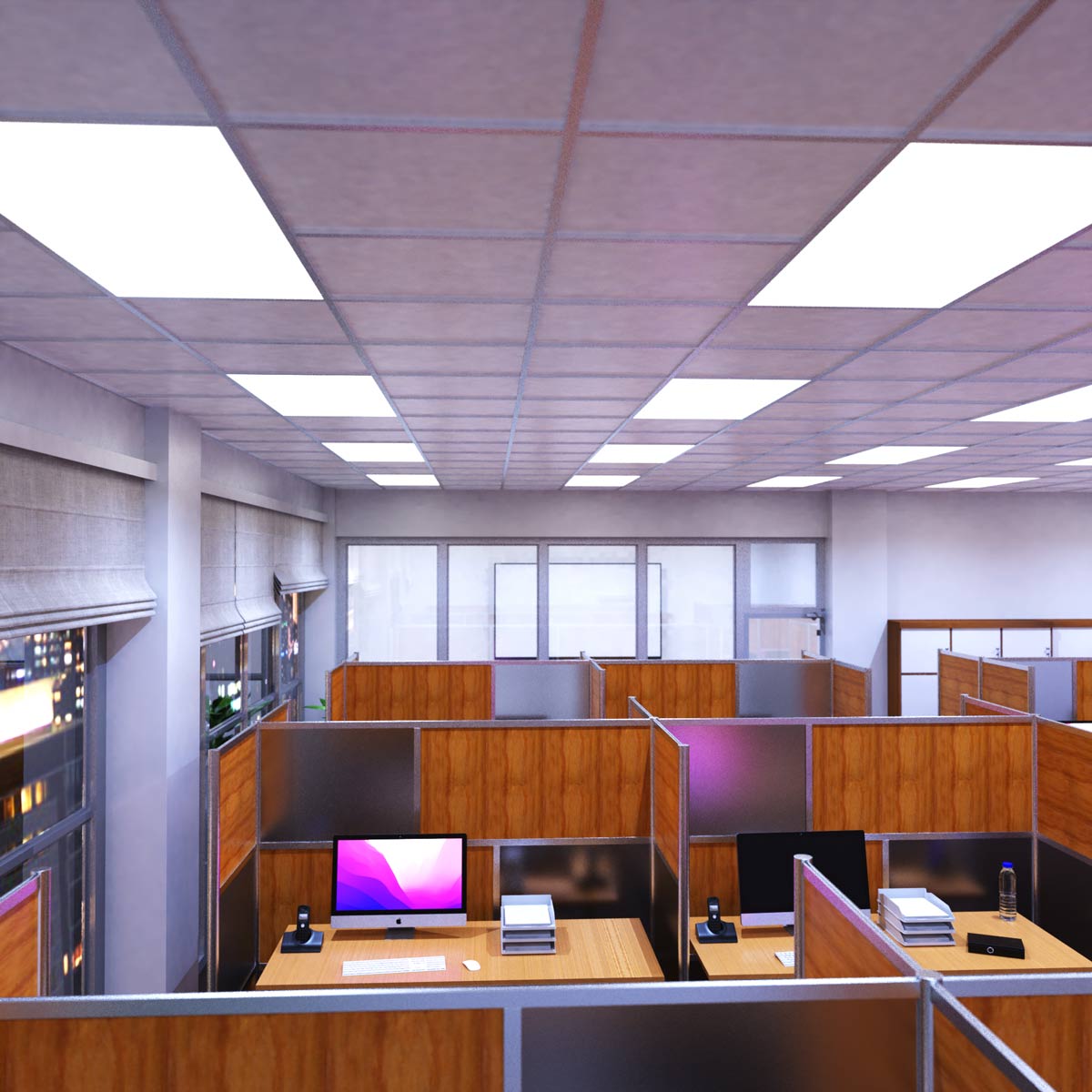

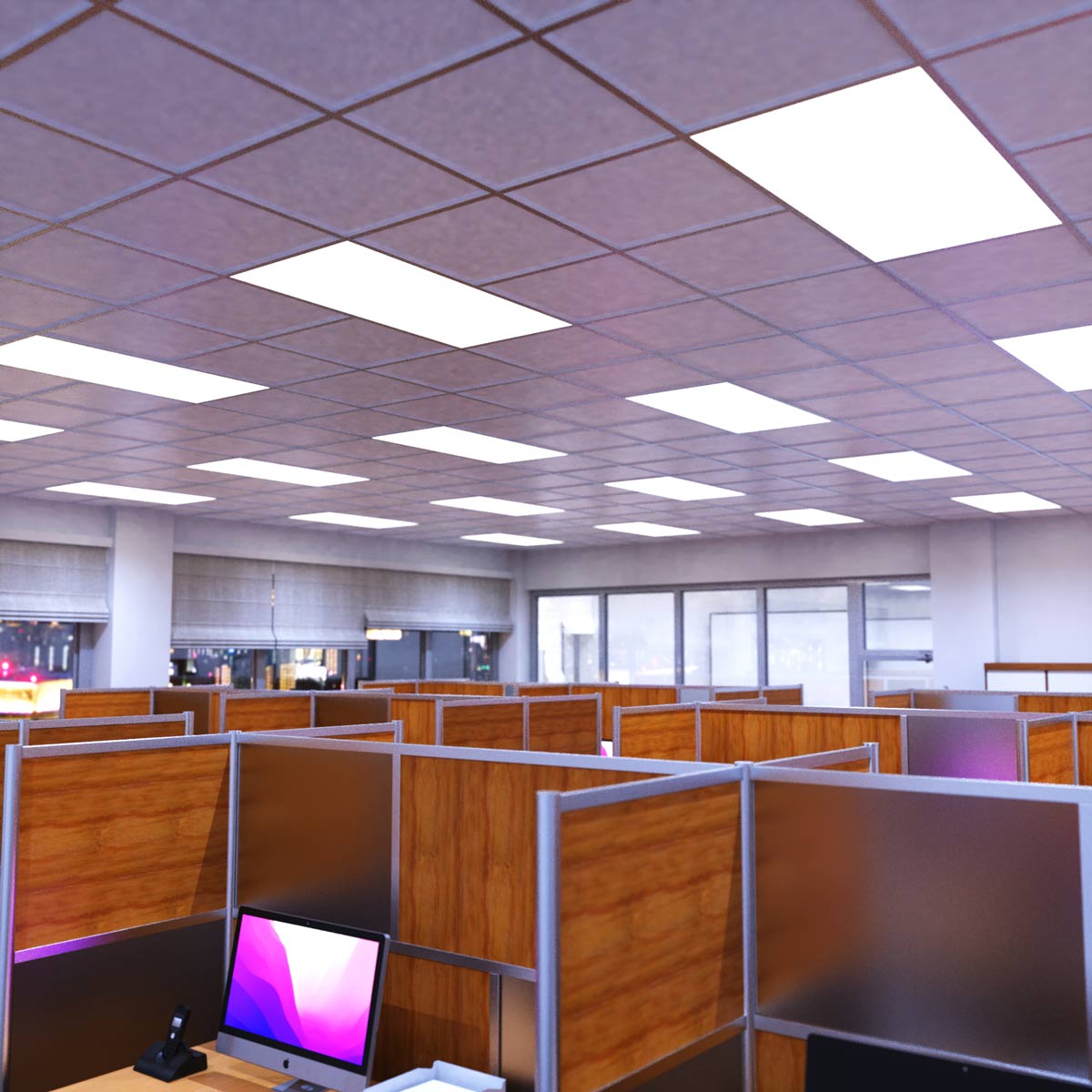

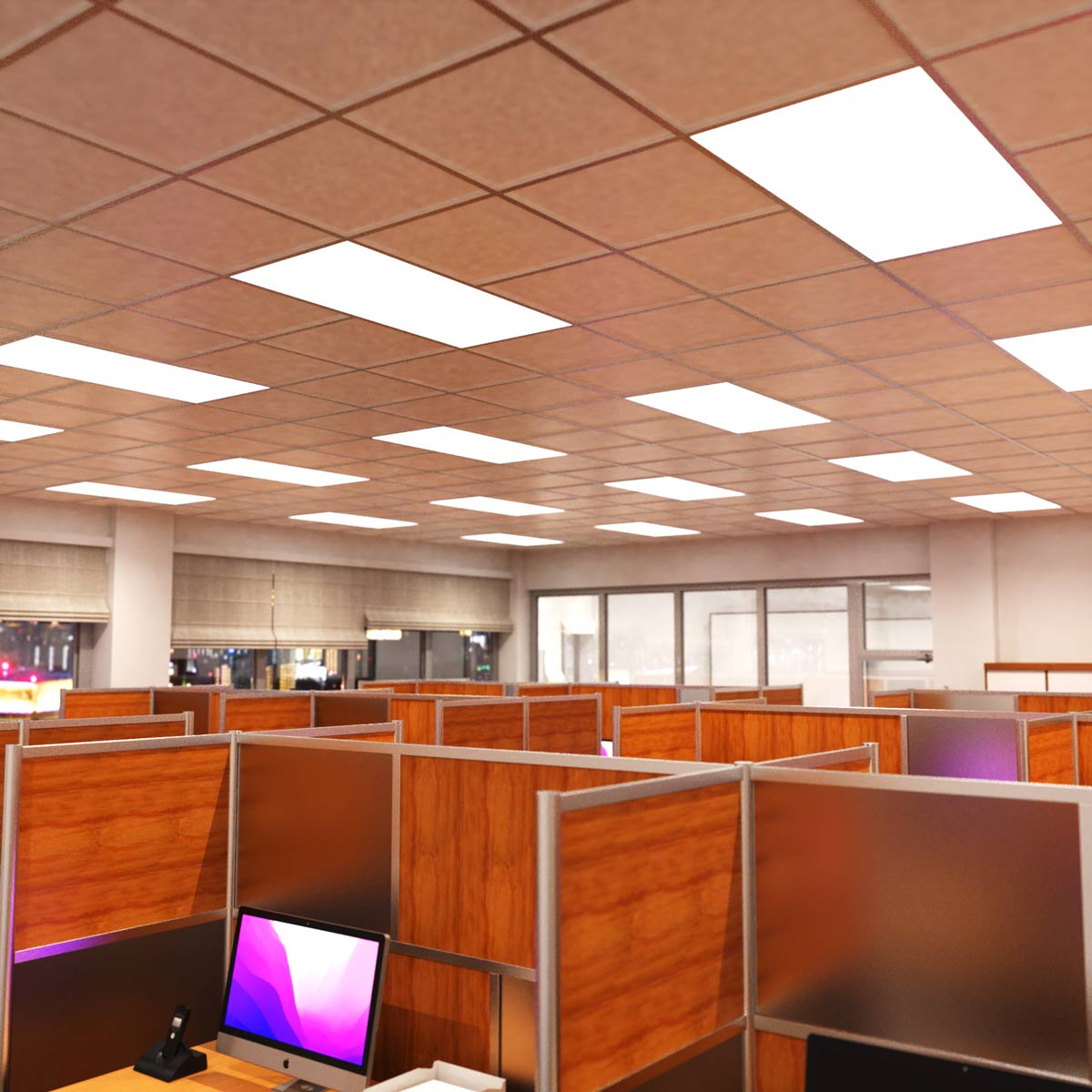

This 1200x600 LED panel comes as a kit with its own DALI 2 dimmable driver. It is made for offices, schools, shops and other commercial spaces that use a lighting control or building management system. The panel gives 6000 lumens from 60w over a wide 120° beam, so desks, shelving and walkways are lit evenly with fewer fittings.

Three ways to dim

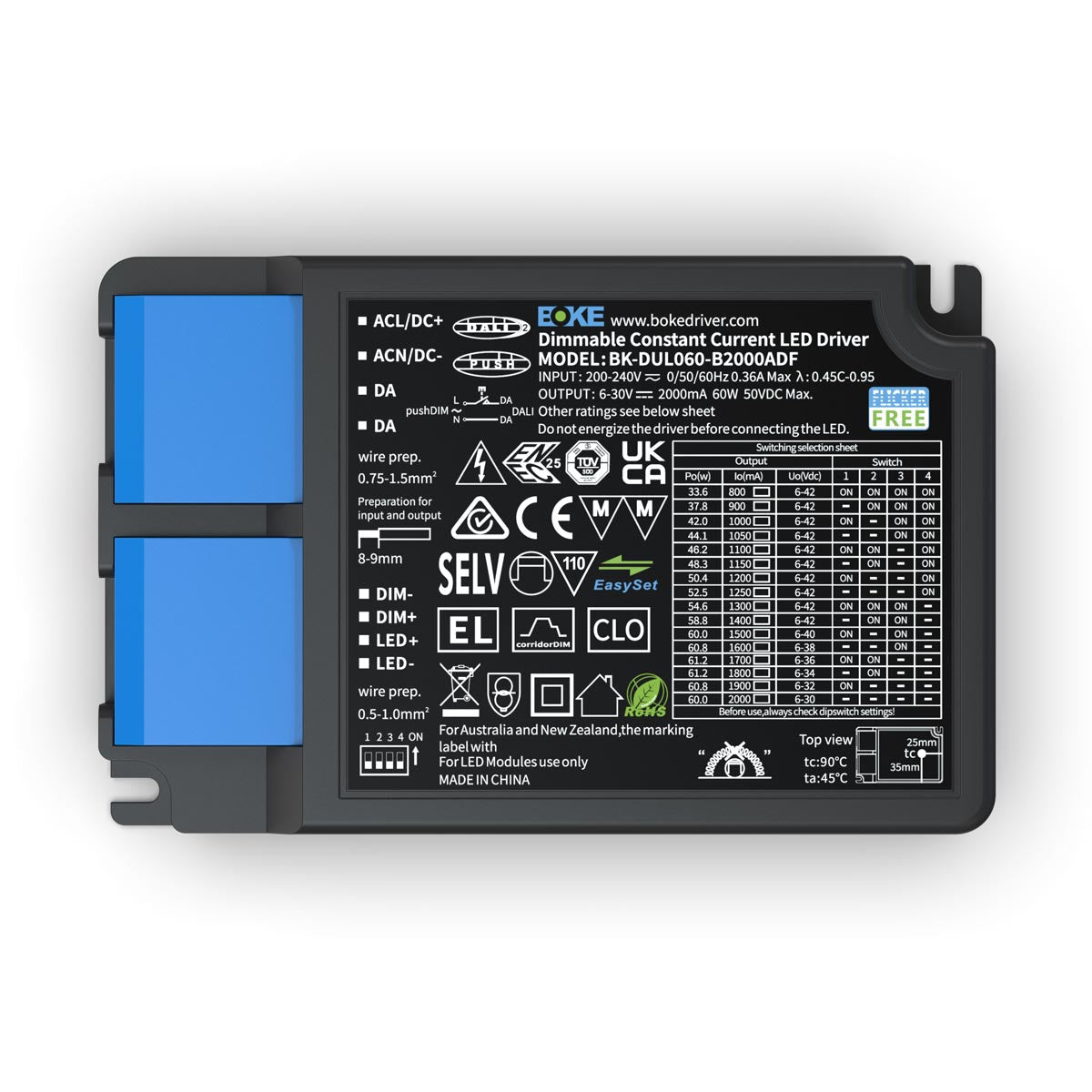

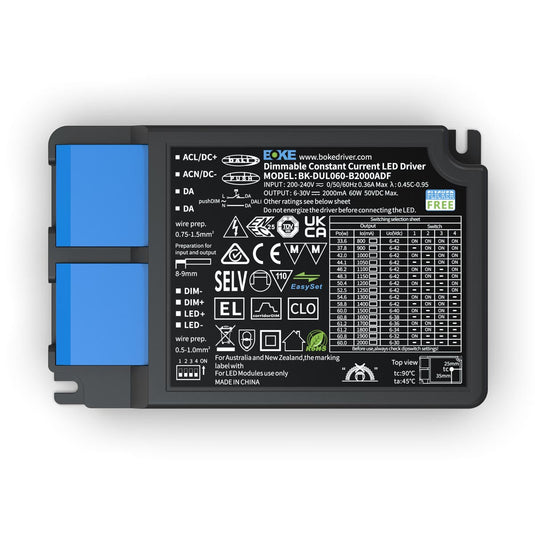

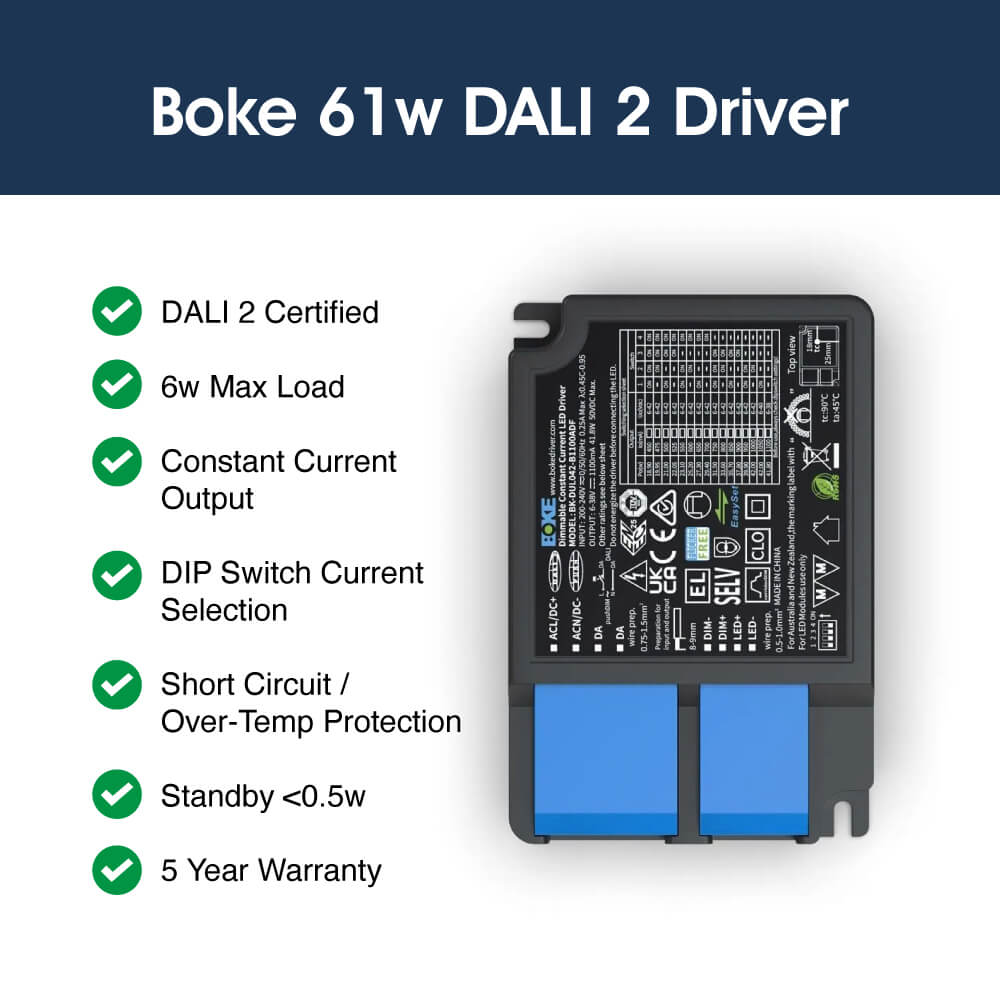

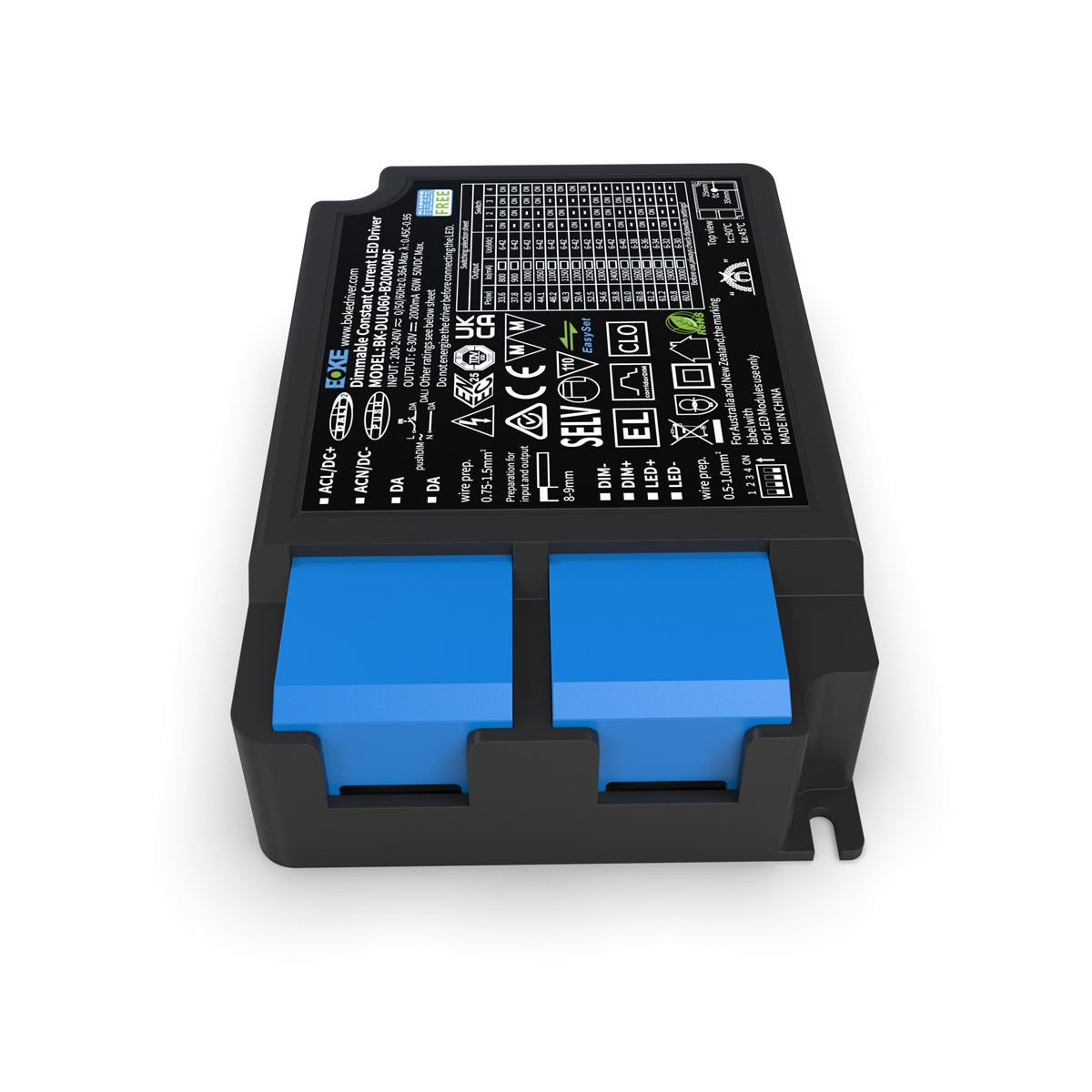

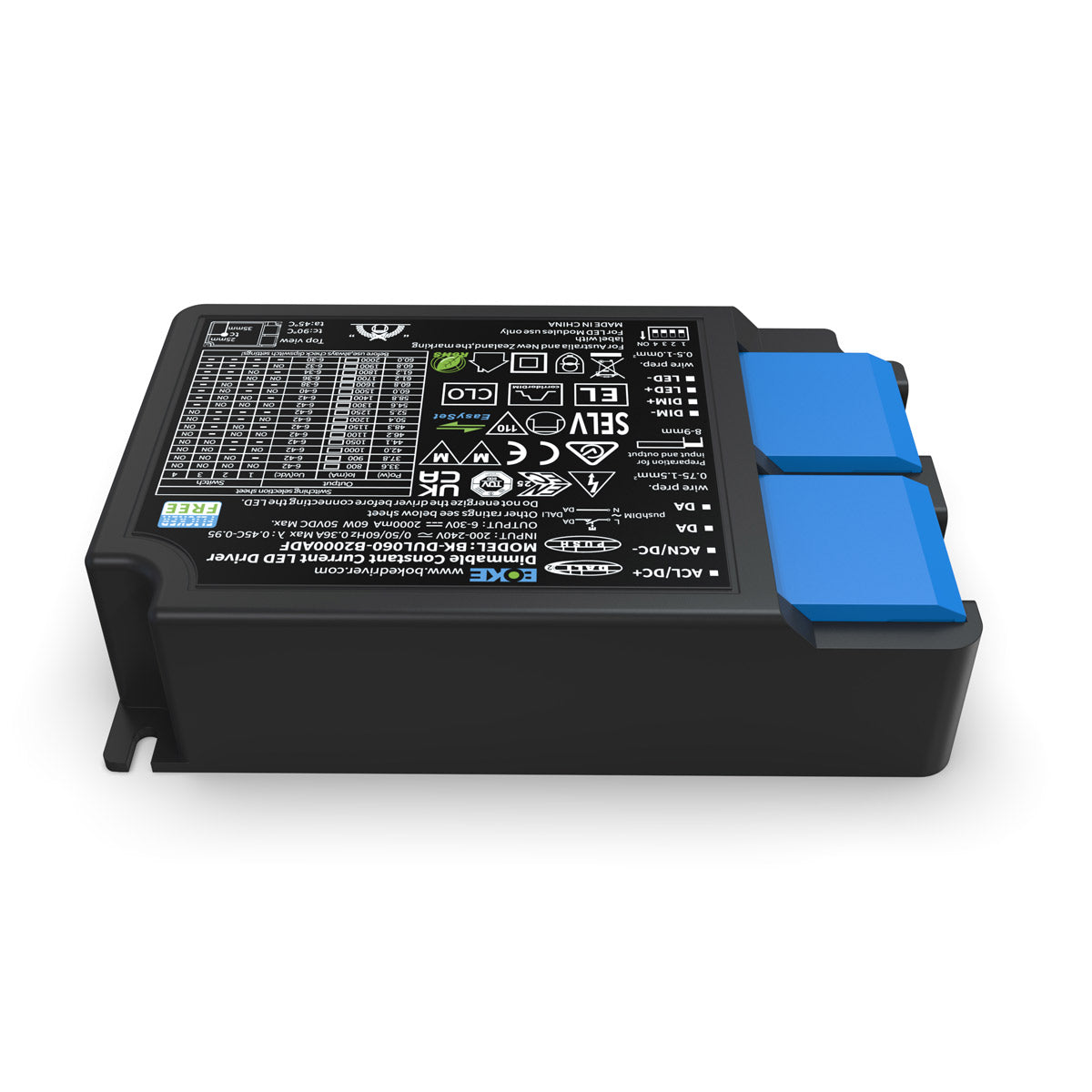

The 61w constant current driver dims by DALI, by push dimming from a simple switch, or by 0-10v. It runs on 220-240v and gives a 6-42v output with an adjustable current of 0.8-2A, set by DIP switch. It has short circuit, over-current and over-temperature protection, and draws less than 0.5w on standby. The driver measures 123 x 80 x 31mm, small enough to fit in a ceiling void.

Pick the colour

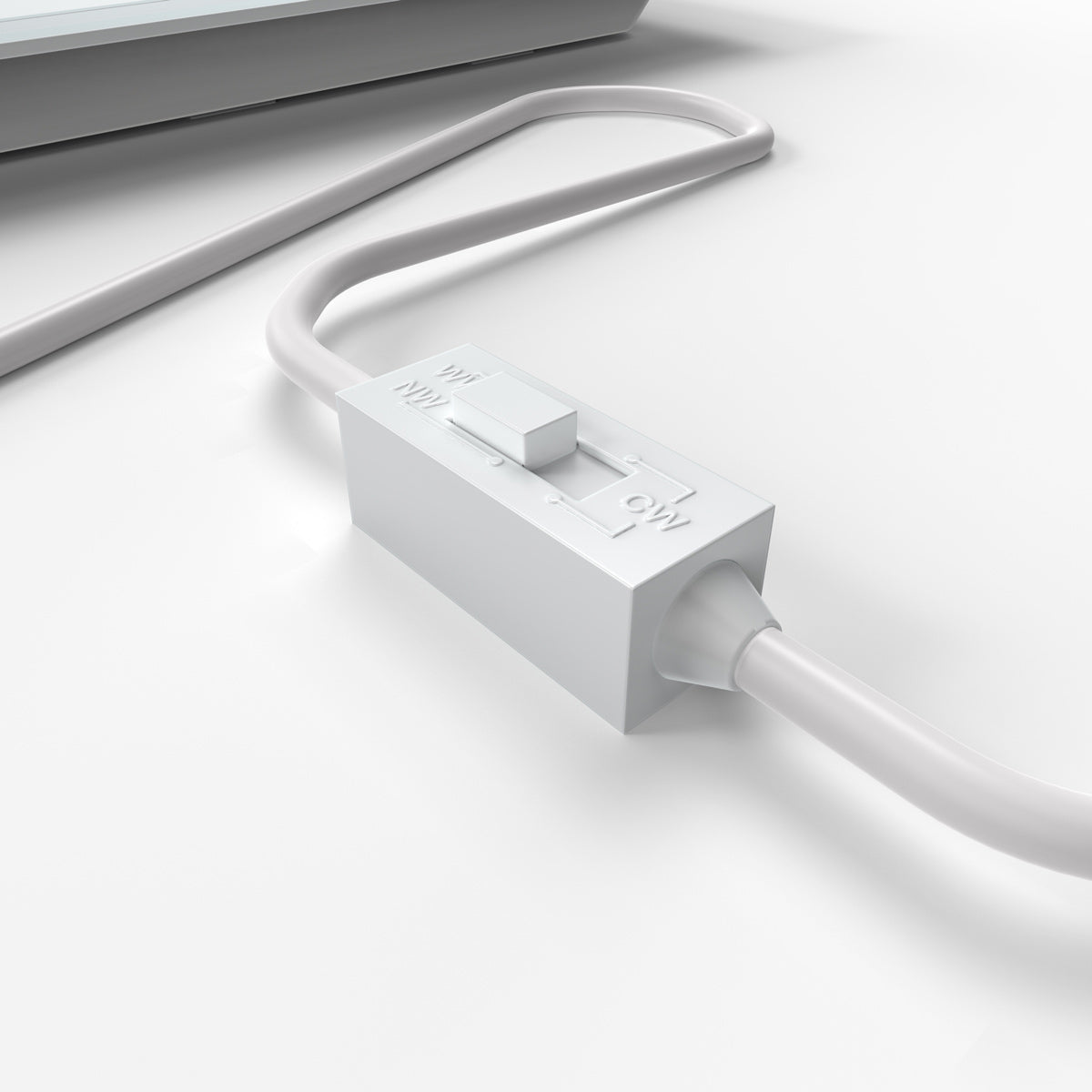

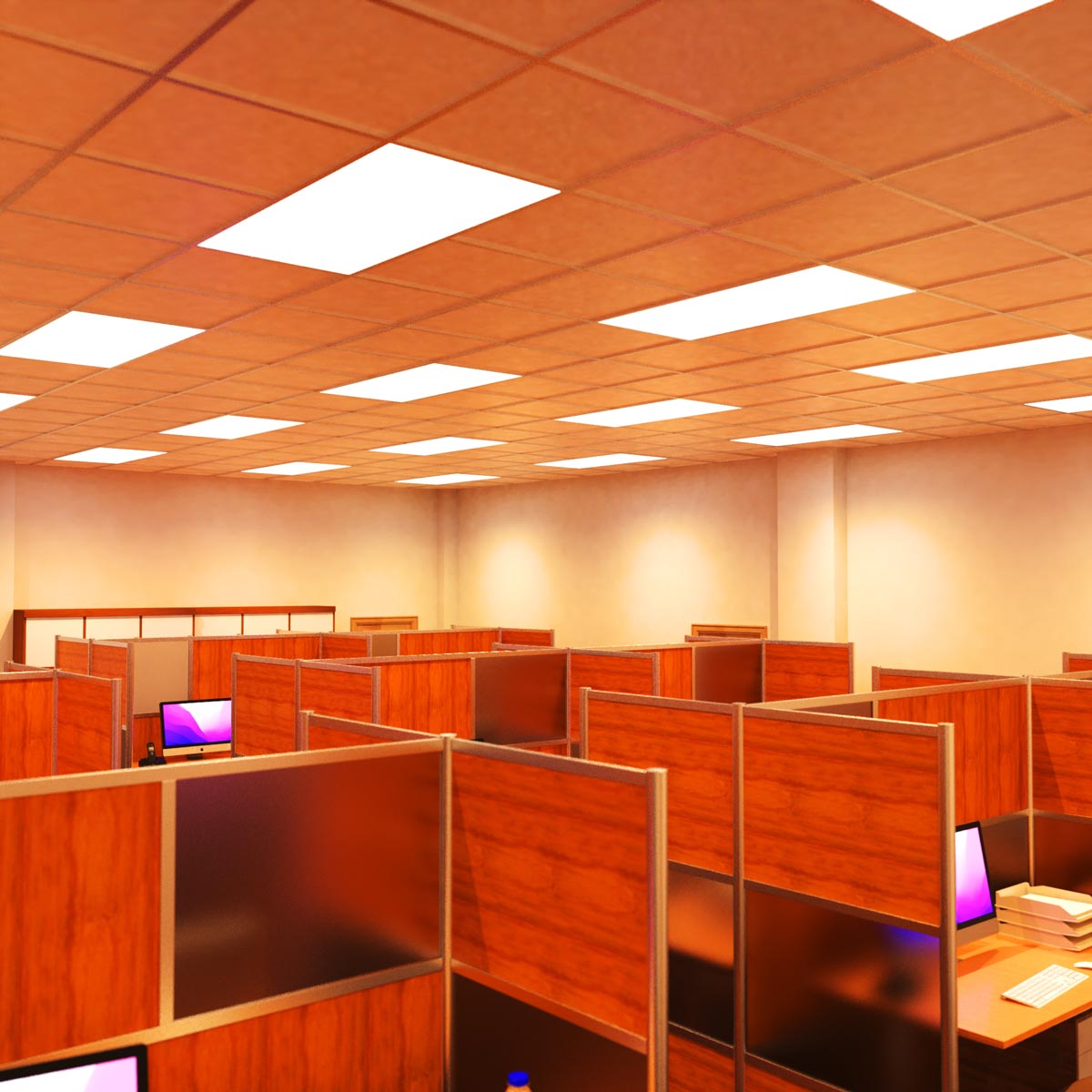

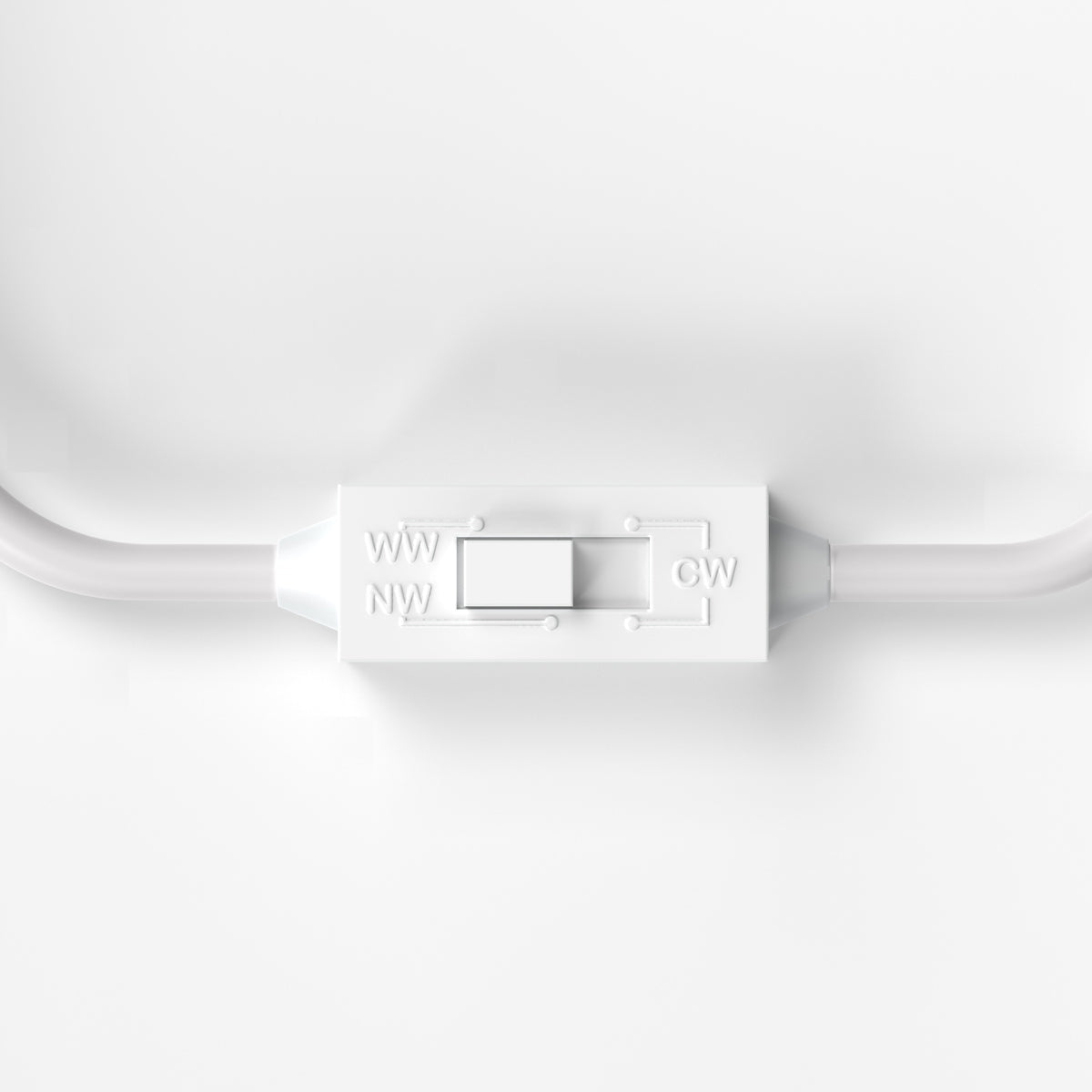

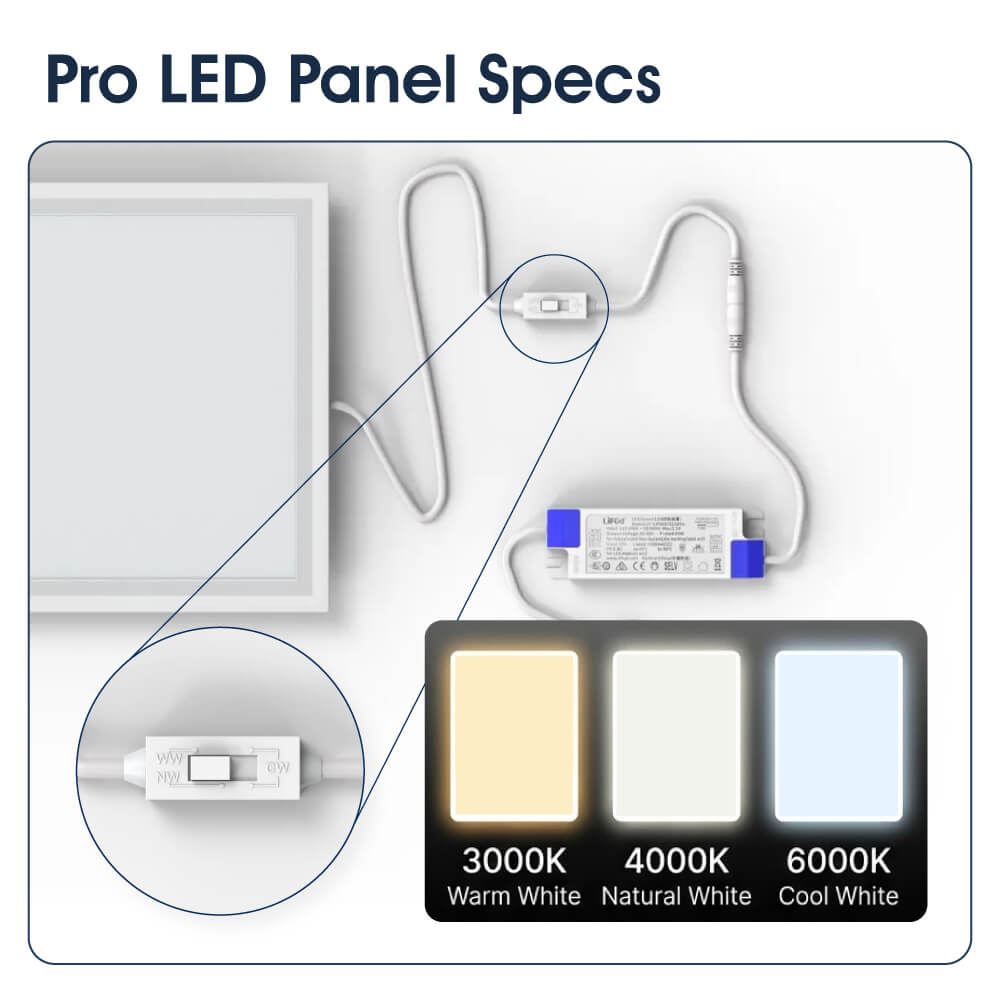

A switch on the panel sets the light to warm white (3000K), natural white (4000K) or cool white (6000K). Use cool white in offices and classrooms, natural white in shops and general areas, and warm white where a softer light suits. If a room changes use later, you change the switch, not the fitting.

Built to commercial standards

The panel is 32mm deep and drops into a standard recessed ceiling grid. It has a TP(a) fire-rated diffuser, is Class II and IP20, and gives flicker-free light with a CRI above 80. Rated life is 50,000 hours.

Other ways to fit it

A surface mounting frame, a suspension kit and an emergency conversion kit (3 hours of emergency light in a power cut) are sold separately.

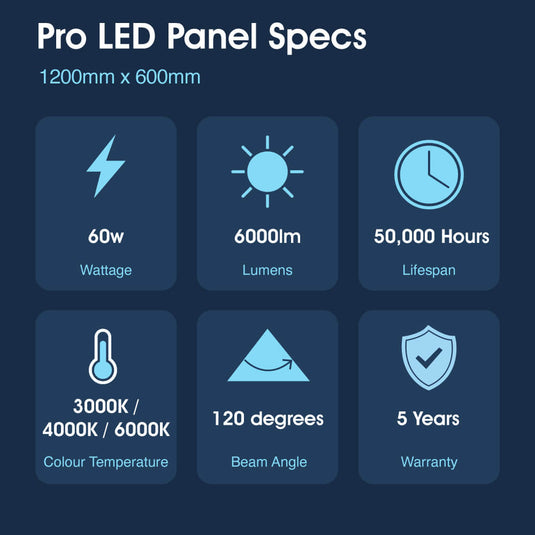

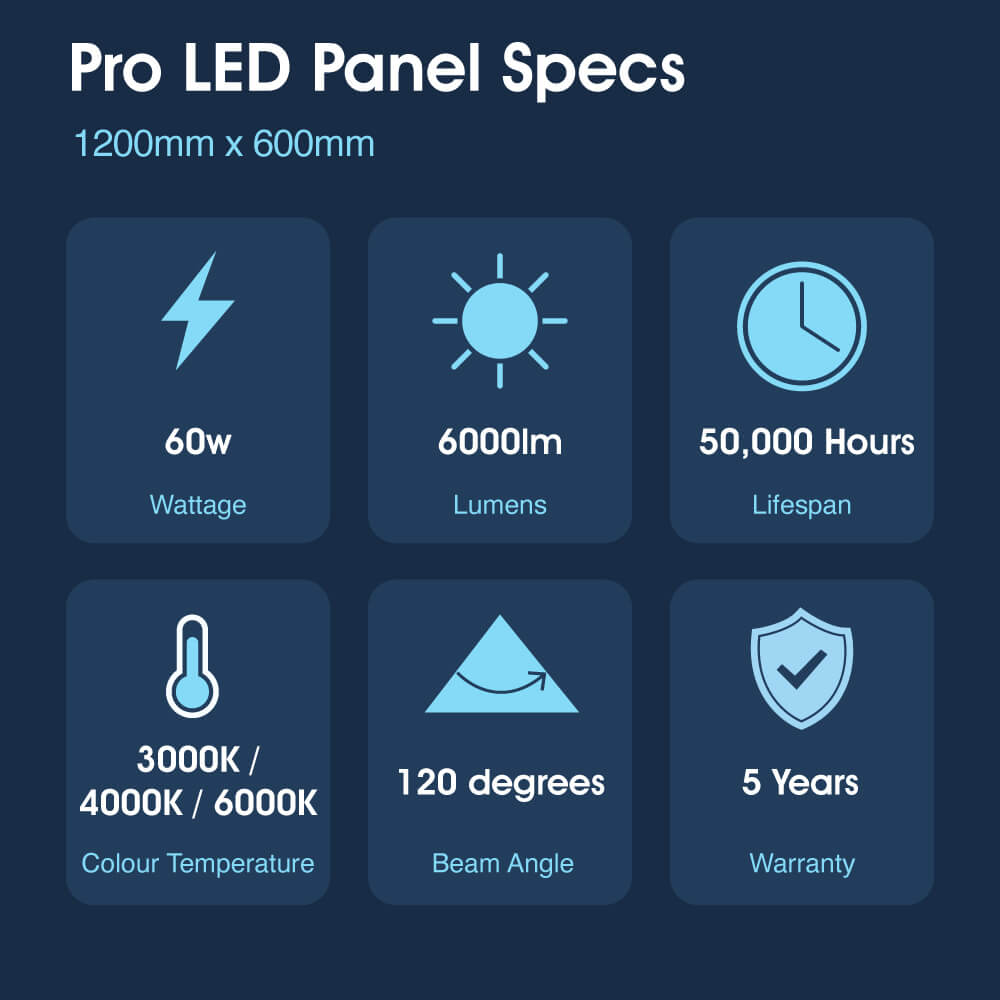

Specifications

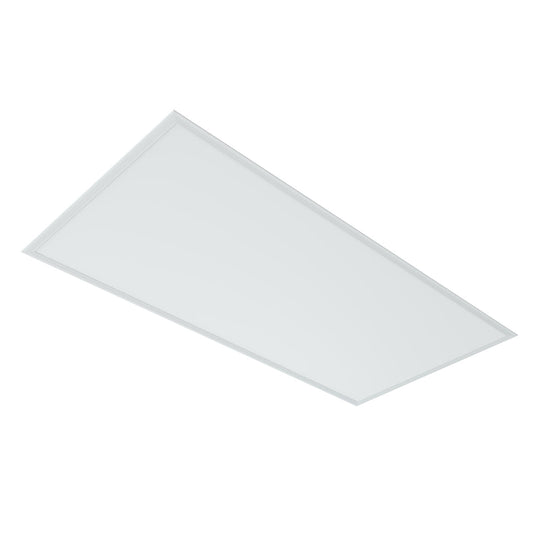

• Panel size: 1195 x 595mm (1200x600)
• Depth: 32mm
• Power: 60w
• Brightness: 6000 lumens
• Efficacy: 100 lumens per watt
• Beam angle: 120°
• Colour: switchable, 3000K, 4000K or 6000K
• CRI: above 80
• Diffuser: TP(a) fire rated
• Class: II
• IP rating: IP20
• Driver: 61w DALI 2, constant current
• Dimming: DALI, push dimming or 0-10v
• Driver input: 220-240v
• Driver output: 6-42v, 0.8-2A
• Driver size: 123 x 80 x 31mm
• Rated life: 50,000 hours
