1200x300 LED Panel with DALI Dimmable Driver, 40w, 4000 Lumens, Colour Switchable

A long panel with DALI control

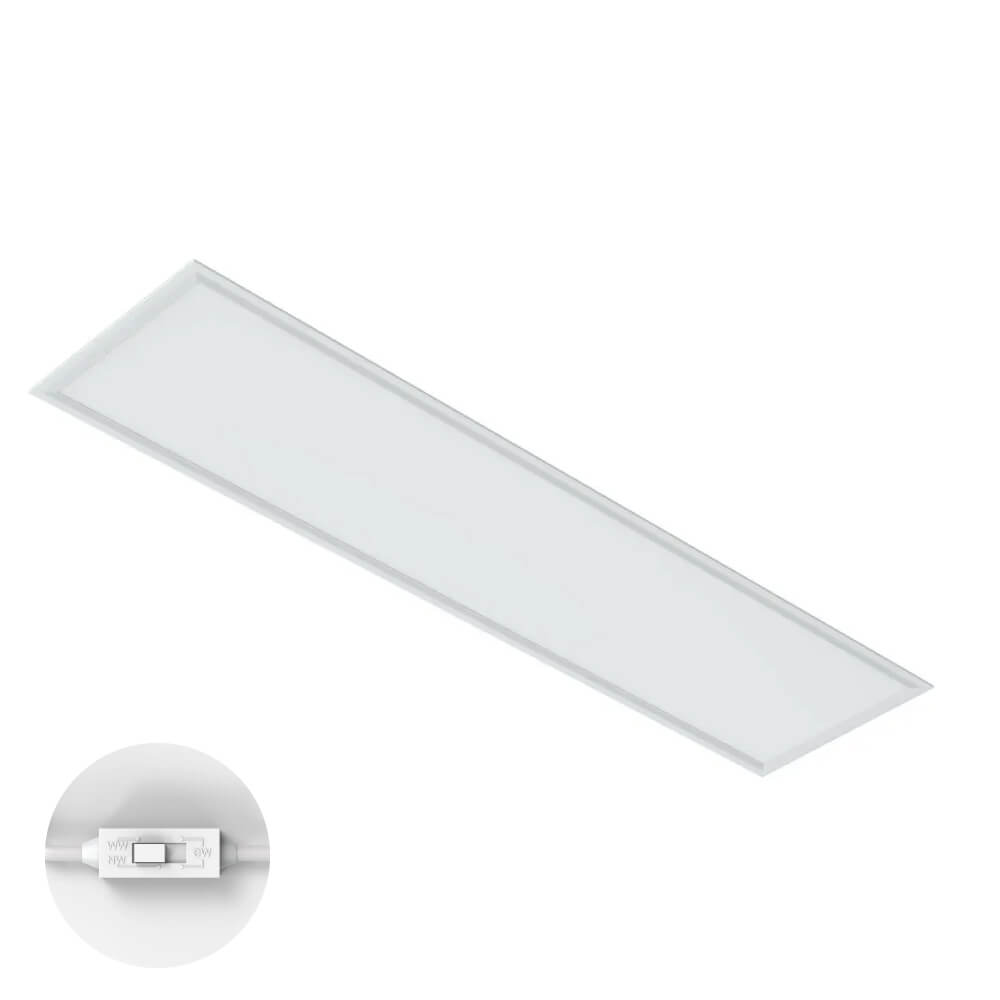

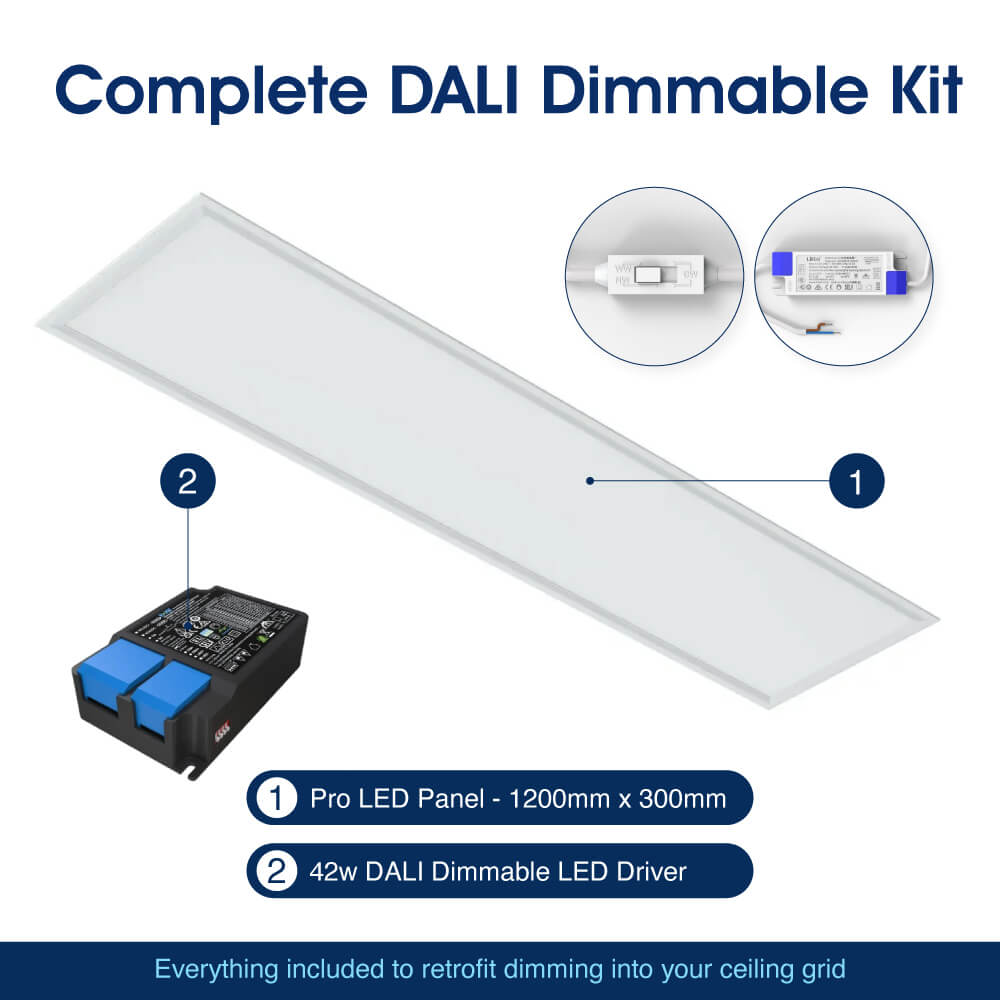

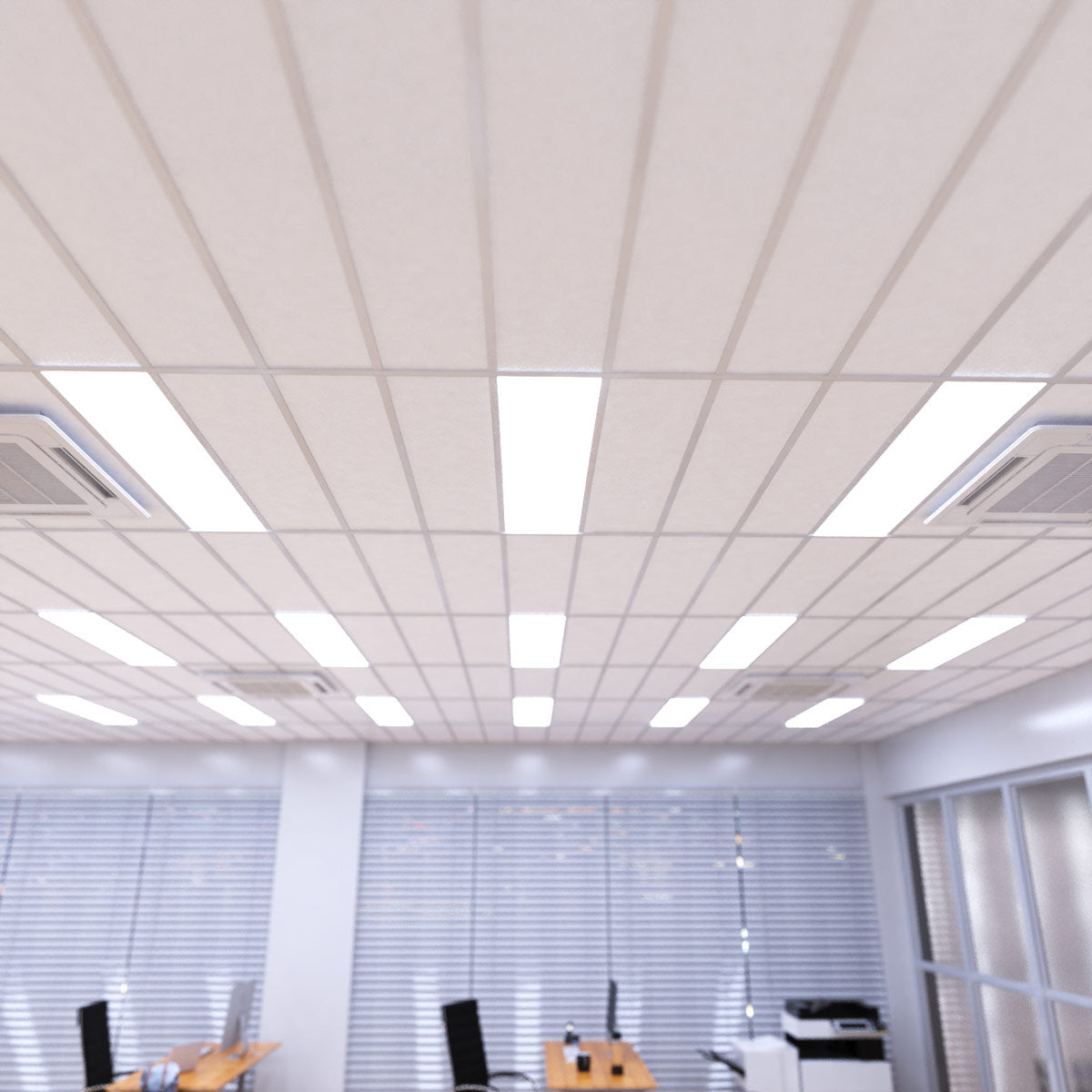

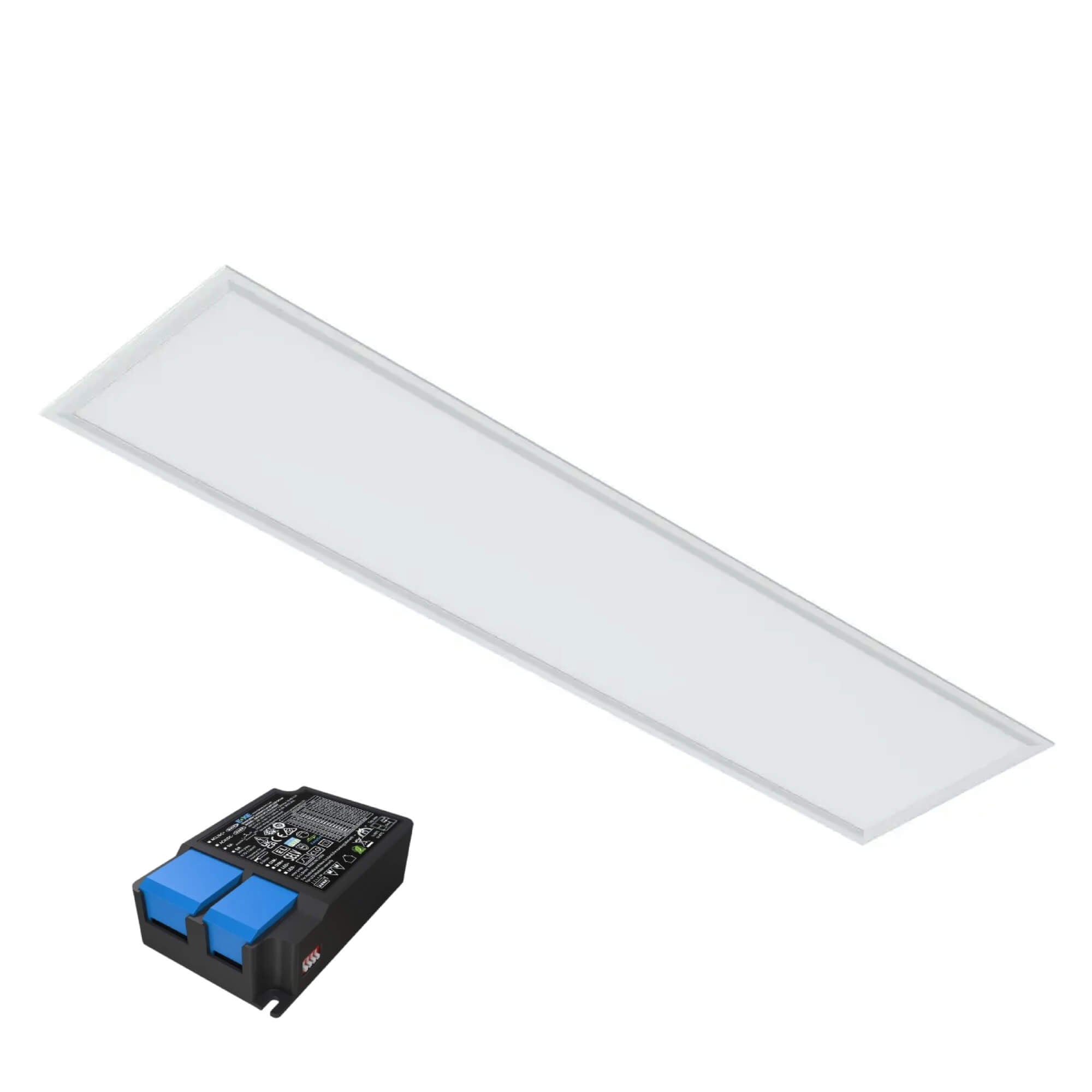

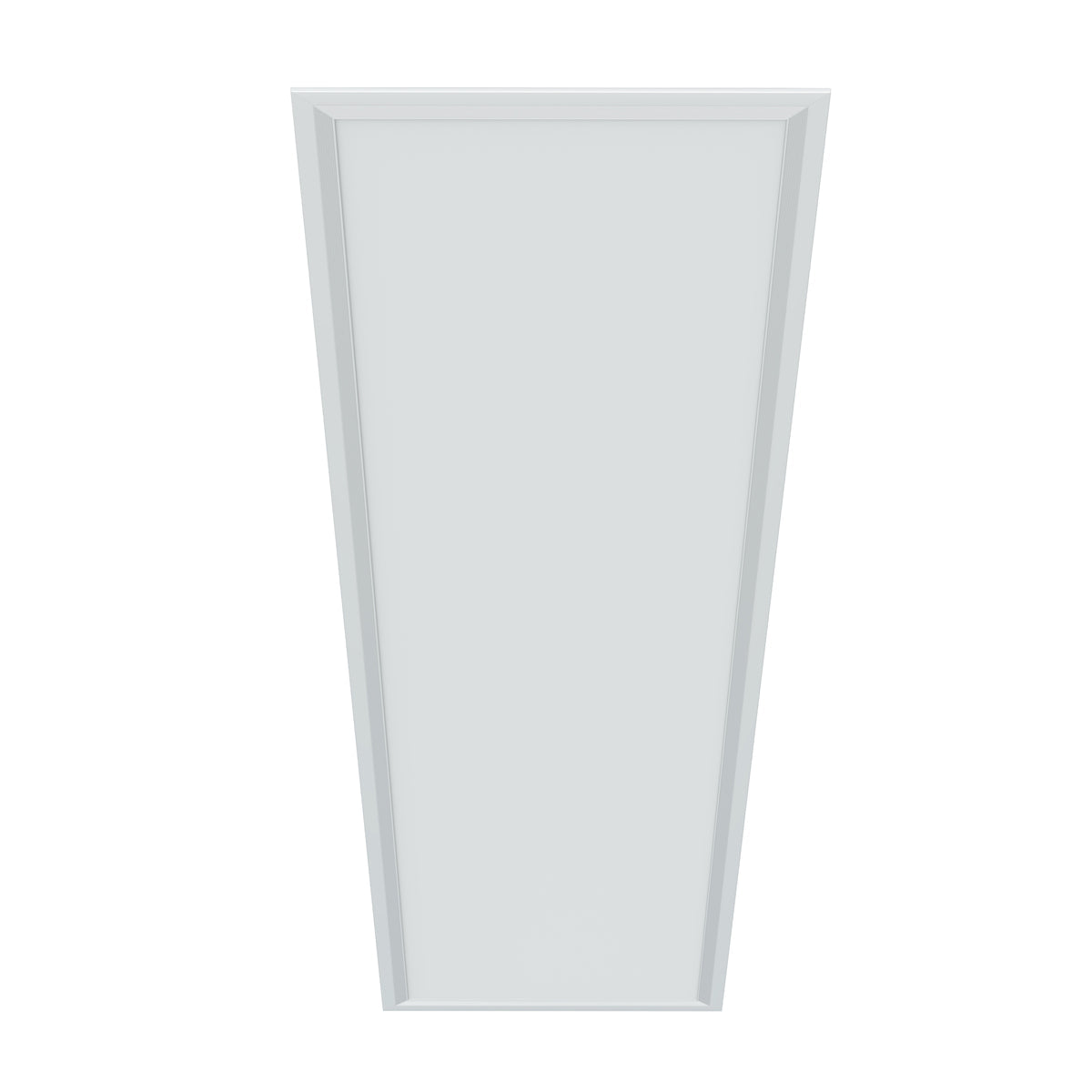

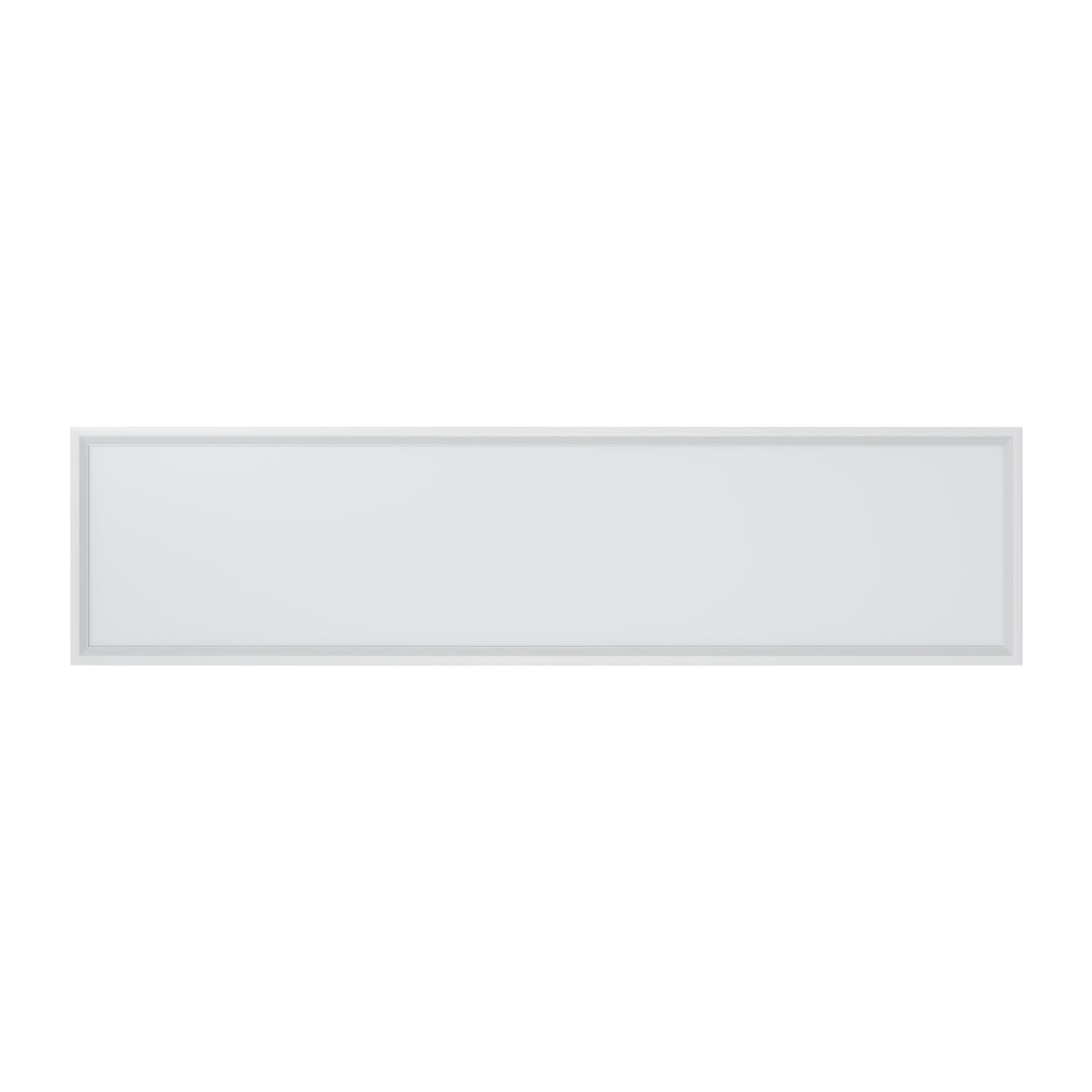

This 1200x300 LED panel comes as a kit with its own DALI dimmable driver. Its long, narrow shape suits linear ceiling layouts in offices, schools, corridors and shops, and it works with a lighting control or building management system. The panel gives 4000 lumens from 40w over a wide 110° beam, so desks, shelving and walkways are lit evenly without hotspots.

Three ways to dim

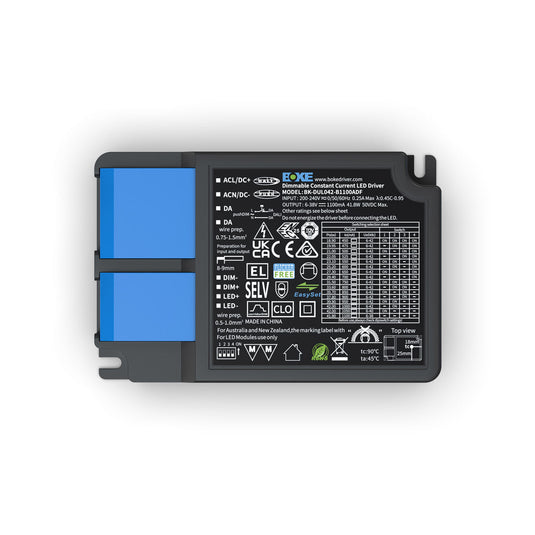

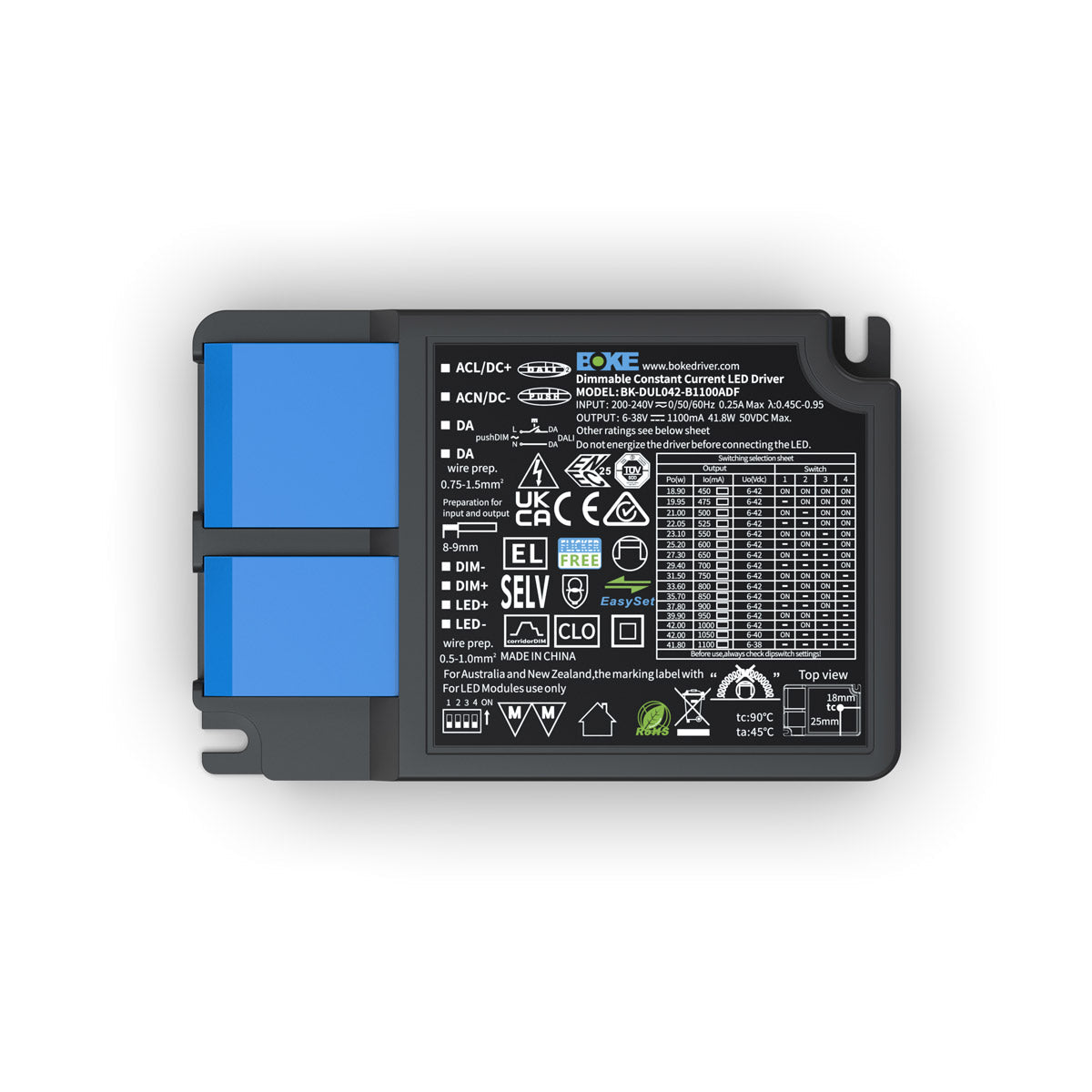

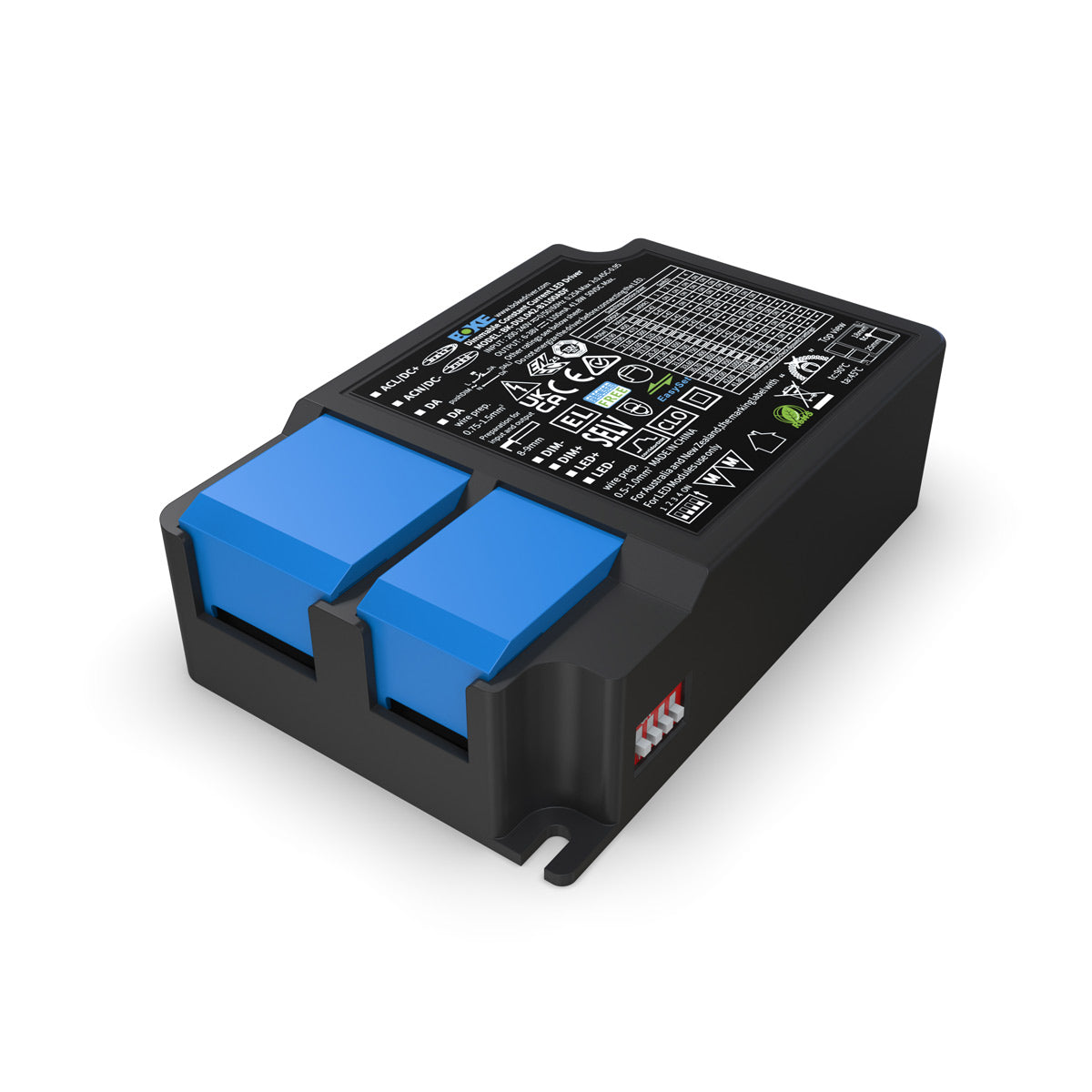

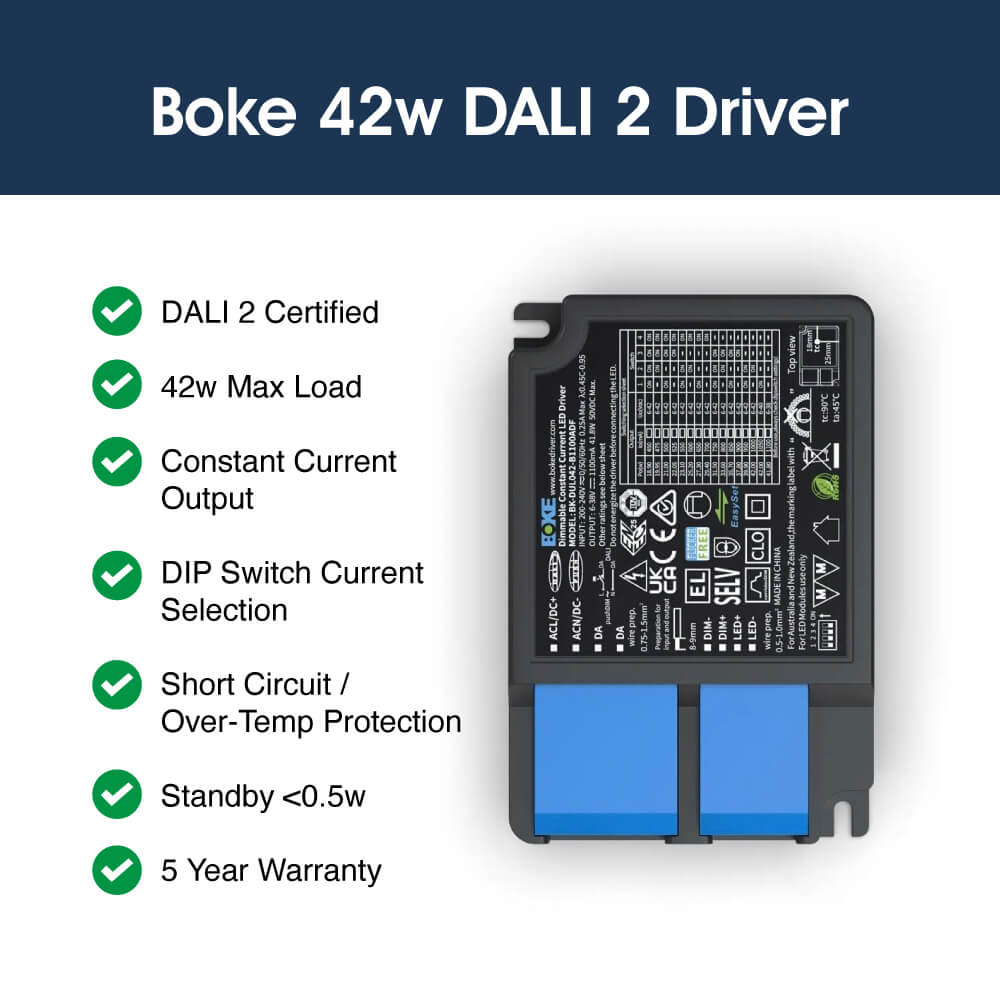

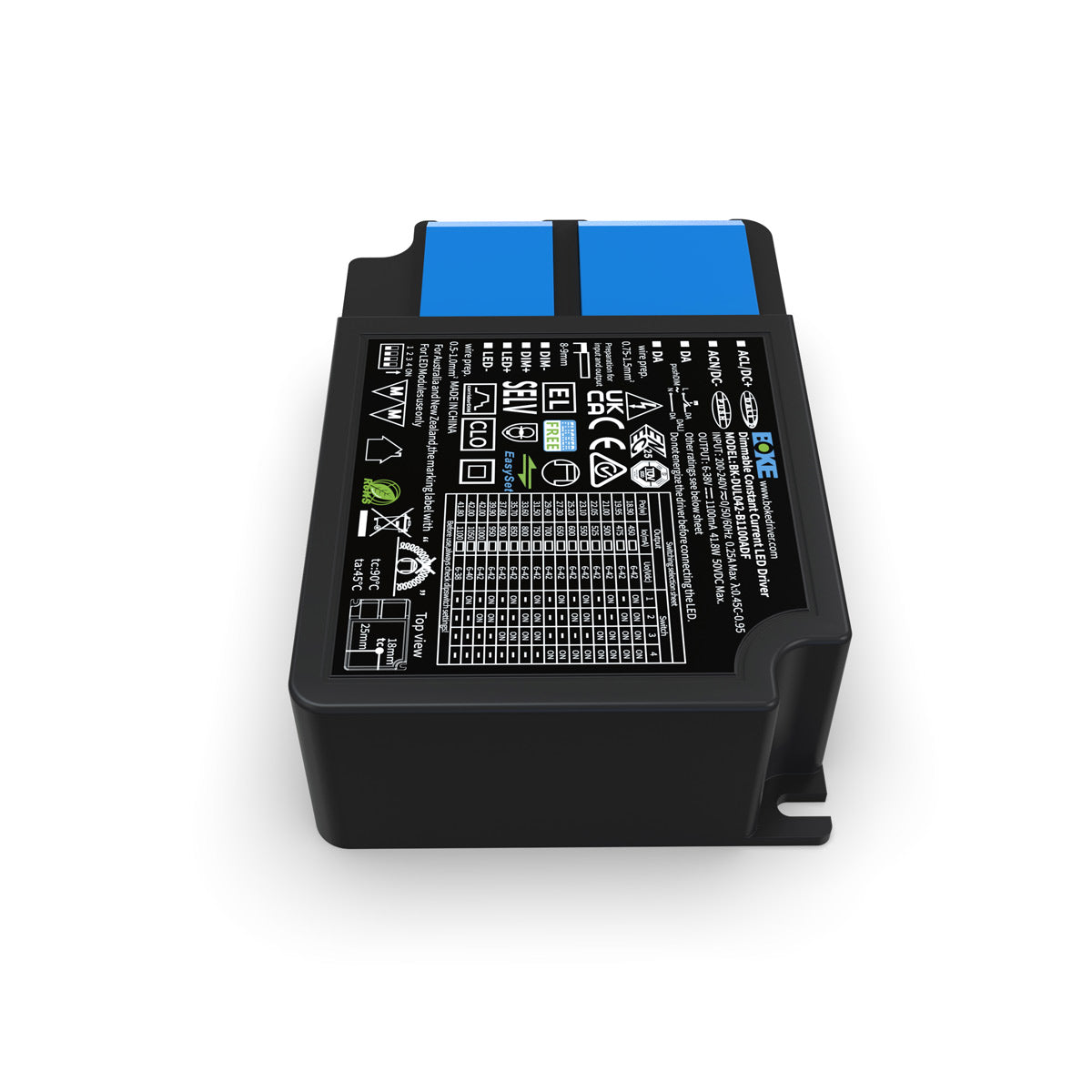

The 42w driver dims by DALI, by push dimming from a standard switch, or by 0-10v. It runs on 220-240v and gives a 6-42v output with an adjustable current of 0.45-1.1A. It has short circuit, over-current and over-temperature protection, and draws less than 0.5w on standby. The driver wires straight to the mains, so no other parts are needed.

Pick the colour

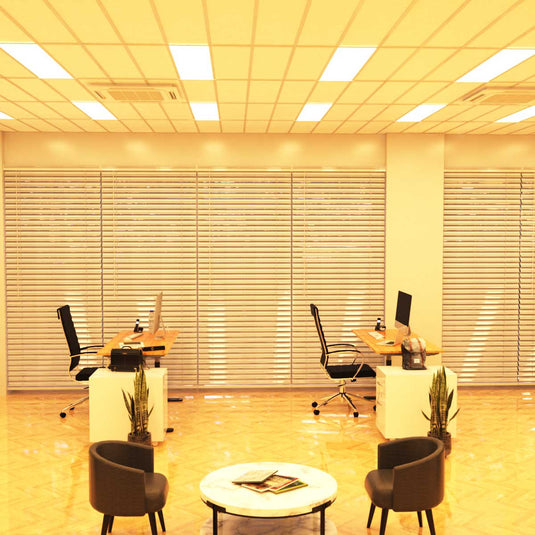

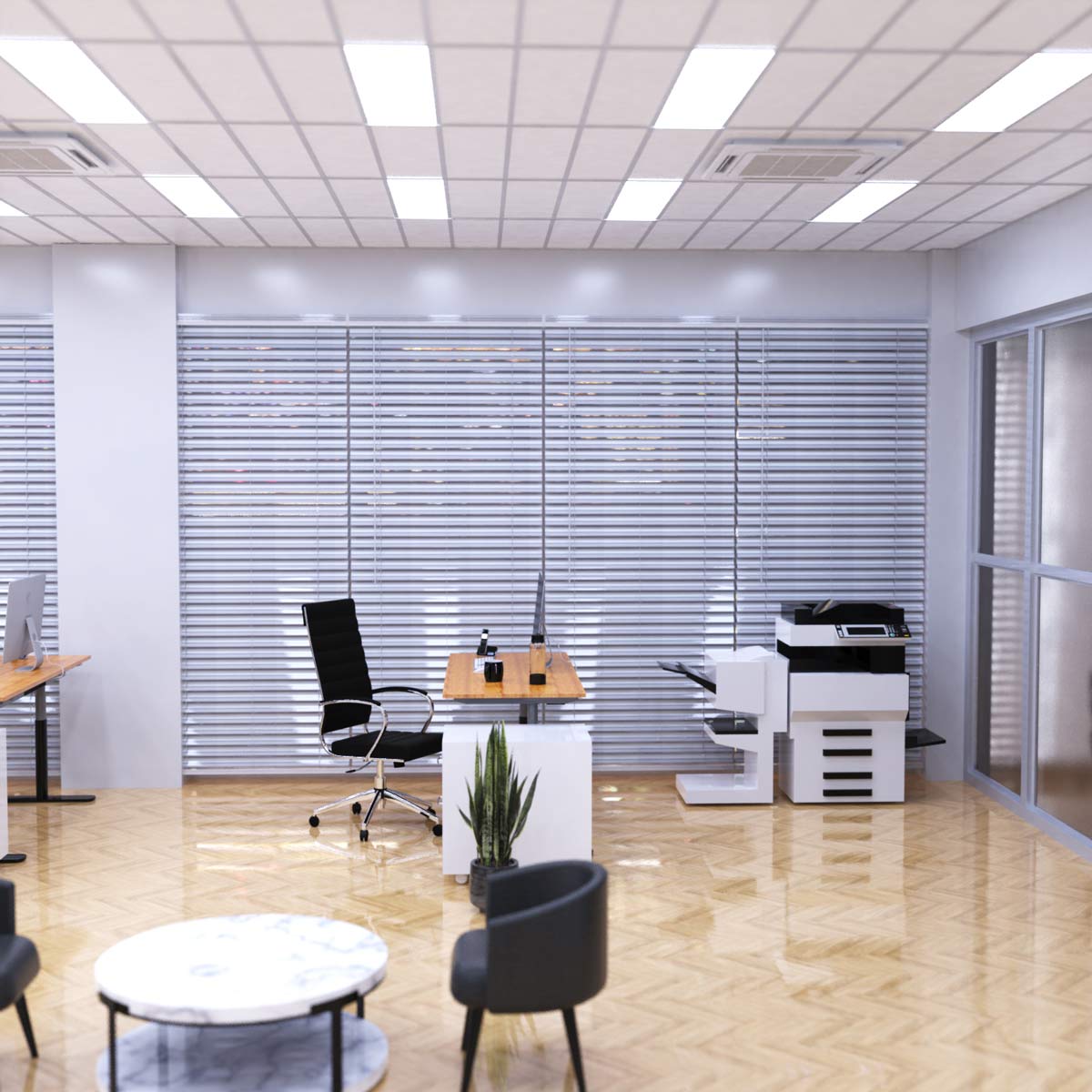

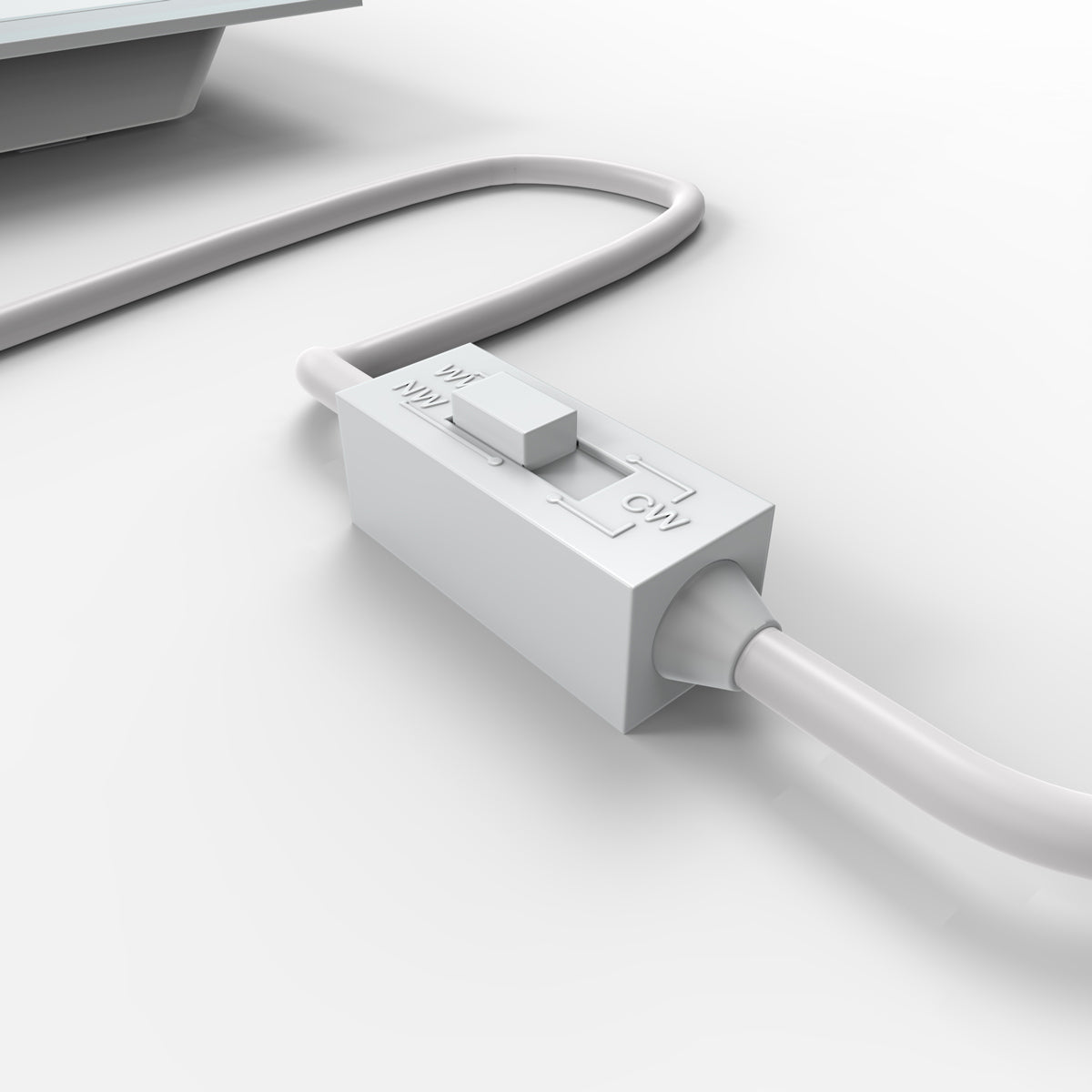

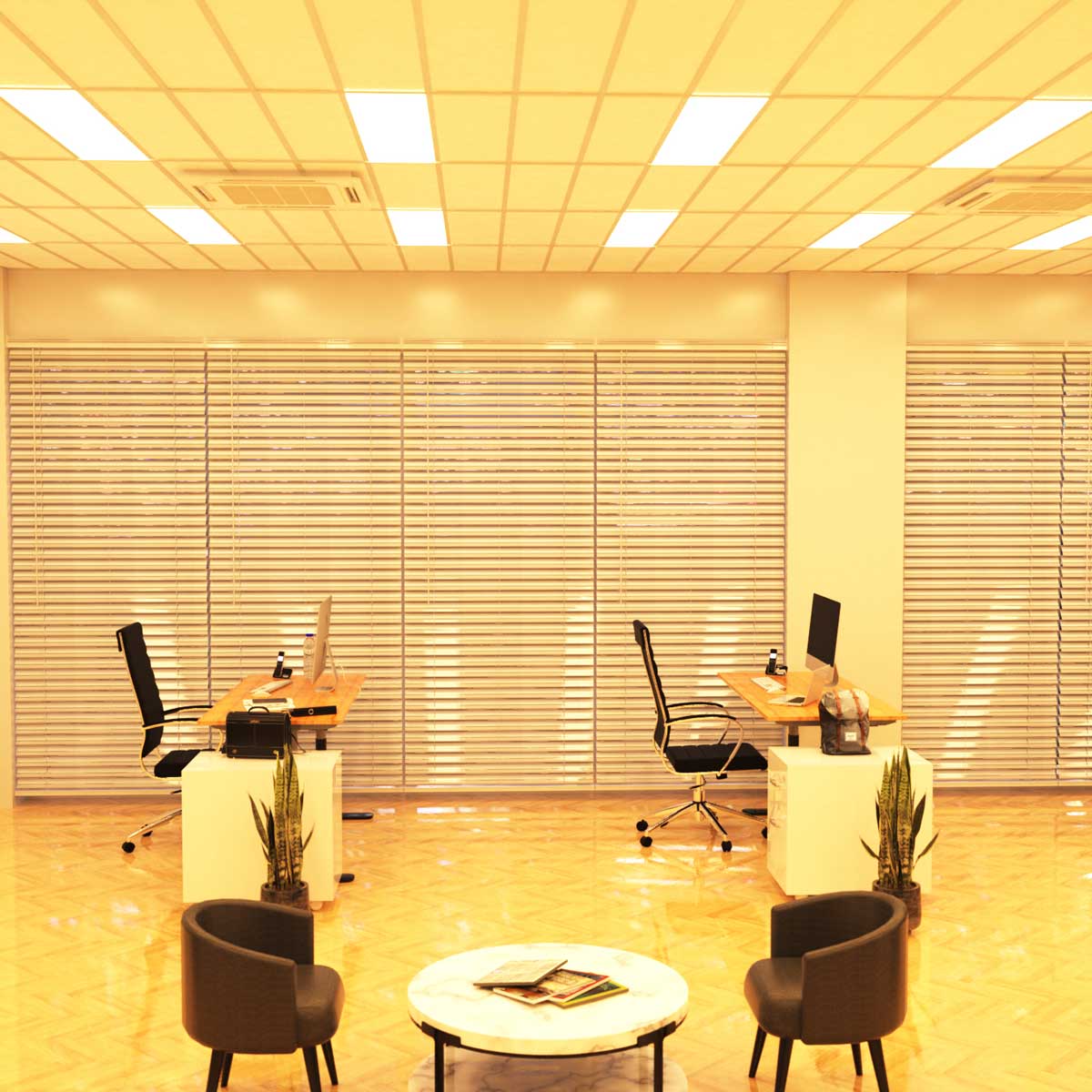

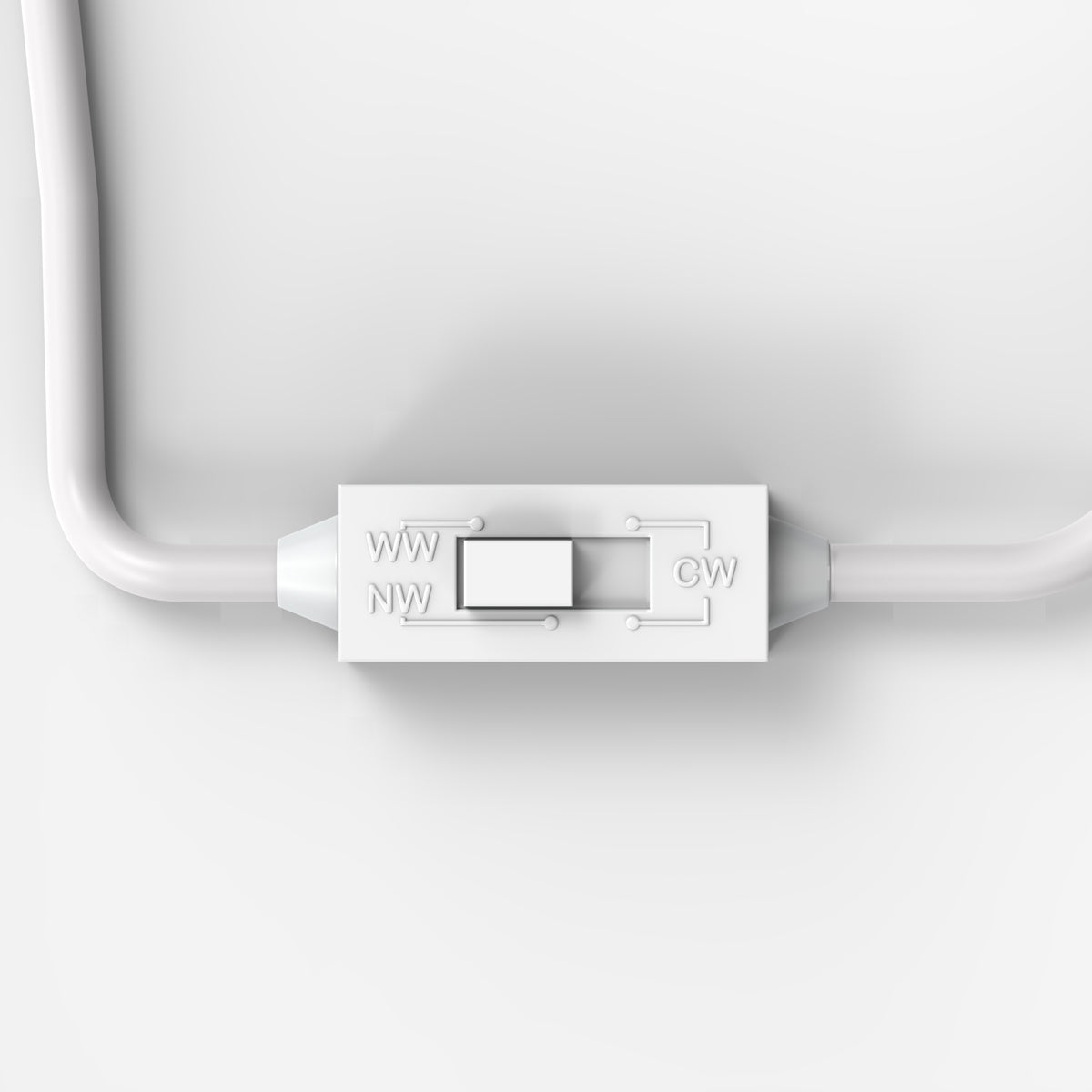

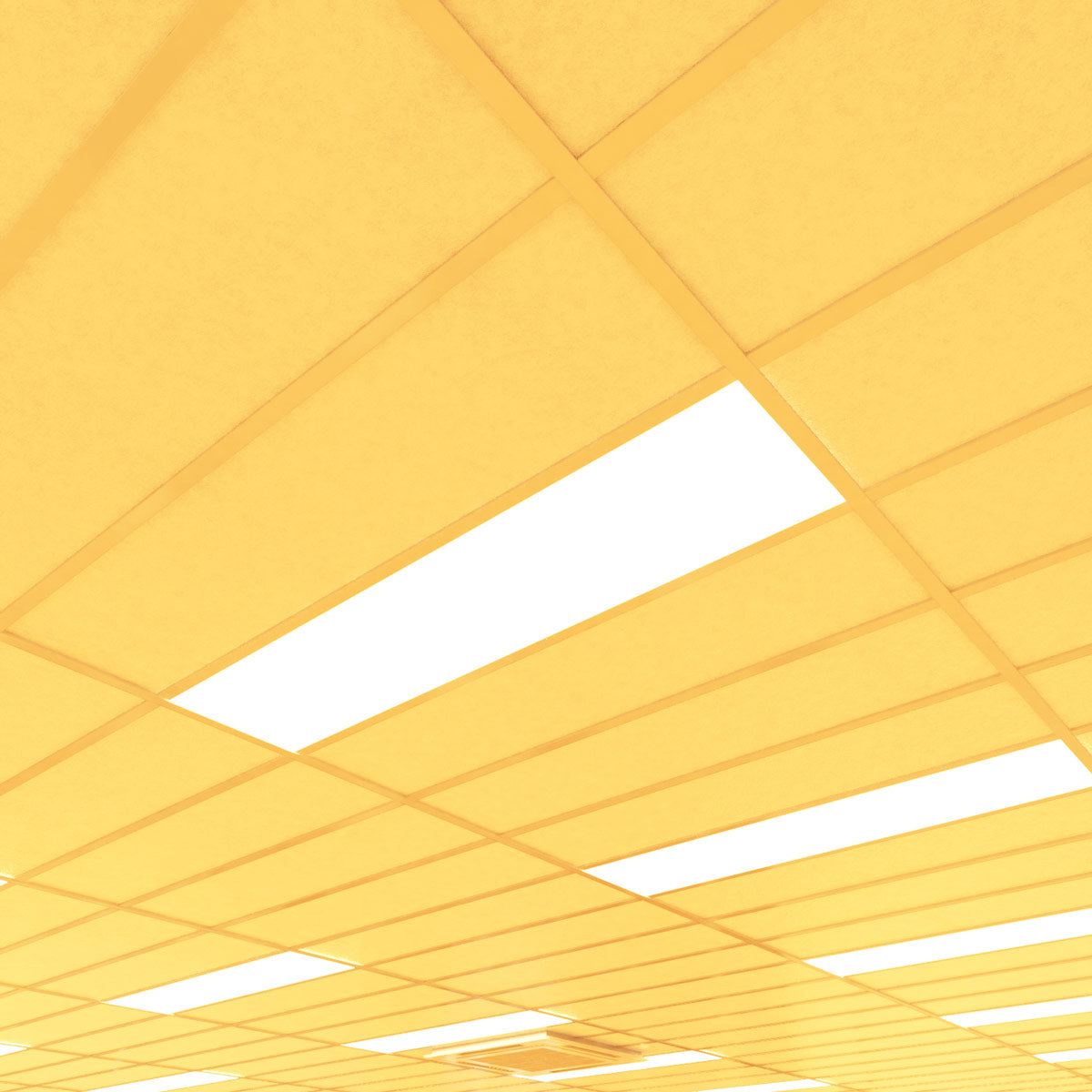

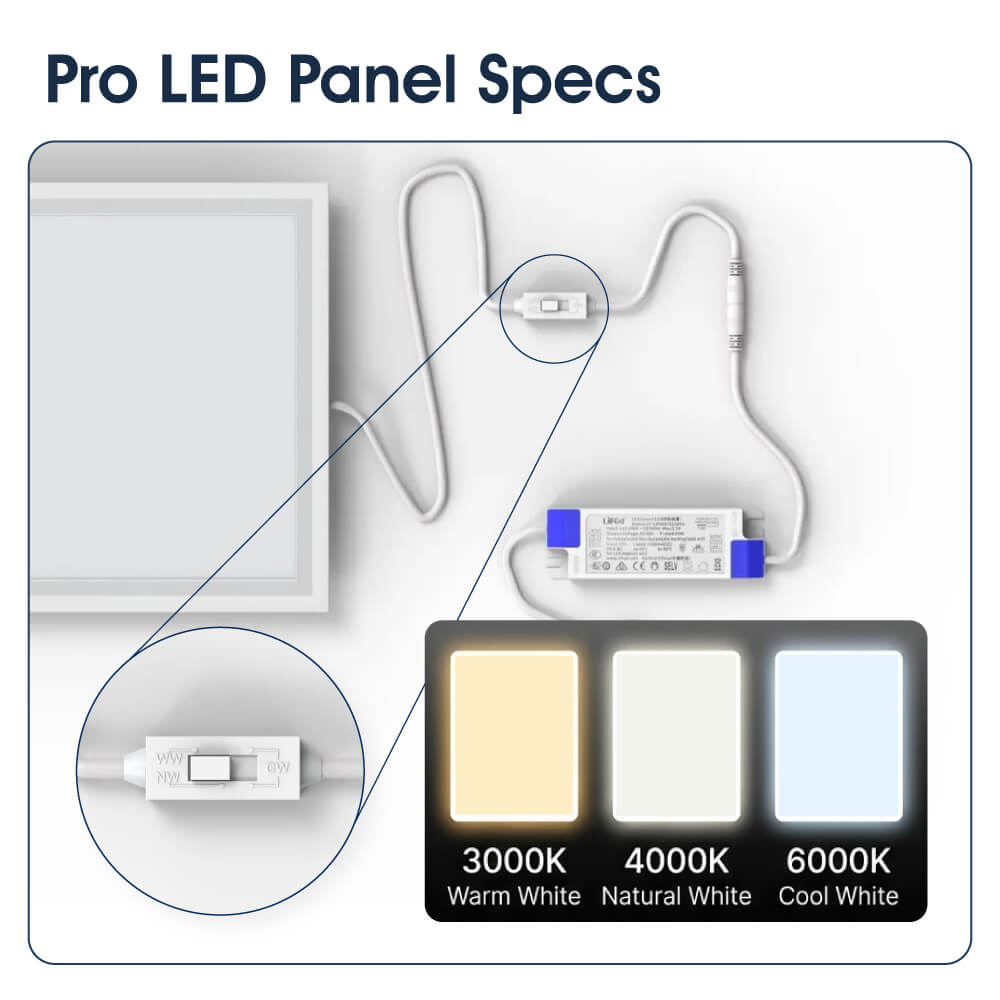

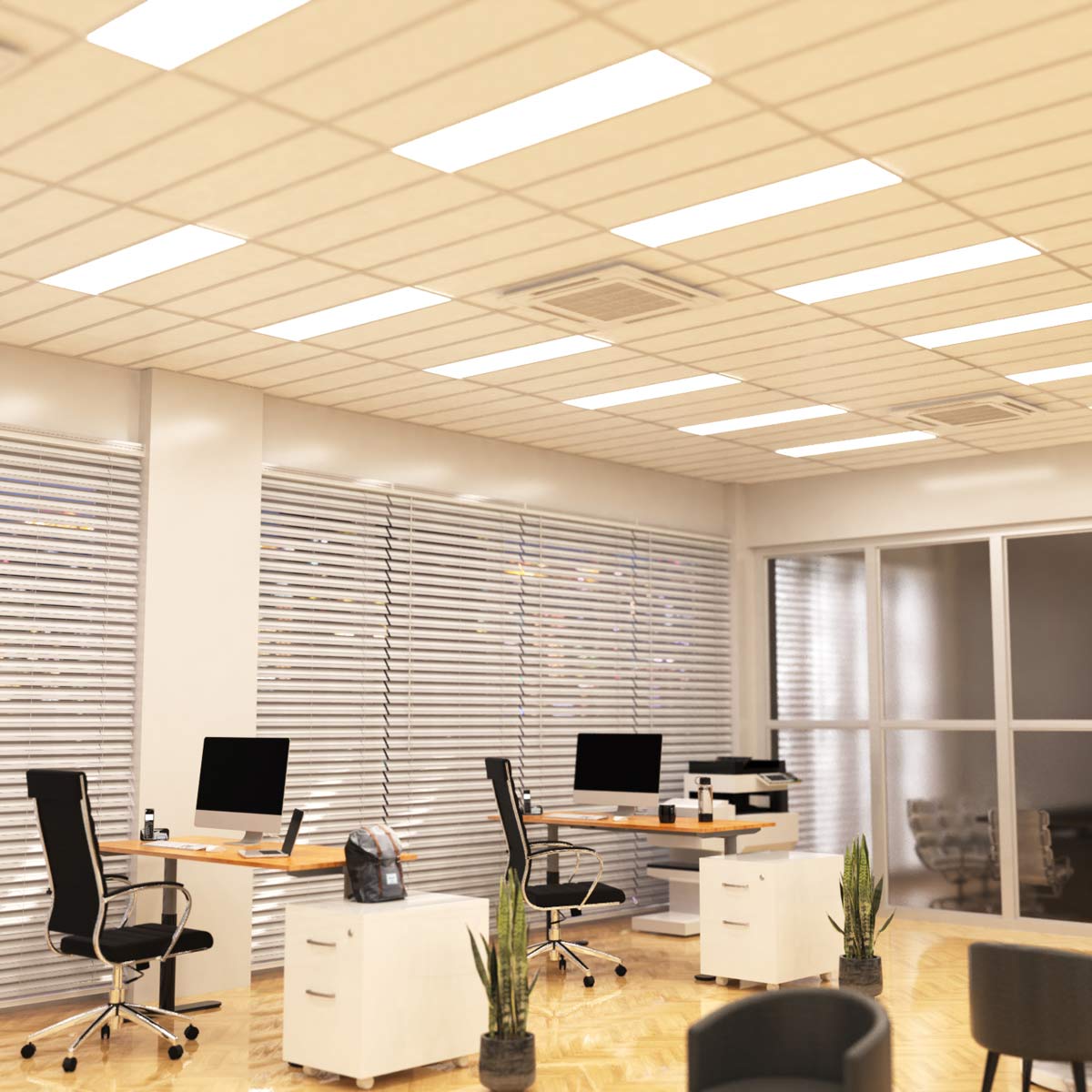

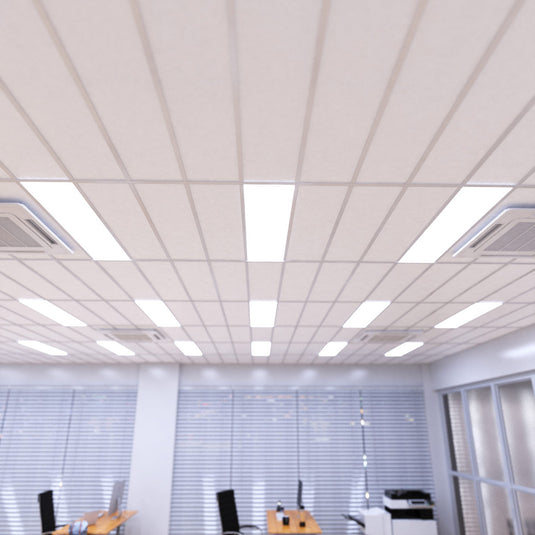

A switch on the panel sets the light to warm white (3000K), natural white (4000K) or cool white (6000K) at installation. Use cool white in offices and classrooms, natural white in general areas, and warm white in receptions and breakout spaces. One panel covers all three, so you only stock one fitting.

Built to commercial standards

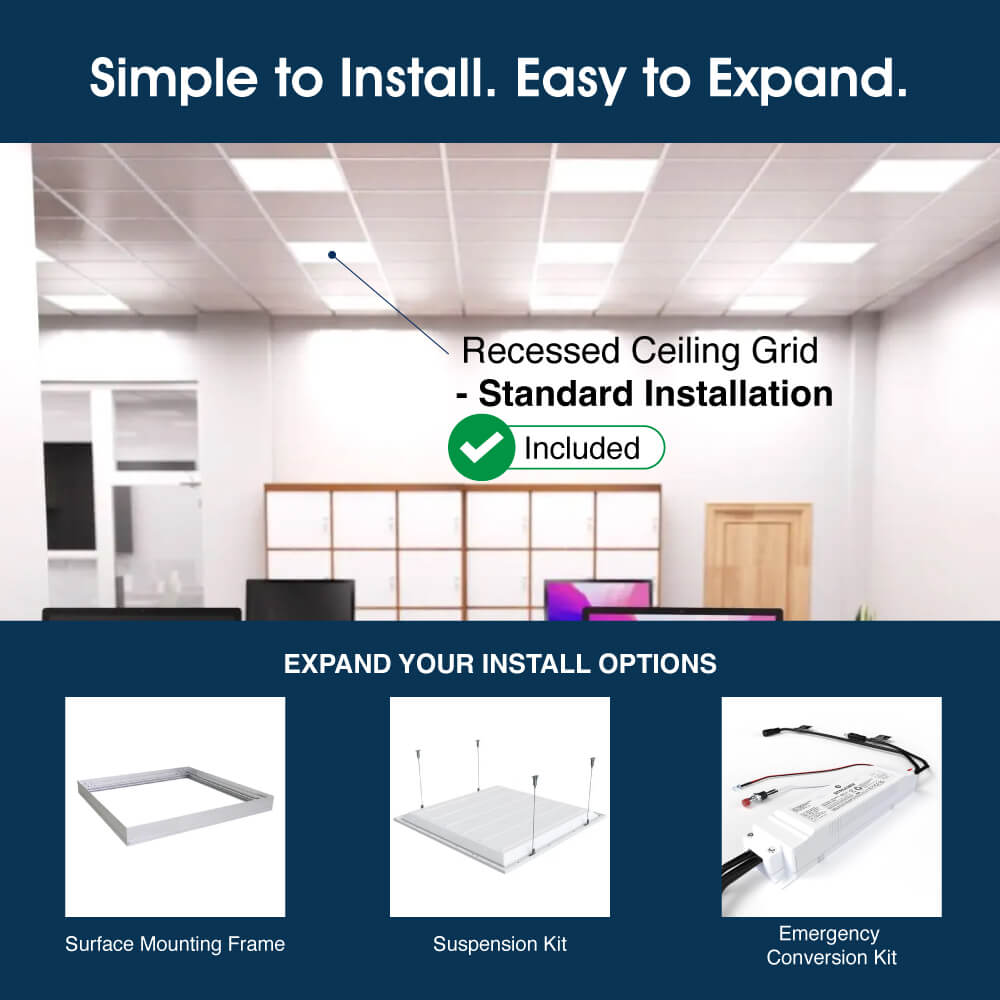

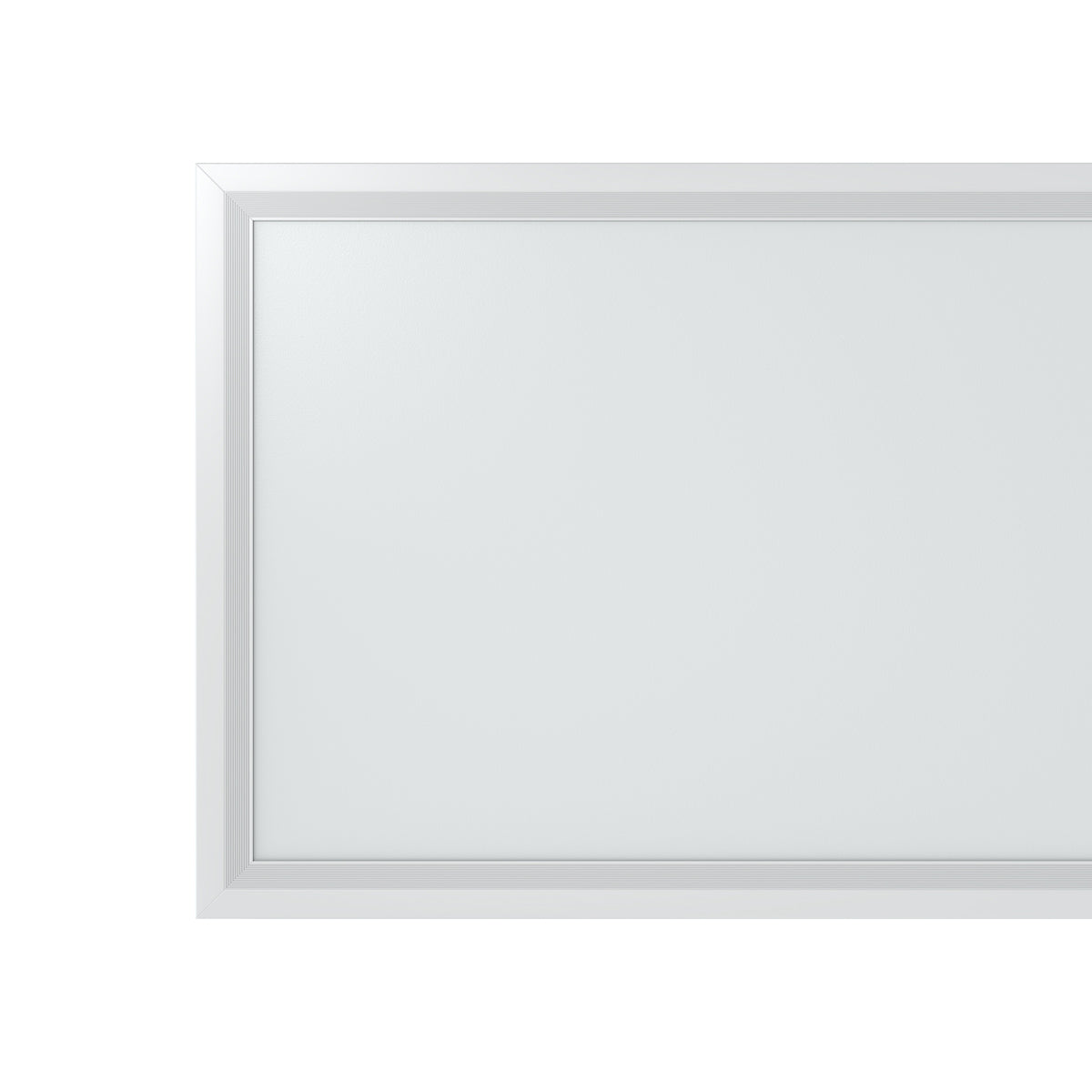

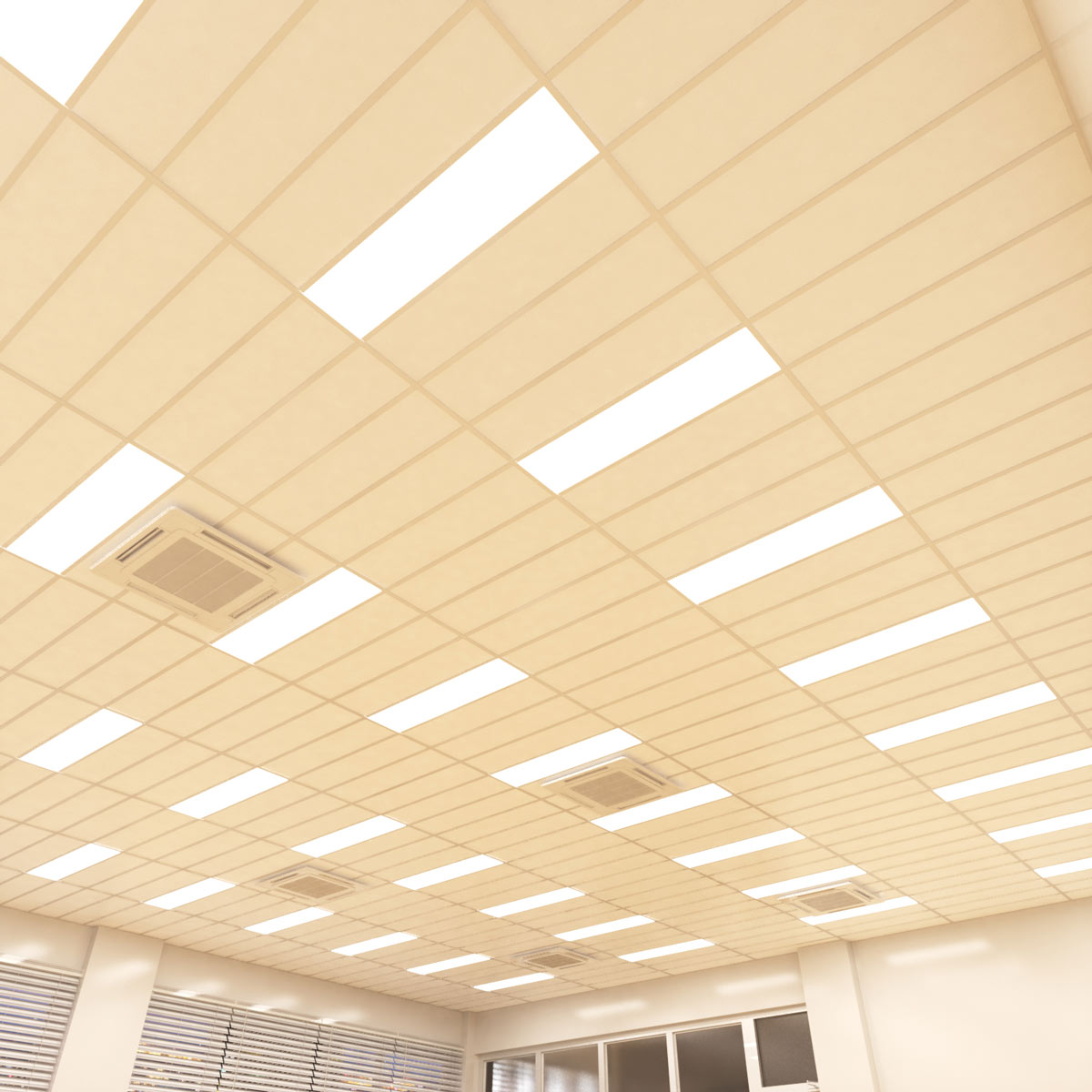

The panel is 34mm deep and drops into a standard suspended ceiling grid. It has a TP(a) fire-rated diffuser, which is self-extinguishing and limits flame spread, for buildings under fire regulations. It is IP20 for dry indoor areas, gives flicker-free light with a CRI above 80, and has a rated life of 30,000 hours.

Other ways to fit it

A suspension kit, a surface mounting frame and an emergency conversion kit are sold separately.

Specifications

• Panel size: 1200 x 300mm
• Depth: 34mm
• Power: 40w
• Brightness: 4000 lumens
• Beam angle: 110°
• Colour: switchable, 3000K, 4000K or 6000K
• CRI: above 80
• Diffuser: TP(a) fire rated
• IP rating: IP20
• Driver: 42w DALI dimmable
• Dimming: DALI, push dimming or 0-10v
• Driver input: 220-240v
• Driver output: 6-42v, 0.45-1.1A
• Standby power: below 0.5w
• Rated life: 30,000 hours
