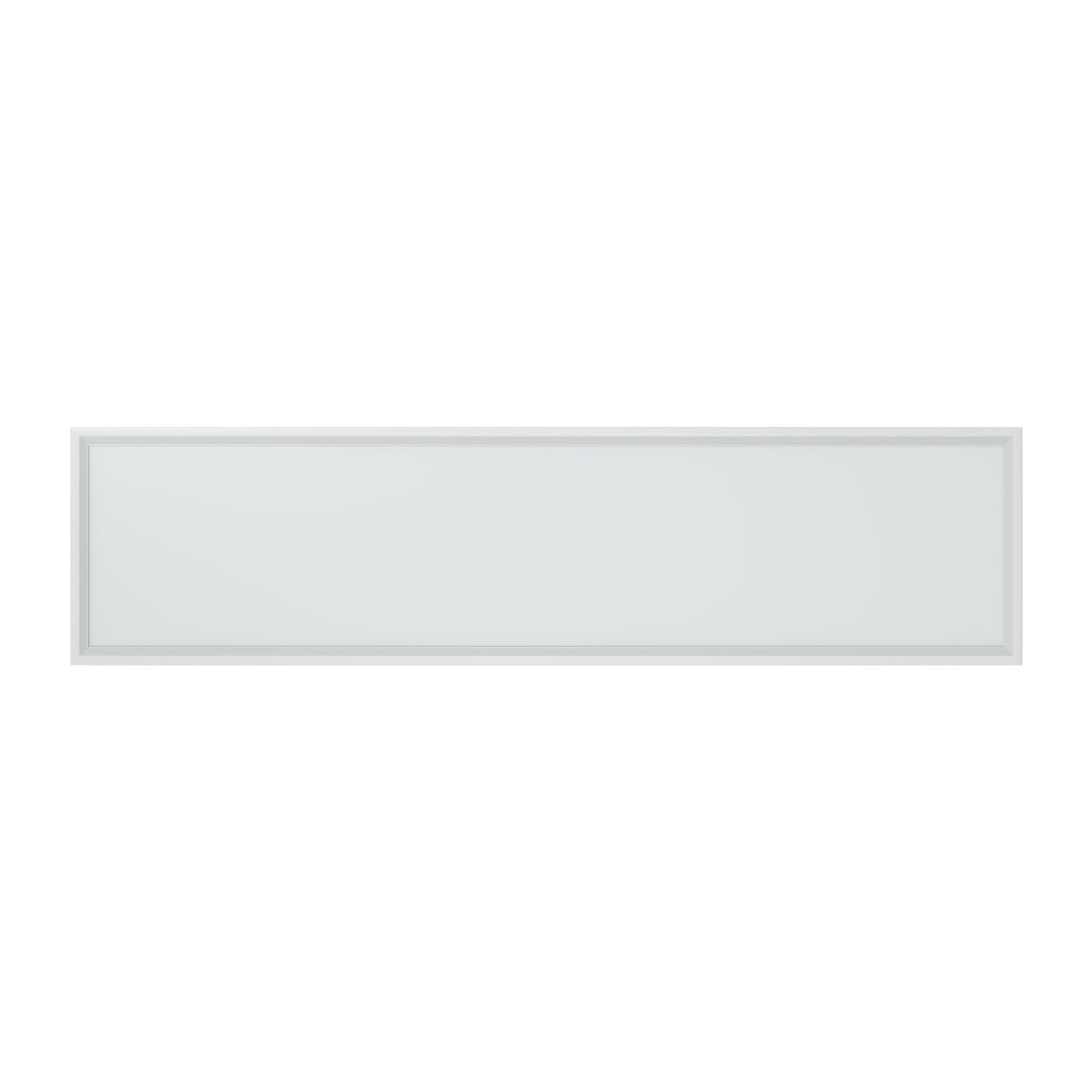

1200x300 Back-Lit LED Panel with DALI Dimmable Driver, 40w, 4000 Lumens, Cool or Natural White

A long commercial panel with DALI control

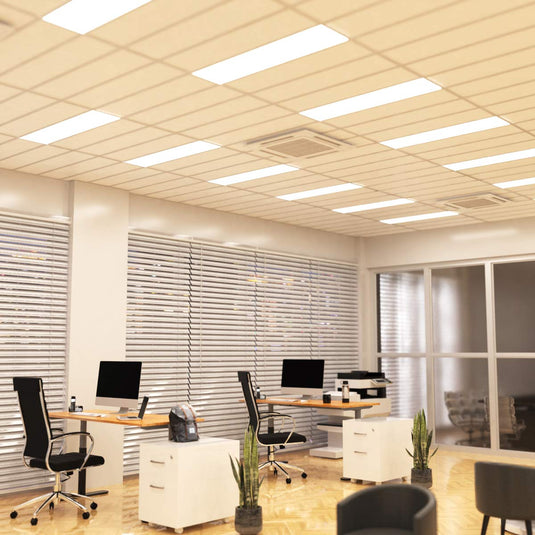

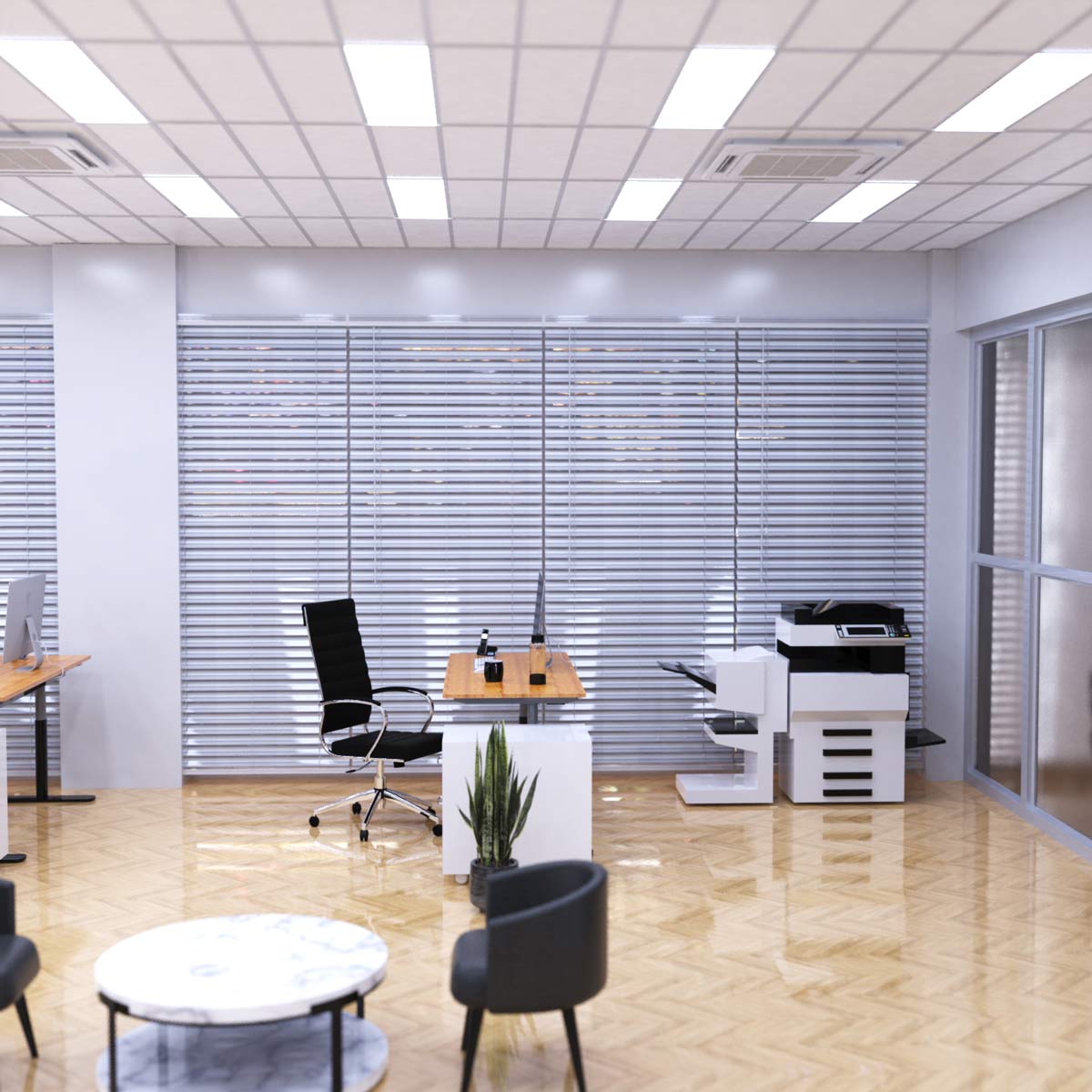

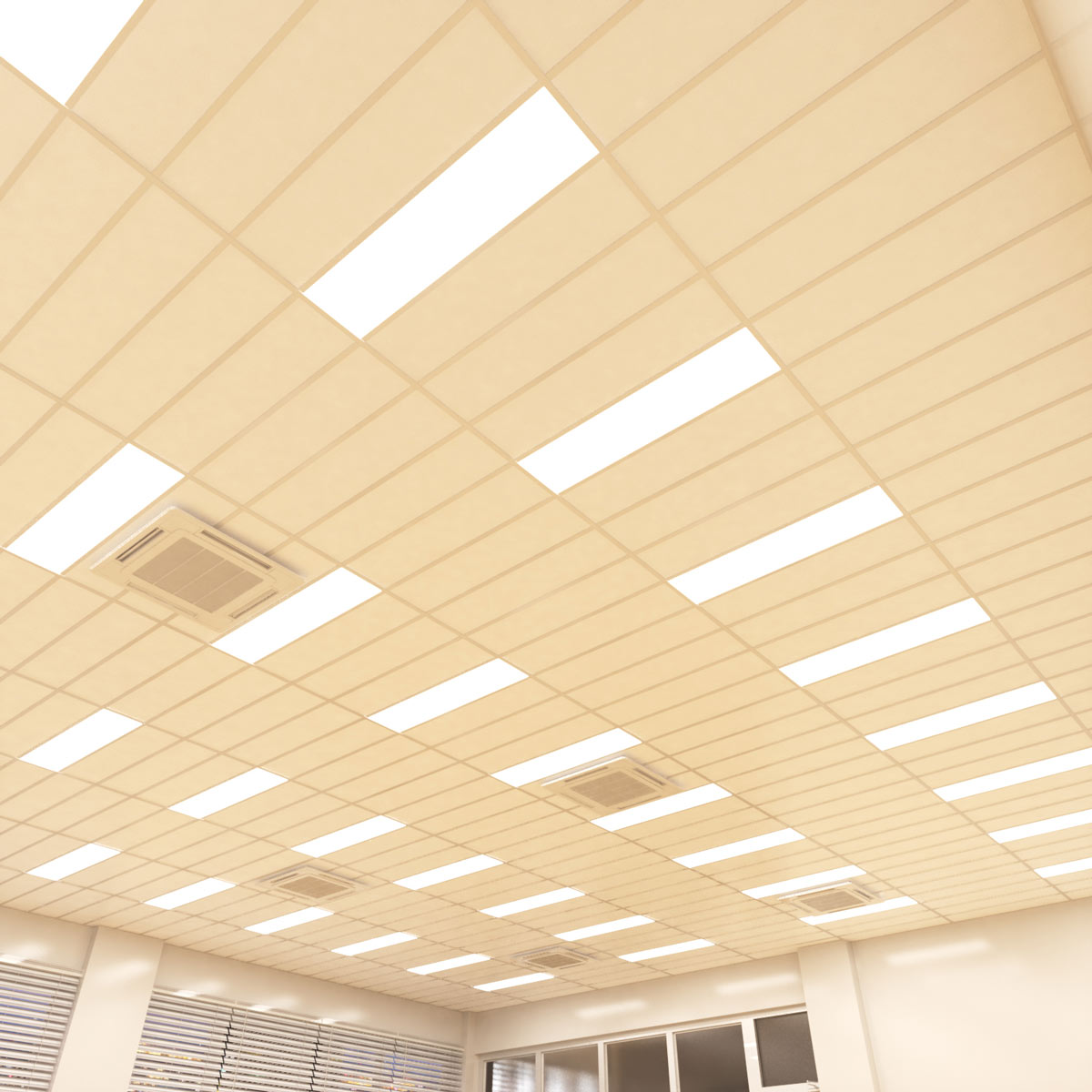

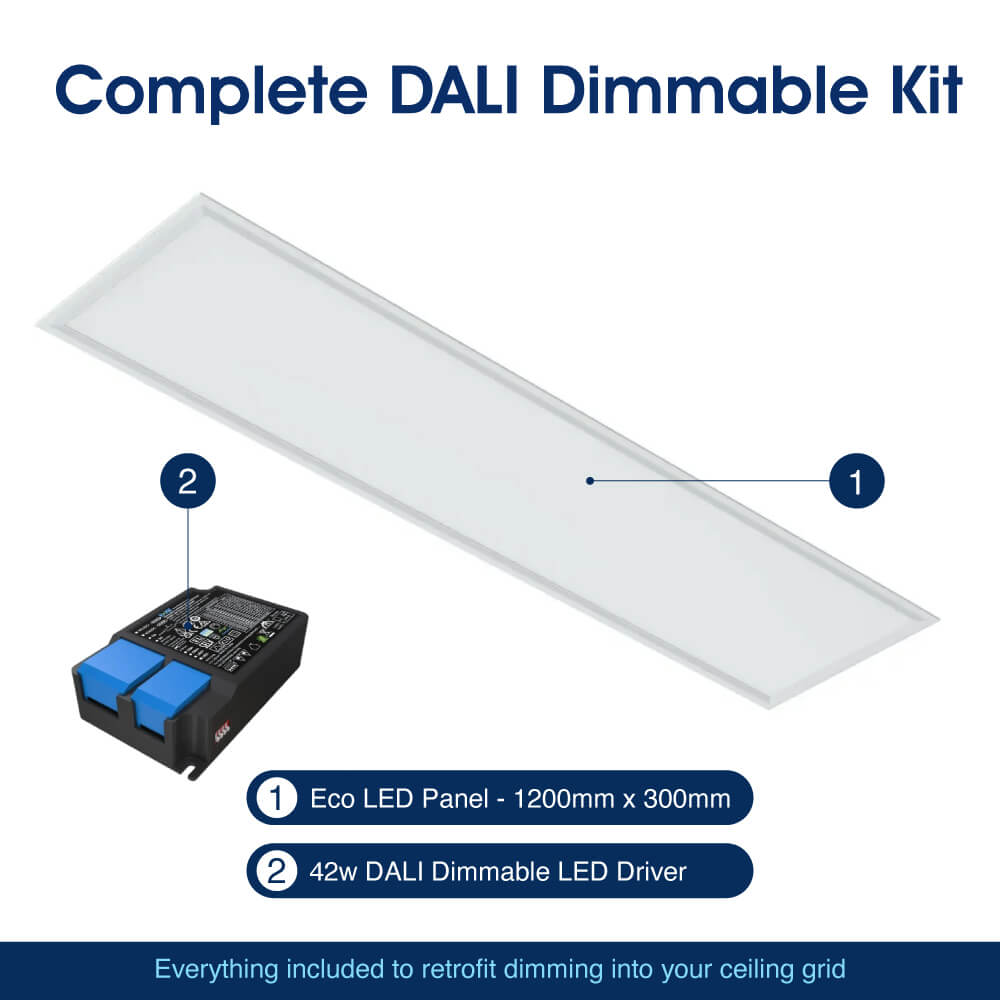

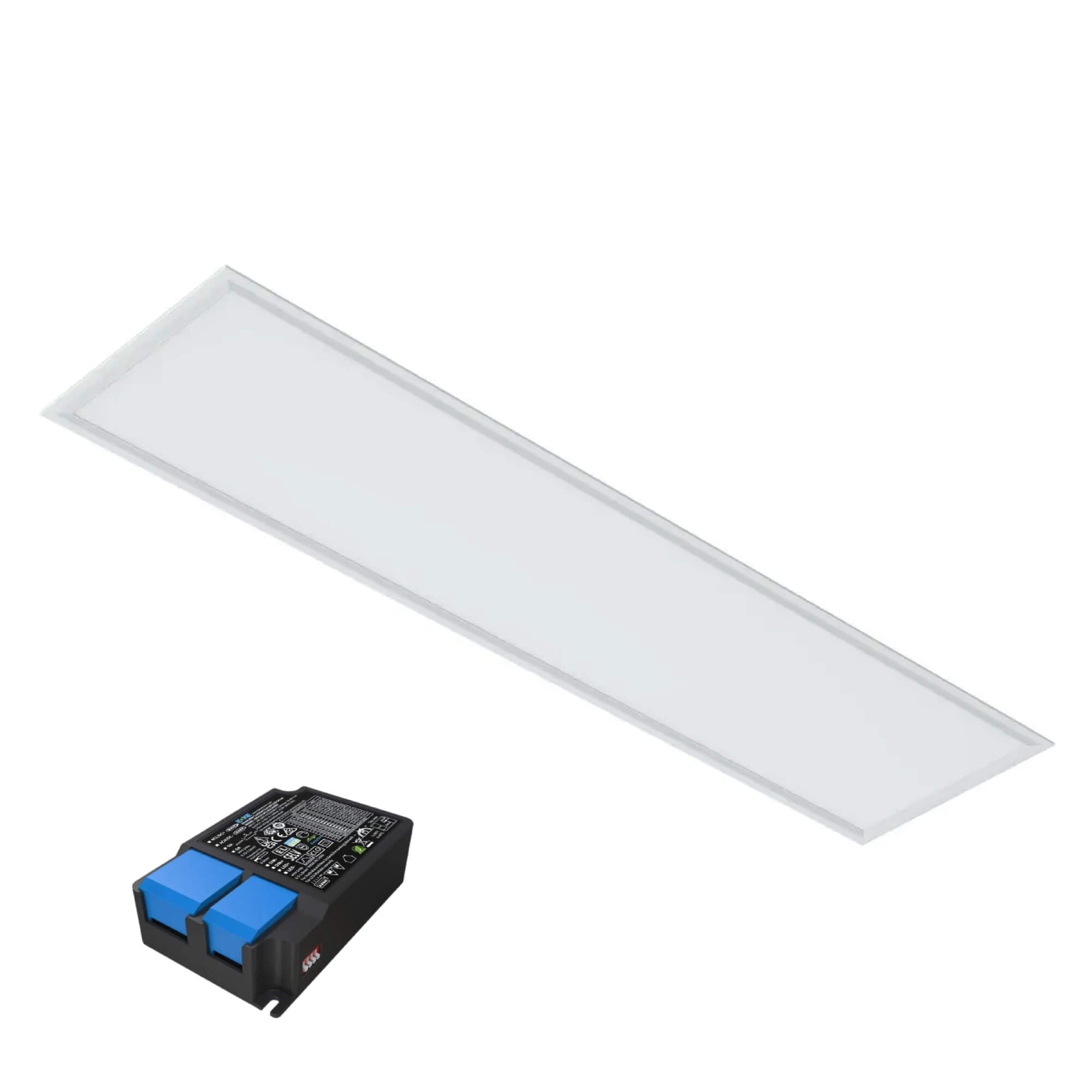

This 1200x300 LED panel comes as a kit with its own DALI dimmable driver. It is made for offices, schools, shops and other commercial spaces, and drops into a standard suspended ceiling grid. It gives 4000 lumens from 40w, using less power than the fluorescent fittings it replaces.

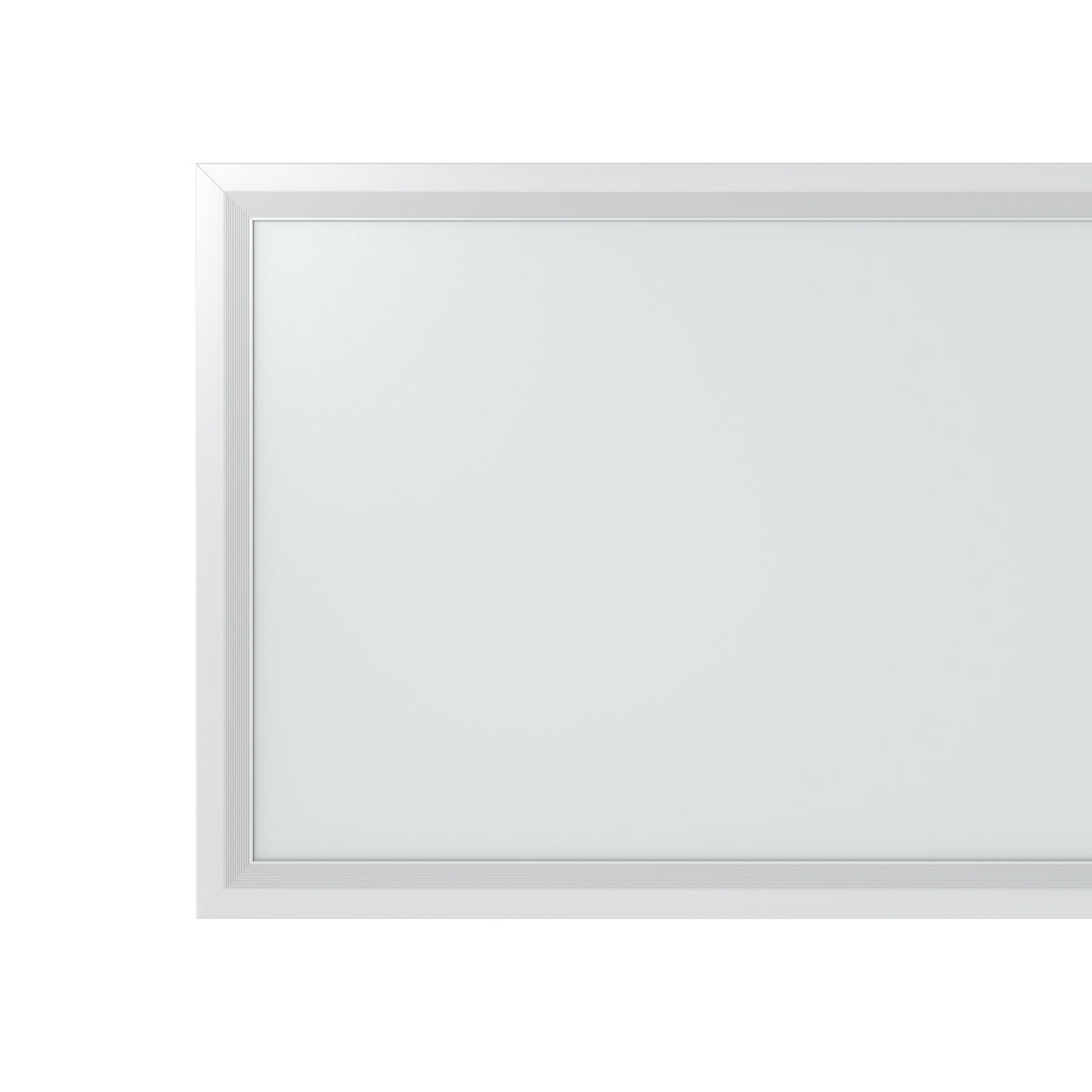

Back-lit for even light

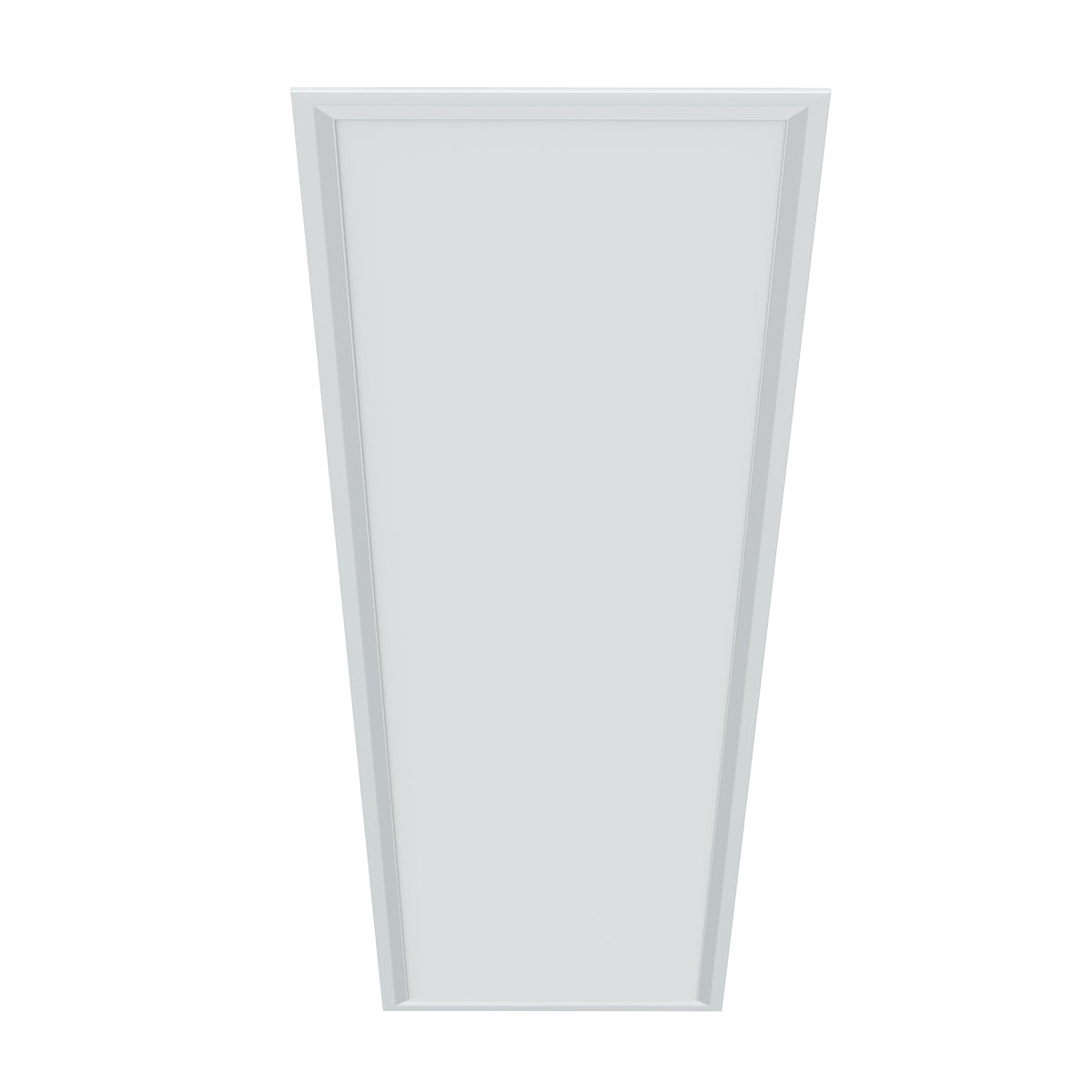

The LEDs sit behind the diffuser, so light spreads evenly across the whole face of the panel with no hot spots or patchy edges. A 110° beam covers desks and walkways without harsh shadows.

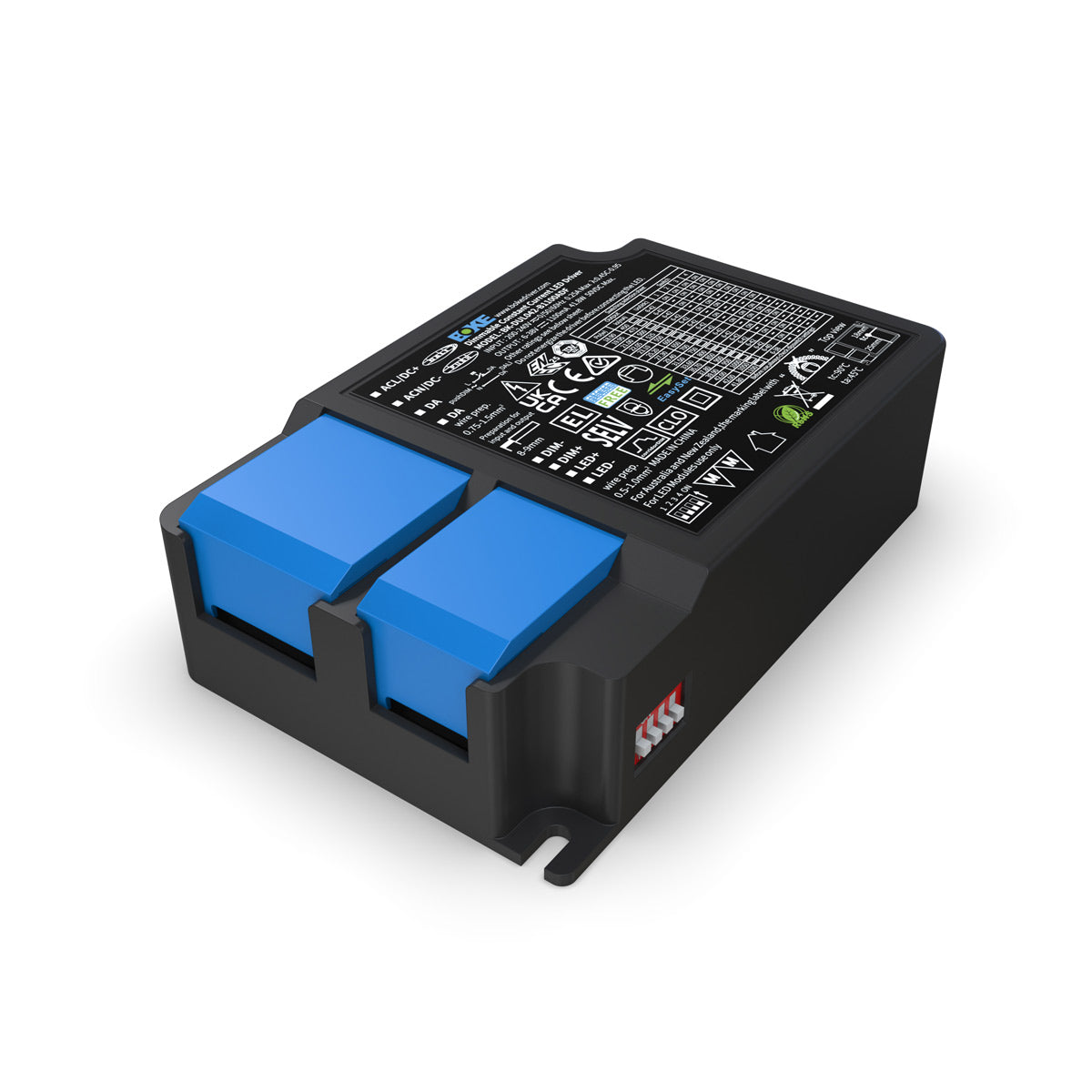

Three ways to dim

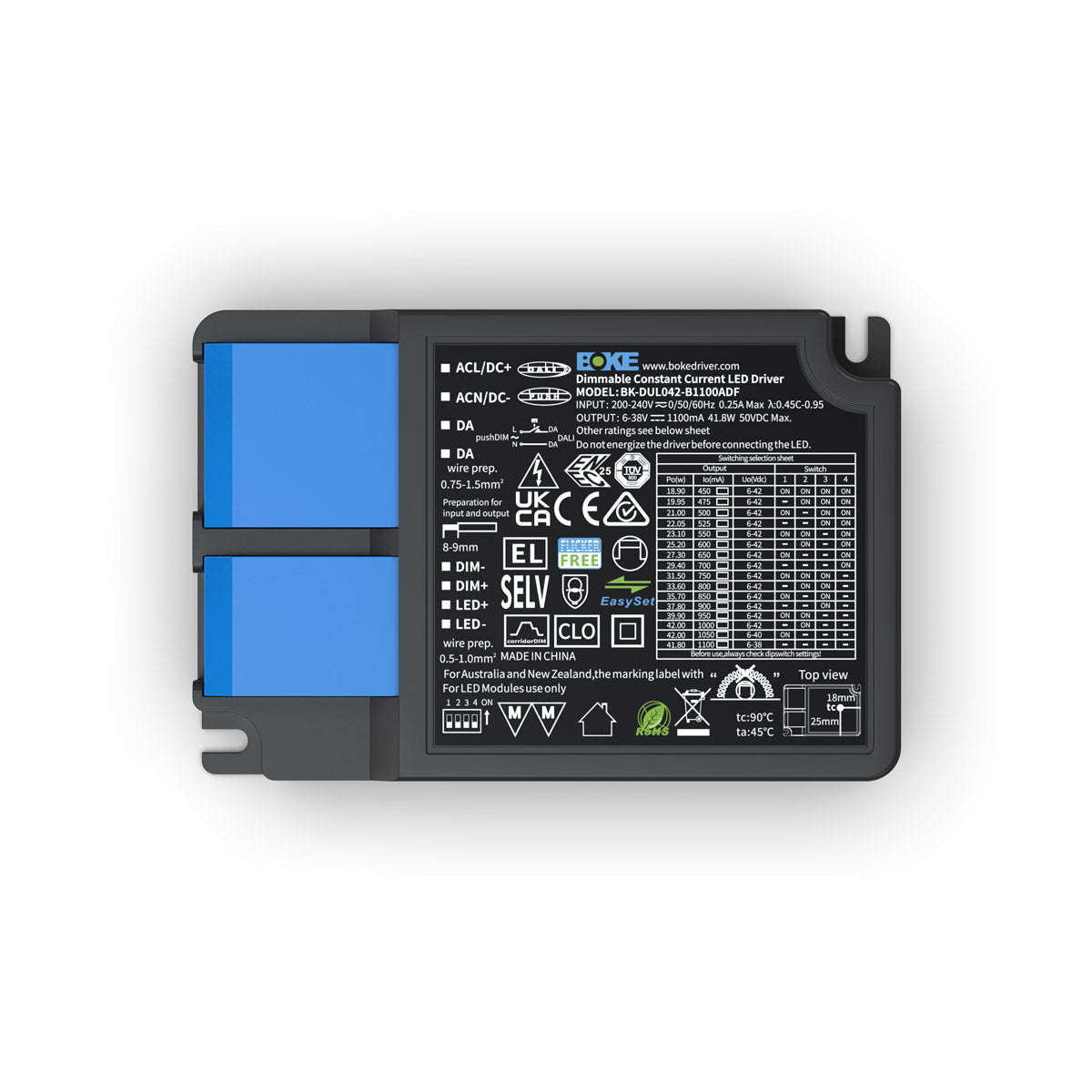

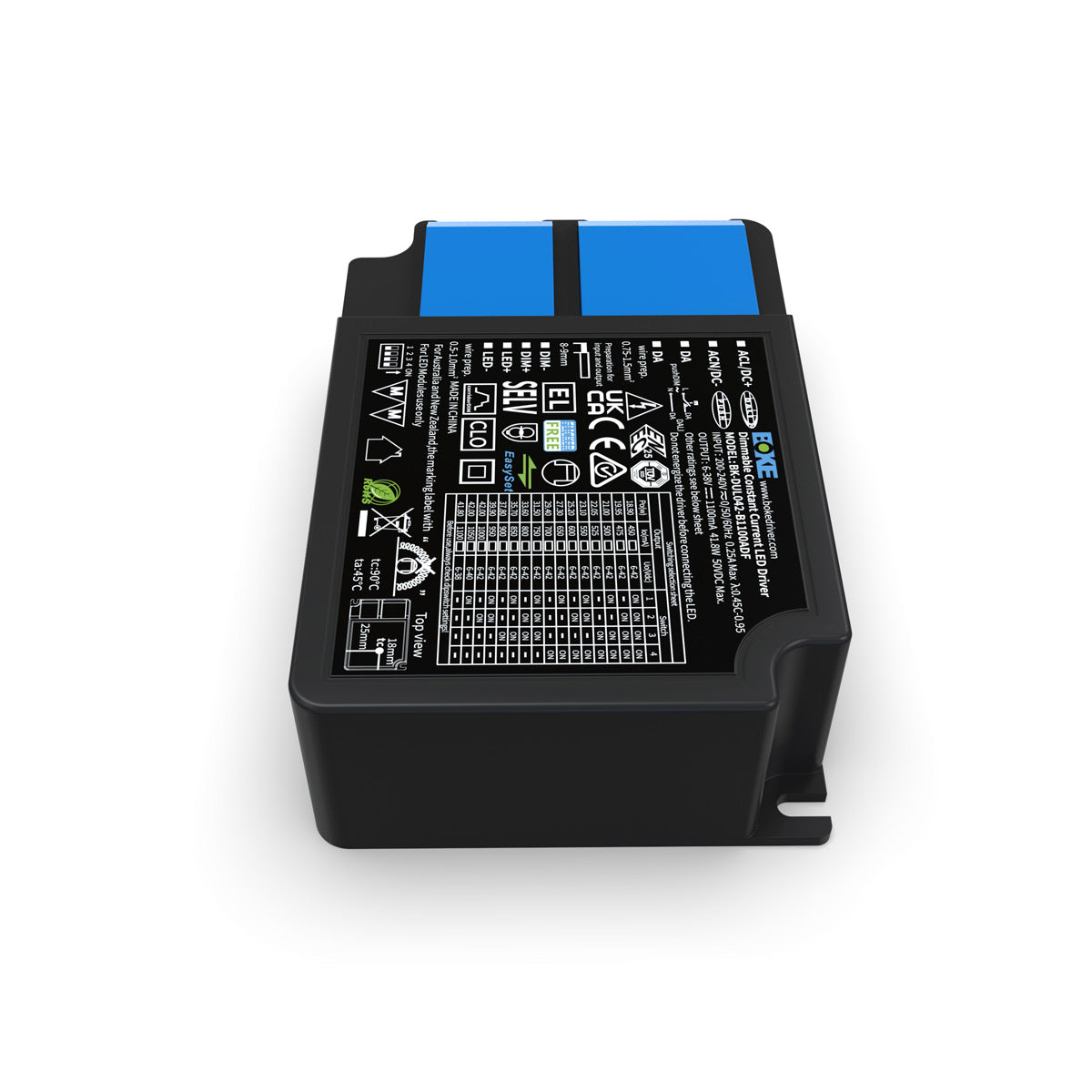

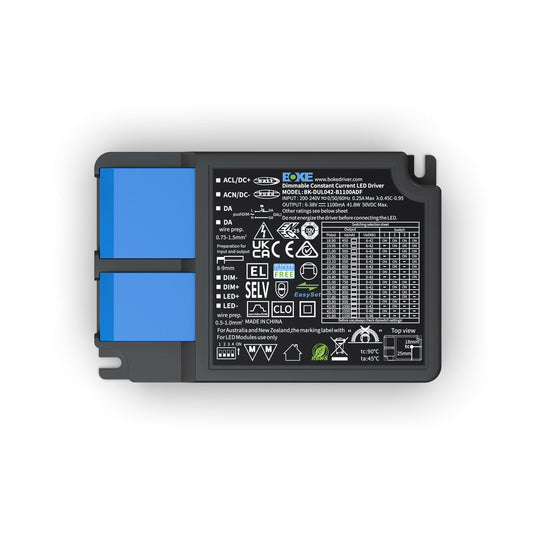

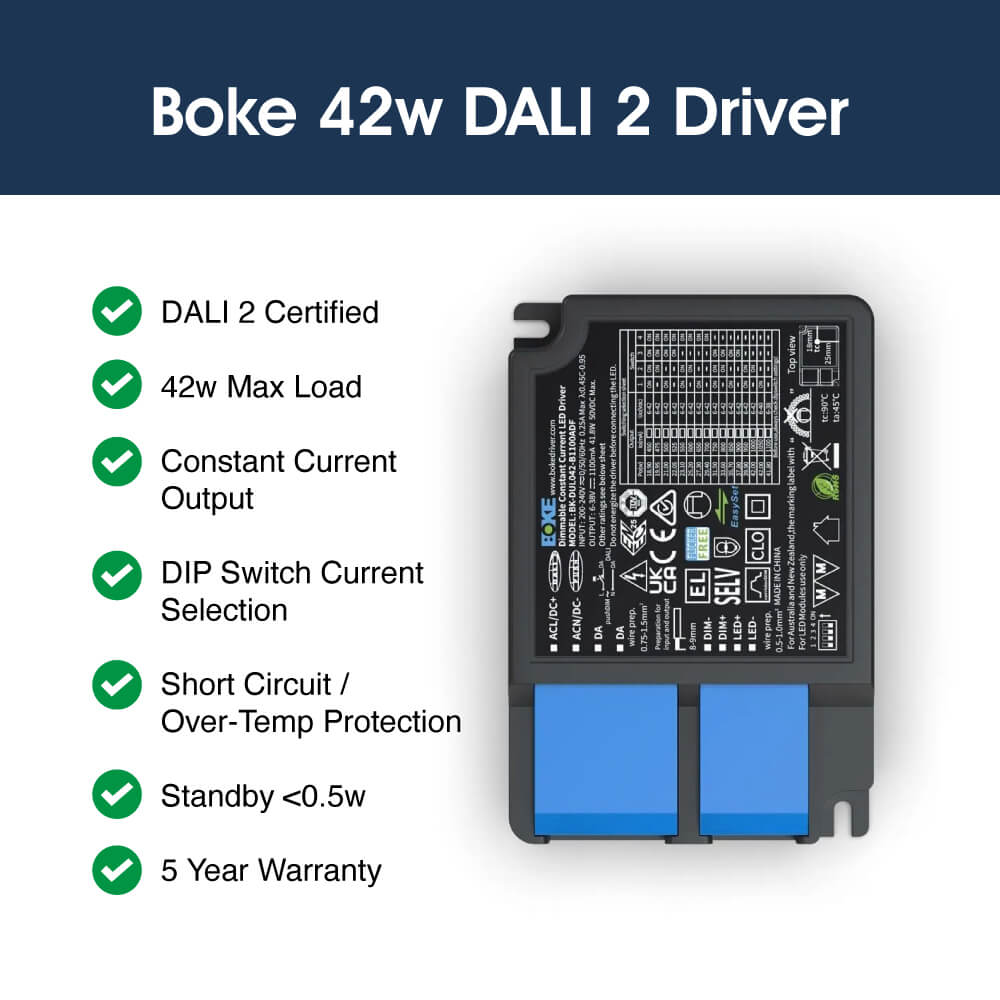

The 42w driver dims by DALI if you have a system in place, or by push dimming or 0-10v if you don't. Dimming lets you match the light to occupancy and daylight and cut running costs. The driver runs on 220-240v, gives a 6-42v output and has short-circuit, over-current and over-temperature protection. It measures 123.5 x 81.5 x 23mm, small enough to sit in the ceiling void.

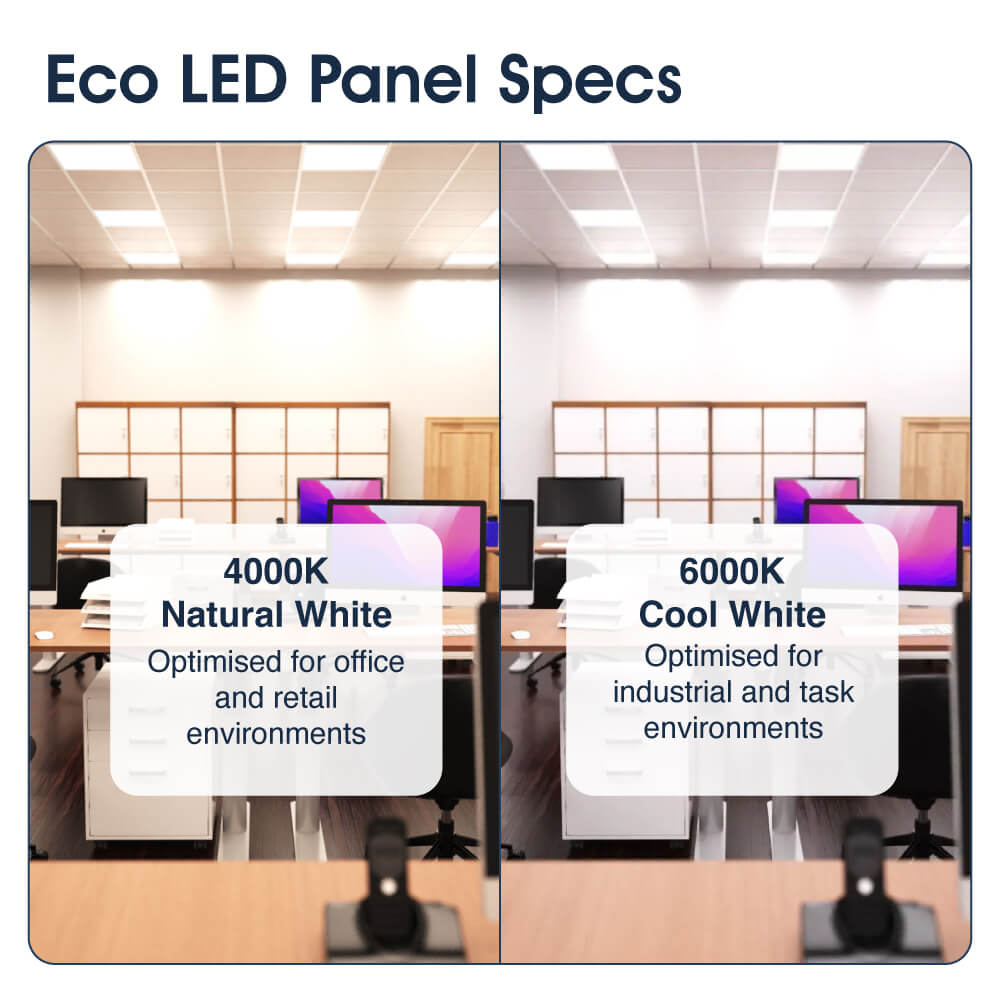

Cool or natural white

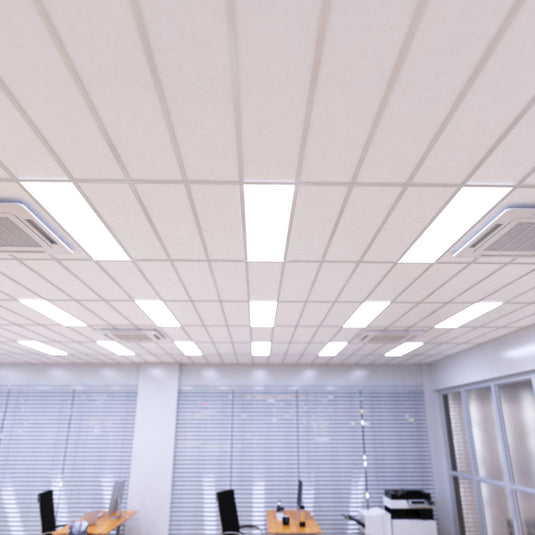

Choose cool white (6000K) for a crisp, high-clarity light in offices, classrooms and healthcare settings, or natural white (4000K) for a more balanced tone in shops, meeting rooms and general areas.

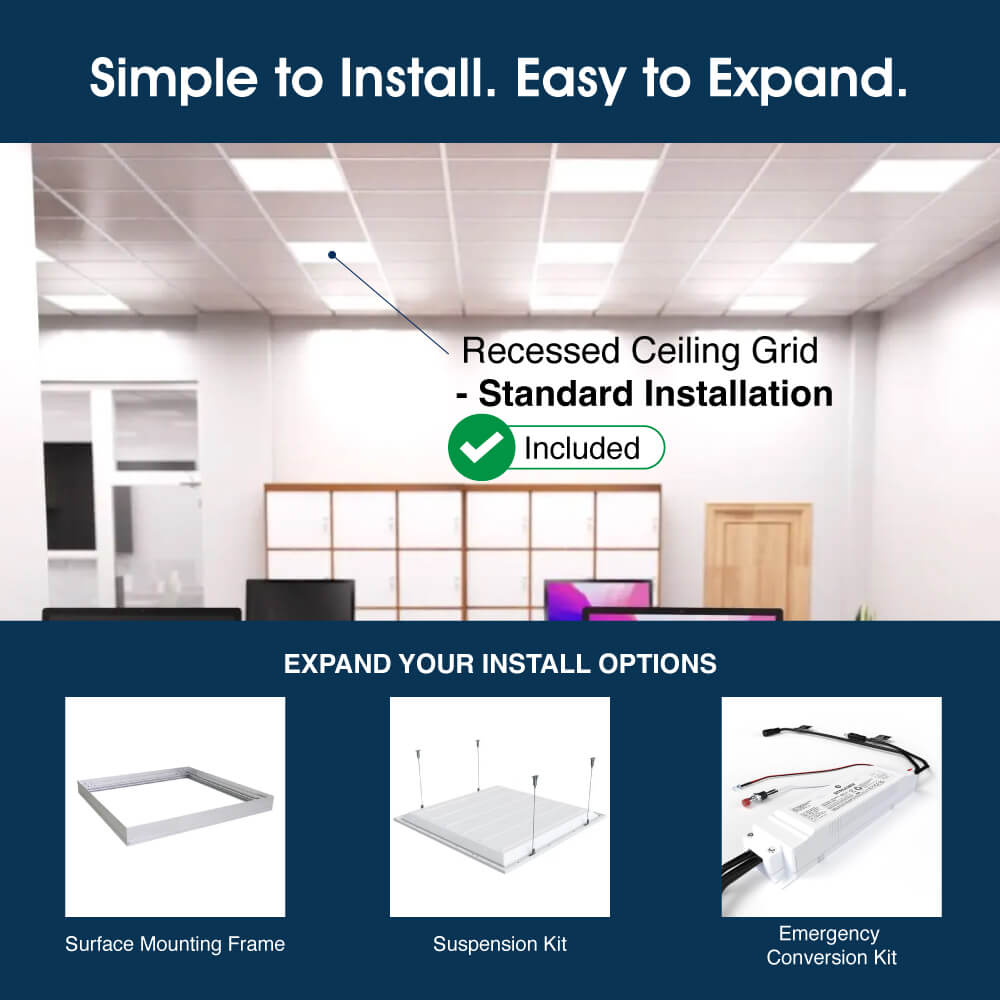

Slim and easy to fit

The panel is 34mm deep and IP20, for indoor use. Rated life is 30,000 hours. A suspension kit, a surface mounting frame and an emergency conversion kit are sold separately.

Specifications

• Panel size: 1200 x 300mm
• Depth: 34mm
• Power: 40w
• Brightness: 4000 lumens
• Beam angle: 110°
• Colour: cool white 6000K or natural white 4000K
• IP rating: IP20
• Driver: 42w DALI dimmable
• Dimming: DALI, push dimming or 0-10v
• Driver input: 220-240v
• Driver output: 6-42v
• Driver size: 123.5 x 81.5 x 23mm
• Rated life: 30,000 hours
