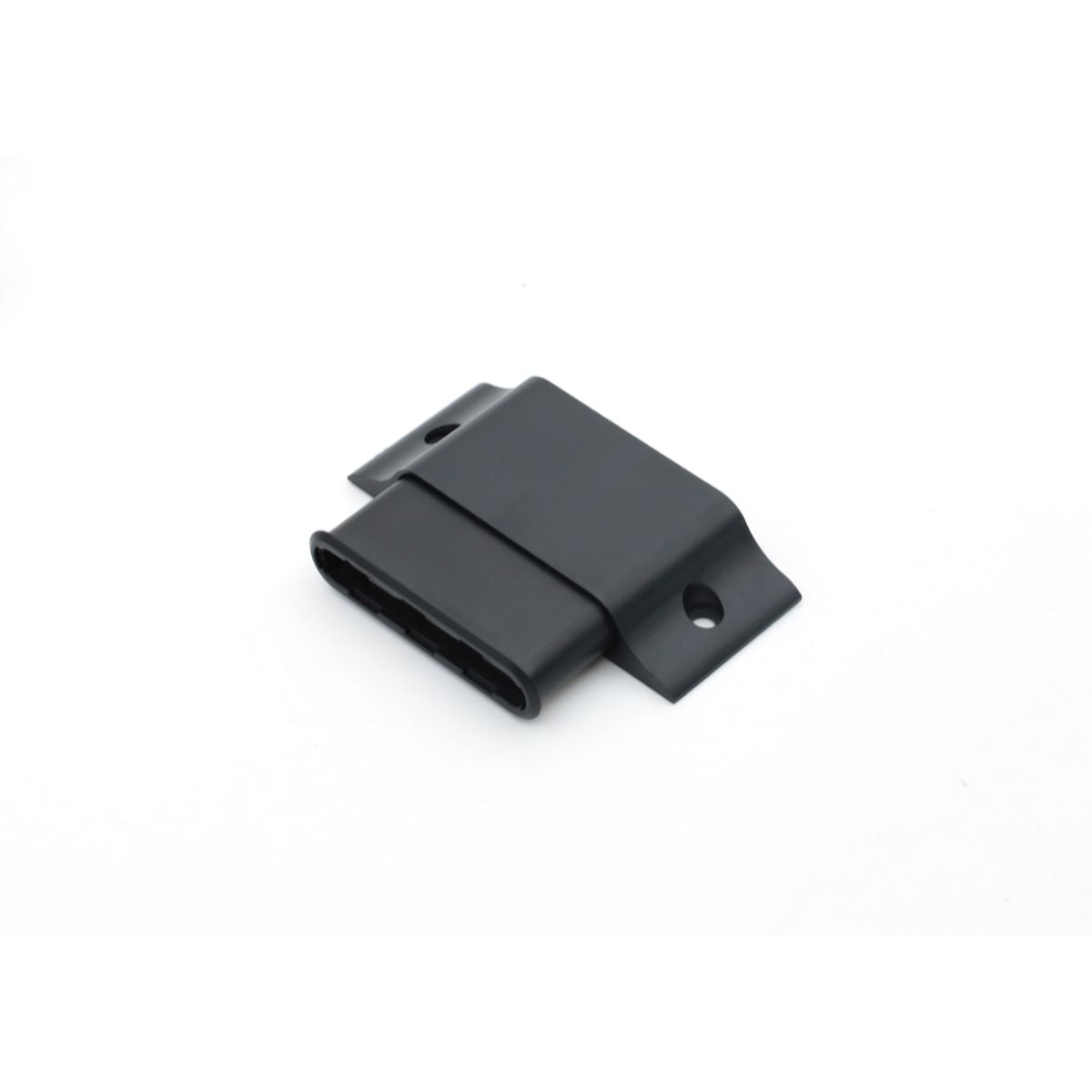

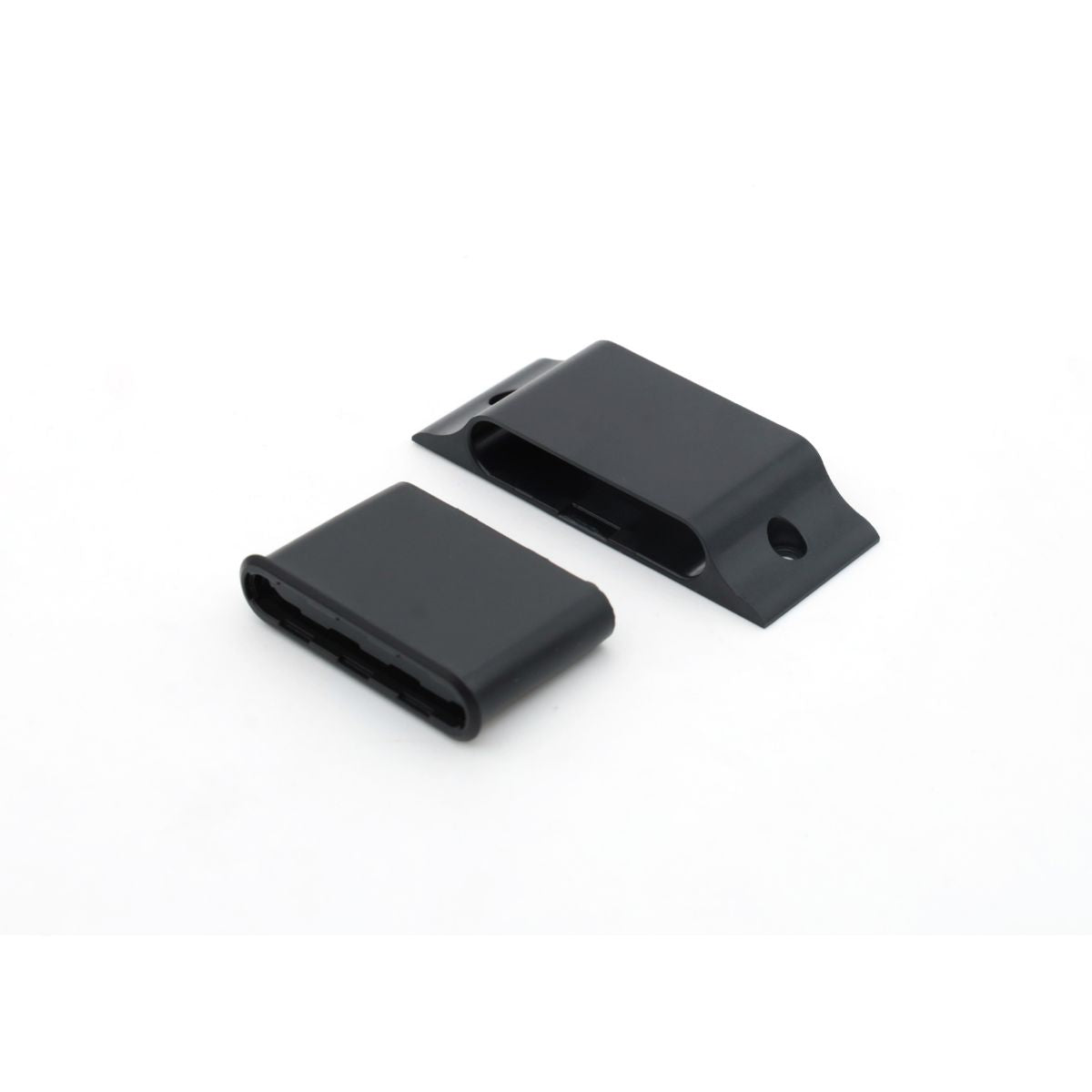

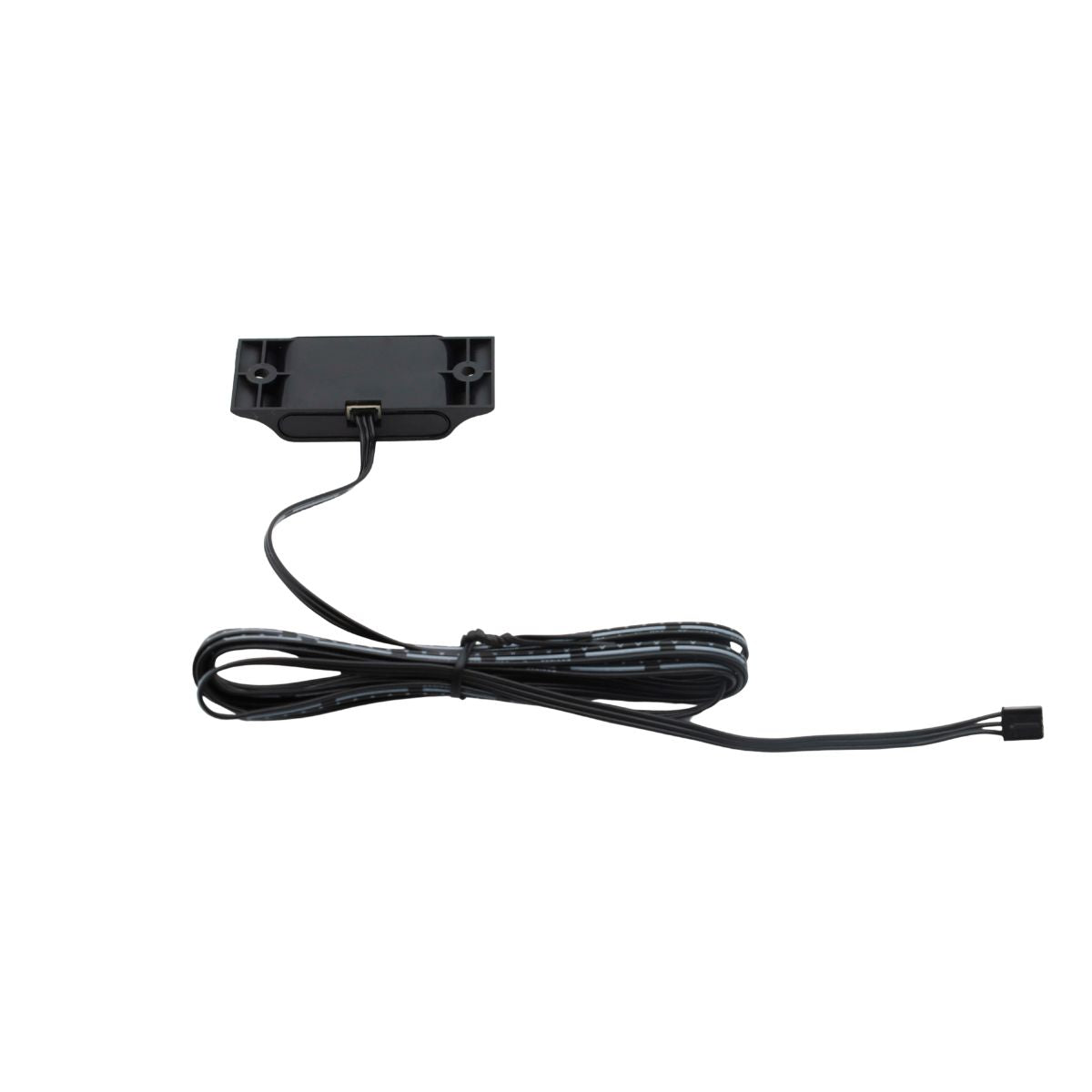

Double Door Sensor for Plug and Play Furniture LED Drivers, 12-24V DC, Black

Light a double door cupboard

This double door sensor lights a cupboard or wardrobe with two doors without a separate switch. The lights come on when either door opens and go off when both doors are closed, so it works whichever side is opened first.

Plugs into the driver

The sensor has a 2m lead and plugs into the dedicated sensor port on a compatible 24V plug and play furniture driver. It doesn't use one of the light outputs. The driver and lights are sold separately.

Group control

The sensor switches all the compatible cabinet lights, LED strips and profiles connected to that driver together. It doesn't switch each light on its own, so use separate drivers for areas that need different controls.

Plan it with the furniture

Decide where the sensor will sit for both doors before you fix panels or route the cable. It is an on/off control; for adjustable brightness, choose a dimming control from the same range instead.

Specifications

• Control: double door sensor
• Operation: either door open, on; both doors closed, off
• Input voltage: 12-24V DC
• Lead: 2m
• Finish: black
• Connection: driver sensor port
• Controls: the compatible lights on that driver

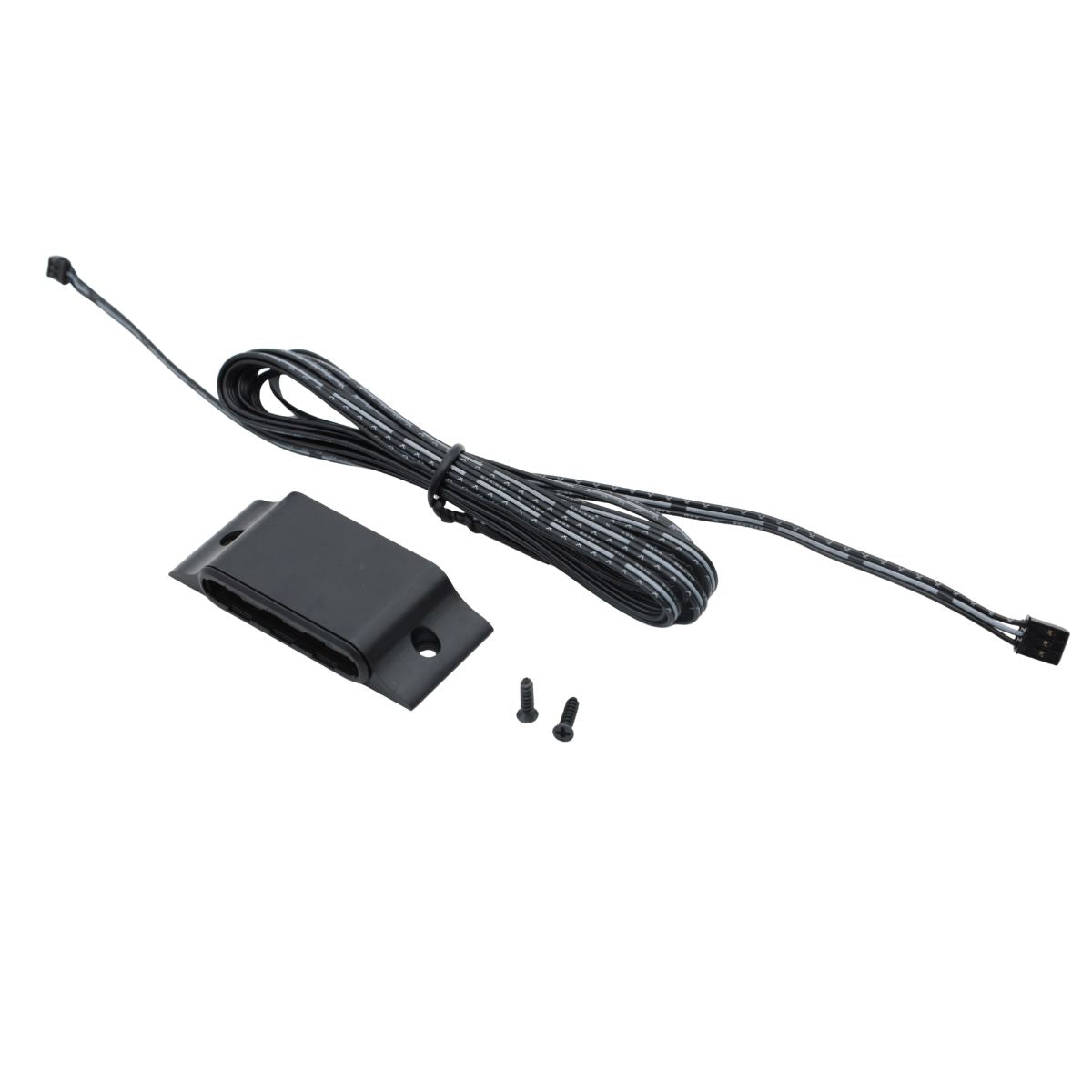

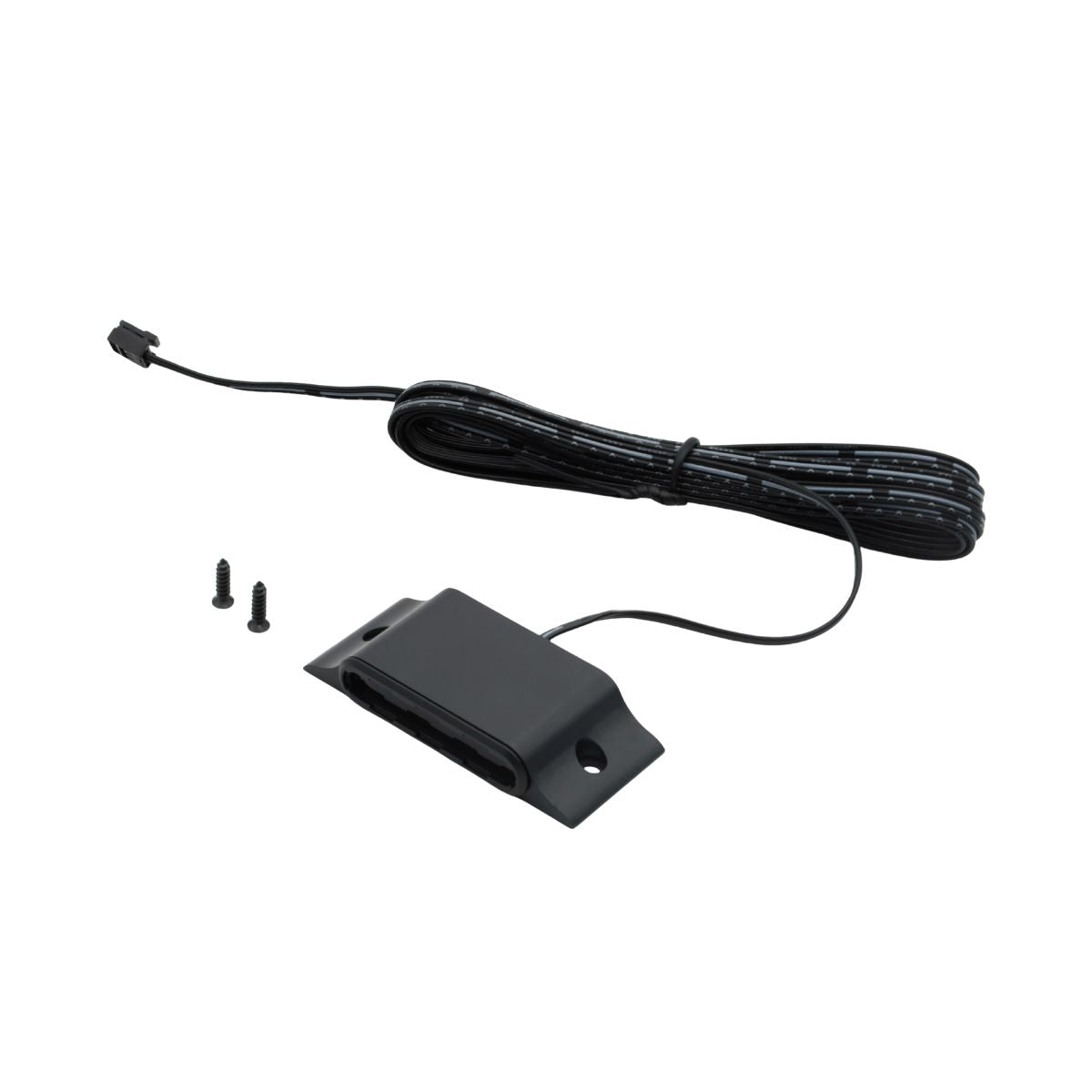

• In the box: sensor, mounting bracket and screws
